Product Overview
Description
Product Description

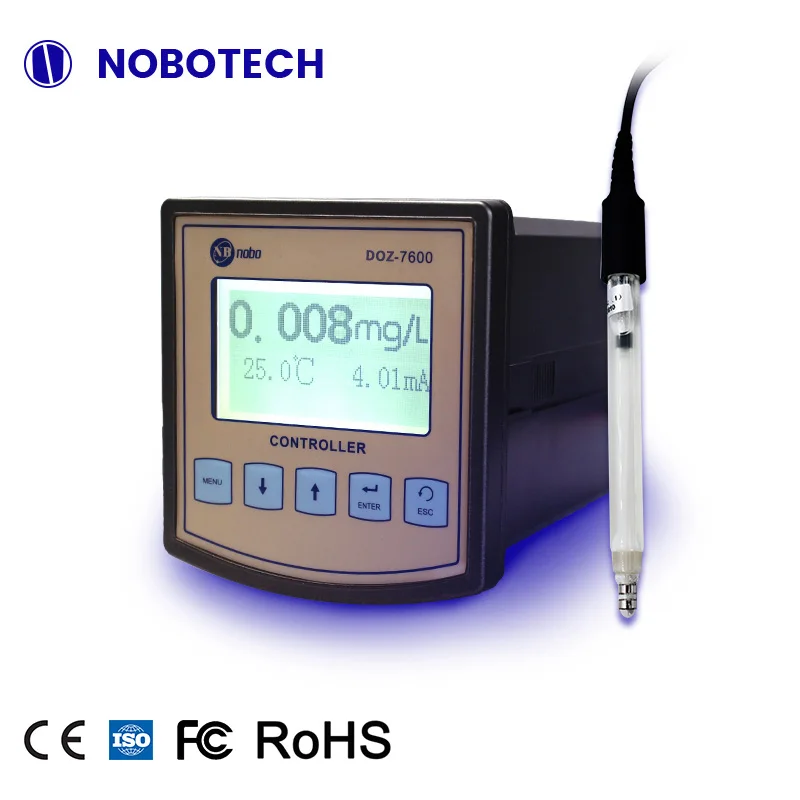

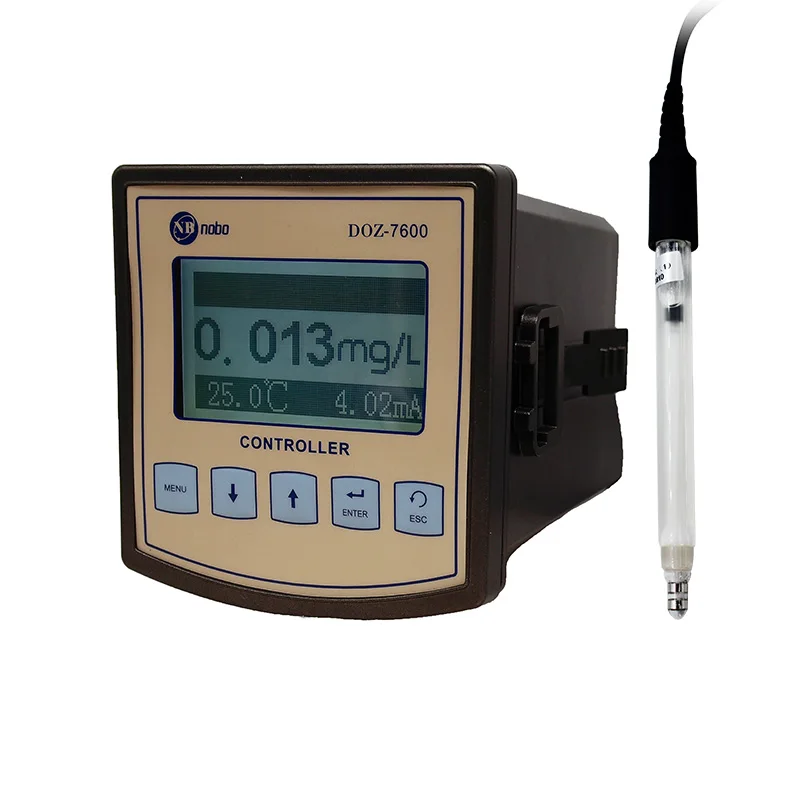

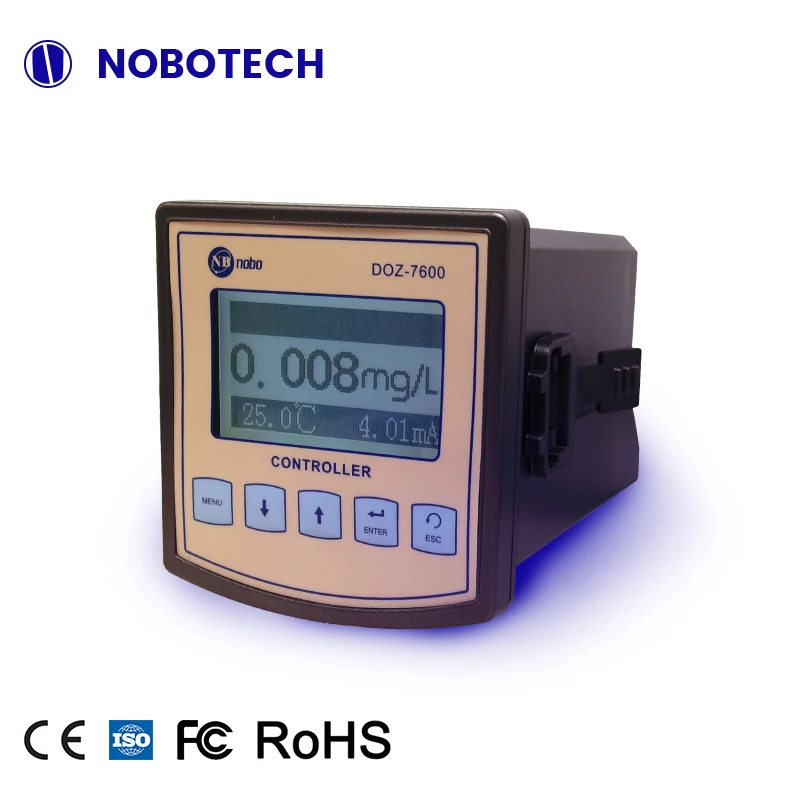

DOZ-7600 Intelligent dissolved ozone in water analyzer is widely used in water treatment plant, canning factory, beverage factory, swimming pool, water cooling etc. It is designed for continuous detection and control of amounts of ozone in liquid.
DOZ-7600 is a high-end online ozone detector, it has two 4-20MA outputs, with automatic cleaning electrode device output, maintenance is very simple, at the same time he also has RS485 communication, you can connect our DTU through RS485 communication, and then use Mobile phone or computer can view data in real time.
Detailed Images
ADVANTAGE.

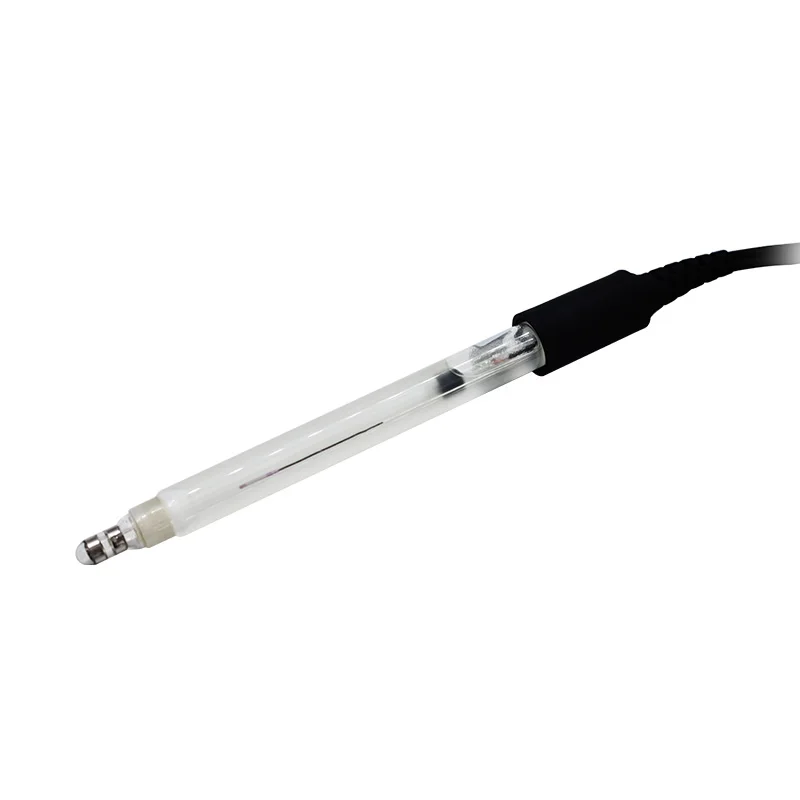

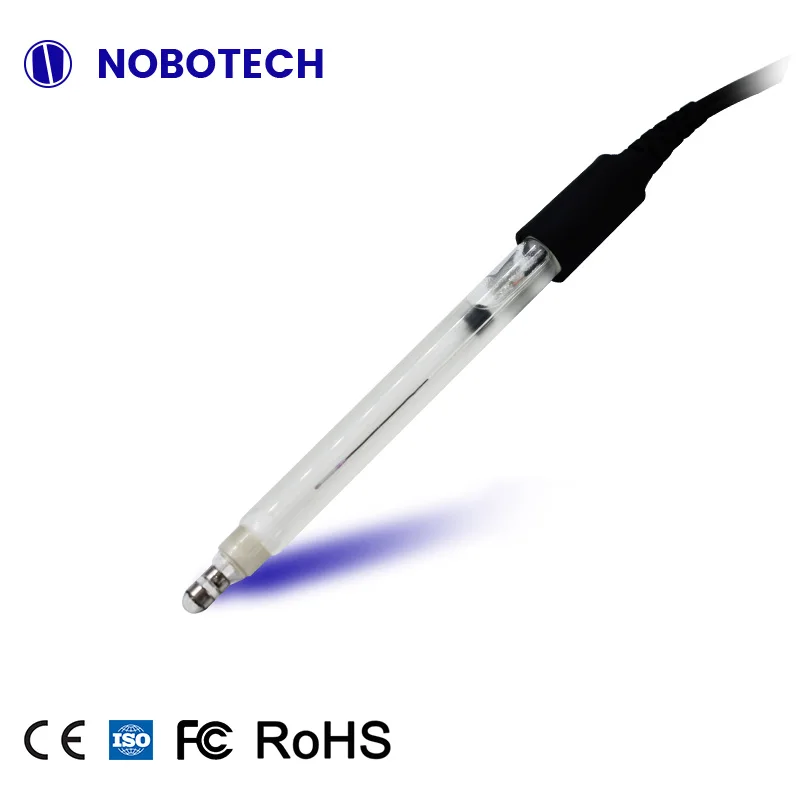

The advantage of the probe is that there is no need to add reagents, no need to replace the membrane head, maintenance is simple, and the service life is twice that of other electrodes.

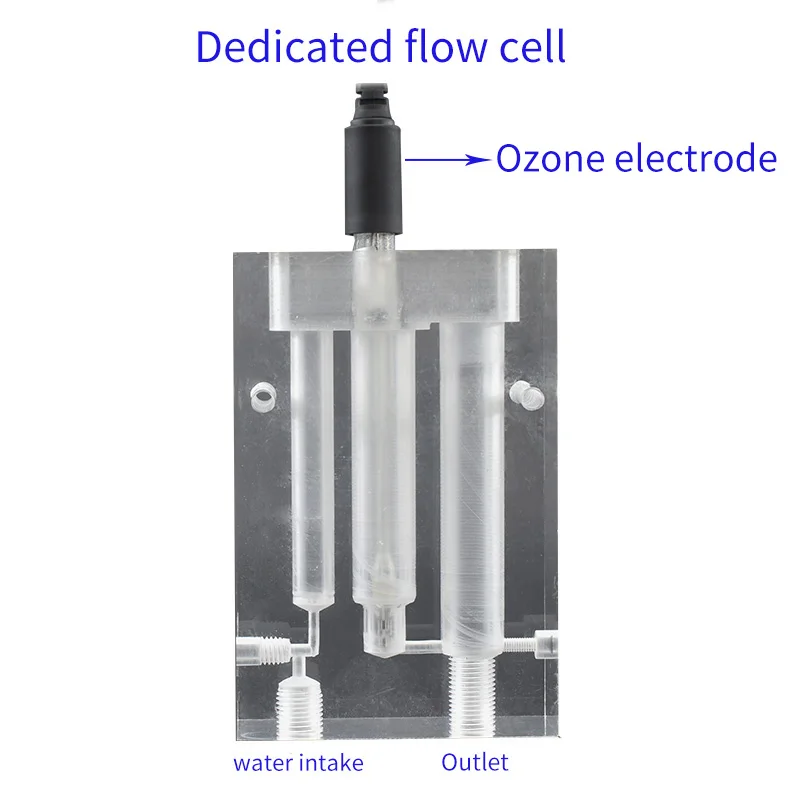

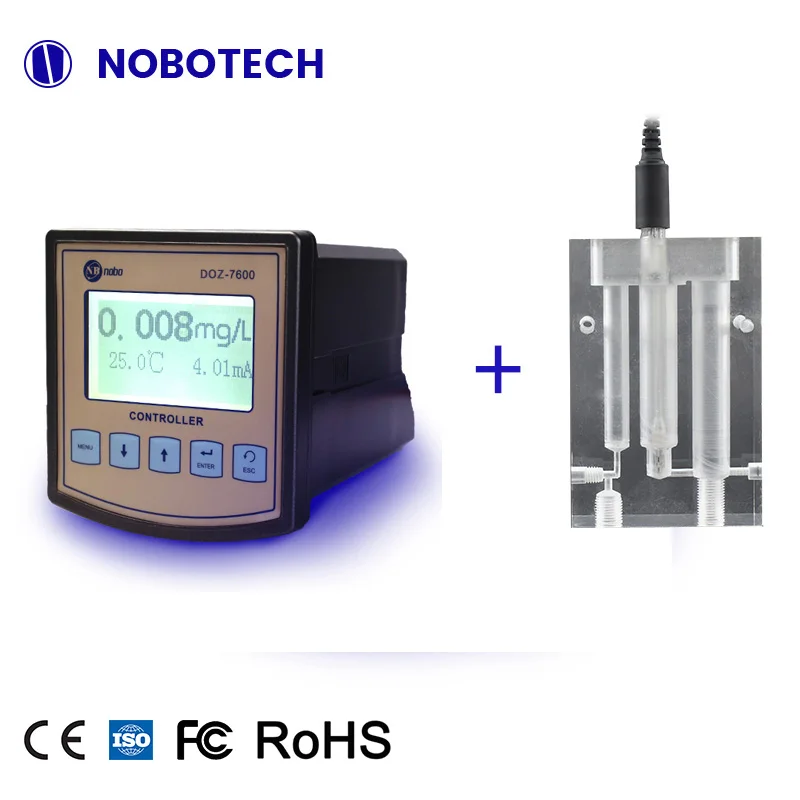

The probe uses a high-precision potential probe. Due to the requirement of high precision, we also send a free flow slot to make the measurement more accurate.
The probe uses a high-precision potential probe. Due to the requirement of high precision, we also send a free flow slot to make the measurement more accurate.
◇Measuring range | ozone 0-20.00 mg/L(ppm), | ||||
◇Resolution | 0.01mg/L, | ||||
◇Accuracy | ±1% or ±0.01 mg/L, | ||||
◇Control interface | Two groups of ON/OFF relay contact, divided into high and low alarm control | ||||
◇Analog output | 4~20mA | ||||
◇Relay | the relay lag value can be set freely. Relay load :3A 220VAC/24VDC. | ||||
◇Working conditions | environmental temperature of 0~60℃, relative humidity ≤90% | ||||
◇Output load:<750Ω(4-20mA) | ◇Working voltage: 220VAC10%,50/60Hz. | ||||
◇Dimension :96x105×168 mm | ◇Hole size:92×92mm | ||||
Main Features | ||||||
◇Protection Grade:IP65 (waterproof, dust-proof and damp-proof) | ||||||
◇Digital LCD display and English operation menu . | ||||||
◇The main components are imported from foreign famous brand. | ||||||
◇High accuracy , high stability and strong anti-jamming. | ||||||
◇Temperature compensation function: manual/automatic. | ||||||
◇Watchdog:make sure the meter does not go dead. | ||||||
◇ABS plastic casing (waterproof, dust-proof and damp-proof). | ||||||
◇Analog output: 4~20mA | ||||||
◇Multi- parameters showed at the same time:Ozone value, temperature, output current, and alert of range ability etc. | ||||||
◇Using advanced new-style constant voltage sensor. No need to change mebranes and reagents. It is easy to maintain, high sensitivity, high stability and quick response. | ||||||
