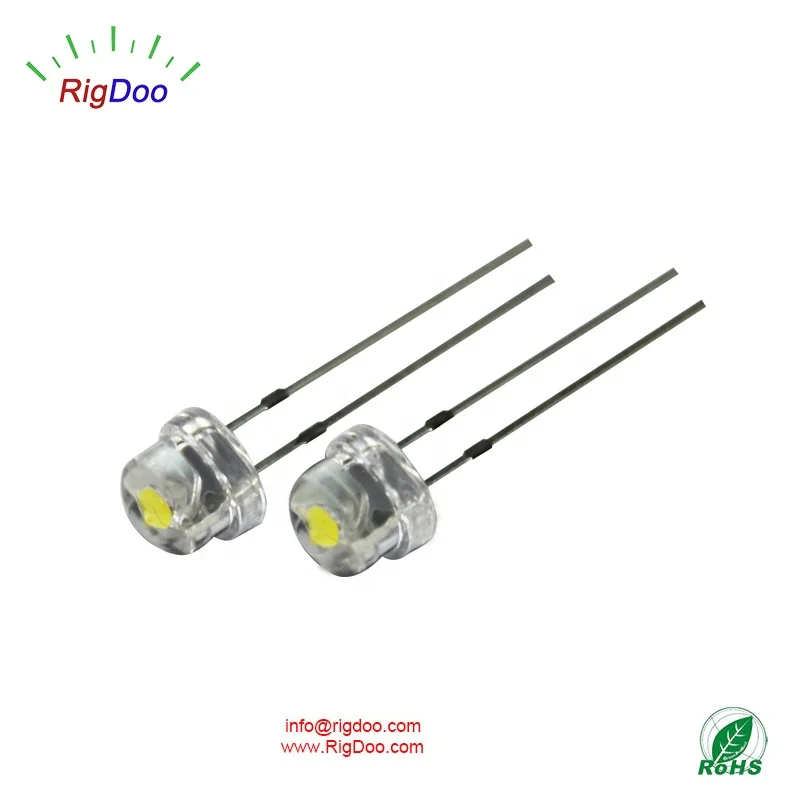

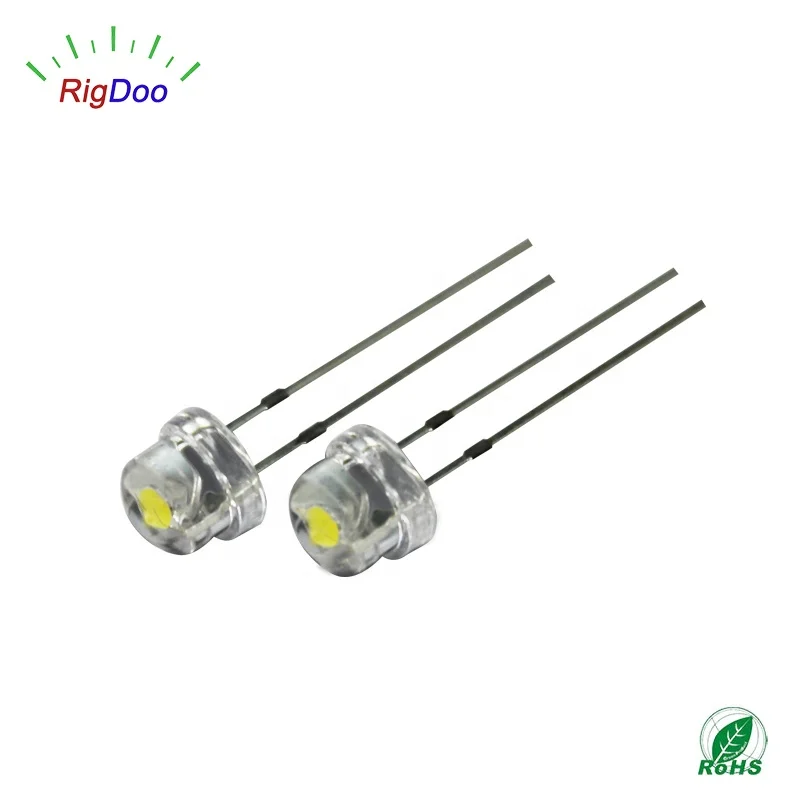

Quality Cheap RoHS DIP Light Emitting Diode Warm White Through Hole 5mm Strawhat LED White Lamp LED With Water Clear Lens
Quality Cheap RoHS DIP Light Emitting Diode Warm White Through Hole 5mm Strawhat LED White Lamp LED With Water Clear Lens
Products Description
Features
Package ( L/W/H ) : 5mm Strawhat Color : Ultra High Bright Natrual White Lens: Water Clear Flat Mold Meet ROHS, Green Product

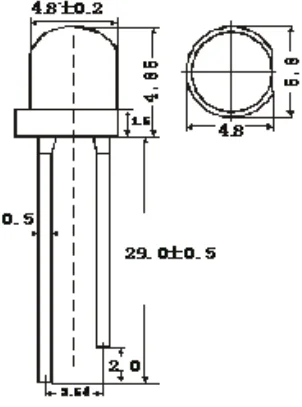

Package Profile & Soldering PAD Suggested
Absolute Maximum Ratings At Ta=25℃
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
75
mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
70
mA
DC Forward Current
IF
20
mA
Reverse Voltage
VR
5
v
Operating Temperature Range
Topr
-40C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 100C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds
Electrical Optical Characteristics At Ta=25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Luminous Intensity
IV
800
25000
mcd
IF = 20mA
Viewing Angle
2θ1/2
---
120
---
deg
IF = 20mA
CIE 1931 Coordinate
X/Y
---
X:0.29 Y:0.29
---
----
IF=20mA
Color Temperature
CCT
2500
---
12500
K
IF=20mA
Forward Voltage
VF
2.8
3.6
V
IF=20mA
Reverse Current
IR
---
5
uA
VR=5V
Packing
Certificates
Applications
Backlight for Indicator Board
Backlight for Automobile Meter
Backlight for Digital and Marks
Backlight for Digital,words and Marks
Indicator Application
Backlight for Keyboard and Nameplate
LED Lighting
LED Strips, LED Strings
LED Screen
Company Information
Company Profile
Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry. RigDoo specially R&D, manufacture and sales LED, SMD LED, Through Hole LED and High Power COB integrated LED.
We have hundreds of machines of Crystal Bonders (ASM), Wire Bonders (ASM, K&S), Dispensing Machines (Musashi), Molding Machines (Single Well), Slicing Machines (DISCO), Sorting Machines (Ka Large, Single Well, Tripod) and Tape Loading Machines (Mason, Ka Large, Single Well and Tripod) etc..
For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB, RGBW, RGBWW etc..
For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..
For High Power COB integrated LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
Our factory are with certificates of ISO9001 and ISO14000. Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
