Product Overview
Description

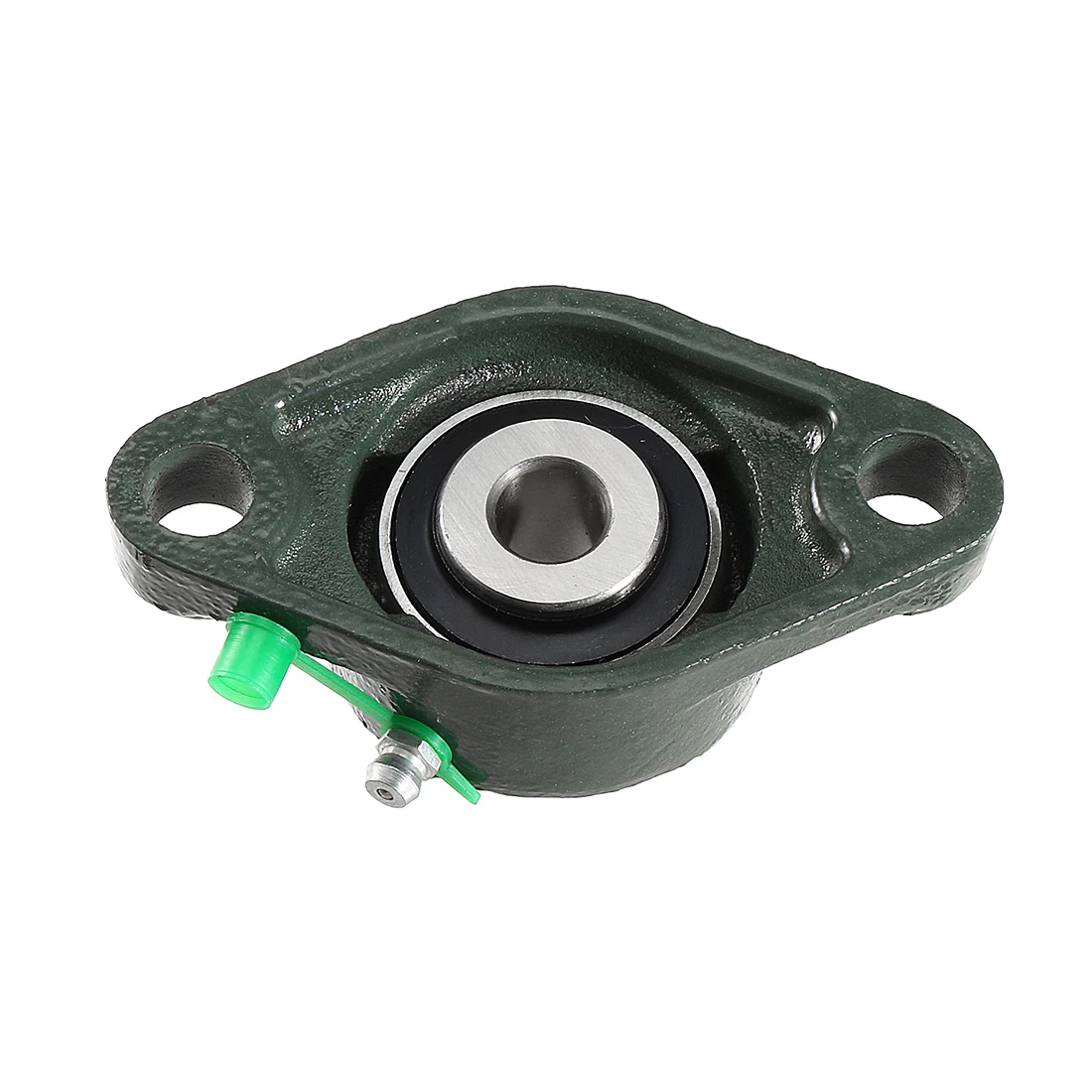

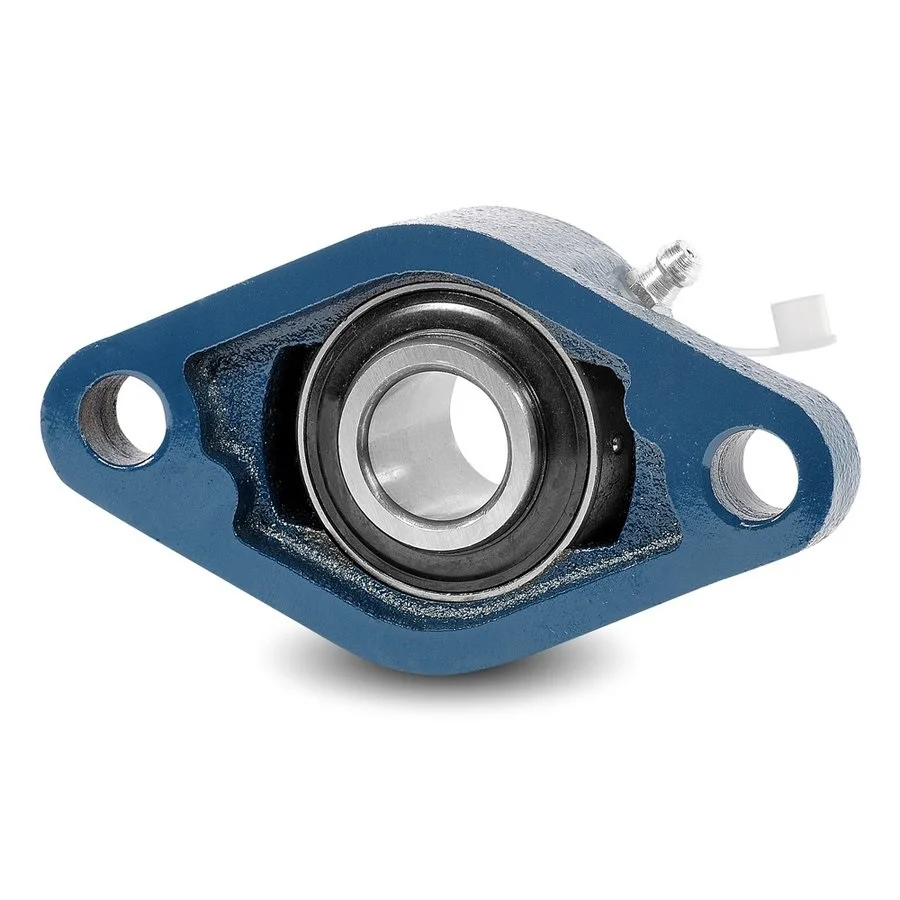

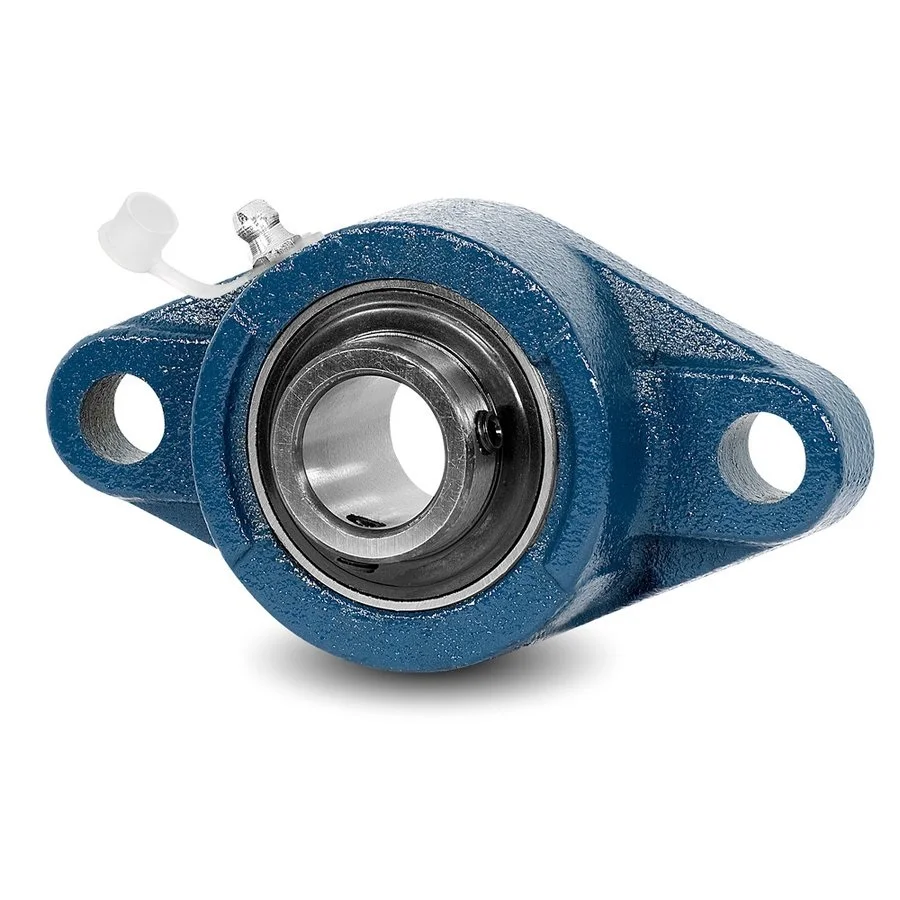

UCFL205 2 Bolt Flange Pillow Block Bearing
25mm Inside Diameter, Set Screw Locking, Cast Iron, Metric
C&H supply high quality cast iron pillow block bearings.
The housing is made from high grade cast iron.
The rings and balls of insert bearing is made from ultra pure chrome steel.
Product Features
- Housing: Gray Cast Iron HT200
- Bearing Insert: Chrome Steel
- Bearing Seal: Standard Nitrile Rubber protected with Slinger
- Slinger: Sheet Steel
- Grease Nipple: Carbon Steel - Clear Zinc Plated
- Set Screw: Carbon Steel - Oxided Black
- Grease: Chevron SRI-2
- Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )

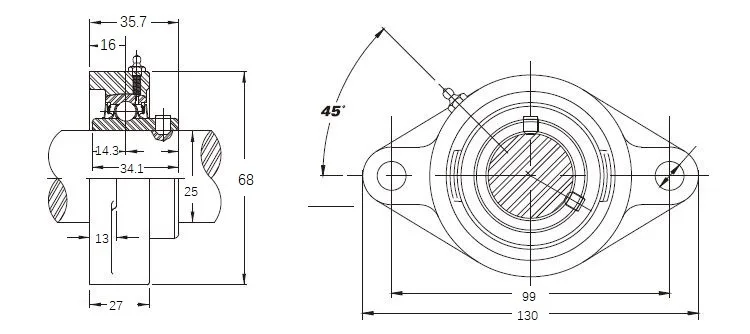

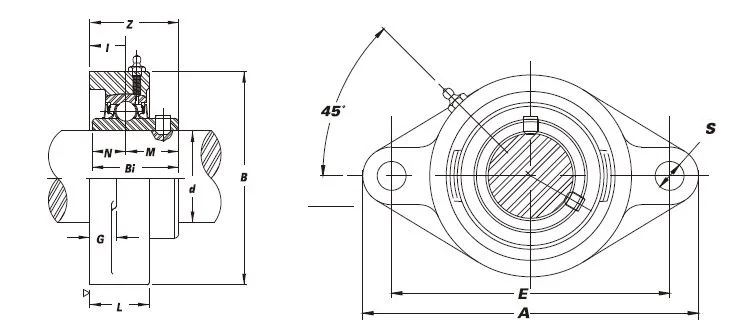

Specifications
d - bore | 25 mm |
| a - total length | 130 mm |
| e - bolt hole spacing | 99 mm |
| i - base to center height | 16 mm |
| z - total height | 35.7 mm |
| b - total width | 68 mm |
| Bearing No | UC205 |
| Housing No | FL205 |
| Weight | 0.58 kg |
UCFL200 Series 2 Bolt Flange Bearing Units
| Designation | Shaft d | Dimensions in mm | Weight (kg) | ||||||||||
| a | e | i | g | l | S | b | Z | Bi | n | ds | |||
| UCFL201 | 12 | 113 | 90 | 15 | 11 | 25,5 | 12 | 60 | 33,3 | 31 | 12,7 | M10 | 0,45 |
| UCFL202 | 15 | 113 | 90 | 15 | 11 | 25,5 | 12 | 60 | 33,3 | 31 | 12,7 | M10 | 0,44 |
| UCFL203 | 17 | 113 | 90 | 15 | 11 | 25,5 | 12 | 60 | 33,3 | 31 | 12,7 | M10 | 0,43 |
| UCFL204 | 20 | 113 | 90 | 15 | 11 | 25,5 | 12 | 60 | 33,3 | 31 | 12,7 | M10 | 0,4 |
| UCFL205 | 25 | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 35,7 | 34.1 | 14,3 | M14 | 0,58 |
| UCFL206 | 30 | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 40,2 | 38,1 | 15,9 | M14 | 0,83 |
| UCFL207 | 35 | 161 | 130 | 19 | 14 | 34 | 16 | 90 | 44,4 | 42,9 | 17,5 | M14 | 1,1 |
| UCFL208 | 40 | 175 | 144 | 21 | 14 | 36 | 16 | 90 | 51,2 | 49,2 | 19 | M14 | 1,42 |
| UCFL209 | 45 | 188 | 148 | 22 | 15 | 38 | 19 | 108 | 52,2 | 49,2 | 19 | M16 | 1,75 |
| UCFL210 | 50 | 197 | 157 | 22 | 15 | 40 | 19 | 115 | 54,6 | 54,6 | 19 | M16 | 2,02 |
| UCFL211 | 55 | 224 | 184 | 25 | 18 | 43 | 19 | 130 | 58,4 | 58,4 | 22,2 | M16 | 2.79 |
| UCFL212 | 60 | 250 | 202 | 29 | 28 | 48 | 23 | 140 | 68,7 | 65,1 | 25,4 | M20 | 3.65 |
2 Bolt Flange Bearing Units - Green Color
