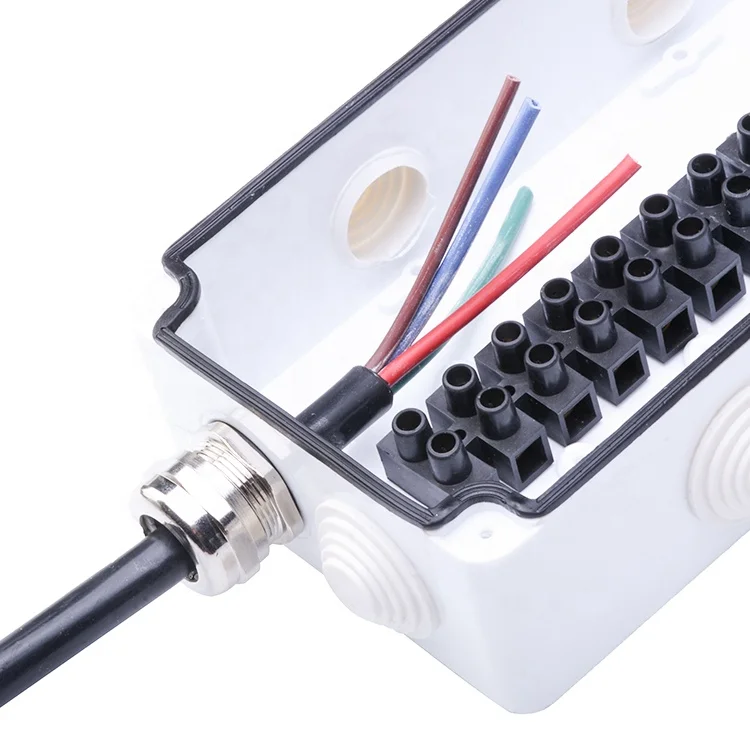

Наружный внутренний распределительный контроль водонепроницаемая распределительная коробка Электрический корпус
- Category: Industrial Controls >>>
- Supplier: Zhejiang Tolerance Electric Co. Ltd.
Share on (62002012946):
Product Overview
Description
Product Description
| Body material: | ABS |
| Material characteristics: | Impact,heat,low temperature and chemical resistance,excellent electrical performance and surface gloss,etc. |
| Certificates: | CE,ROHS |

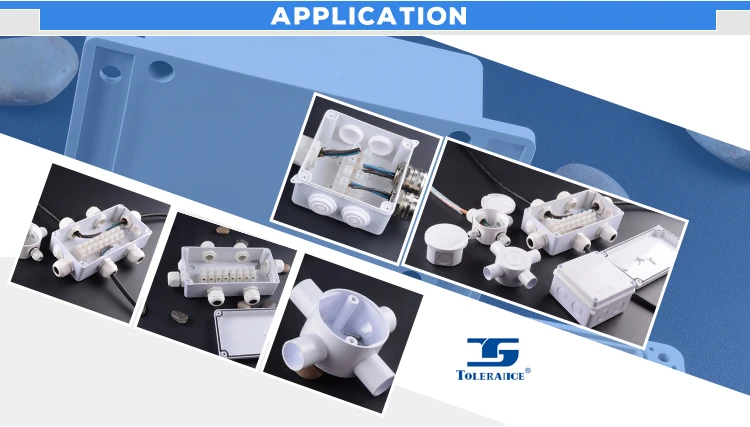

| usage: | Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry, electron,power system,railway,building,mine,air and sea port,hotel, ship,works,waste water treatment equipment,environmental equipment and so on. |
| Installation: | 1.Inside:There are the installation holes in the base for circuit board or din rail. 2.Outside:The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base. |
| Outside hole: | The plastic plate in the hole can be knocked off and installing cable gland to get better waterproof performance. |

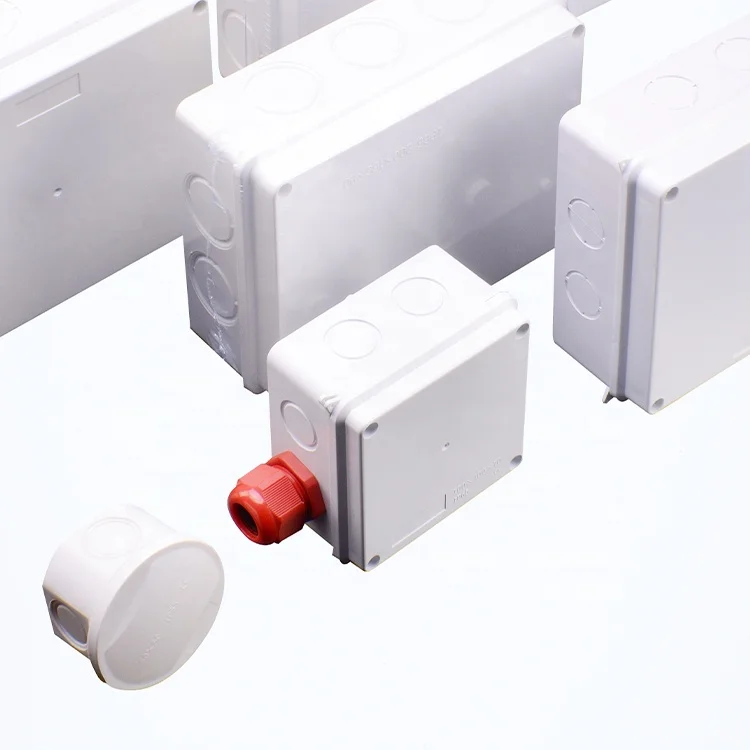

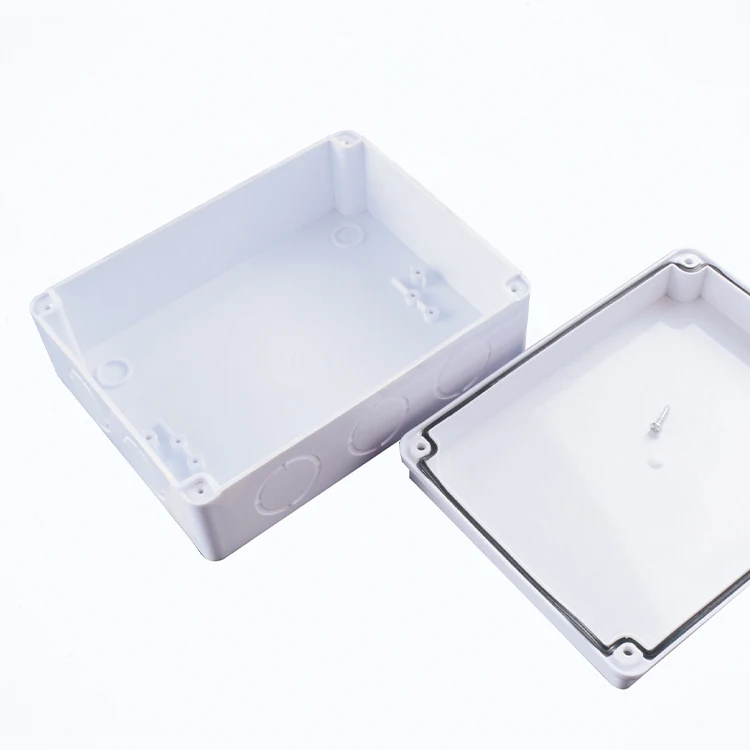

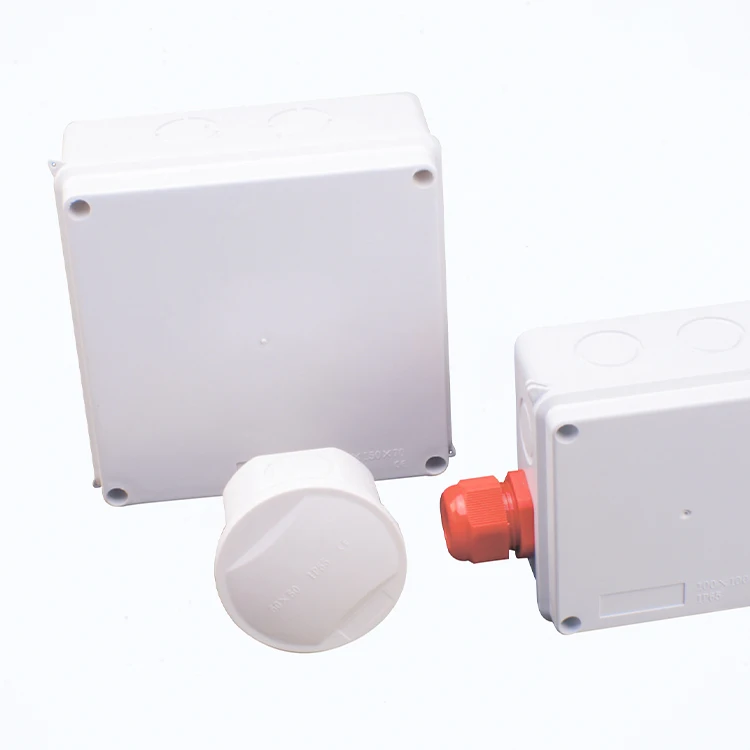

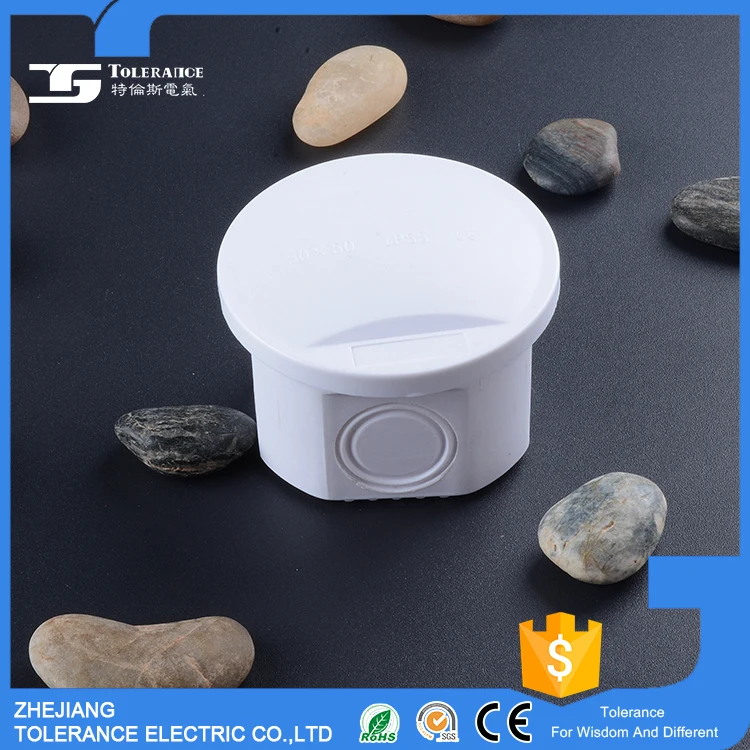

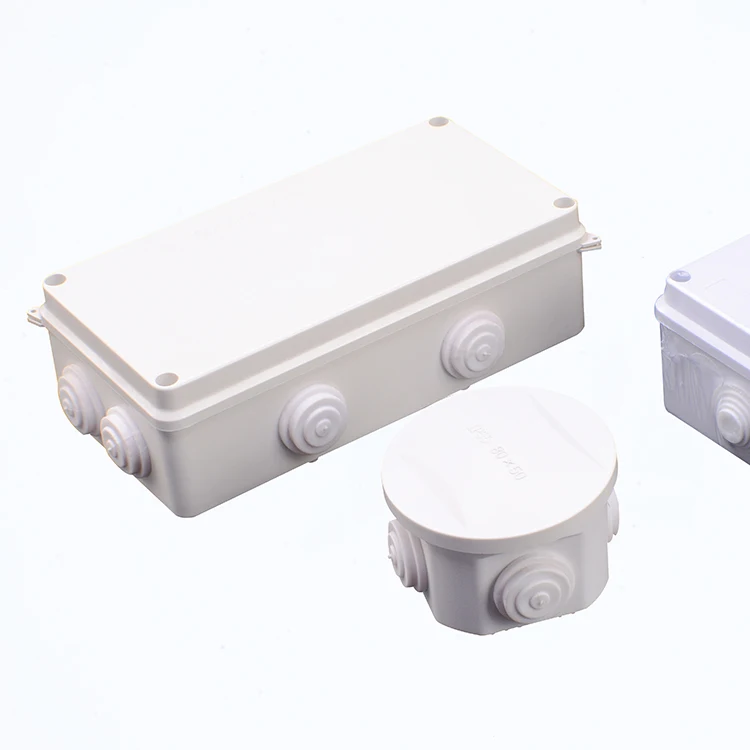

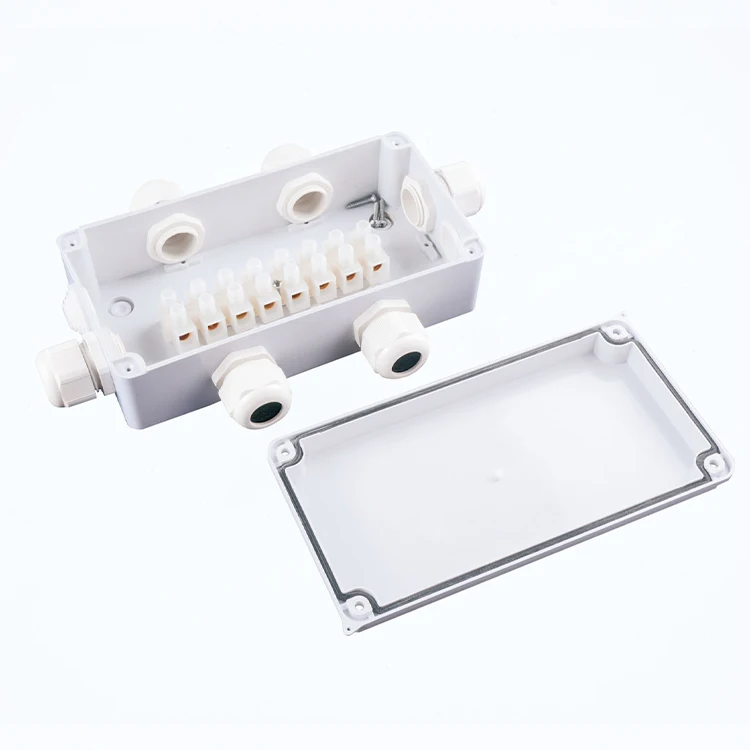

Product picture:

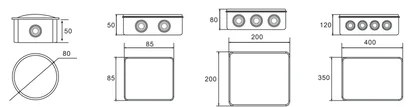

Specification:
| Model Code | Hole Qty | Hole Size | IP | G. Weight(KG) | N. Weight(KG) | Qty/Carton | Carton Dimenstion(cm) |
| RFA 50x50 | 4 | 25 | 55 | 13.5 | 12.3 | 300 | 46x38x51 |
| RFA 80x50 | 4 | 25 | 55 | 14.7 | 13.4 | 240 | 53x35x62 |
| RFA 85x85x50 | 7 | 25 | 55 | 17.2 | 16.0 | 200 | 53x41x53 |
| RFA 100x100x70 | 7 | 25 | 65 | 14.9 | 13.5 | 100 | 62x49x35 |
| RFA 150x110x70 | 10 | 25 | 65 | 15.1 | 13.8 | 60 | 67x33.5x46.5 |
| RFA 150x150x70 | 8 | 25 | 65 | 16.3 | 15.0 | 60 | 84.5x34x45 |
| RFA 200x100x70 | 8 | 25 | 65 | 16.6 | 15.3 | 60 | 61x46x42 |
| RFA 200x155x80 | 10 | 36 | 65 | 14.5 | 13.2 | 40 | 69.5x43.5x42 |
| RFA 200x200x80 | 12 | 36 | 65 | 18.0 | 16.6 | 40 | 90x46x40.5 |
| RFA 255x200x80 | 12 | 36 | 65 | 21.9 | 20.1 | 40 | 55x45x78.5 |
| RFA 255x200x120 | 12 | 36 | 65 | 21.9 | 20.1 | 30 | 64x55x62 |
| RFA 300x250x120 | 12 | 36 | 65 | 20.3 | 18.4 | 20 | 61.5x55.5x63 |
| RFA 400x350x120 | 16 | 36 | 65 | 15.0 | 13.3 | 10 | 74.5x42.5x61.5 |
More products
Company Information
Our Services
Favourable Comment
Packaging & Shipping
FAQ
Q1: Could I Put My Own Logo On It?
A1: Sure, of course, we are a professional manufacturer and have over 10 years OEM experience, customer;s logo can be made by laser, engraved, embossed, transfer printing etc.
Q2: What's the delivery time?
A2: Normally, 3-15days after order and payment confirmation. Actually, it will depend on your order quality.
Q3: What's your terms of payment?
A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4: How do you make our business long-term and good relationship?
A4: a. We keep good quality and competitice price to ensure our customers benefit;
b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q5: If we bought your products, but found quality problem, how to solve?
A5: After confirmed, if the quality problem is caused by us not for outer sector, we will compensate each piece to customer.
