CE approved high performance JH21 pneumatic punching press machine/Alminum foil making auto press production line
- Category: >>>
- Supplier: Maanshan Jiashida Machine Tool Company
Share on (62002015761):
Product Overview
Description
CE approved high performance JH21 pneumatic punching press machine/Alminum foil making auto press production line.
CE approved high performance JH21 pneumatic punching press machine/Alminum foil making auto press production line.
Specification:
Features:
1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2.Vertical located crankshaft, compact structure;
3.The crankshaft undergoes grinding treatment after high frequency quenching;
4.Lengthened rectangular guideway with a surface of bronze plate;
5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;

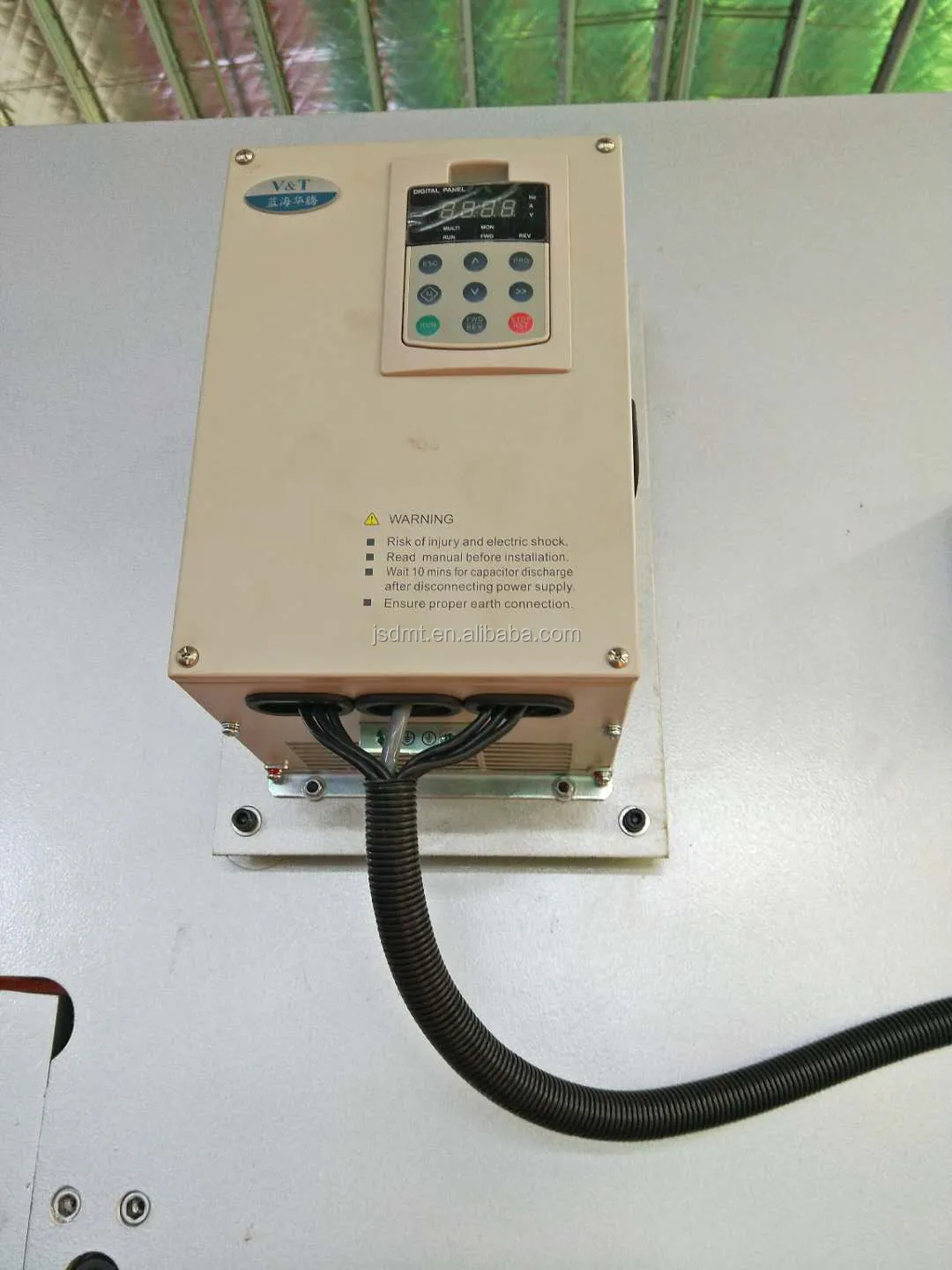

6.PLC control and imported safety dual valve;
7.Wet clutch and hydraulic overload protector.

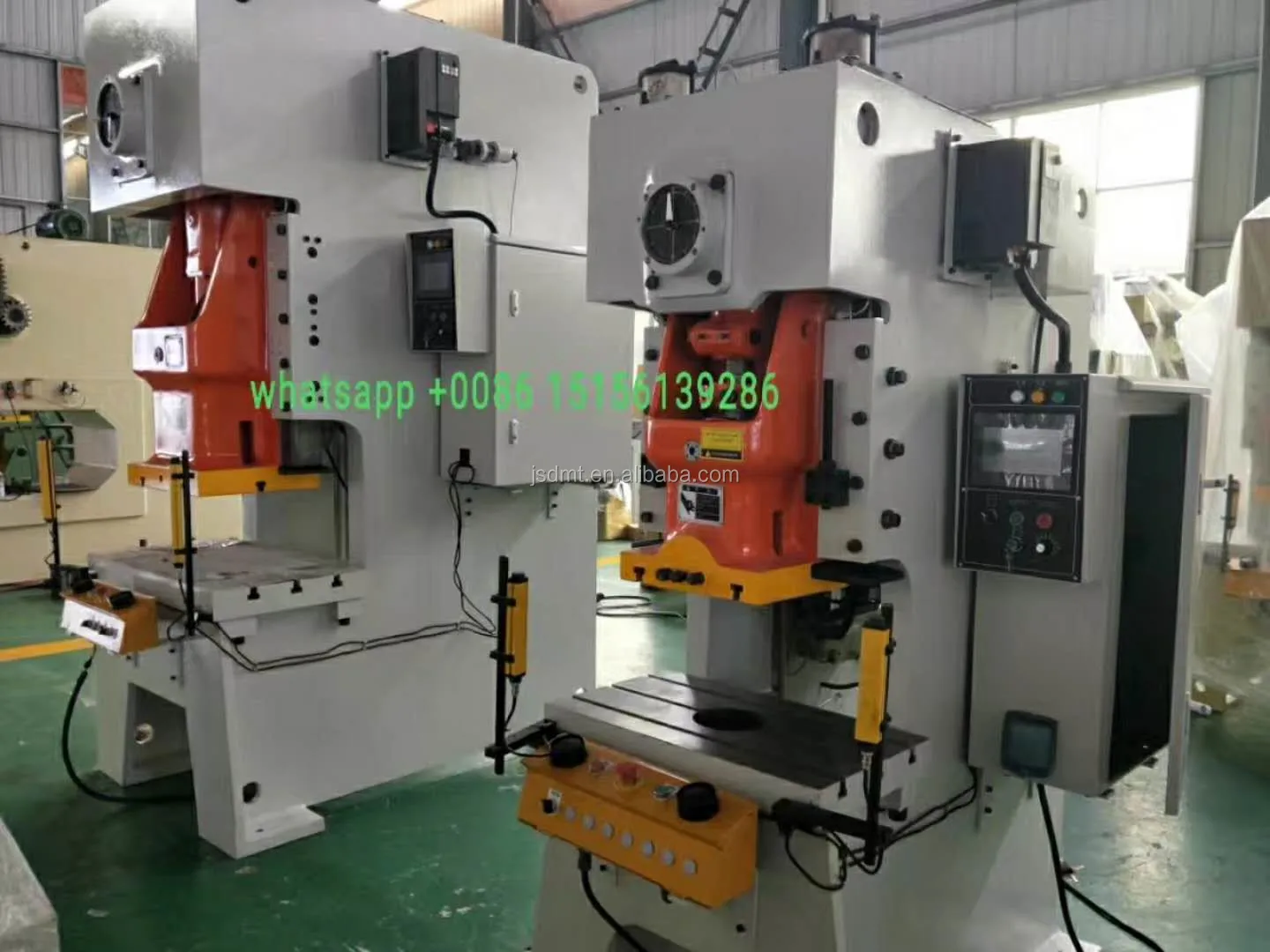

8 JH21 C frame cnc pneumatic sheet metal punching machine

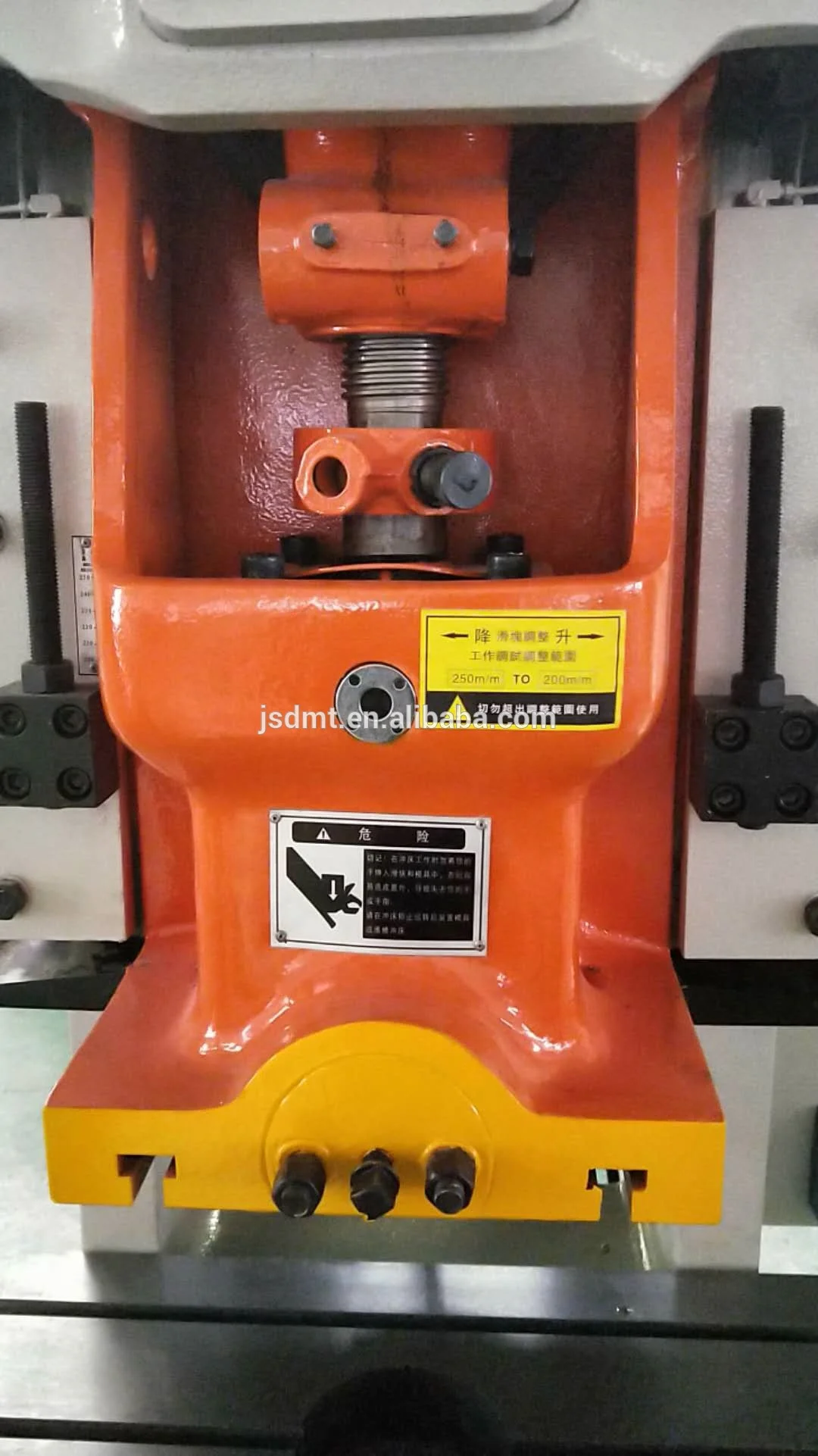

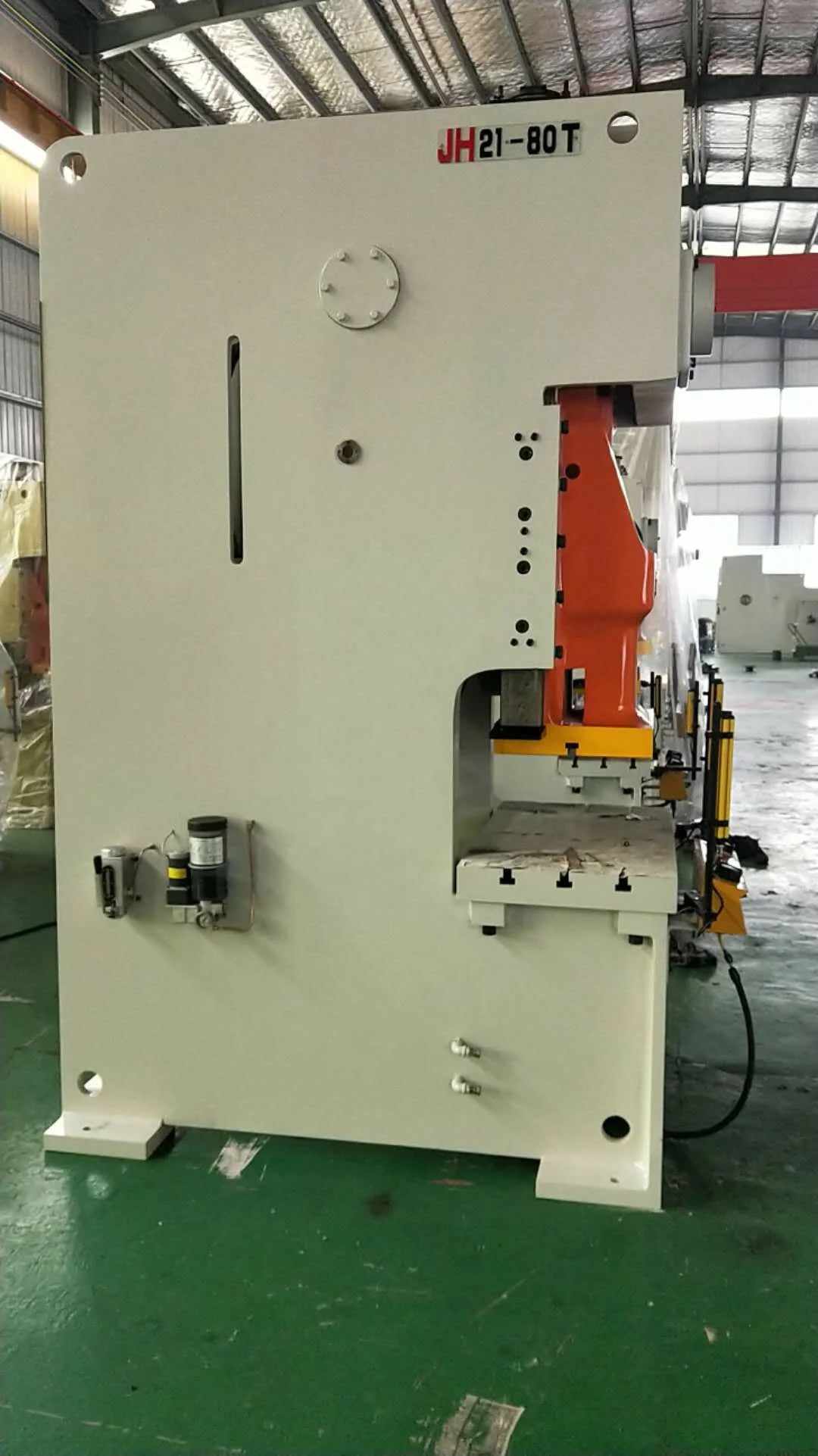

Details of JH21 Pneumatic power press
Company Information
Features
1.> This series press by rigid turn key clutch, simple structure, operation, maintenance is convenient. Adopt bevel gear transmission, the work is smooth. J23-25 type open type tilting press for the first domestic will drive gear sliding bearing (i.e. copper tile) instead of rolling bearings, transmission gear wear resistance, after changed to avoid the quick wear of copper tile and cause of gear noise.
2.> J23-35 open type tilting press is unique in the industry, and other domestic manufacturers of 35 tons of machine body basic with 25 t of the machine body, drive adopts copper tile. But we will redesign fuselage, 35 t fuselage far heavier than 25 t fuselage (airframe strength), at the same time using rolling bearing transmission (gear noise is small), equivalent to a general sense of light 40 t press.
3.> J23-80t and above tonnage press adopts pneumatic double balanced structure, balance force fluctuation is small, balance the weight of the slide block and the upper die, to avoid the shaking due to the weight of machine tools. Can prevent transmission gear in the reverse force caused by the impact and noise, can eliminate the connecting rod and the slide block because of brake failure or connecting rod broken, slider falling accident.

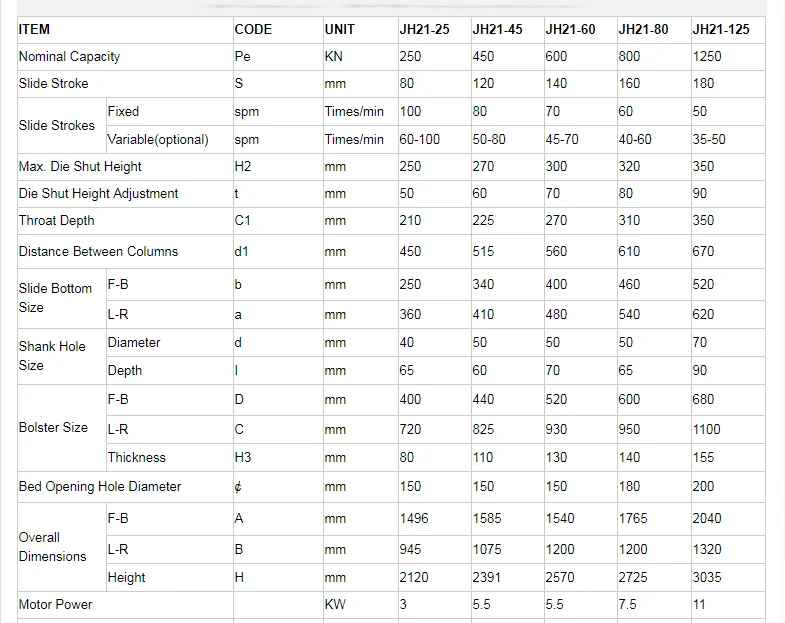

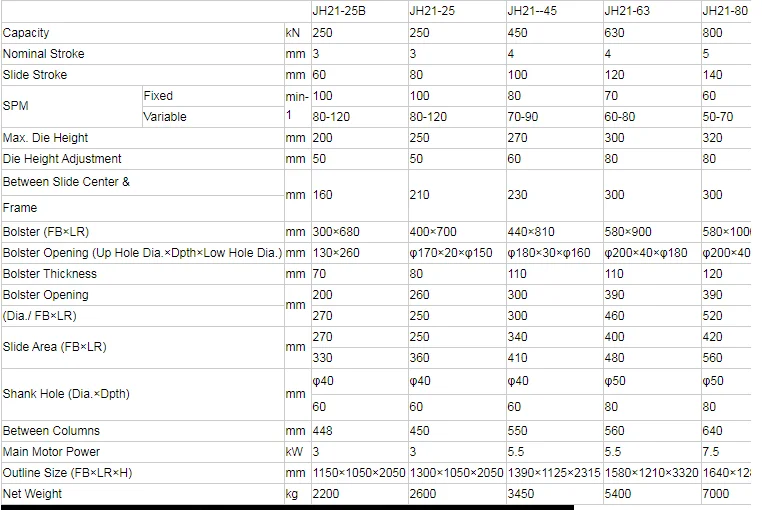

Technical parameter
Product Description
Main Features: (JH21)
1, This series of press frame is welded by steel plates, small deformation, good rigidity.
2, This series of machines adopts pneumatic friction clutch-brake combination, long service life, low noise, stable transmission. The six surfaces of the guide rail, precision is high, can prolong the life of die, die height adjustment is convenient and reliable, with emergency stop, inching, single and continuous operation specification.

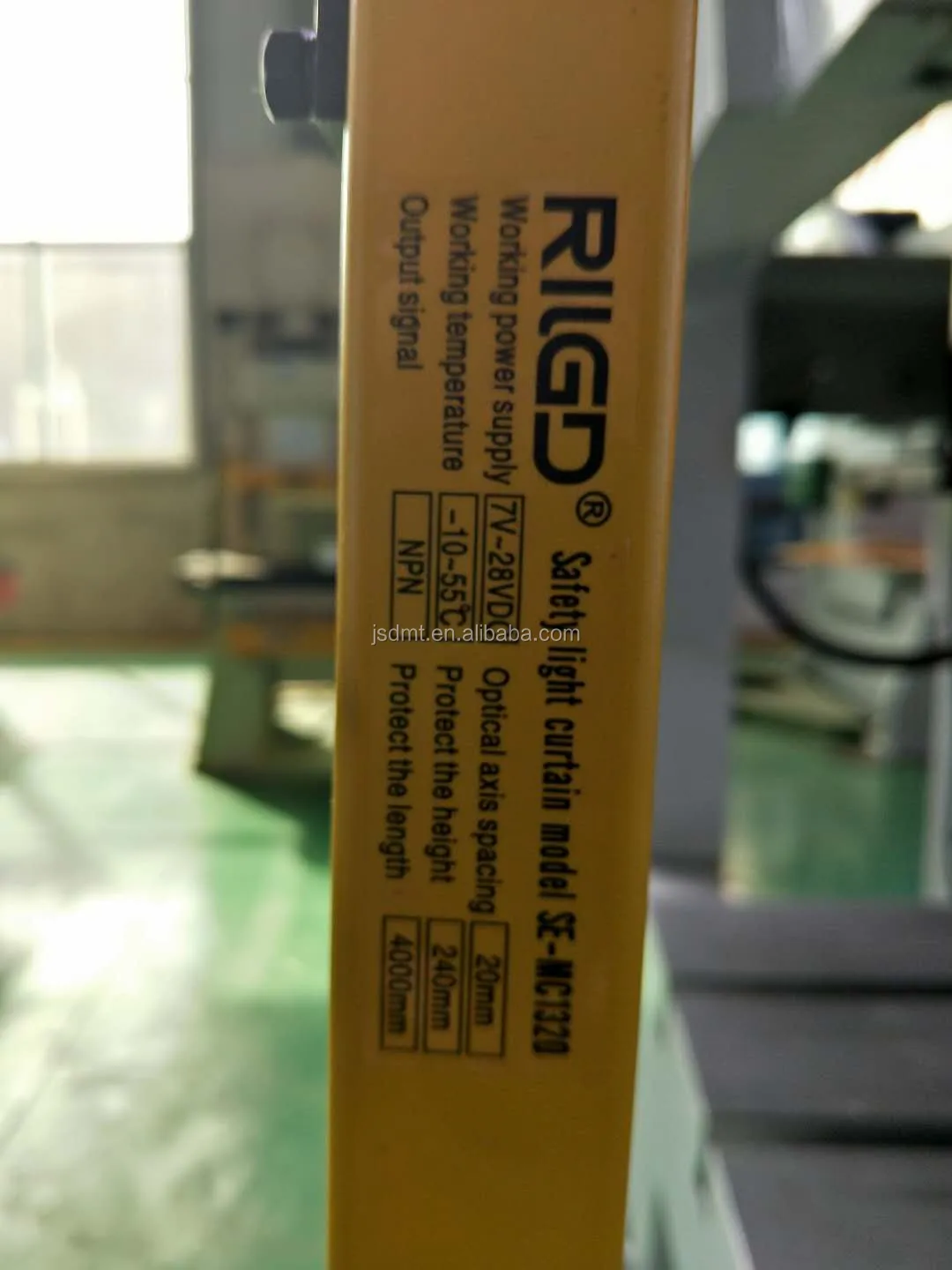

3, Optional: PLC electrical control system, air cushion, photoelectric safety protection device.
Advantages
1.> Specialized in this field for more than 5 years with good quality and competitive price.
2.> Convenient transportion, 40 min away from Nanjing city.
3.> Professional engineer, the machine can be customized.
4.> One year guarantee, except the easy-wear parts. Perfect after-sale service.
5.> The engineer available to service oversea. About the charges we can discuss together.
Our Services
Any interest pls feel free to contact with us!
Mr Kevin (sales manager)
Mob/Whatsapp: +86 15156139286
Skype:cncsolution95 Wechat;cnctool2004
Tel (fax): +86-0555 6766721/6766722
Web:en.cnc-jsd.com
