4.2 inch TFT LCD Display NV3052C Driver IC

Product Overview

Description

4.2 inch TFT LCD Display NV3052C Driver IC



Product Description

Item	4.2''TFT,Transmissive ,Normally Black,IPS
Part No.	TST042WVBN-01C
Resolution	720*(RGB)*672
Viewing Direction	All
Driver IC	NV3052C
Interface Types	MIPI
Color Depth	16.7M
Backlight LEDs	8LEDs ,40mA,12.4V
Operating voltage	3.3V
Surface luminance	300cd/m2
TP/Lens	CTP
Operation temperature	-20C to 70C
Storage temperature	-30C to 80C
Storage Humidity	60C  90%max

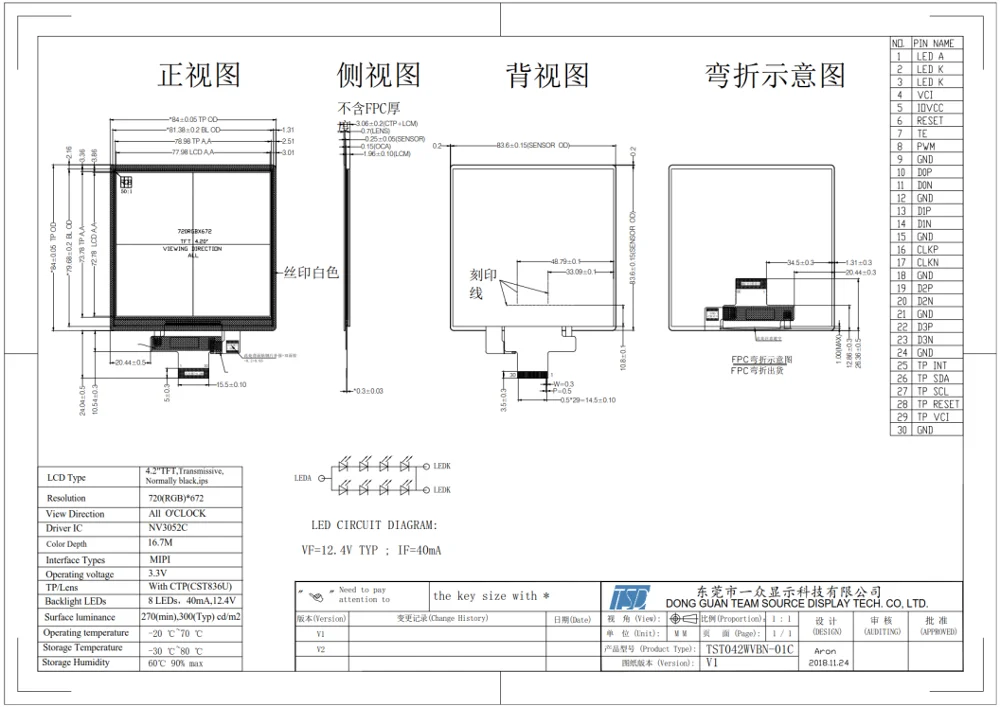

 Drawing

♥ Now we have developed thousands of products for Industrial, home appliance, consumer electronics, medical equipment and other applications. Besides, we provide the customized service, which customized the outlook and functions  products according to your demands.



Application



Packing & Shipping

About  TSD

♥  SHENZHEN TEAM SOURCE DISPLAY TECHNOLOGY CO., LTD.(TSD)

was established in 2004. Our head office located in Shenzhen, China. Factory is in FengGang, DongGuan, which has a modern production workshop, modern technology and equipment.

We worked on the full range of the LCD products and LCD solutions development. Offering customers unique, innovative and cost effective market leading modules,  in span of more than 10 years, we  follow a customers-oriented and customers-first approach in all of our dealings. Our professional experiences and services will support your requirements.



Certifications

Our Team

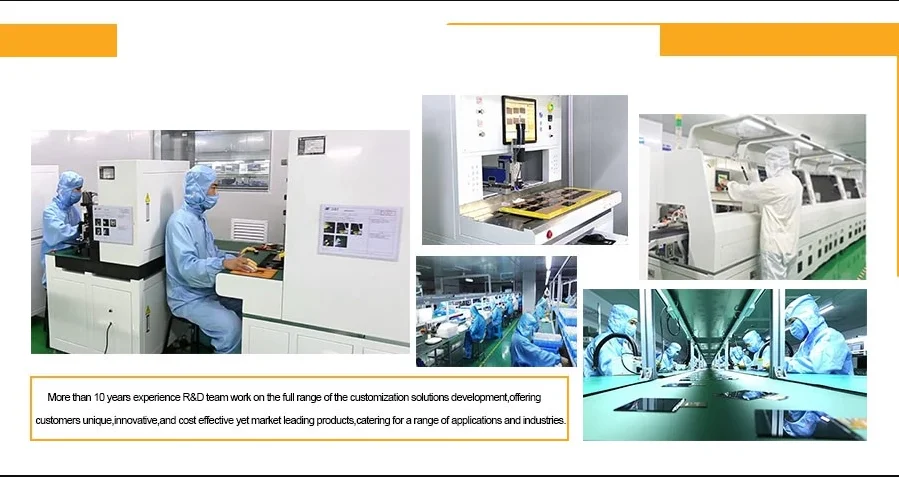

Our Workshop
