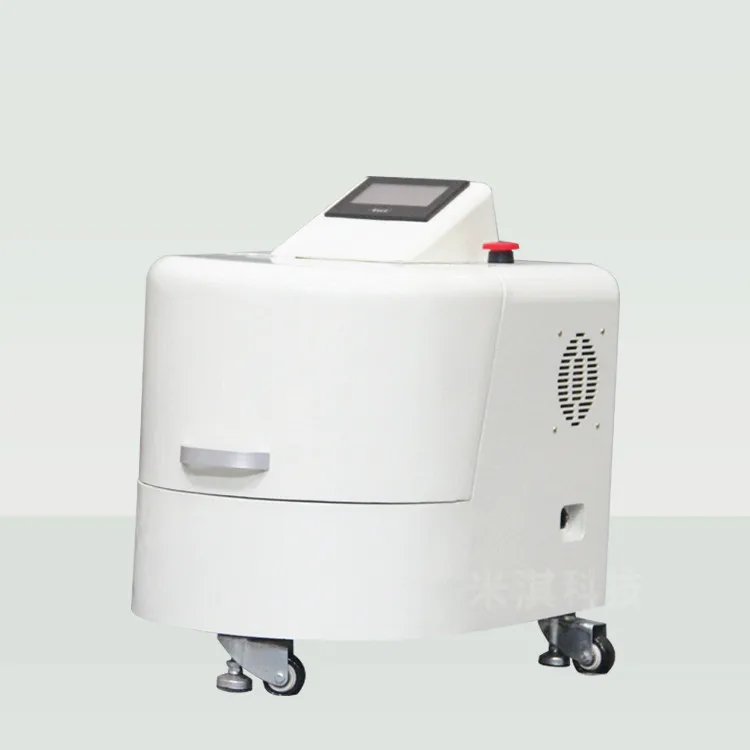

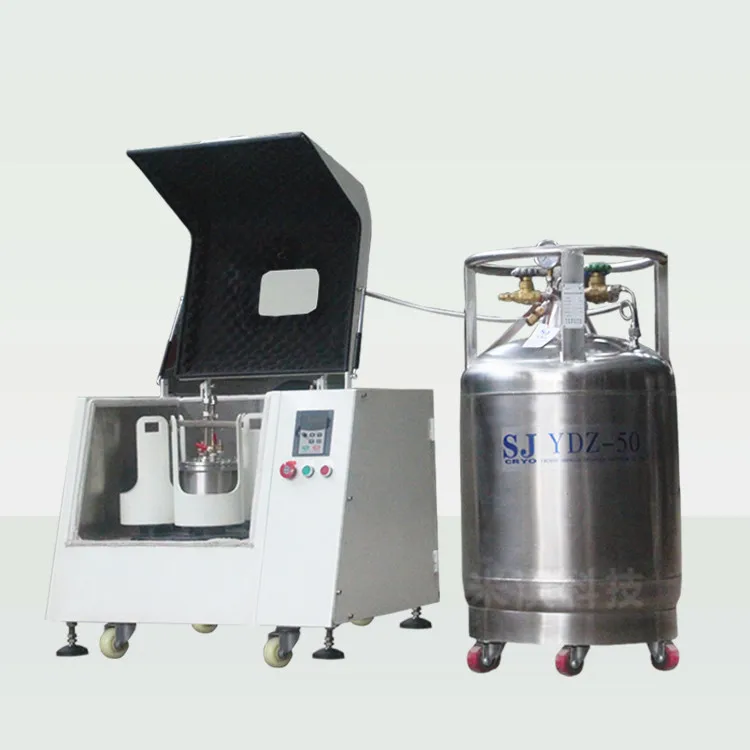

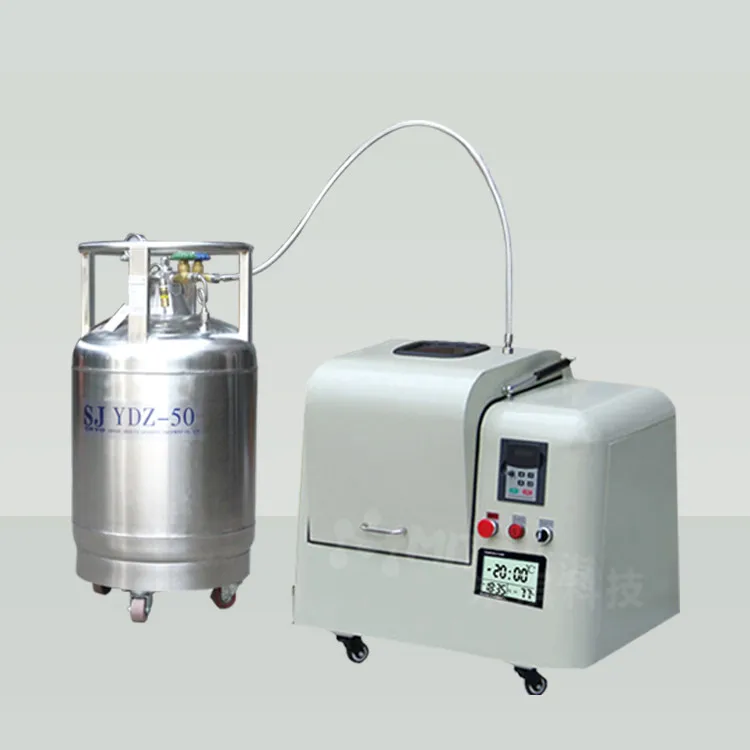

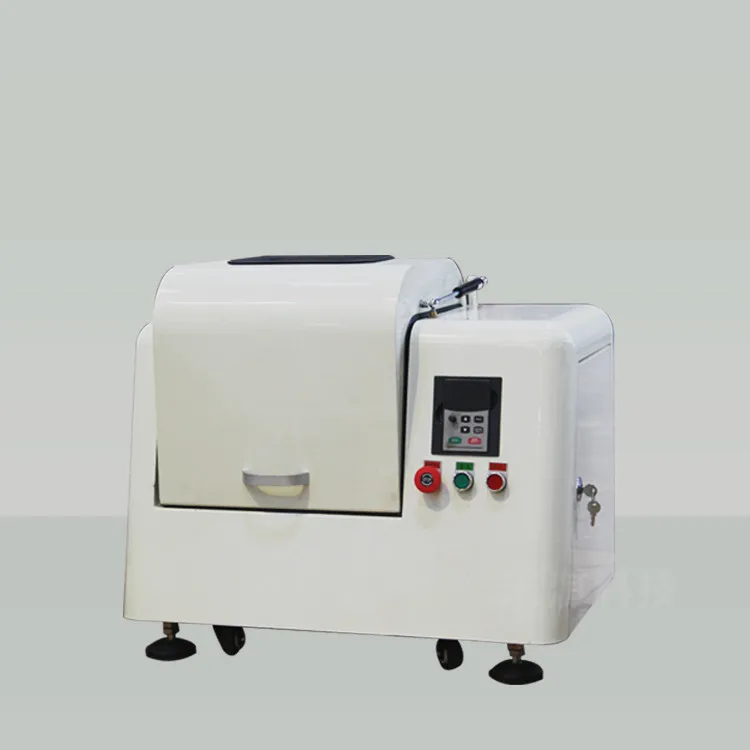

Nano Super Fine Powder Grinding Machine Ce Approved Aircooling Grinder For Biology Research Cryogenic Tank Planetary Ball Mill

Nano Super Fine Powder Grinding Machine Ce Approved Aircooling Grinder For Biology Research Cryogenic Tank Planetary Ball Mill

Nano Super Fine Powder Grinding Machine Ce Approved Aircooling Grinder For Biology Research Cryogenic Tank Planetary Ball Mill

Product Description

Super fine powder grinding machine 4L planetary ball mill/laboratory small nano ball mill price with lab planetary ball pots

Brief introduction

 pots

(Oil seal mute)Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanometer,R&D of new product and small batch production for high tech materials.

The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,entire laboratory.

The samples could be ground under vacuum state with using the vacuum ball mill jars.

It is widely used in geology,mineral,metallurgy,electronic,building material,ceramic,

chemical,light industry,medicine,beauty,environment production,tea and so on.

According to the processing requirement to set the rotation speed and alternate time of forward and reversal rotation and set the total grinding time.

 pots  pots  pots   pots  pots

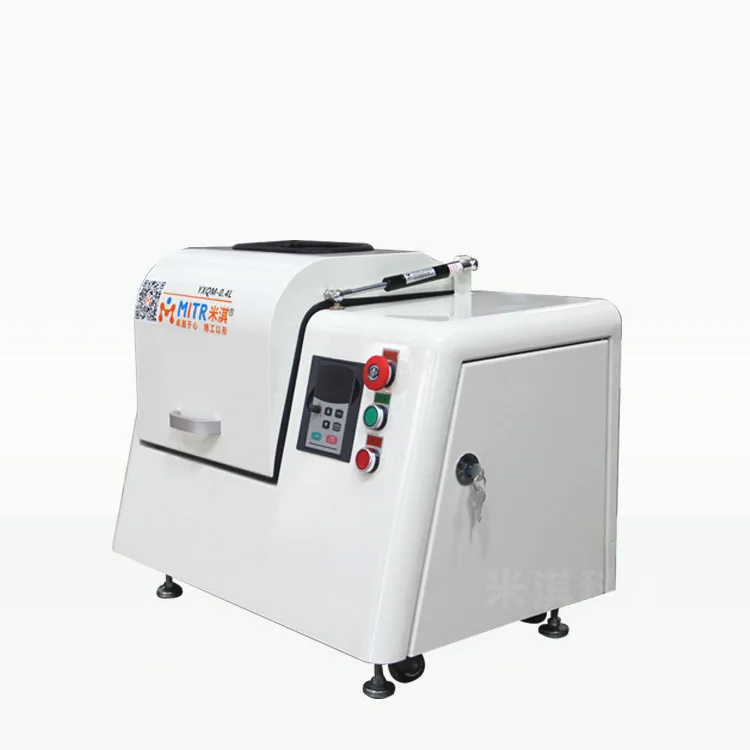

 Feature of MITR oil seal mute planetary ball mill

1.Patented oil seal mute technology and gear drive core technology(gear running in the oil tank ),noise reduced by 50%,increase service life more than 2 times

2.PLC frequency conversion control:the inverter has the protection of undervoltage and overcurrent, and has the memory after the power off, so it can protect the motor.

3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.

4.Suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature mill.

5.Ensures the Homogeneity and repeat-ability of the experiment.

6.It can solute the problems for the deposition and sticking of some materials and four samples could be obtained with different sizes in one experiment.

7.Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss.

8.The device is equipped with a safety switch, which can avoid the equipment running after  opening the safety cover, and avoid a safety accident;

9.When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.

10.V bayonet mount with automatic gear lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.

 Working principle:

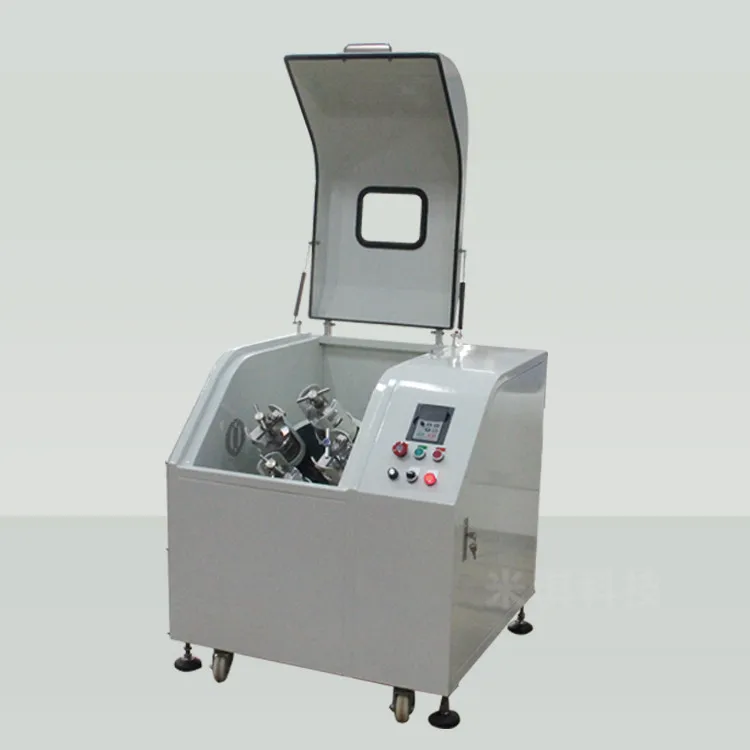

Oil seal mute planetary Ball Mill has four ball grinding tanks installed on one turntable.When the turntable rotates, the tank axis makes planetary movements,The balls and samples inside the jars are impacted strongly in high speed movement, and samples are eventually ground into powder. The ball mill can use for dry and wet grinding and also can mix products of different granularity and materials.

Working mode: Two or four ball milling jars working at the same time and the maximum sample loading amount: Volume of ball milling jar 2/3, feeding granularity:soil material ≤ 10mm other material ≤ 3mm discharge granularity: the minimum can up to 0.1um (i.e. 1.0 *10mm-4).

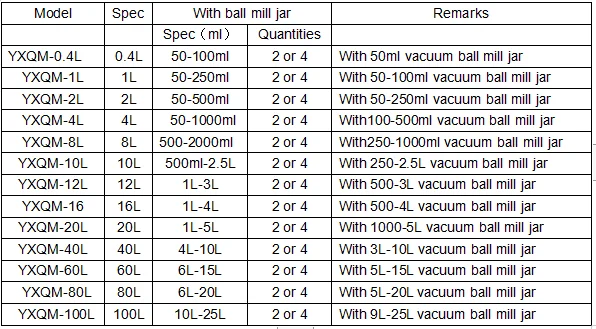

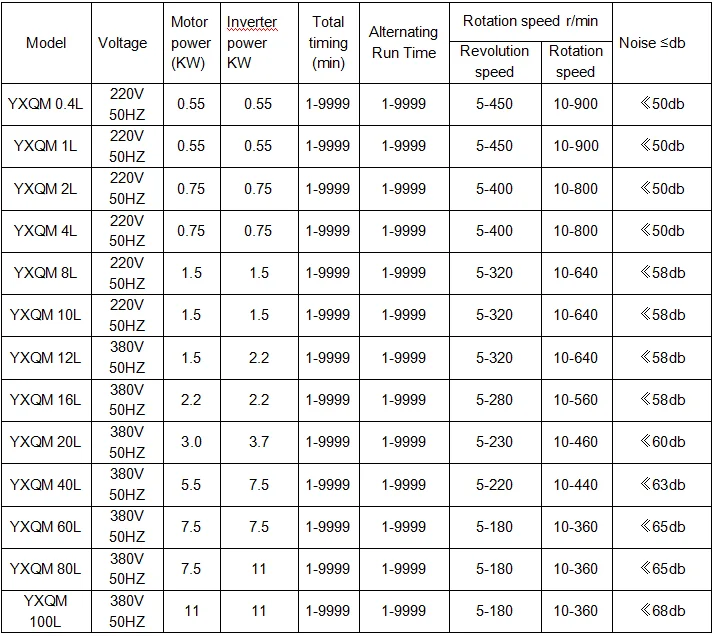

Technical parameter

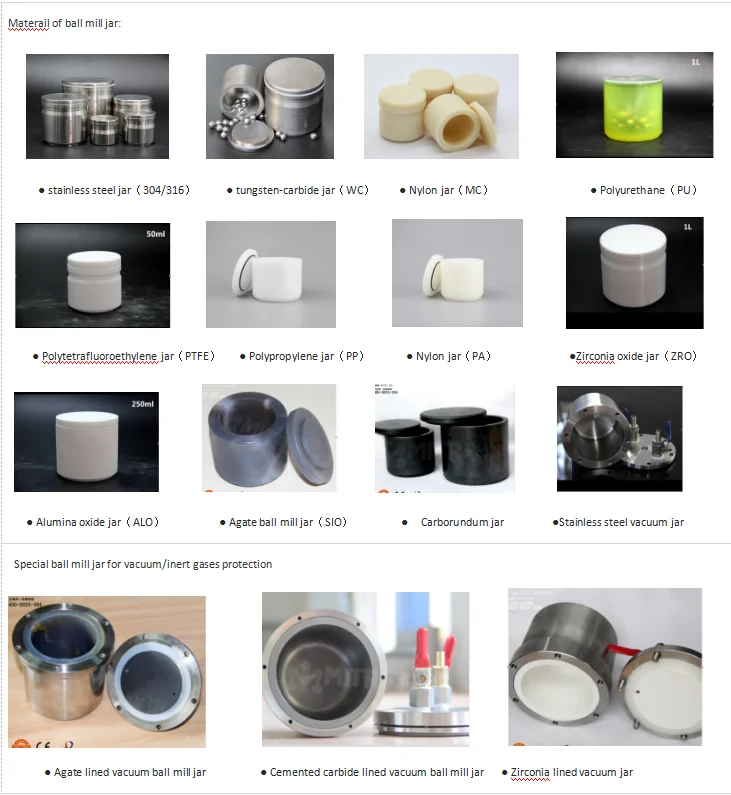

Mill jars and Mill balls

Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar / corundum jar/ alumina jar, zirconia jar, agate jar.nylon jar, PU jar, PTFE jar.we can also provide the ball material of stainless steel,ceramic,corundum,alumina,zirconia,agate, tungsten carbide.

 Our planetary ball mill used in the customer

Join an exhibition

Company Information

Changsha MITR instrument & equipment Co., Ltd. specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.

The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.

Packaging & Shipping
