automatic extrusion blowing moulding machine price for 30L plastic chemical drum
- Category: >>>
- Supplier: Ningbo Kinggle Machinery Co. Ltd.
Share on (62002034977):
Product Overview
Description
This model is fixed open-closing and accumulator die head series which adopts double drawbar clamping mechanism, mold clamping by oil cylinder pressure directly, It suits for making 30/60L chemical packing drums, medium size toys, auto parts pipes, water container, toolcase, sprayer and so on. Technical characteristics: Hydraulic servo system control, quick action response, energy saving.

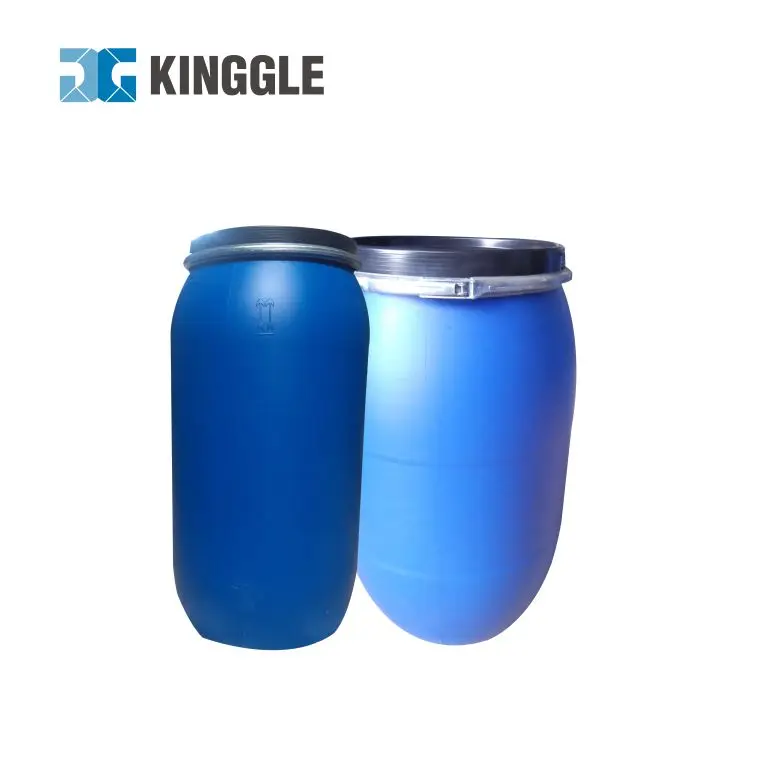

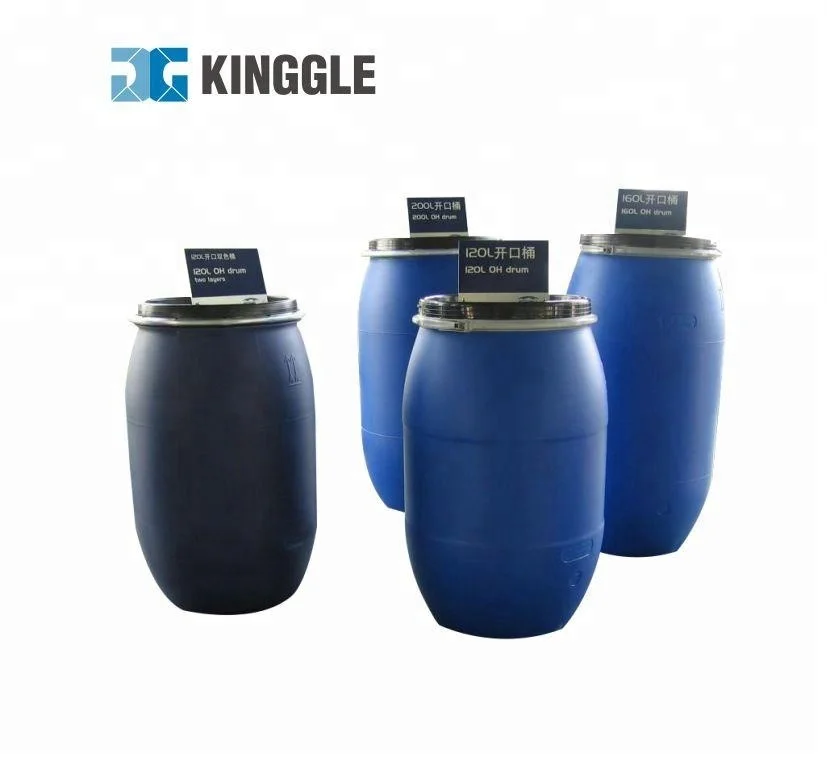

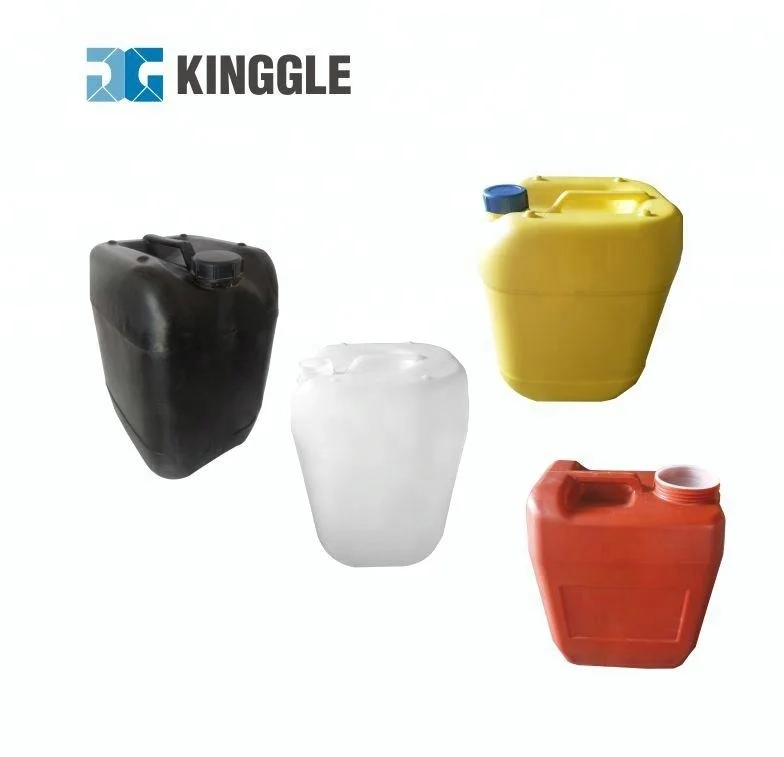

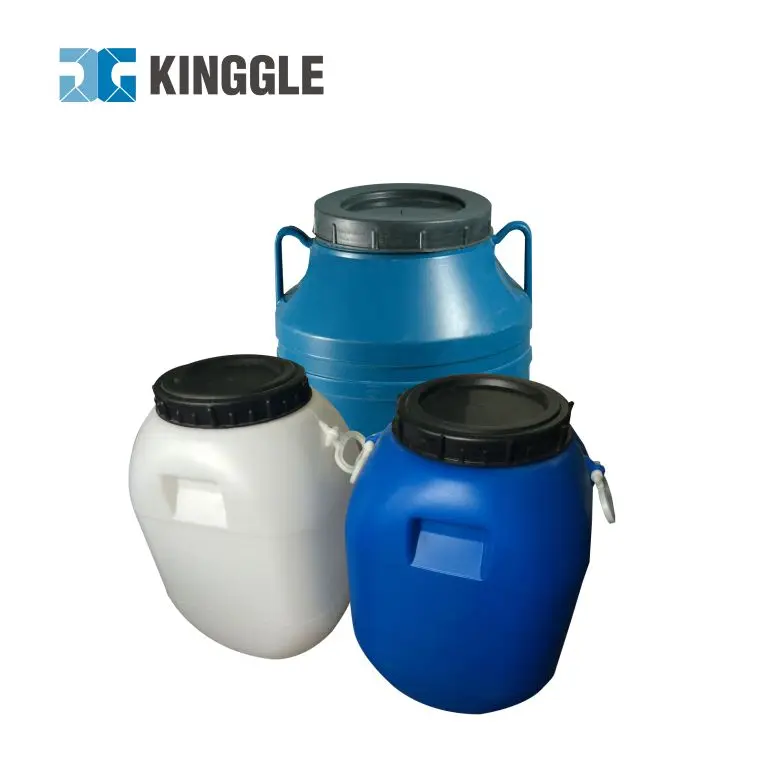

Suit product
Technology
| Specifications | Unit | Fixed open-closing type | ||
| Machiner model | PXB70A | PXB80A | PXB90A | |
| Material | PE,PP,ABS etc. | |||
| Max container capacity | L | 20 | 30 | 60 |
| Machine dimension ( L×W×H ) | M | 4.3×1.7×3.9 | 4.8×3.4×4 | 5.7×3.6×4.3 |
| Machine Weight | T | 7.8 | 12 | 14 |
| Clamping unit | ||||
| Mold platen size ( W×H ) | MM | 680×600 | 750×860 | 960×980 |
| Max mold size ( W×H ) | MM | 460×600 | 520×860 | 700×981 |
| Power | ||||
| Servo oil pump motor power | KW | 15 | 15 | 18.5 |
| Average energy consumption | KW | 18-22 | 28-32 | 35-40 |
| Blow pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Extruder unit | ||||
| Screw diameter | MM | 70 | 80 | 90 |
| Screw L/D ratio | L/D | 24:1 | ||
| Melting capacit for HDPE | KG/HR | 80 | 120-140 | 130-160 |
| Extruder power | KW | 22 | 30 | 37 |
| Die head | ||||
| Max die-pin diameter | MM | 200 | 250 | 350 |
| Accumulator capacity | L | 3 | 5 | 6.6 |
| Accumulator weight ( HDPE ) | KG | 2.25 | 3.75 | 4.9 |

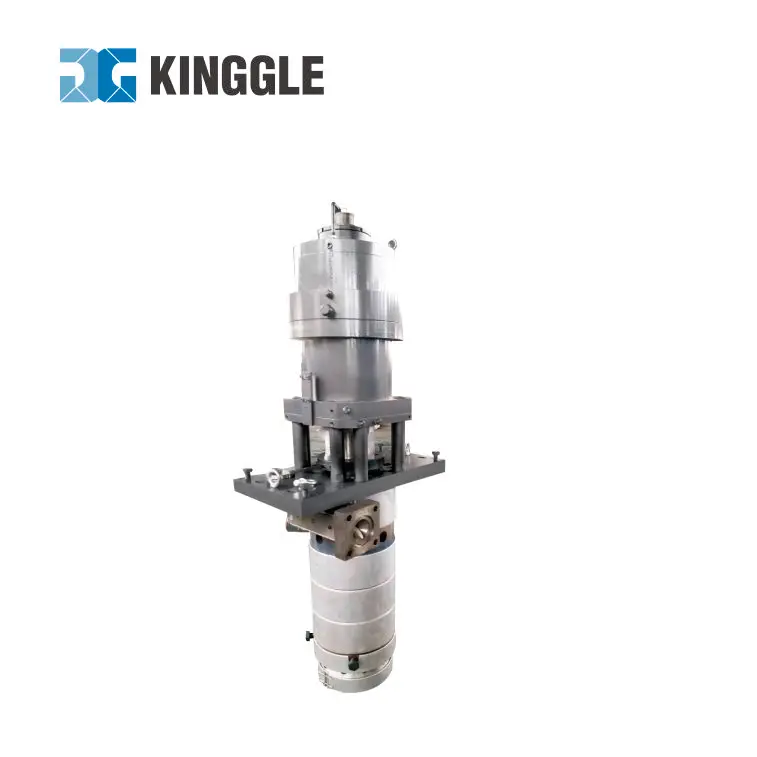

Die head: verticality first-in first-out system;
Extruder unit: adopt automatic temperature control unit of import,the screw united by hard tooth surface gear box and frequency motorto achieve stepless speed regulation;
Clamping device: the clamping device of double draw bar is a type of hydraumatic and fixed , draw bar of new type through template,this type is accommodate large size of mould,smooth action,high stability,clamping mould force is uniformly,template is not distortional;

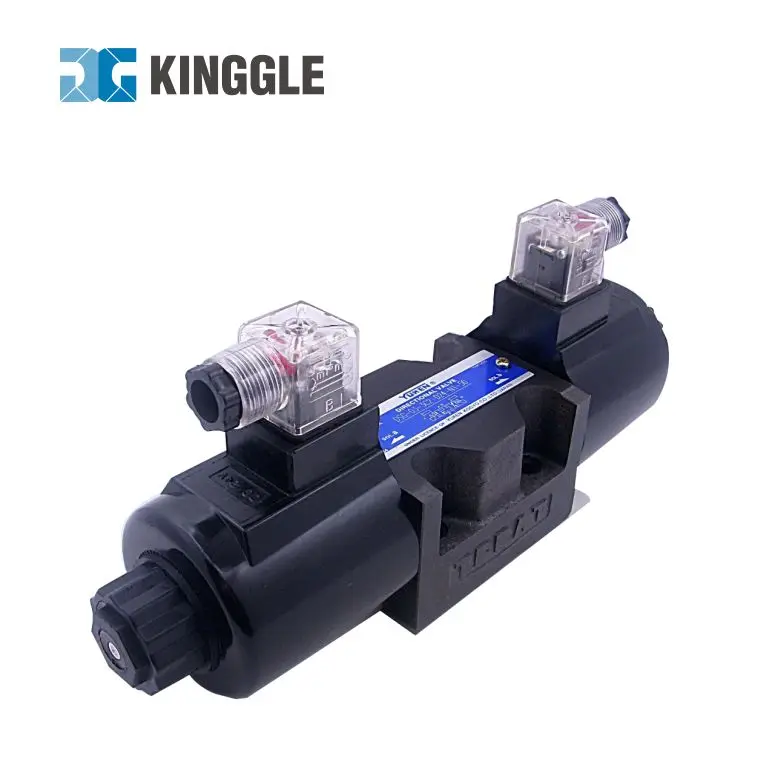

Hydraulic system: whole system adopt imported components,proportional pressure,flow,pressure feedback,system response is faster,action is more smoothly,lowest power loss,and the output of torque is big.

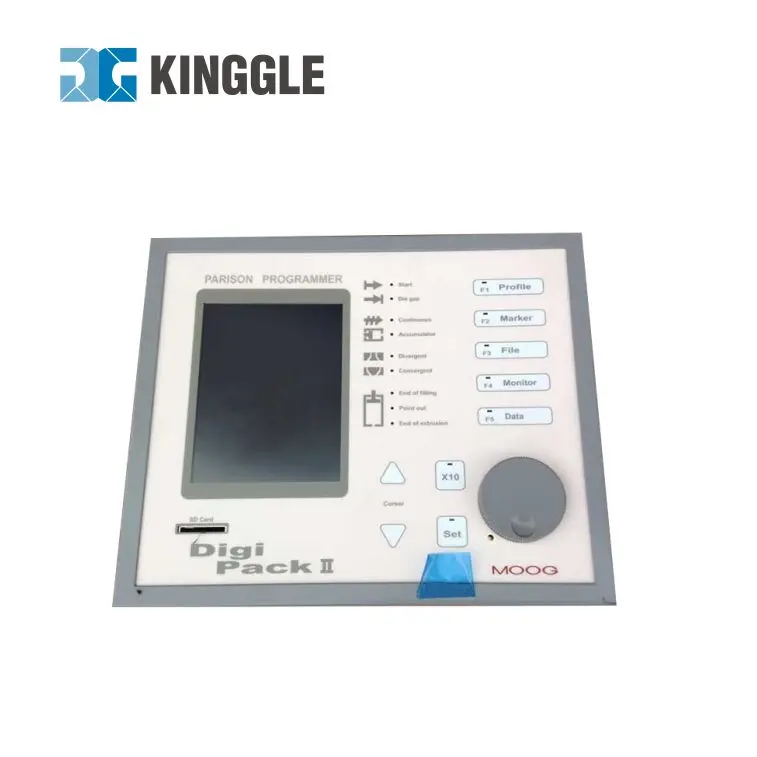

Electric controlling system: it adopts Japan programmable controller,touch screen,the characteristic of it has direct manipulation and large information on board.
Main component brand
Other Product types
 |  |  |
|  |  |
Our Services
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours. |
2. 100% Quality inspection before the shipment. |
3. Can trainning clients operator for free in seller`s factory. |
4. Engineer overseas is avilable. Introduce our engineer come to customer’s factory working. |
5. Blowing mould and injection mould made orginal. |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
Packaging & Shipping
Customer/ Exhibiton
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory. Our factory is near Shanghai & Ningbo port, Ningbo ,zhejiang .
[2] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes, we can provide full blow molding machine line. The machine can produce Max 10,000L items, our
factory have patent for the multilayers and multi-colors!
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need” . Kinggle machinery factory focuses on quality, quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee, oversea service is avaliable.
[5] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
