TDP 0 manual pill press,manual pill press machine
- Category: Tablet Press >>>
- Supplier: Shenzhen,Yason,General,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
This machine is used for tabletting different kinds of powder raw materials into diverse shape tablets. It is applicable to trial manufacturing in lab or batch production in small-batch of tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various tablets of pesticide and fertilizer.etc.. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated optional. Meanwhile, that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
\t\t\t\t\t\t\t\t\tProduct parameters \t\t\t\t\t\t\t
Product model | YTK-TDP0 |
Maximum tablet pressure | 15KN |
Maximum tablet diameter | 12mm |
Maximum fill depth | 12mm |
Maximum tablet thickness | 6mm |
Production capacity | 50-60pieces/min |
Dimensions | 300*240*500(mm) |
Host weight | 20kg |
Package dimensions | 360*260*600(mm) |
Net weight of packaging | 26kg |
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
1.Excellent Service
2.Best Quality
3.Warranty For One Year
4.CE Certificate
5.payment by alibaba bank account credit guarantee
Application
This type of single punching machine is suitable for pressing all kinds of granules, powders and other raw materials, and shaped tablets, suitable for laboratory trial production or small batch production of various tablets, sugar tablets, calcium tablets,
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t

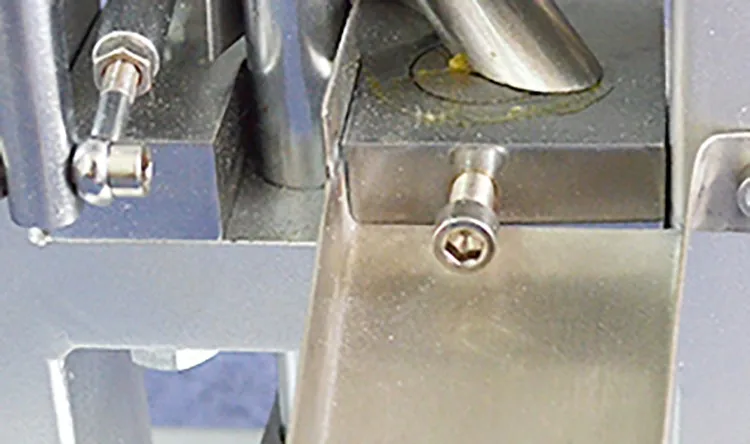

Outlet
Made of stainless steel, smooth treatment can effectively reduce the problems of missing edges, cracks and deformation caused by the discharge of tablets.
Addition funnel
Made of all stainless steel, it can adapt to the requirements of the pharmaceutical industry and facilitate material addition.
Lifting cam
The lifting cam, the eccentric wheel, operates in conjunction with the rotating shaft. Make mechanical power more powerful and make medicines faster.

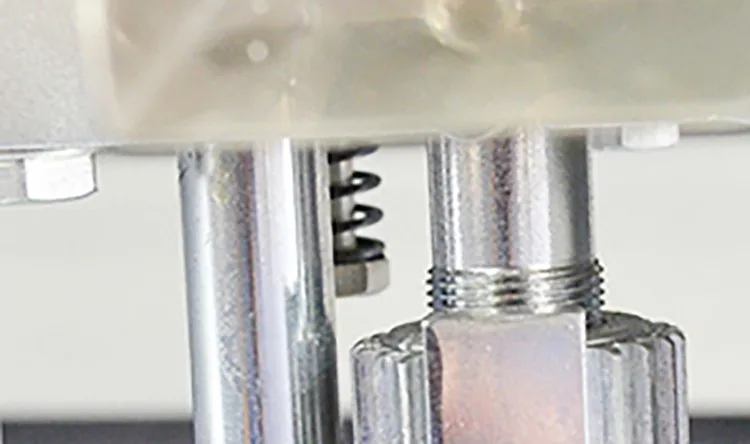

Thickness adjustment gear
Loosen the fixing bolts and loosen the adjusting wheel plate. Rotate the lower adjustment wheel to the right to rotate, the piece is re-added; to the left, the piece weight is reduced. After adjustment, install the pressure plate and fixing bolts.

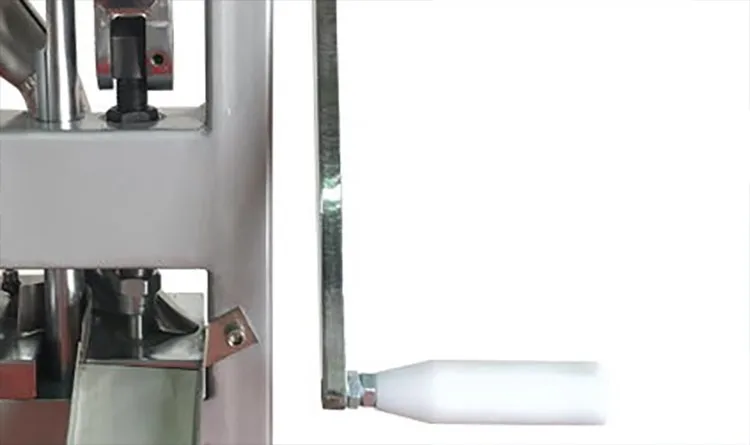

Hand rocker
This machine is a hand-operated single punching machine. It requires no power supply and can be directly pressed by hand.
Feeder
The feeder is upgraded and improved, and the inner discharge opening is widened to make the blanking smoother.
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us before you place order.
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
