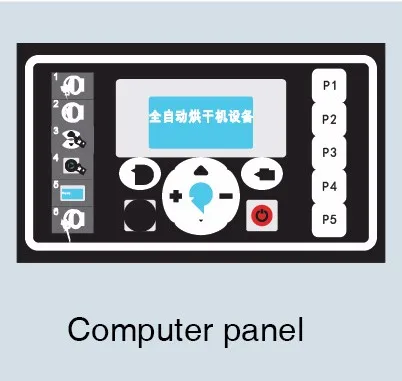

1. Advanced computer control can be uploaded 5 programs. Operator can set various temperature, time and rotating direction per drying requirements for different linen to ensure the best drying performance.
2. For all kinds of temperature, time and one-way and bothway rotation set,linen to achieve the best drying effect.
3. Manual operation also available during drying and it is very much easy to operate.
4.The dryer can change to cooling program automatically according to the setting time and temperature after the drying cycle finished ensure the best drying performance.
1. Scientific and reasonable design which makes temperature, airflow, the space of cylinder and the volume of exhausting to achieve the best balance, so that makes the best use of heat thermal energy.
2. Using large size of the heating element, so heat dissipation area is large and speed of drying is fast.
3. New generation of deflector design with thicker heat insulation enable to minimize heat loss.
4. Drum with more range of evens, so that the maximum amount of hot air flow in the linen to enhance the efficiency of drying.

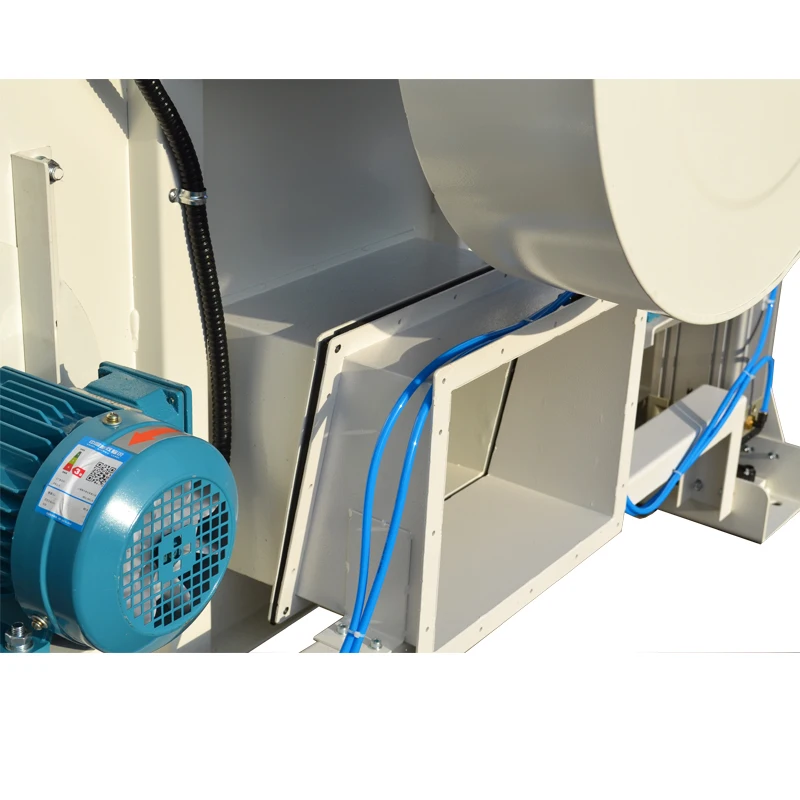

5. LM-100 dryer has dual fan configuration, which allows exhaust stronger.
2. Equipped with independent stop switch can quickly cut off power supply when the equipment in abnormal situation to ensure safety..
1. Secondary belt drive reduces reversing impact, which is reliable during operation and easy maintenance.
2. Easy to maintain with a standard set of installation kit.

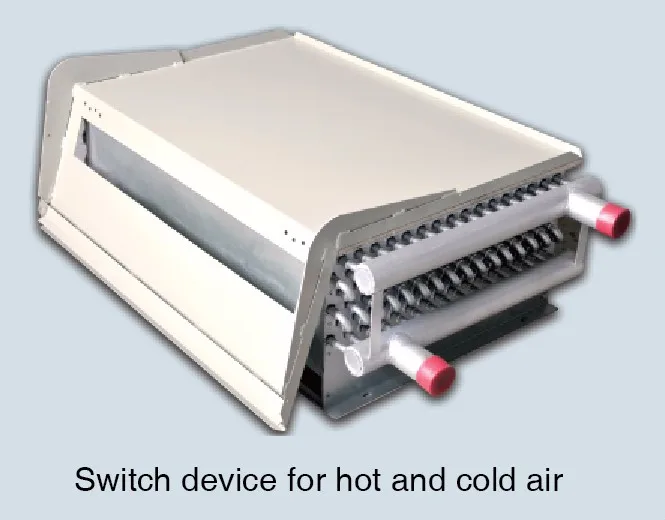

1. Switch device for hot and cold air
2. Steam heating dryer is equipped with switch device for hot and clod air.
3. Switch device switches to the cold conditions automatically after drying finished and cold air directly into the drum that makes linen temperature drop in the shortest time. Also it avoids temperature unstable when drying temperature reaches to the set temperature.
Model No | Unit | LM-50 | LM-70 | LM-100 |
Capacity | kg | 50 | 70 | 100 |
Heating Source | S/E | S/E | S/E | |
Drum Diameter | mm | 1120 | 1270 | 1450 |
Drum Deepth | mm | 1070 | 1125 | 1220 |
Speed | r/min | 32 | 32 | 30 |
Steam Pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Power | V | 380 | 380 | 380 |
Motor Power | kw | 1.1 | 1.5 | 2.2 |
Fan Motor Power | kw | 2.2 | 3 | 1.5×2 |
Electric Heater | kw | 36 | 60 | 80 |
Steam Inlet | mm | DN25 | DN25 | DN25 |
Steam Outlet | mm | DN20 | DN20 | DN20 |
Compressed Air | mm | 6 | 6 | 6 |
Weight | kg | 800 | 950 | 1400 |
Dimension (L *W*H ) | mm | 1200×1650×2200 | 1445×1780×2410 | 1590×1870×2510 |
CE certificated ,ISO9001,TUV
Shanghai Laundrymate Machinery Co.,Ltd Founded in 2007, professional team have more than 20 years experience in Commercial Laundry Equipment area. LaundryMate is a leading brand with a comprehensive product range, coverin washing extractor , drying equipment , flatwork ironer machine,feeding machine,folder,dry cleaning machine. dedicated to provide cost-effective and high performance laundry washing solutions based on cutting-edge technology and substantial market research to the worldwide.
Devoting more than 15% of revenues in R&D, LaundryMate always focus on quality under strict standards of TUV, CE and ISO9001 quality system certification to ISO14001 environment system certification.With more than 100 employees and 30% annual rate of growth, LaundryMate now markets and supports its products in more than 60 countries for hospital,high end hotel, school ,army,airlines ,restaurant,nursing home,social washing factory .LaundryMate quality philosophy: Professional create value! Meet the international standards in terms of service, quality and consistency for providing world class products and services to meet our customers' requirements. The quality assurance system is maintained at all levels within the Company and throughout the entire life cycle of our products and services.
