Product Overview
Description
Product Description
OK ONDOL™ HEATING FILM
Stronger, safer, and more OK ONDOL™ HEATING FILM
Stronger, safer, and more OK ONDOL™ HEATING FILM
Futuristic new concept heating film with differentiated design and structure OK ONDOL™ HEATING FILM

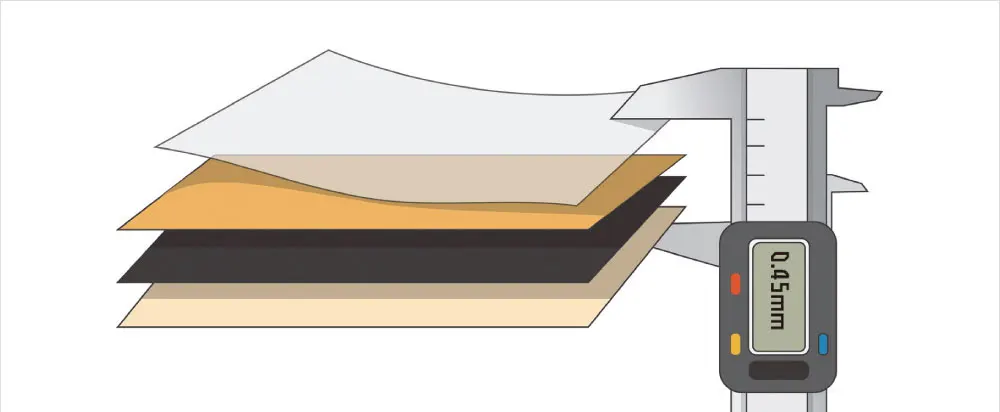

Stronger with a multi-insulated structure and protects against sparks by buffering the Copper foil with Silver Bus Bar. OK ONDOL's pride is its unique design considering the carbon heating element's adhesive strength, precision printing technology, and additional PET laminating for insulation reinforcement. Planar heating element (Sheet type heating) produced with a thickness of 0.40 to 0.45mm.
For Customers
It can be reborn as your own brand (OEM).
Voltage and power consumption can be adjusted to meet customer needs.
Electricity supplied through the copper foil located on both edges generates pleasant heat of carbon and far-infrared rays on the entire surface of the sheet.
OK ONDOL™ is a high-quality heating film that realizes far-infrared heating similar to the traditional ‘Ondol rooms’ in Korea.
OK ONDOL™ Structure
floor heating systems parts floor heating systems underfloor heating electric heated heat insulation heat cable heating film electric floor heating heated floor system underfloor heating system home heating system floor heating film carbon heating film graphene heating film korea heating film ptc heating film electric heating film underfloor heating film cnt heating film felix ok ondol felixkorea
OK ONDOL™ Specification
Width (mm) | Thickness (mm) | Voltage | Power Consumption | Package (M/Box) | Weight (Kg) | Remark | ||
250 | 0.40~0.45mm (Changeable upon customer request) | AC 110, 220, 230 | 55/m | 220/㎡ or Custom | 75 | Production upon order | ||
300 | 65/m | 75 | ||||||
400 | 88/m | 75 | ||||||
500 | 110/m | 75 | 24.2 | Always in stock | ||||
500 | AC 220, 230 | 200/m | 400/㎡ | 75 | 24.2 | Production upon order *High Temp. | ||
600 | AC 110, 220, 230 | 132/m | 220/㎡ orCustom | 75 | Production upon order | |||
1000 | 220/m | 75 | 46.2 | Always in stock | ||||
* Watt is the simple conversion of 220Watt/m2 to width. Watt can be changed upon customer request.
* The weight is based on the 0.45mm product. It may vary depending on the thickness and packaging.
* For high-temperature films, a width of 500 mm or less and 400 Watt/m2 are recommended.
