Product Overview
Description
Product Description

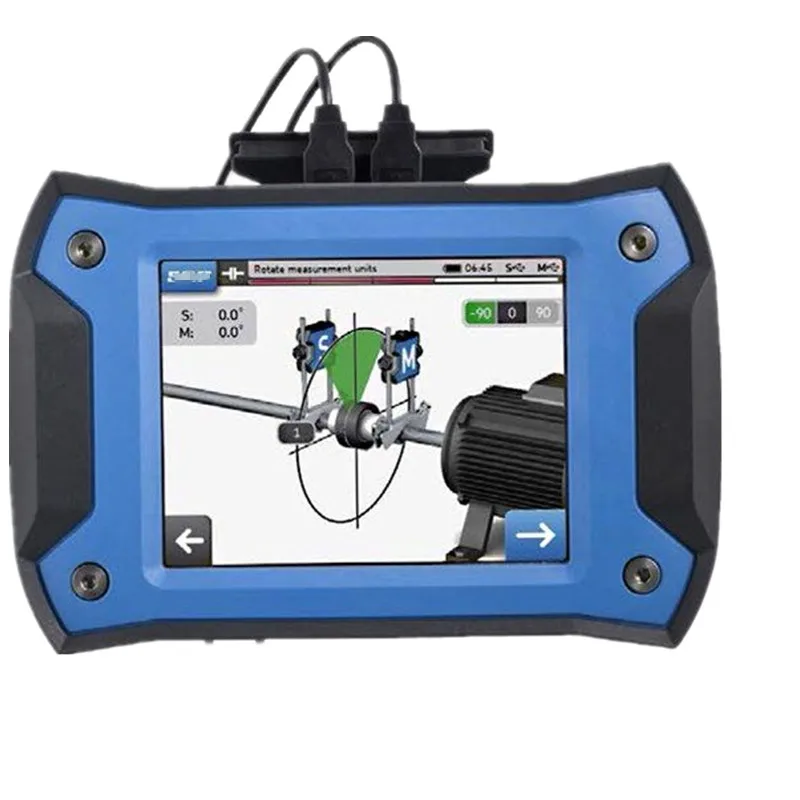

TKSA 41 Wired Laser Shaft Alignment Tool
Shaft alignment is recommended for almost every industry, as it helps to increase machine uptime, decrease production losses and reduce maintenance costs. The TKSA 41 is the ideal solution for entry-level laser shaft alignment. Its intuitive usage helps to achieve accurate alignments while the TKSA 41 remains affordable for almost every budget.
****Easy measurements can be performed by using the well-known three position measurement (9-12-3 o'clock) with additional positioning flexibility of 40° around each measurement position.
****High affordability is achieved by focusing on the standard shaft alignment process and essential functions to allow quick and effective shaft alignments.
***"Automatic measurement" enables hands-free measurements by detecting the position of the heads and only taking a measurement when the heads are in the right position.
****Automatic reports are generated after each alignment and can be customized with notes about the application. All reports can be exported as pdf files.
****Live view supports intuitive measurements and facilitates horizontal and vertical machine position corrections.
****The machine library gives an overview of all machines and alignment reports. It simplifies the machine identification and improves the alignment workflow.
Techinal data
Designation | TKSA 4 |
Sensors and communication | 29 mm (1.1 in.) CCD with line laser; electronic inclinometer ±0,5°; Wired communication with USB cables (included) |
System Measuring distance | 0,07 to 4 m (0.23 to 13.1 ft.) |
Measuring errors / displayed resolution | <0,5% ±5 µm / 10 µm (0.4 mils) |
Display type | 5.6" colour resistive touchscreen LCD |
Software update | via USB stick |
Shaft diameters | 20 to 150 mm (0.8 to 5.9 in.) diameter Up to 300 mm (11.8 in.) with optional extension chains |
Mounting system | 2 × V-brackets; 2 × chains 400 mm (15.8 in.); 2 × threaded rods 150 mm (5.9 in.) per V-bracket |
Alignment measurement | 3 position measurement 9–12–3 3 position automatic measurement 9–12–3 3 position free measurement (with min. 90° rotation) |
Alignment correction | Live values for vertical and horizontal machine position correction; Laser soft foot tool |
Alignment report | Automatic pdf report exportable via USB stick |
System battery | up to 12 hours continuous use at 100% backlight (2 000 mAh rechargeable LiPo battery) |

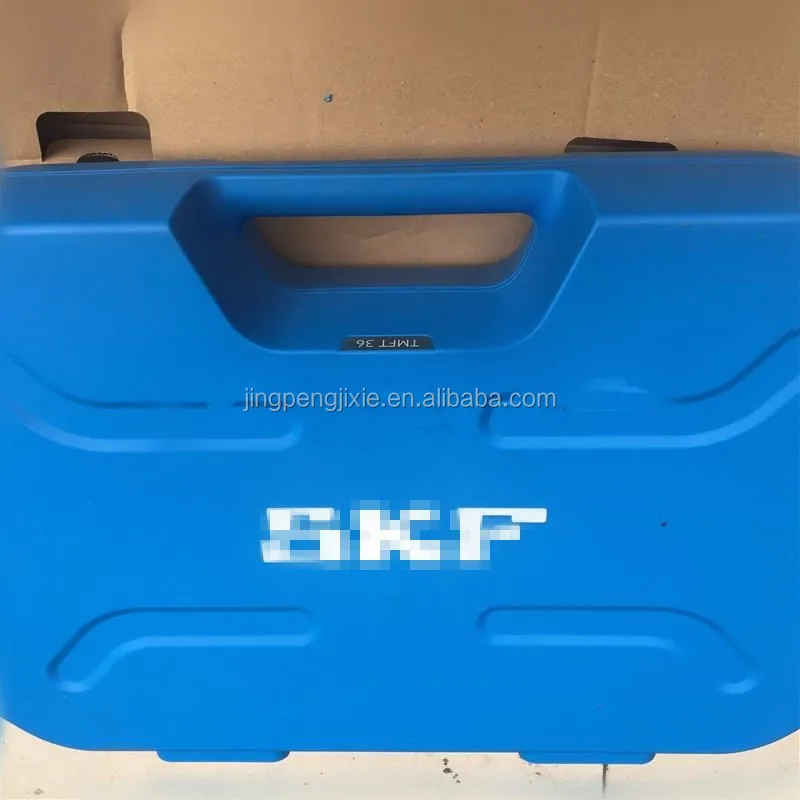

Carrying case dimensions | 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.) |
Total weight (incl. case) | 4,75 kg (10.5 lb) |
Operating temperature | 0 to 45 °C (32 to 113 °F) |

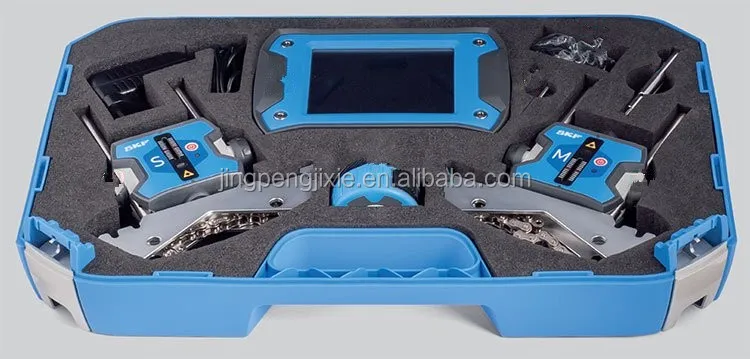

Case content
1. 1 × TKSA 31/41 Display unit
2. 1 × TKSA 31/41 S Measuring unit
3. 1 × TKSA 31/41 M Measuring unit
4. 2 × Shaft V-Brackets with chains
5. 90 mm Extension rods (TKSA 41 only)
6. 1 × Chain tightening rod
7. 5 m (16 ft) metric and imperial measuring tape
8. 1 × 12V DC 3A Power supply
9. Country adapters (US, UK, EU, AUS)
10. 2 × Micro USB to USB cables*
11. Printed Quick Start Guide (EN)*
12. Printed certificate of Calibration and conformance*
13. 1 × Page of QR code stickers (TKSA 41 only)*
