Мощный 5 Вт 10 Вт 20 Вт однополосный усилитель сигнала сотового телефона/ретранслятор
- Category: >>>
- Supplier: Shenzhen Ayision Technology Co. Ltd.
Share on (62002348869):
Product Overview
Description
we are manufacture of signal booster, we can provide you tri band, dual band, single band products. we also can provide you all accessories, such as indoor antenna, panel antenna, coaxial cable and so on.
Introduction
Enhanced voice and data reception is what an outdoor cellular repeater solution will do.
People who are located in rural communities and RV parks or on remote construction sites, golf courses, ranches and oil rigs are affected by poor cellular reception due to shadow areas created by hills, mountains, tall trees, or the sheer distance from the nearest cell tower. We has extensive experience in engineering and deploying these types of systems in a cost effective way.
We would like to customize for you depends on the size of the area you need to cover and the services you want to support.
Product Description
| Frequency Range | Uplink 824-849MHz |
| Downlink 869-894MHz | |
| Maxinum Gain | Uplink 80±3dB |
| Downlink 85±3dB | |
| Maxinum Output Power | Uplink 33dBm±2dBm |
| Downlink 37dBm±2dBm | |
| Coverage Area | 10000m2 theoretically |
| Size Of Repeater | 385x 285x 204mm |
| Size Of Package | 445x 345x 285mm |
| Weight | 13kg |
| Ambient Temperature | -10℃~60℃ |
| Power Supply | AC 200V-240V |
| Automatic Level Control(ALC) | Available |
| In-band Fluctuation | ≤5dB |
| Frequency Error | ≤±0.05ppm |
| Transmission Delay | ≤1.5μs |
| Input/Output voltage standing wave ratio | ≤1.8 |
| Noise Figure | ≤5.0dB(Max) |
| Spurious Radiation | 9kHz-150kHz:-36dBm/1kHz |
| 150kHz-30MHz:-36dBm/10kHz | |
| 30MHz-1GHz:-36dBm/100kHz | |
| 1GHz-12.75GHz:-30dBm/1MHz | |
| ≤-22dBm/100kHz | |
| Waveform Quality Factor | ρ>0.960 |
| Adjacent channel power ratio | 750kHz≤-45dBc/30kHz |
| 1.98MHz≤-60dBc/30kHz | |
| 900kHz≤42dBc/30kHz | |
| 1.98MHz≤-54dBc/30kHz | |
| Output Intermodulation | ≤-36dBc/30kHz |
| 9kHz-1GHz:≤-36dBm/30kHz | |
| 1GHz-12.75GHz:≤-30dBm/30kHz |
Application

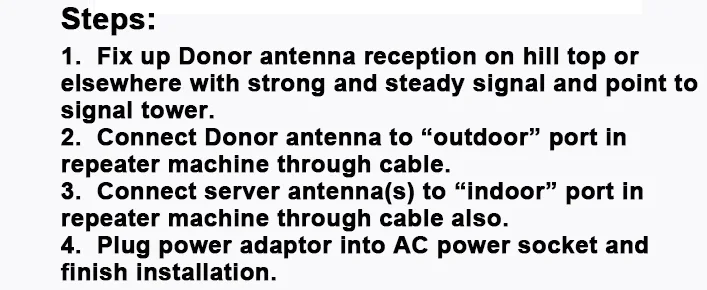

Installation
Contact us:
FAQ
Q: Does this mobile signal booster work with one carrier at a time or does it boost the signal for all carriers at the same time?
A: The signal booster work at the same time with all the carriers who work on the same frequency as the signal booster does. However, in some area, one cell tower may only carry one provider or a certain provider may not be available. If you have the outside antenna pointed at an 'XYZ' cell tower and you have 'ABC' provider, it likely won’t work for your 'ABC' service unless and until you point the outside antenna at a tower that has 'ABC' service.
Q: What does “Db” mean in the signal booster description?
A: Decibel is a unit of measurement showing the strength of the cell signal. One bar or dot on your phone to 5 bars or dots is equivalent to about -80 to -120 DB loss from the original transmission where -80 is good, less loss, and -120 is weak or bad from great loss.
Q: Does your signal booster have quality warranty?
A: Yes, all our signal boosters are with one-year quality warranty. For our wholesalers and agents, we provide longer warranty for free repair.
