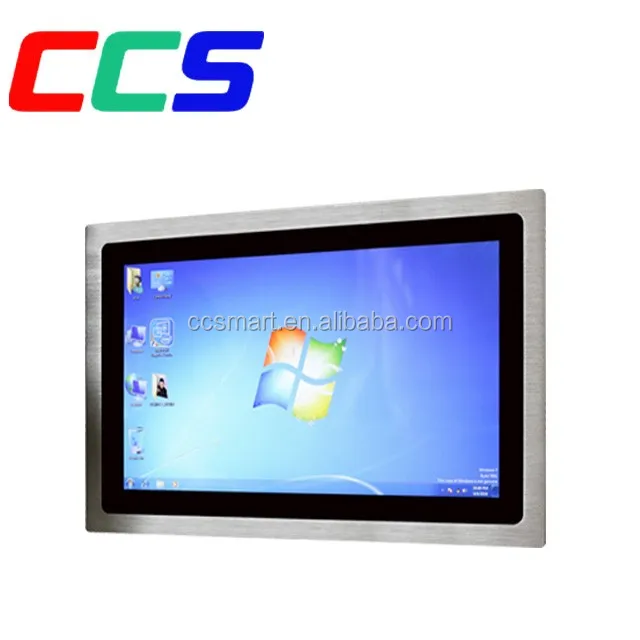

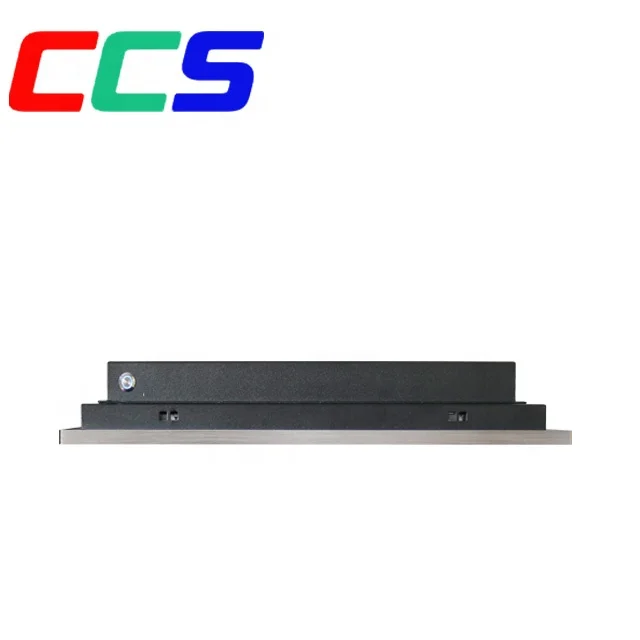

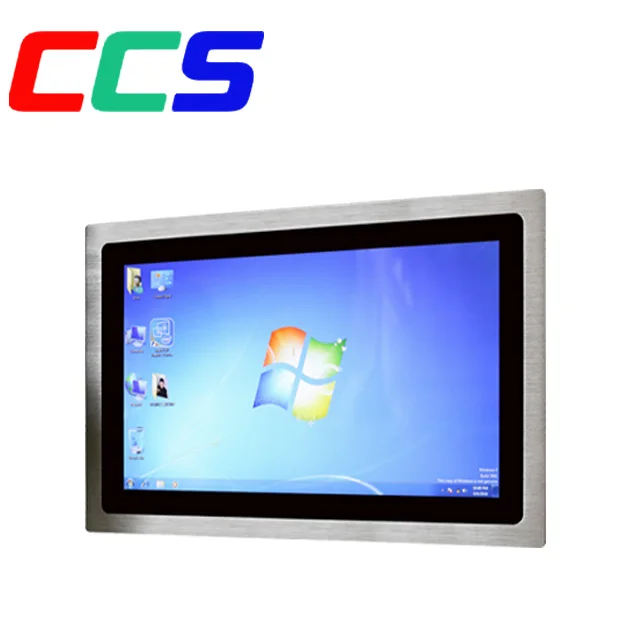

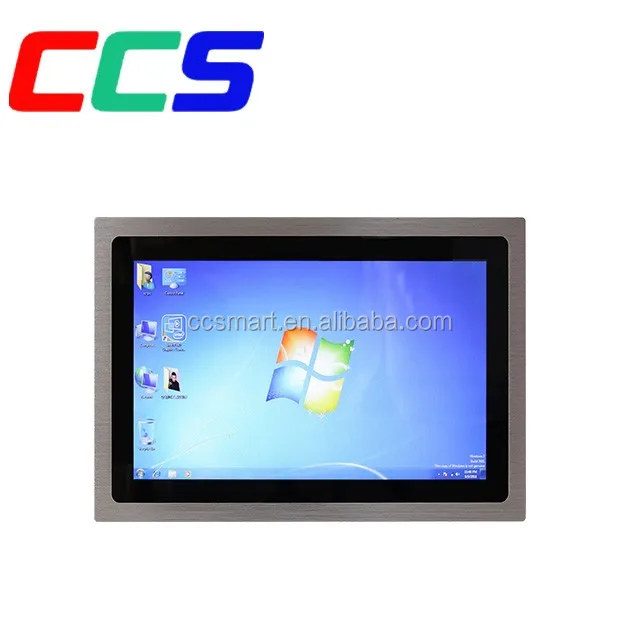

15.6 inch Touch Screen All in One PC 1920x1080 Digital Signage

CCS is an innovative and cutting-edge manufacturer in embedded panel computer and touch solutions technology. With excellent R&D team, leading design philosophy and cost-effective solutions, CCS enjoys a high reputation in domestic and oversea customers from Industry Process Automation, Outdoor Digital Signage,Transportation and Kiosk.

Our Vision
To be the better and smarter Panel Computer and Touch Display Manufacturer.
Our Mission
We strive for saving time for customers in offering:
Excellent Quality, Reasonable Price, Short Lead time and Fast Response

Product Details

15.6 inch Touch Screen All in One PC 1920x1080 Digital Signage

Display
Resolution	1920x1080
Aspect Ratio	16:9
Viewing Angle(H-V)	170/160
Contrast Ratio	1000:1
Brightness	300nits             1000nits opitions

Touch Technology
Type	Projected Capacitve Multi Touch
Working Life	More than 50 Million Times

System
CPU	Intel i5-4200U
Memory	8gb DDR3L
Storage	64gb SSD
Ethernet Card	RTL8111F 10/100/1000Mbps
Operation System	Win10 Home

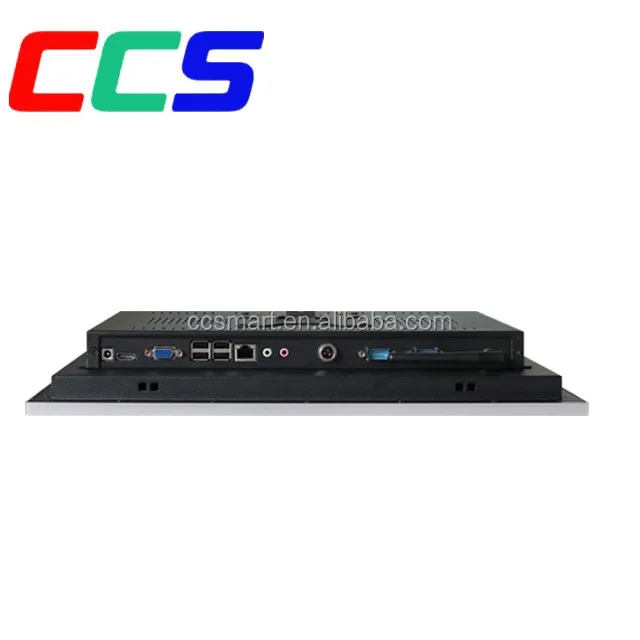

Rear I/O Ports
Serial Port	RS232*2                                         RS232*10 options, RS422/485 options
USB Port	USB2.0*3,USB3.0*1                      USB2.0*10 options
LAN	RJ45*1                                            RJ45*2 Dual Lan Options
Video Output	VGA*1,HDVI*1
Audio	Line Out*1, Mic*1
WiFi	802.11 a/b/g/n                                2.4GHz~5.0GHz options
DC Jack	DC*1
Power Input	DC  24V

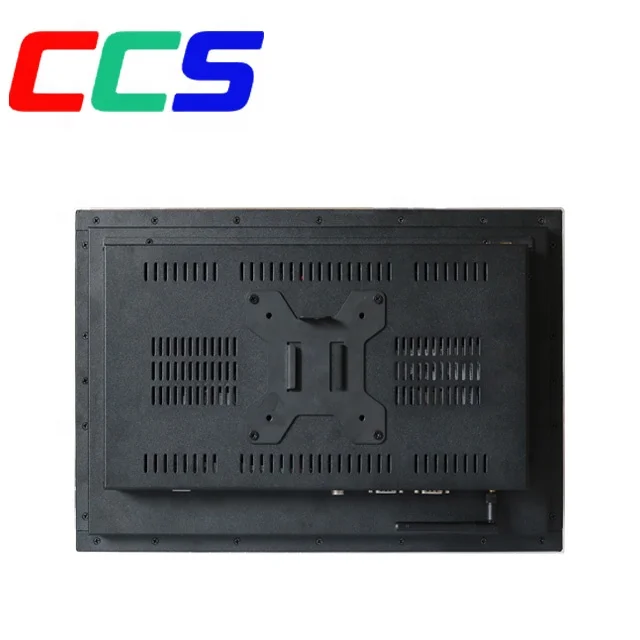

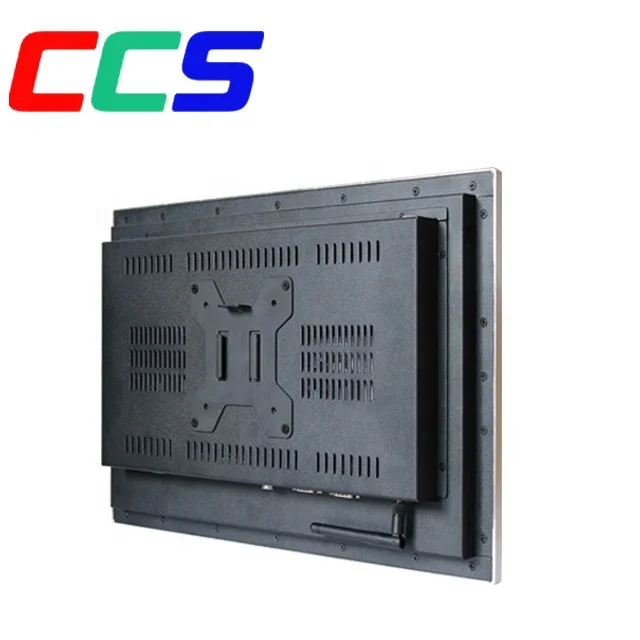

Mounting	Panel Mount, Flush Mount, VESA 75mmx75mm 100mmx100mm, Wall Mount
IP Levevl	IP65  Front
Material	Aluminum Alloy, Anodized, Brushed Wire

Industrial All in One Touch Screen Panel PC

Processor:
-Fanless- Intel Atom D2550 Intel Celeron J1900 Intel(R) Core(TM) i3
Intel(R) Core(TM) i3,i5 (Mobile Version)
Intel(R) Core(TM) i3,i5,i7 (Desktop Version)
Memory: 2gb~16gb SO-DIMM
Storage: 32gb~256gb SSD or 1TB HDD
OS:Windows 7/8/10,Linux
Options:Dual Lan, 8*USB,6*Com,3G/4G,9~36V Input,Full IP65

Industrial Touch Screen Monitor

Screen Size:
6.2" 16:9 800*480 7" 17:10 1024*600 8" 4:3 800*600
10.1" 16:10 1280*800 10.4" 4:3 1024*768
12" 4:3 1024*768 12W" 16:10 1280*800 13.3" 16:9 1920*1080
15" 4:3 1024*768 15.6" 16:9 1920*1080
17" 4:3 1280*1024 17.3" 16:9 1920*1080
18.5" 16:9 1366*768 19" 5:4 1280*1024 19" 16:10 1440*900
21.5" 16:9 1920*1080 23.6" 16:9 1920*1080

Material&Process

CNC Processing

All of our Panel PC and Touch Monitor Product is with CNC Aluminum Alloy Bezel. With the  precision to be sealed, to meet IP65 Grade.

Metallic Lustre

The Metallic Lustre is perfectly showed by brushed wire and anodized process

Certifications

Packing & Delivery

Warranty

Fast Response on Service

With professional engineer team, CCSMART services throughout the business process. We're here to receive your any questions and provide the fastest and the best services.
If any questions, welcome to contact CCSMART!
