Product Overview

Description

Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor

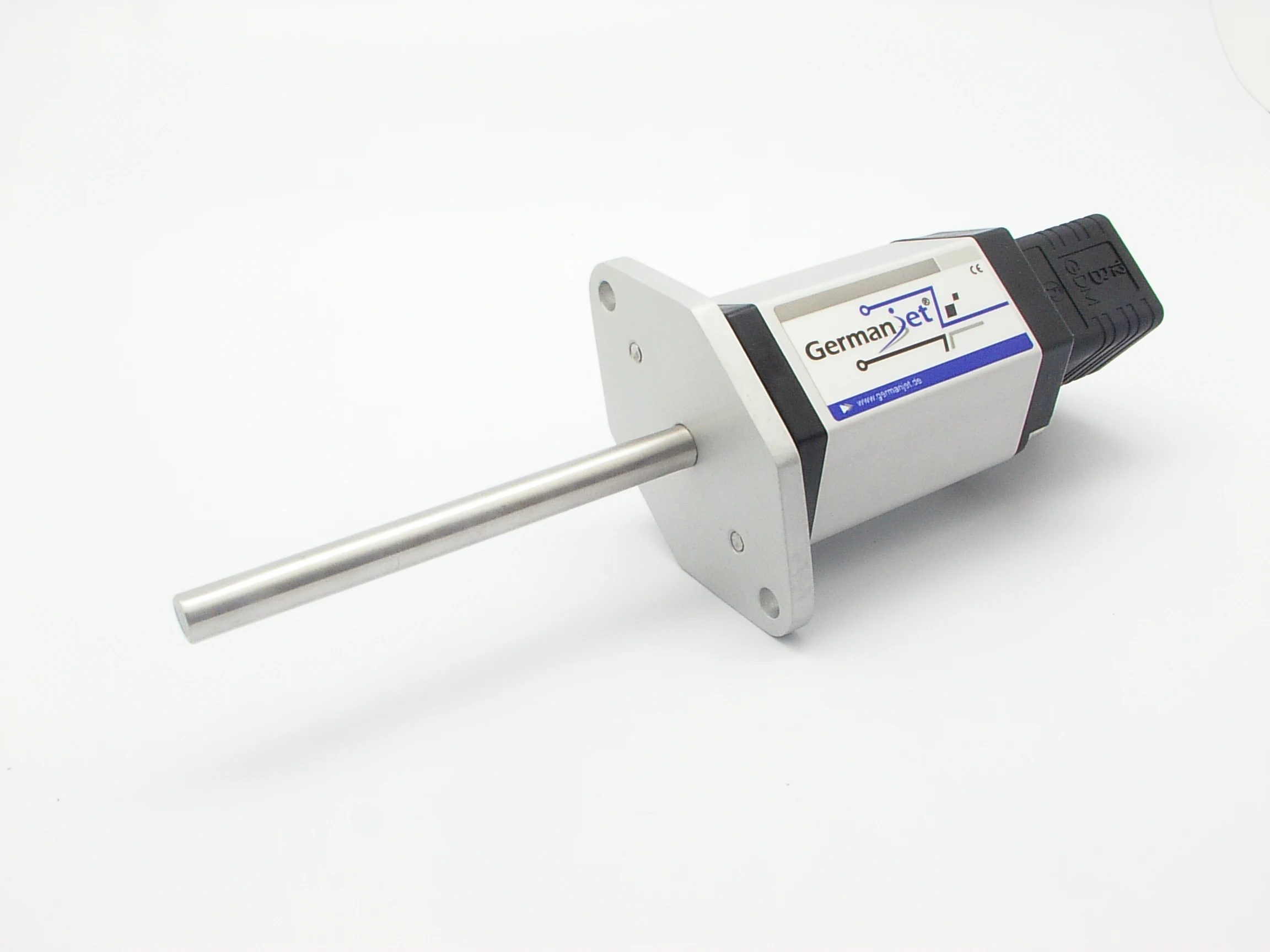

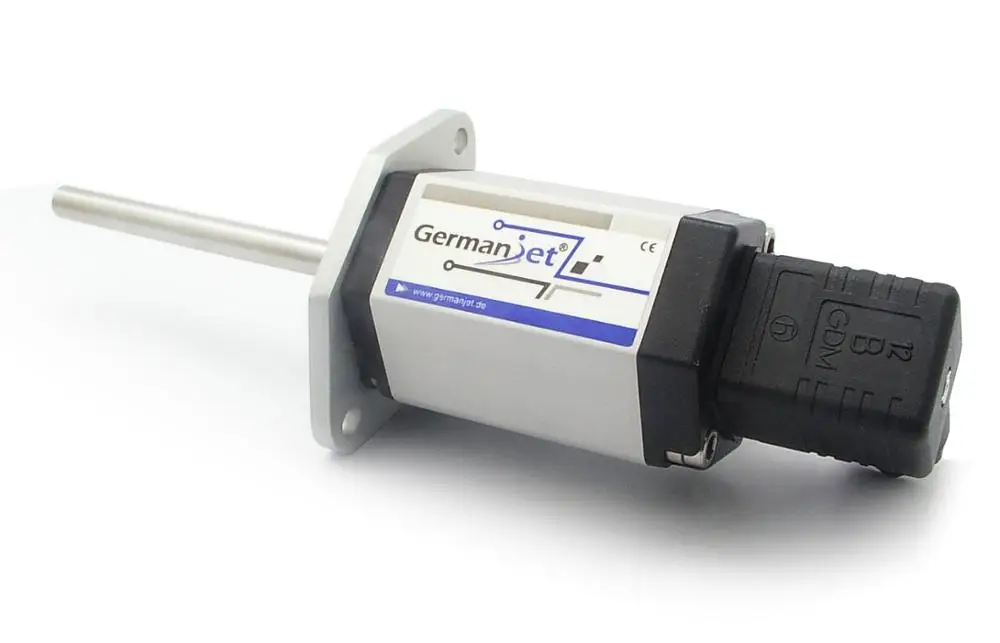

12 Series - Short Stroke Length

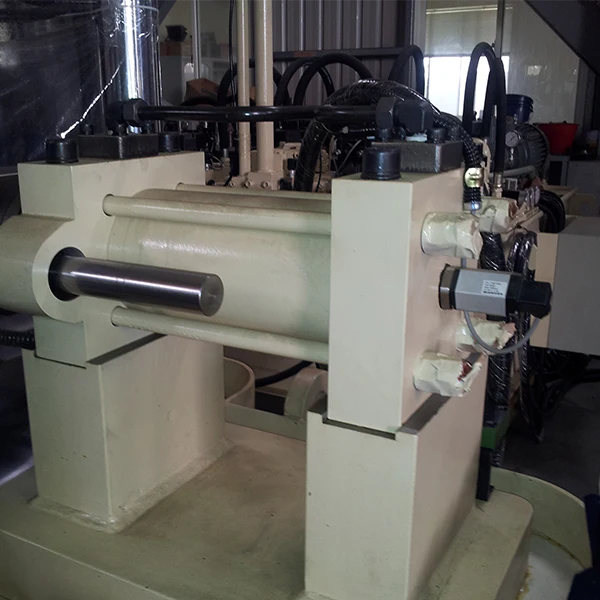

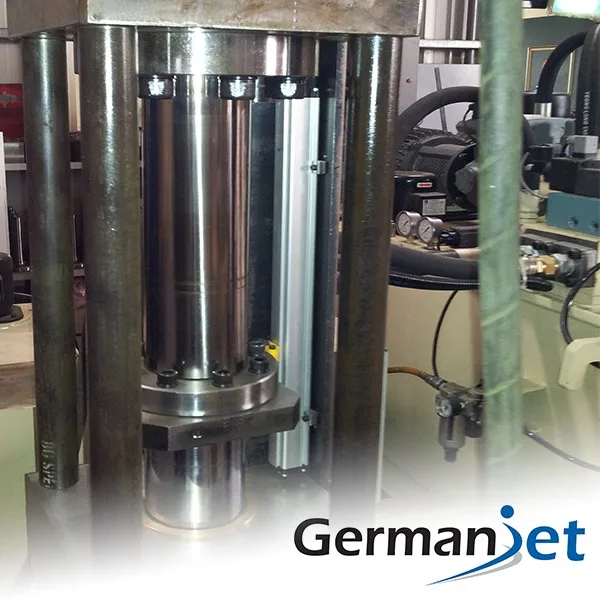

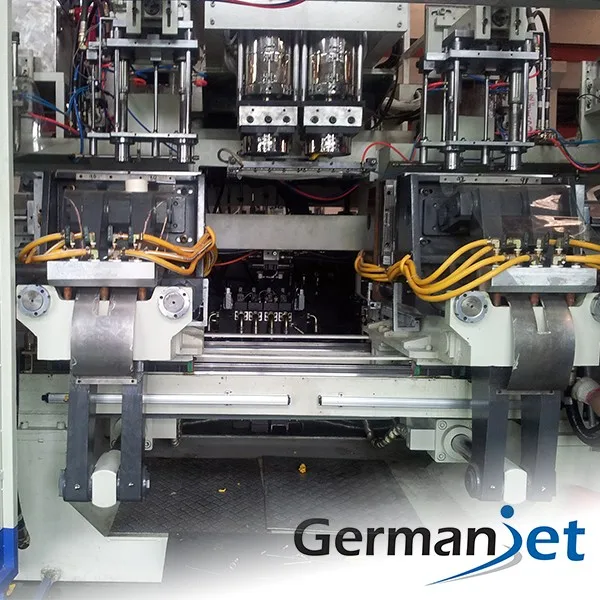

The 12 series non-contact absolute position transducer is specially designed for parisan control which dynamically control thickness of Parison to get a uniform thickness container on an Extrusion Blow Moulding machine.



The 12 series adopts the non-contact magnetostricitve measuring technology for precise, direct and absolute measurement. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited mechanical life expectancy. The non-contact (Floating) cursor provides exceptional ease of installation with a variety of available cursor position target.



The high versatile profile housing (need to match a suitable connector) offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.



Order Code	120
Output	0-10Vdc, 10-0Vdc dual-output. minimum load 5kΩ
Measurement Type	Linear displacement
Resolution	Infinite, restricted by output ripple
Input Voltage	+24Vdc (20.4 - 28.8Vdc)
Input Protection	Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc
Current Consumption	50-140mA (stroke range dependent)
Dielectric Strength	500Vdc (DC ground to machine ground)
Repeatability	< ±0.005% of full scale
Non-Linearity	< ±0.02% of full scale (minimum ±90 μm)
Update Time	0.2 ms
Mounting	M5 x 2
Housing Material	Anodized aluminum
Operation Temp.	-40 to 75 °C, Humility 90% non-condensing
Sealing	IP65 / IP67 (with connector)
Vibration Rating	15g / 10-2000Hz / IEC standard 68-2-6
Shock Rating	100g single hit per IEC standard 68-2-27
EMC	Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6
