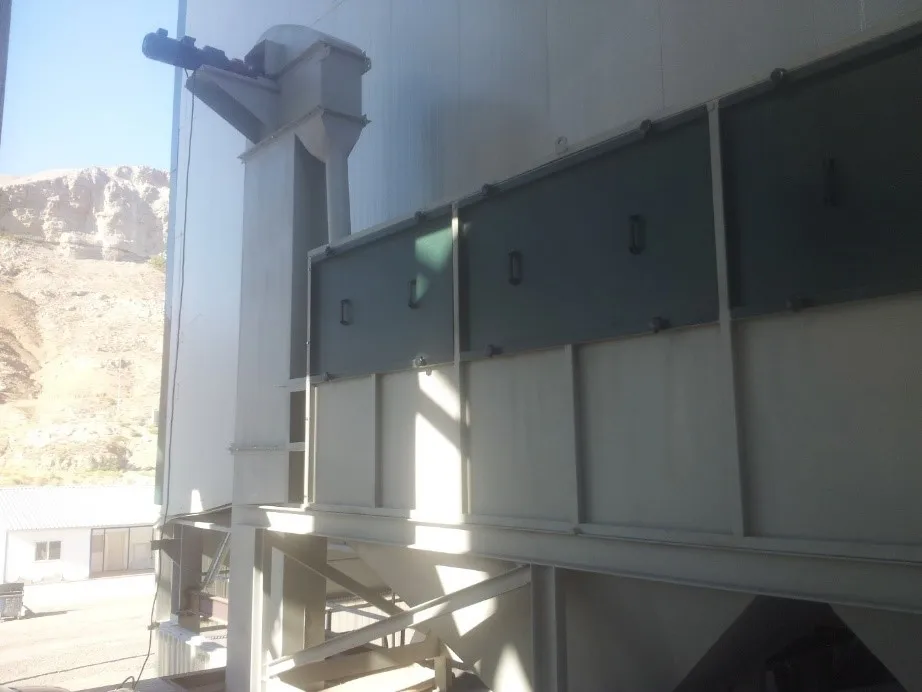

VERTICAL ELEVATOR for SALT PROCESSING

Share on (62002902153):


Price:RUB 1,533,506.00

Quantity:


Product Overview

Description

Product Description

·       Elevator capacity: 20 TPH
·       Elevator total height:  5 m
·       Body width: 350 mm x 950 mm
·       Elevator bottom (feeding section) will be 4 mm, AISI 316
·       Elevator top (deriving section) will be 4 mm, AISI 316.
·       Elevator support columns will be 3 mm, AISI 316
·       Reducer power: 4 Kw
·       Break will electromagnetic.
·       Elevator baskets: width 260 x 180 mm.
·       Basket will be suitable with din 15233 standards.
·       There will be 45-50 QTY baskets.
·       Elevator band speed : 1.25  m/sec
·       Driving drum and tail pulley will be AISI 316
·       Bearing housings will be HCB
·       Elevator band will be 4-layer, 10 mm thickness and will be suitable food approvals.
·       All bolts and nuts will be chromium nickel

Our salt production line includes many operations to salt production.All Our Products Can Customize Upon Customer Request. Prices can be change for other capacities.

Packing & Delivery
Company Profile

EBR SALT has been producing mechanical and PDV salt refining plants with its own production experience more than 20 years.

EBR SALT; produces all equipment which are use for salt refining plants at its own 2500 square meter closed total 5000 square meter factory.

EBR SALT produces; saturators, clarifiers, separators, crystallizers, blowers, thickeners, heat exchangers, harvesters, bunkers, conveyors, silos and storage systems, screw conveyors, cyclones, hydro cyclones, crushers, centrifuges, elevators, iodine and anti-caking systems, dryers, de-dusting systems, sieves and elimination systems, chemical dosing systems, packaging machines, tablet machines, licking stone (salt block) presses, etc.

EBR SALT has chosen to make our high-quality products easily accessible for everyone.

EBR SALT does not compromise on innovation, ethical behavior, reliability, on-time delivery, high quality and low-cost principles to achieve this goal.
