High Accuracy 0.5%R hot water electromagnetic heat flow meter

Share on:

Price in USD:Details


Product Overview

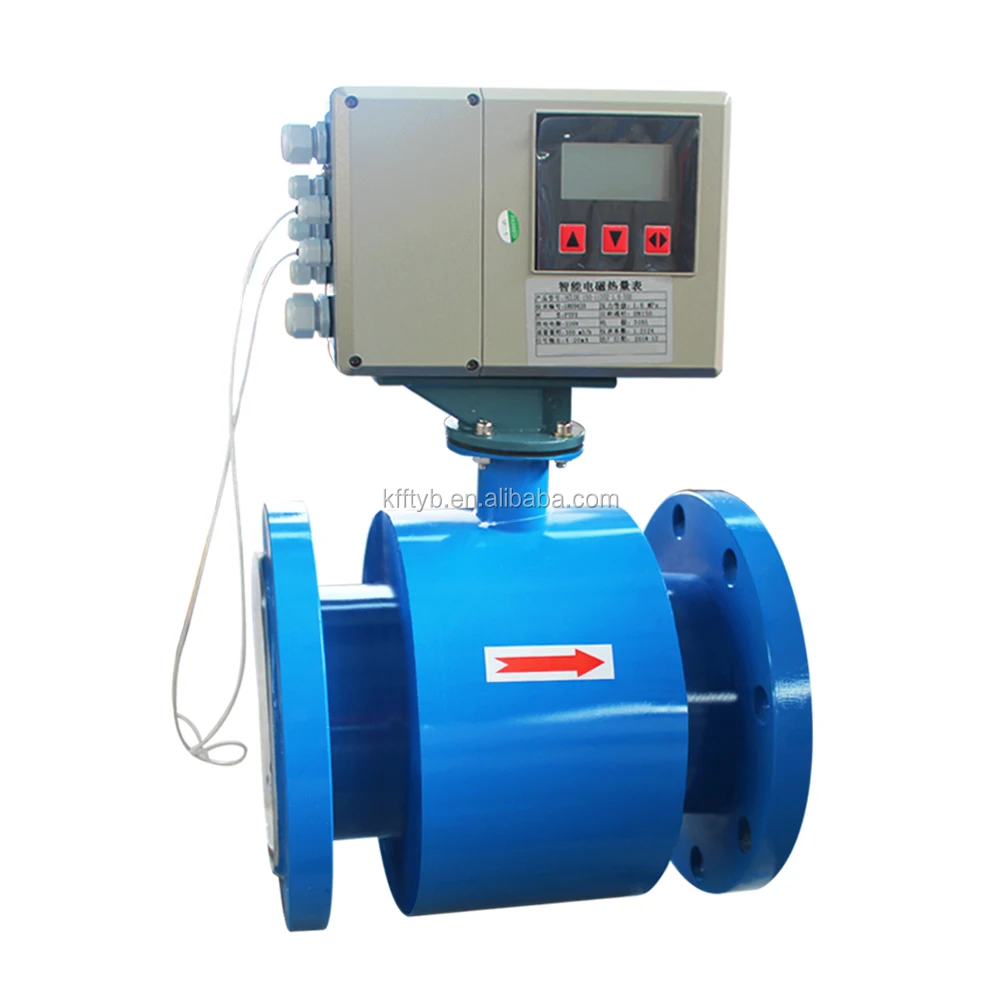

High Accuracy 0.5%R heat measurement electromagnetic heat flow meter

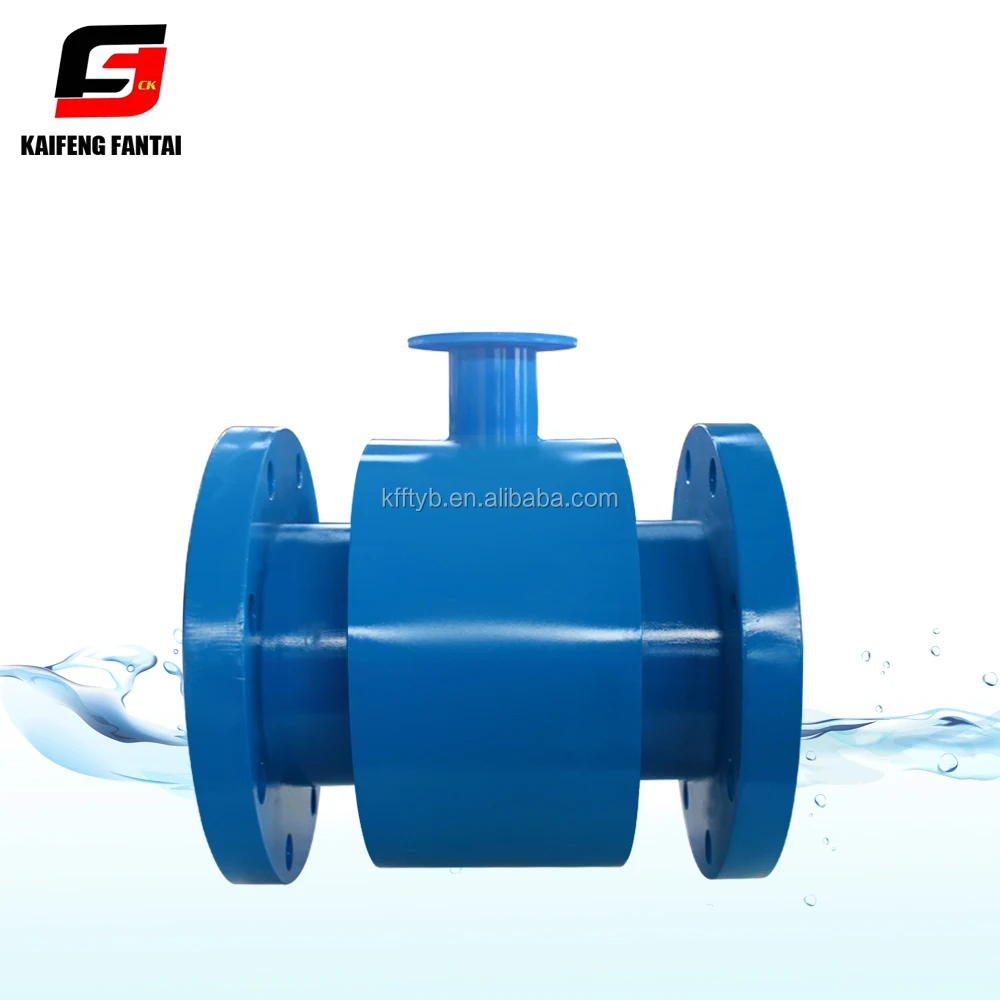

 Electromagnetic flowmeter introduction



Electromagnetic flow meters, or magmeters, are comprised of a transmitter and sensor that together to measure flow. The magnetic flow meter’s sensor is placed inline and measures an induced voltage generated by the fluid as it flows through a pipe. The transmitter takes the voltage generated by the sensor, converts the voltage into a flow measurement and transmits that flow measurement to a control system.

High Accuracy 0.5%R electromagnetic heat flow meter charactor


  • Easy Setup

  • Minimal Straight Pipe

  • Mounted or Remote Rate and Total

  • IP65,IP67 ,IP68 Rated (optional)

  • 100:1 Turndown

  • Virtually No Pressure Loss

  • No Moving Parts

  • RS485 Standard,HART standard is available.

  • Suitable for Pipes Up to DN3000

  • High Accuracy to 0.2%R .

  • 4 to 20 mA and Frequency Outputs Standard

  • 3-Point Calibration Included


High Accuracy 0.5%R electromagnetic heat flow meter parameters




Nominal Pressure



±0.5%,±0.3%or±0.2% are available

Liner material


Electrode Type

General type

Electrode material

Stainless steel SUS316,Hastelloy B, Hastelloy C,Titanium,Tantalum  Platinum-iridium,
Stainless steel covered with tungsten carbide

Mediem temperature

Integral type


Remote type

Neoprene & Polyurethane Liner


 PTFE Liner /PFA Liner /F46 Liner


Ambient Temperature

-25°C ~+ 60°C

Ambient Humidity

 5~100%RH(relative humidity)

Medium Electrical

≥5μ s/cm

Measuring Range

1500:1,flow rate<15m/s

Structure type

Integral type,remote type,submersible type,ex-proof type

Protection Class


Ex-proof Mark


Product Standard

JB/T 9248-1999 Electormagnetic Flowmeter




Hot water heat measurement flow meter advantages in details



  • We use the reference flowmeter method to confirm the sensor condition,then after assemble,we will use the gravimetric systems to confirm the sensor and the transmitter condition.The calibration device included the high accuracy Sartorius scale.Our high accuracy Sartorius scale can reach the 0.016%.so it is no problem to gurantee the 0.2% accuracy.

  • We use the AB clue to fix the bolts and nuts in case it may loose because of the vibration and long distance transportation

  • The welding of the housing and the flange are operated by our senior welding engineers who have at least 5 years experience.The inner flange is welded completely to make sure no humidity enter into the flowmeter house.

  • The thickness of the linner is more than 3mm.

  • The exciting coil of wires are copper wire.

  • We use the label to remind customer where to connect the power and voltage in case the unmatched voltage damage the flowmeter.

  • The big screen LCD display the forward gross volume,flow volume and unit clearly.

  • Flowmeter use the matched grounding rings to keep high accuracy measurement stable


Related products




 Electromagnetic flowmeter manufacturing company information





 Our hot water electromagnetic heat flow meter Certificate


 Our hot water heat measurement electromagnetic flow meter service


  • On time delivery

  • scheduled producing managementt

  • Export products has priority to domestic order on product quality and lead time

  • Good products focus more on the aftersale service and Consult service,

  • Good packing service

  • Excellent Calibration service for High Accuracy 0.2%R water electromagnetic flow meter




 FAQ of Electromagnetic flowmeter

1.How do you calibrate the flowmeter?

We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters.We use the Gravimetric for the 0.2% R flowmeters.


2.How can you gurantee the high accuracy?

The Gravimetric mothod is much more accurate than the volumetric calibration and we use the high accuracy sidorious scale to gurantee the less tolerance. Our high accuracy Sartorius scale can reach the 0.01%.so it is no problem to gurantee the 0.2% accuracy.


3.How many years do you use the calibration ?

we use it since our factory starts.


4.Why does the calibration influence the accuracy?is important?

The material and the structure of the magnetic flowmeter are not much difference,and the accuracy depends what it reference.if the standard reference flowmeter's accuracy is 0.2%R,then the test flowmeter must be lower than 0.2%.


5.Do you need agent?

Yes,we need agent to expand our sales,we provide technical support,Products priority and good price.


6.I am a small company,Can I be your agent?
We are a developing company ,we Appreciate partners who is willing to grow with us


You minght be a common customer to a large scaled company /famous brand,but for us ,you are the most important.we will put you to the first.


 Send enquiry for more info about Electromagnetic flowmeter


We gurantee that the quality of the oversea sales products are much better than domestic model.


Please place an trial order to  try our service  and you will like it !!


We can accept the order with trade assurance on Alibaba to protect your quality,shipment,and payment.


High Accuracy 0.5%R water electromagnetic flow meter Factory supply for you
