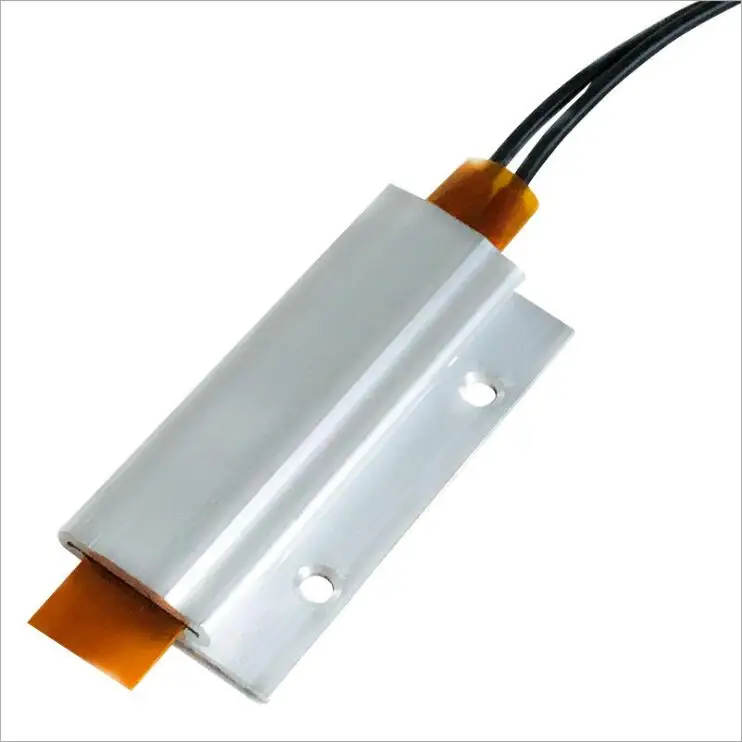

LAIYUAN Custom PTC Ceramic Heating Element for Hot Melt Glue Gun
- Category: >>>
- Supplier: Yancheng Laiyuan Electric Equipment Co. Ltd.
Share on (62003155991):
Product Overview
Description
Product Description

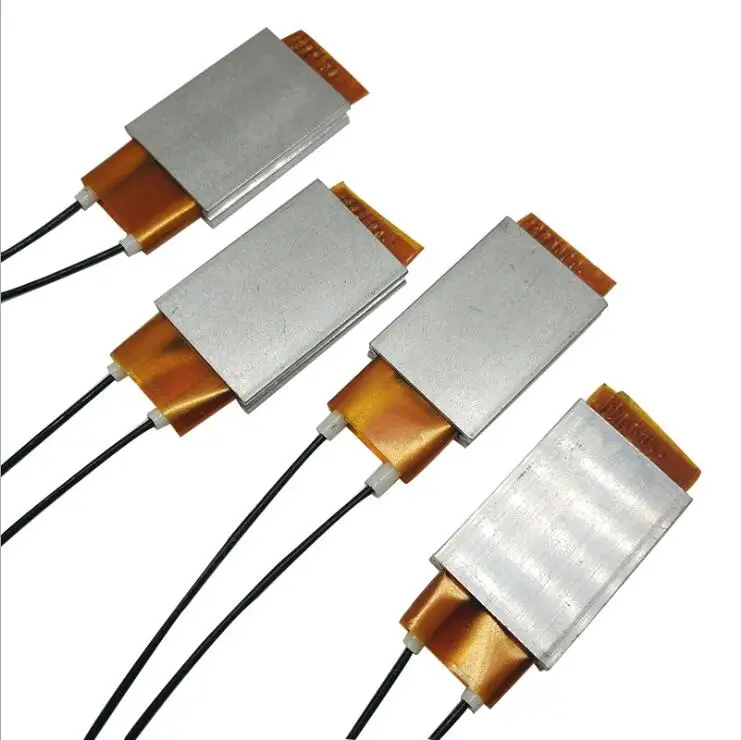

PTC Heater Ceramic Electric Heating Element
1. Rated Voltage:220V
2. 220V dry SST: 150±10°C(Dry table temperature refers to the temperature heating plate when not in contact with any substance)
3. Size: 80x28.5x5mm
4. Reference Power: 15~35W
This PTC part is used for heating air or solid. the PTC meterial has a characteristic that it is constant temperature on the
surface.
Notice: the power is reference value. the better the dissipation is, the bigger the power is.this model can be use without extra dissipation.
1. Rated Voltage:220V
2. 220V dry SST: 150±10°C(Dry table temperature refers to the temperature heating plate when not in contact with any substance)
3. Size: 80x28.5x5mm
4. Reference Power: 15~35W
This PTC part is used for heating air or solid. the PTC meterial has a characteristic that it is constant temperature on the
surface.
Notice: the power is reference value. the better the dissipation is, the bigger the power is.this model can be use without extra dissipation.

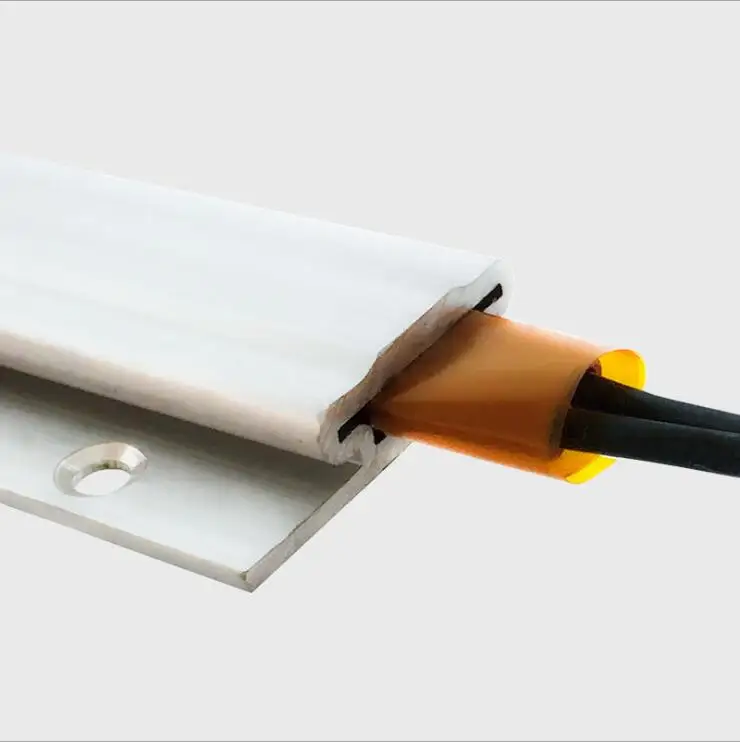

Product Name | PTC Heater With Aluminum shell(PTC Heater Ceramic Electric Heating Element) |
Heat Material | PTC Thermistor |
Heat Methods | Heat Conduction |
Lead Wire | Silicone High Temperature Line |
the Length of Lead Wires | 150mm |
Surface Insulate | Yes |
Application | Egg Boiler/Hair straightener/Yogurt maker/Dehumidifier/Chocolate extrusion/Coffee maker/PTC Heater Ceramic Electric Heating Element |
PTC heater is fixied by a pair of metal electrodes with leads on both sides of PTC element. It's heating elements are mainly
consist of ceramic stones, ase on barium titanate .Thus it have unique characteristics as semiconductors and their ferro-electric propertise can be precisely determined during their design. It can provide constant-temperature heat without need another temperature applications. We can make PTC heaters as your request.
consist of ceramic stones, ase on barium titanate .Thus it have unique characteristics as semiconductors and their ferro-electric propertise can be precisely determined during their design. It can provide constant-temperature heat without need another temperature applications. We can make PTC heaters as your request.
Voltage | 120-240V AC/DC* (min. 110V, max. 265V) |
temperature | -45 to +70 °C (-49 to +158 °F) |
humidity | max. 90 % RH (non-condensing) |
Protection type | IP54 / II (double insulated) |
Mounting | screw fixing |
Fitting position | variable |
Heater body | aluminium, anodised |
approvals | VDE + UL File No. E254776 |
Size | Voltage | Power | length dis | Width dis | Length | Width | Aluminum length | |
120*50mm | 500W | 120mm | 40mm | 138mm | 52mm | 57mm | 43mm | |
175*50mm | 800W | 175mm | 193mm | 112mm | ||||
230*50mm | 1000W | 230mm | 248mm | 167mm | ||||
280*50mm | 1200W | 280mm | 298mm | 217mm | ||||
345*50mm | 1500W | 345mm | 363mm | 282mm | ||||
390*50mm | 2000W | 345mm | 408mm | 282mm | ||||
430*50mm | 2000W | 430mm | 448mm | 367mm | ||||
490*50mm | 2000W | 490mm | 508mm | 427mm | ||||
120*75mm | 1000W | 120mm | 95mm | 160mm | 110mm | 97mm | 72mm | |
175*75mm | 1500W | 175mm | 215mm | 152mm | ||||
230*75mm | 2000W | 230mm | 270mm | 207mm | ||||
280*75mm | 2000W | 280mm | 320mm | 257mm | ||||
120*75mm | 1000W | 120mm | 68mm | 140mm | 75mm | 97mm | 75mm | |
175*75mm | 1500W | 175mm | 195mm | 152mm | ||||
230*75mm | 2000W | 230mm | 250mm | 207mm | ||||
280*75mm | 2000W | 280mm | 300mm | 257mm |
Advantages
1.High effective,
2.protects rank high
3.It can control the temperature by itself
4.Used in large range of voltage from 12V to 240V
5.leaks electric current small,life long and do not generate RFI noise.
6. It doesn't turn to red or get fire when it is working.
7.Even with the regard to voltage changes, the constant temperature mechanism will be effective.
2.protects rank high
3.It can control the temperature by itself
4.Used in large range of voltage from 12V to 240V
5.leaks electric current small,life long and do not generate RFI noise.
6. It doesn't turn to red or get fire when it is working.
7.Even with the regard to voltage changes, the constant temperature mechanism will be effective.
Applications
Hair straightener,hair crimper, wax melting heater,vapor generator,humidifier,water boiler,liquid warmer,coffee warmer,polymer press-coating heater,hot glue gun,chocolate extruder,shoe dryer,hand/foot warmer,massager,physical therapy heater.
Notice in appliance
1)After switching on, the heating power is large, and then decrease, finally it become steady state. The steady state power
changes with appliance conditions. Faster is the heat conduction, higher is the steady state power; higher is the surface
temperature, higher is the steady state power.
2)The surface temperature of PTC can be controlled by itself, control circuit may be omitted in most appliances.
3)Our PTC products are high reliable, long aging, but if they are assembled improperly, the end product may be loose, power or temperature may be instable.
4) It operates in long life, and has excellent insulation on high voltage. The surface temperature increases (or decreases) about 8℃, when supplied voltage increases (or decreases) 2 time. In liquid heating appliance, when liquid was dried in the container, it’s no problem.
5)Parallel connection is necessary for two or more PTC connection.
changes with appliance conditions. Faster is the heat conduction, higher is the steady state power; higher is the surface
temperature, higher is the steady state power.
2)The surface temperature of PTC can be controlled by itself, control circuit may be omitted in most appliances.
3)Our PTC products are high reliable, long aging, but if they are assembled improperly, the end product may be loose, power or temperature may be instable.
4) It operates in long life, and has excellent insulation on high voltage. The surface temperature increases (or decreases) about 8℃, when supplied voltage increases (or decreases) 2 time. In liquid heating appliance, when liquid was dried in the container, it’s no problem.
5)Parallel connection is necessary for two or more PTC connection.
