bldc motor 48v 1500w kit 1500rpm dc servo motor encoder
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (62003170048):
Product Overview
Description
bldc motor 48v 1500w kit 1500rpm dc servo motor encoder
Model:KY110AS0415-15
Product overview
1.Product Features:
| 1) Protection grade:IP65, insulation grade:F |
| 2) Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency |
| 3) Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable. |
| 4) Low noise, low vibration, low moment of inertia. |
| 5) High torque, fast dynamic response, wide speed range, strong overload capacity (four times) |
| 6) High Torque to inertia ratio&up to 25000Nm/kgm² |
| 7) Fast dynamic response *time constant <20ms |
| 8 )Wide speed adjusting&feedback up to 1000:1 |
| 9) Steady speed precision up to 0.5% |
| 10)High overload,2Mn/30s,3.5N.m/10s |
| 11) Small volume and light |
| 12) Silent,the lowest noise is only 45dB(A) |
| 13) Protected with IP65,Class F insulation |
2.Industry class:
a.The altitude should be over 1000 meters above sea level
b.Environment temperature:+5℃~+40℃
c.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25
3.Product Parameter:
| Model | KY110AS0415-15 | Volt | 48v |
| Power | 1500w | Rated Torque | 9.5Nm |
Rated Speed | 1500rpm | Rated Current | 37.5A |
Peak Torque | 28Nm | Line Resistance | 0.02Ω |
Rotor Constant | 0.13mH | Torque constant | 0.25Nm/A |
Back EMF Constant | 24 v/kr/min | Rotor Inertia | 1070Kg.m2×10-6 |
Mechanical Time Constant | 2.7ms | Electrical Time Constant | 1.8ms |
Encoder | 2500ppr | Weight | 10kg |
4.Related Products:
| Model | Volt | Power | Rated speed | Rated Current | Rated Torque | Peak Torque | Weight |
| Unit | V | W | r/min | A | N.m | N.m | kg |
| KY60AS0201-30 | 24 | 100 | 3000 | 5.4 | 0.318 | 0.95 | 1.5 |
| KY60AS0202-30 | 24 | 200 | 3000 | 10.4 | 0.63 | 1.89 | 1.5 |
| KY80AS0202-15 | 24/48 | 200 | 1500 | 9.4/4.7 | 1.27 | 3.8 | 2.2 |
| KY80AS0204-15 | 24/48 | 400 | 1500 | 21.3/10.6 | 2.55 | 7.65 | 3.6 |
| KY80AS0204-30 | 24/48 | 400 | 3000 | 18.8/9.4 | 1.27 | 3.8 | 2.2 |
| KY110AS0405-15 | 24/48 | 500 | 1500 | 24/14 | 3.1 | 10.8 | 6 |
| KY110AS0408-15 | 24/48 | 800 | 1500 | 44/22 | 5 | 17.9 | 6.6 |
| KY110AS0410-15 | 24/48 | 1000 | 1500 | 52/28 | 6.3 | 22 | 7.8 |
| KY110AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 10 |
| KY110AS0420-25 | 48 | 2000 | 2500 | 55 | 7.6 | 26 | 10 |
KY130AS0430-15 | 48 | 3000 | 1500 | 73 | 19 | 57 | 14 |
KY130AS0410-15 | 48 | 1000 | 1500 | 28 | 6.3 | 22 | 7.8 |
| KY130AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 10 |

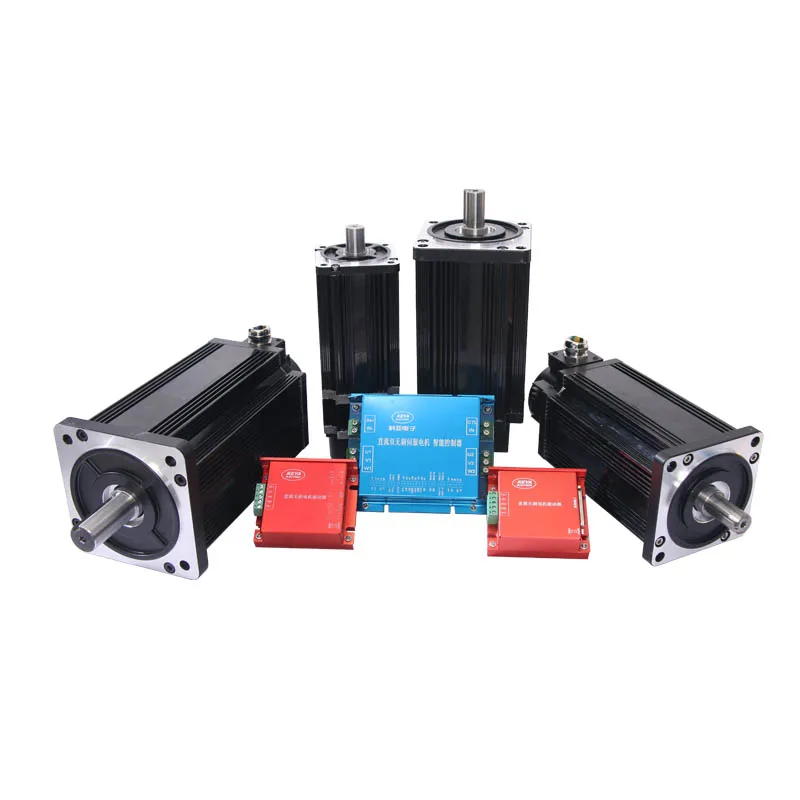

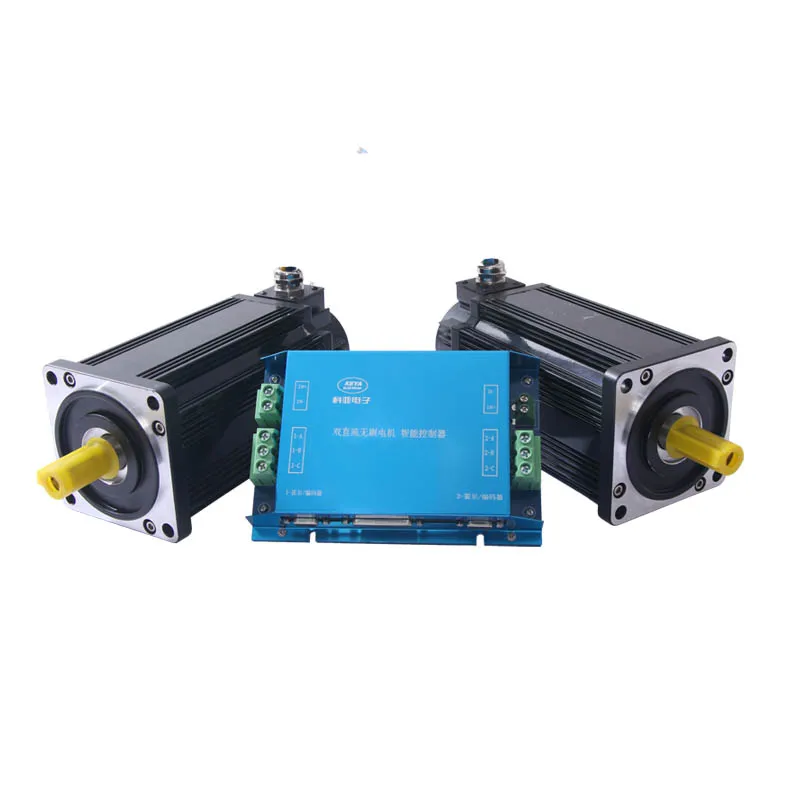

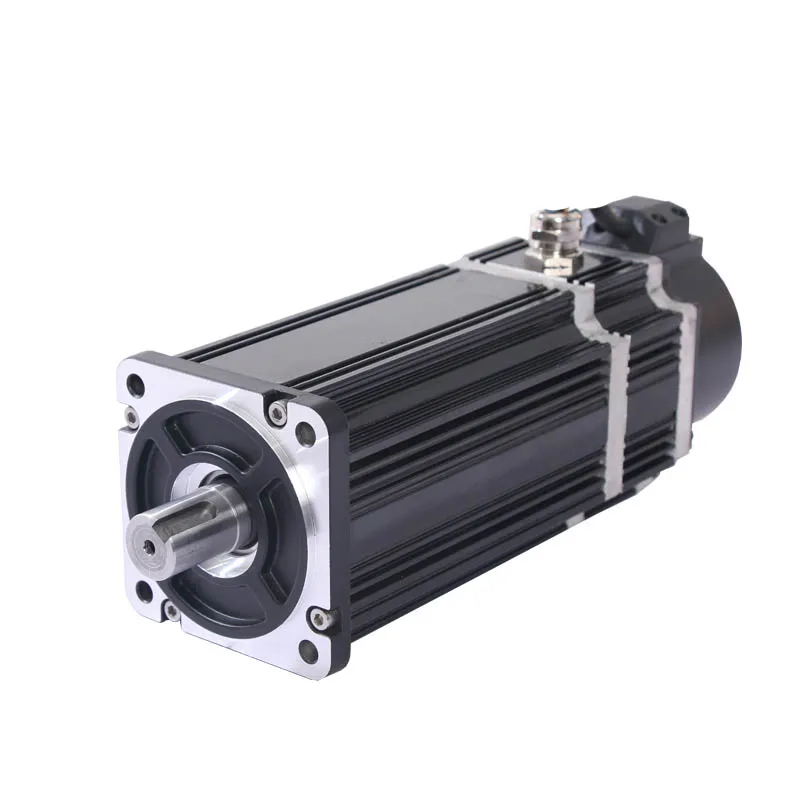

Product show
bldc motor 48v 1500w kit 1500rpm dc servo motor encoder
Drawing
bldc motor 48v 1500w kit
Application
Application:Tracked car,Logistics shuttle,Fire fighting Robot Etc.
dc servo motor encoder
dc servo motor encoder
Company introduction
bldc motor 48v 1500w kit 1500rpm dc servo motor encoder
Packaging & Shipping
1500rpm bldc motor
bldc motor 48v 1500w kit
Our Services
We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.
