0.2 micron Nylon Membrane Roll Pleated Filter cartridge with Code 3/7/8 for Pure Water treatment

Product Overview

Description

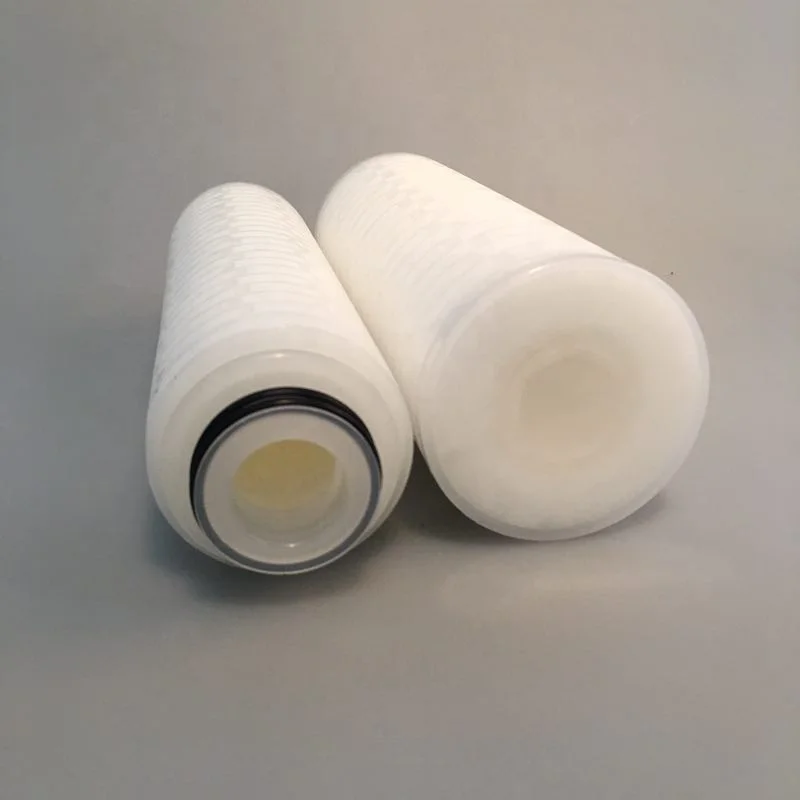

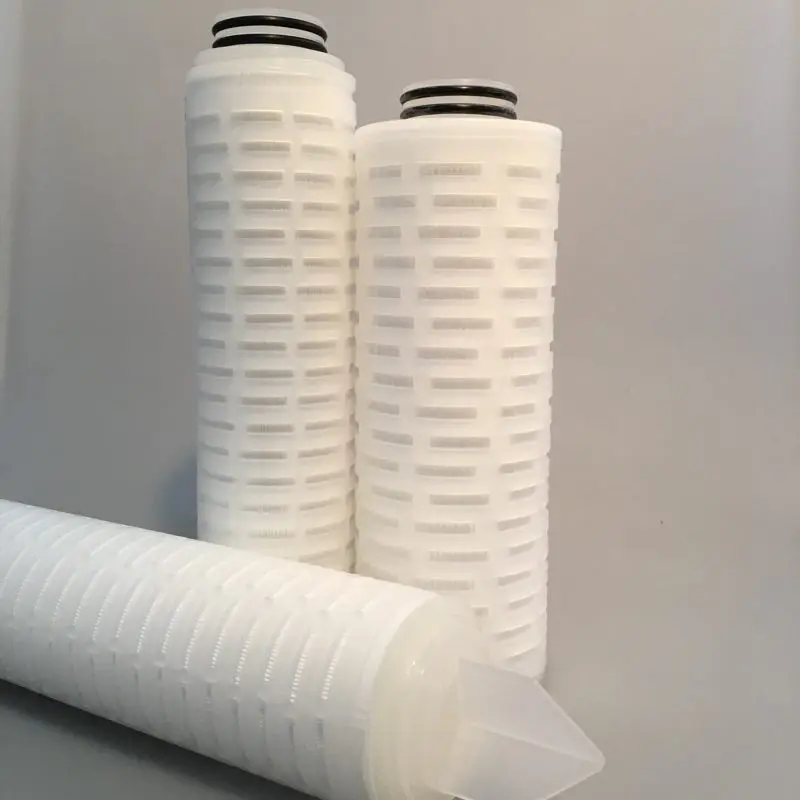

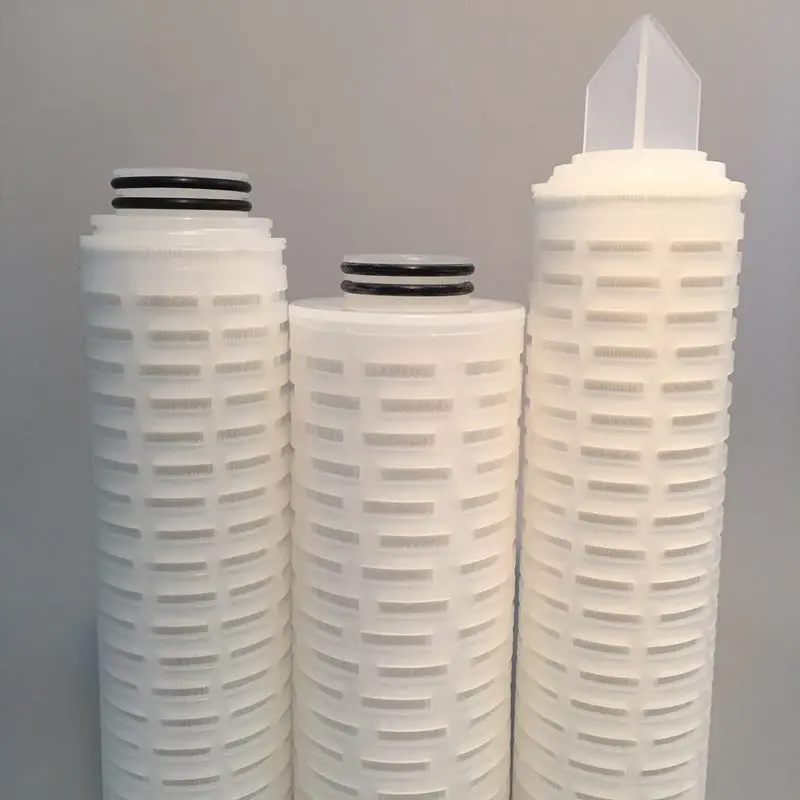

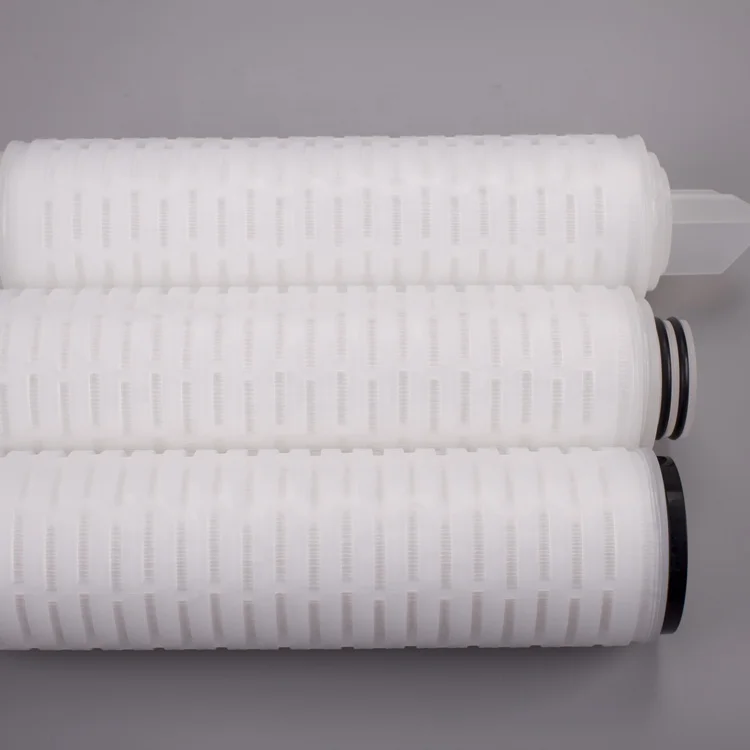

0.2 um Nylon Membrane Roll Pleated  Filter cartridge with Code 3/7/8 for Pure Water treatment



Product Features

l  Made up of Reinforced Nylon and imported Non-woven fabrics

l  Uniform Pore Size Throughout Membrane for High Contaminant Retention Capacity and Flow Rates.

l  High Purity Polypropylene Hardware Construction-Inert to Many Process Fluids Ensuring Wide Chemical Compatibility

l  Non-Fiber Releasing Media

l  Gaskets / seals have various materials, which can be compatible with various liquids.

l  Filters are Manufactured, Flushed, Tested and Packaged in a Class 1,000 Clean Room Environment.



Product Specifications

Materials of Construction

Filter Media: Nylon 6( NL6)

Hardware: Polypropylene

Center Core: Polypropylene

Supporting Material: Polypropylene

End Caps: Polypropylene

Gasket/O-rings: Silicone,Buna-N,EPDM. Telfon



Dimensions

Outside Diameter:2.67”<68mm>

Length: 9.75”~40”<127mm~1016mm>



Specifications can be customized



Performance Specifications



Retention Ratings: 0.1,0.22,0.45,0.65,1μm

Maximum Differential Pressure:  75psid(5.1bar)@68℉(20℃)

40psid(2.8bar)@150℉(65℃)



Recommended Change Out Differential Pressure:

35psid(2.4bar)



Application:



• Electronics industry: terminal filtration of High Purity Water, photoelectric and semiconductor silicon production

• Medical Industry: terminal filtration of raw materials, pharmaceutical solvents, injection liquids, injections, infusions, distilled water and other liquids

• Chemical Industry: filtration of high purity chemicals, including ketones, esters, ethers, high molecular weight alcohols and alkaline liquids.

• Food and beverage industry: filtration of pure water, mineral water, fruit juice, beer and wine.
