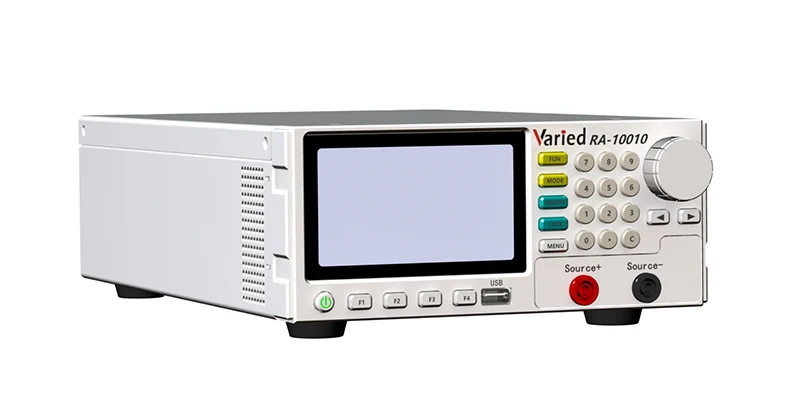

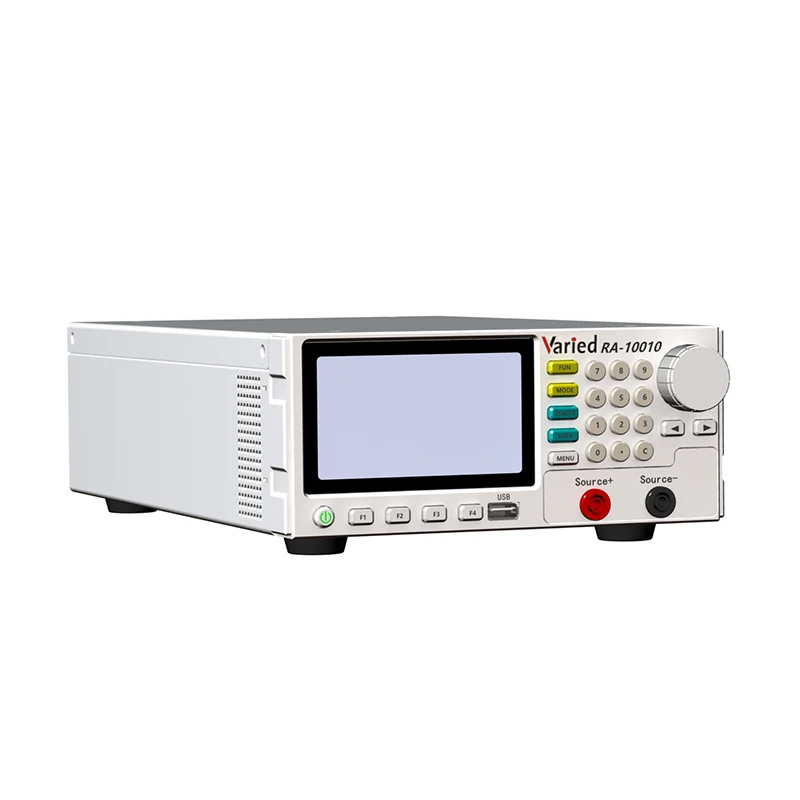

Varied RA Series Programmable DC Power Supply
- Category: >>>
- Supplier: Shenzhen Mindwill Trading Co. Ltd.
Share on (62003211439):
Product Overview
Description
product description
The RA series is a programmable DC regulated power supply with high precision output. It can be connected to a computer (PC) through the communication interface (RS-232/RS-485/network port) to meet the user's automatic test and automatic control. Aspect of the demand. This product has excellent accuracy, high precision and high stability. Data input is controlled by keyboard, knob and shortcut keys, which is fast, accurate and convenient. Can be widely used in electronic product development testing, laboratory testing and research units.
Features:
1, the LCD screen display, can fully display the status of the power supply
2, digital buttons and encoders two ways to adjust the output
3, network port communication
4, MODBUS RTU communication
5, programmable cycle mode
6, programmable slope curve
7, real-time waveform display (voltage, current, power, time)
8, clock display, timed events
9, can be customized PV mode, line resistance function and other personalized customization features
10, temperature control fan
product model
| model | RD-V3020 | RD-V6010 | RD-V1006 | RD-V2003 | RD-V3002 | |
| DC output | Voltage | 0-30V | 0-60V | 0-100V | 0-200V | 0-300V |
| Current | 0-20A | 0-10A | 0-6A | 0-3A | 0-2A | |
| model | RD-V3030 | RD-V5020 | RD-V10010 | RD-V2005 | RD-V3003 | |
| DC output | Voltage | 0-30V | 0-50V | 0-100V | 0-200V | 0-300V |
| Current | 0-30A | 0-20A | 0-10A | 0-5A | 0-3A | |
| AC input | Single phase 220V ± 10% | |||||
| Output display | LCD + digital button Four and a half digit display, accuracy ± 0.5% FS + 3 words | |||||
| Display format 00.000V-19.999V 000.00V-199.99V 0000.0V-1999.9V;00.000A-19.999A 000.00A-199.99A 0000.0A-1999.9A; | ||||||
| Output ripple | Regulated state:≤0.3%+10mV (rms) | |||||
| Regulated state:≤0.5%+10mV (rms) | ||||||
| Voltage setting and preset | Rotary encoder / button | |||||
| Current setting and preset | Rotary encoder / button | |||||
| Setting/reading accuracy | V±(0.5% of reading +5mV)(25±5℃);I±(0.5% of reading +10mA)(25±5℃) | |||||
| Interface function | Standard RS232/RS485/network interface, optional analog control interface | |||||
| Status Display | Regulated CV, steady current CC, output OUT, overvoltage OV, over temperature OT, LOCK lock | |||||
| Short circuit protection | Constant current output when short circuit protection | |||||
| Overvoltage/overcurrent protection | The protection value is adjustable from 0% to 110%. After protection, the output is turned off and the power is turned off to unlock. | |||||
| Temperature protection | Built-in 0.T.P protection, protection value is 85 °C ± 5% (heat sink temperature), turn off the output after protection | |||||
| Output polarity | The output is positive (+), negative (-) can be grounded arbitrarily | |||||
| Heat dissipation method | Forced air cooling | |||||
| Operating environment | Indoor use design, temperature: 0 ° C ~ 40 ° C; humidity: 10% ~ 85% RH | |||||

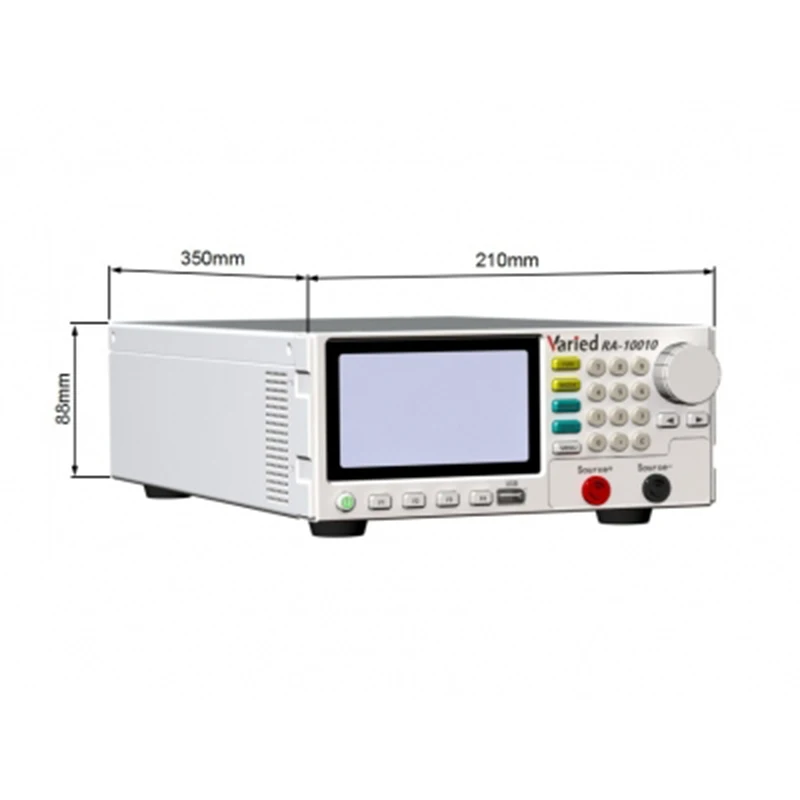

| Size and weight | 210*88*352mm(W*H*D),Around 7kg | |||||
| Special custom | Dual, four output can be customized | |||||
