Product Overview
Description
Product Description
Hot sale good quality boiling disc granulator
———Descriptions———
The method of boiling and granulating is a comprehensive fruit of spraying and fluidizing technology. It makes traditional mixing ,granulating and drying processes finish in the same closed container. So it is called as "one step granulator".
This machine has simple structure and is easy to clean and maintain .Not only it can make granule but also dry quickly. The process of mixing ,granulating ,drying will be finished in the same closed container at the same time. So it can prevent from pollution caused by contacting with environment and guarantee that the quality of medical granule is conformity with the requirement of "GMP".
The parts contacted with raw material are made of 316L stainless steel. The heating of machine can be divided into electricity or steam and the control part can be divided into ordinary form or computer form .Customer can choose it freely.
———Technical Parameters———
Model | FL-3 | FL-5 | FL-120 | FL-200 | FL-300 |
Hopper capacity | 12 liters
| 22 liters
| 420 liters | 670 liters | 1000 liters |

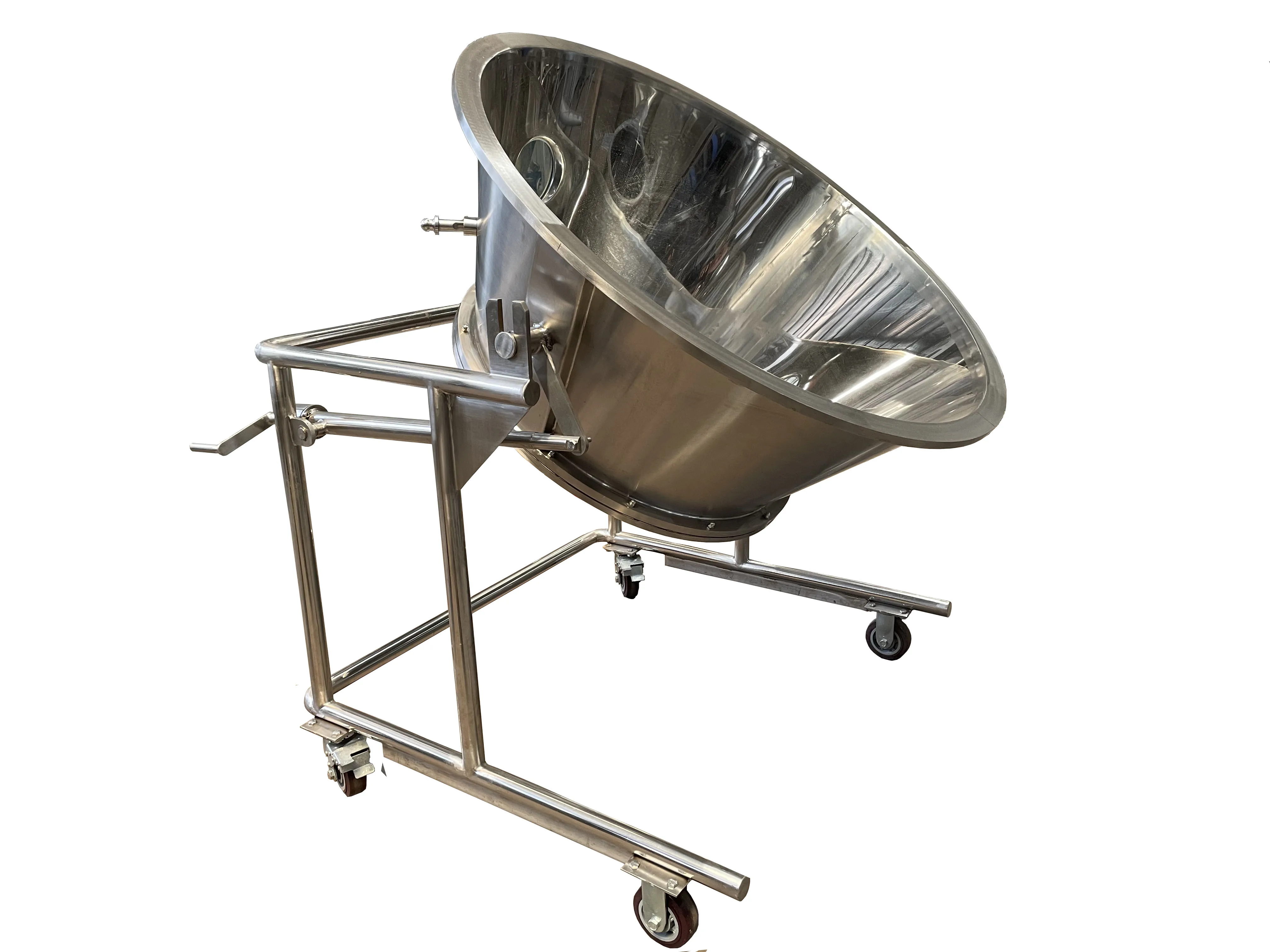

A charging wagons is equipped, material | 316L stainless steel | SUS 304 | SUS 304 | SUS 304 | 316L |
Production capacity for main machine | 1-5 kg/batch | 4-6 kg/batch
| 80-120 kg/batch ; 320 – 480 kg/8 hours
| 150-200 kg/batch ; 600 – 800 kg/8 hours | 250-300 kg/batch ; 1000-1200 kg/8 hours |
Granulating time | 60-90 minutes/batch, 4 batchs/8 hours | 60-90 minutes/batch, 4 batchs/8 hours | 60-90 minutes/batch, 4 batchs/8 hours | 60-90 minutes/batch, 4 batchs/8 hours | 60-90 minutes/batch, 4 batchs/8 hours |
Working temperature | 50 - 120 °C | 50-120 °C | 50 - 150 °C | 50- 150 °C | 50 - 150 °C
|
Power | 9 KW | 9 KW | / | / | / |
Bag filter | 2 sets | 2 sets | 2 sets | 2 sets | 2 sets |
vibrating cylinder | 2 sets | 2 sets | 2 sets | 2 sets | 2 sets |
valve for air adjusting | 2 sets.
| 2 sets | 2 sets | 3 sets.
| 2 sets |
Peristaltic pump | 1unit, BT-50S | 1unit, BT-50S | 1unit, YT600-1J | 1 unit, YT600-1J | 1 unit, YT600-J
|
Spray gun | 1 pc | 1 pc | 1 pc | 1 pc | 1 pc |
base of spray gun | 2pcs,3 fluid type, the height of spray gun can be adjusted | 2pcs,3 fluid type, the height of spray gun can be adjusted | 3pcs,3 fluid type, the height of spray gun can be adjusted | 3pcs,3 fluid type, the height of spray gun can be adjusted. | 4 pcs,3 fluid type, the height of spray gun can be adjusted. |
Control cabinet, Material | 304# stainless steel, PLC control, touch screen operation. Main electrical components: Siemens, Germany | 304#stainless steel, PLC control, touch screen operation. Main electrical components: Siemens, Germany | 304#stainless steel,key-press operation. | 304# stainless steel,key-press operation. | 304# stainless steel, PLC control, touch screen operation. |
Overall size | 2800 mm * 700 * 2200 mm | 2800 mm * 700 * 2200 mm | 3800 mm *1700*3400 mm | 3800 mm * 1700 * 3800 mm | 5500 mm * 2100 * 4100 mm |
Air consumption | / | / | 0.9 m3/min
| 0.9 m3/min | 1.3 m3/min
|
Centrifugal fan with Explosion-Proof Motor | / | / | 18.5 KW, 1 unit Noise snubber is equipped in the centrifugal fan | 30 KW, 1 unit Noise snubber is equipped in the centrifugal fan. | 7 KW, 1 unit Noise snubber is equipped in the centrifugal fan.
|
Frequency converter | / | / | 18.5KW, 1unit
| 18.5KW, 1unit | 37 KW, 1unit
|
Temperature meter | / | / | 3 units | 3 units
| 3 units
|
Packing size | / | / | 4000 mm * 2200 * 2200 mm | / | / |
Net weight | / | / | 2500 kg | / | / |
Gross weight | / | / | 2850 kg
| / | / |

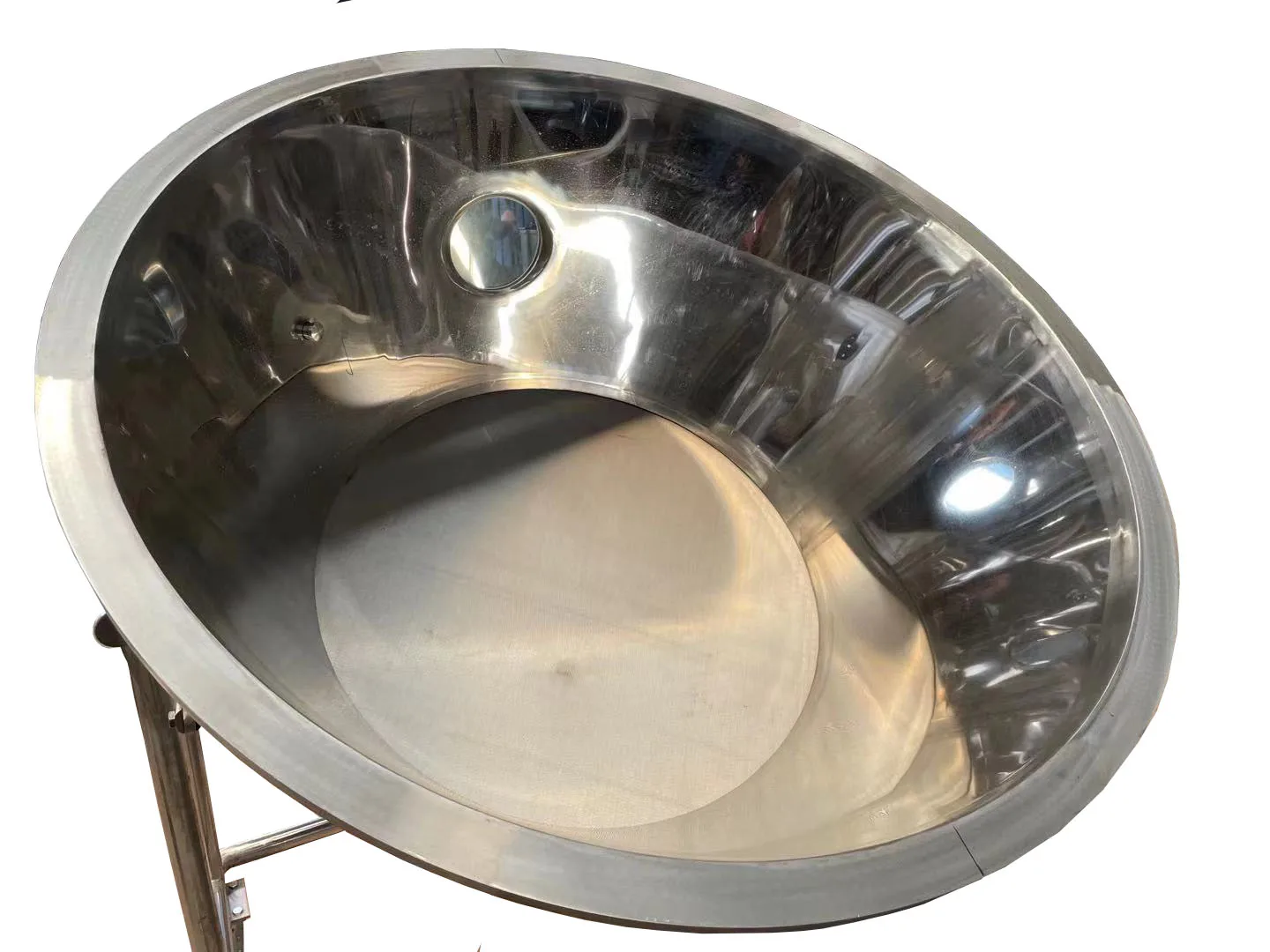

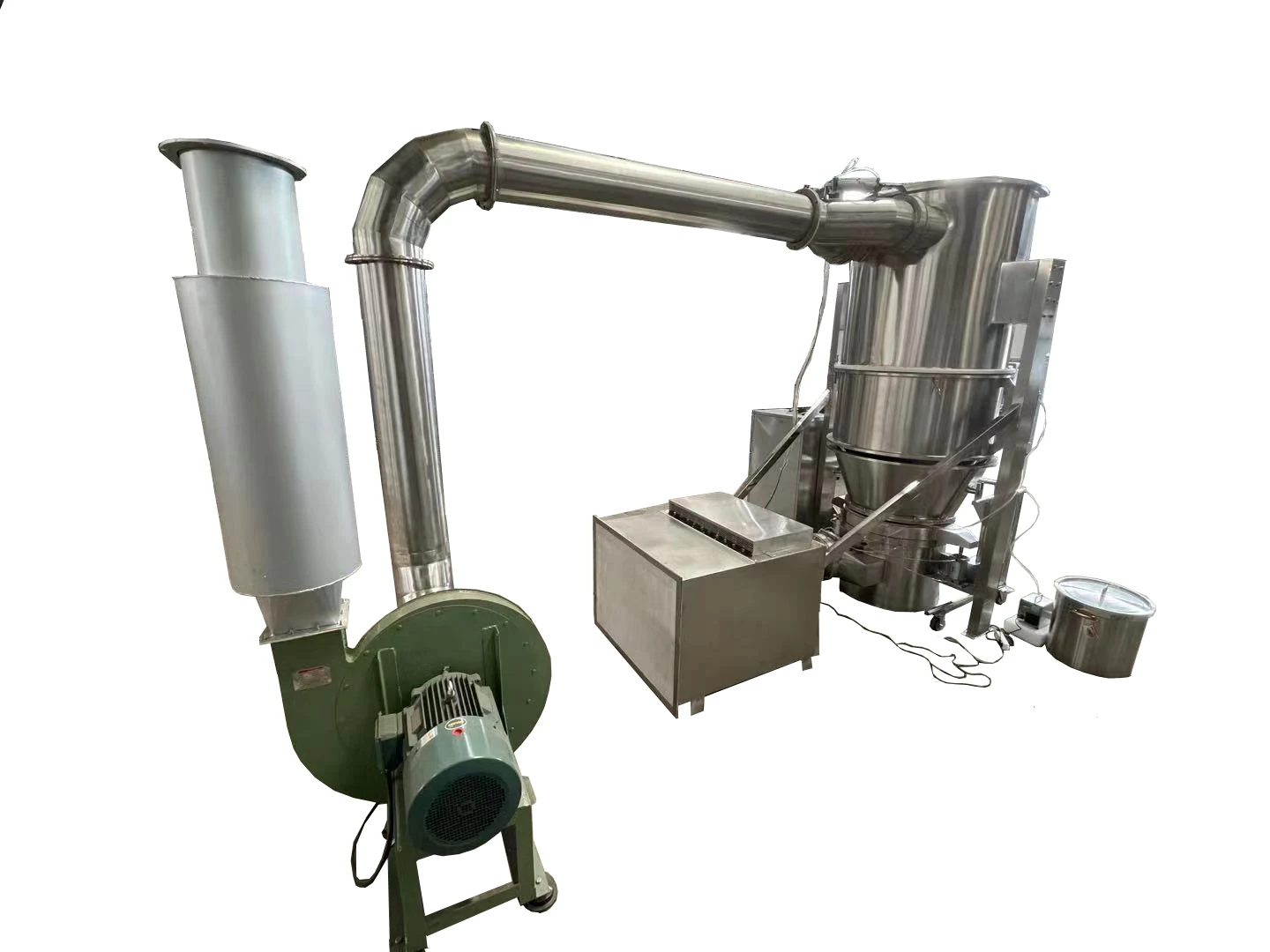

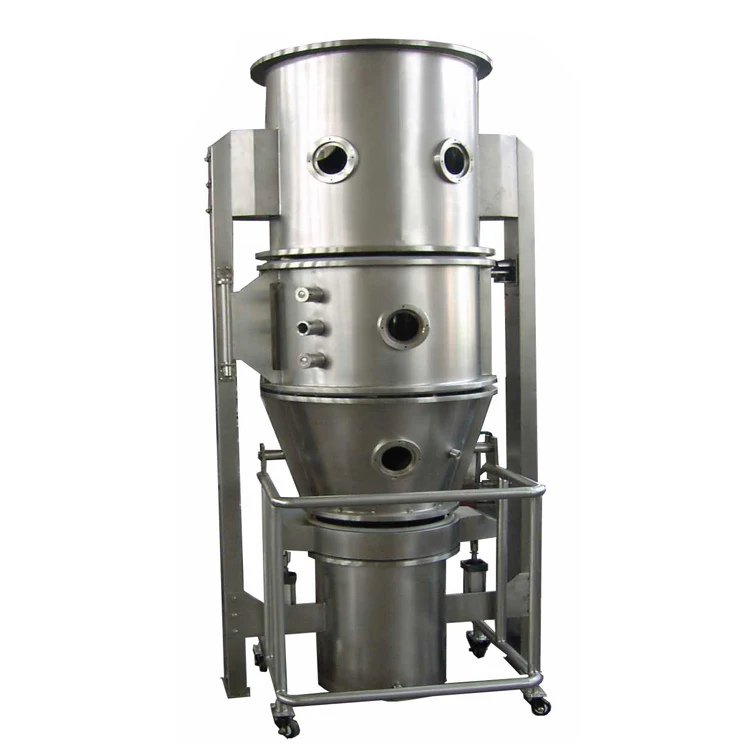

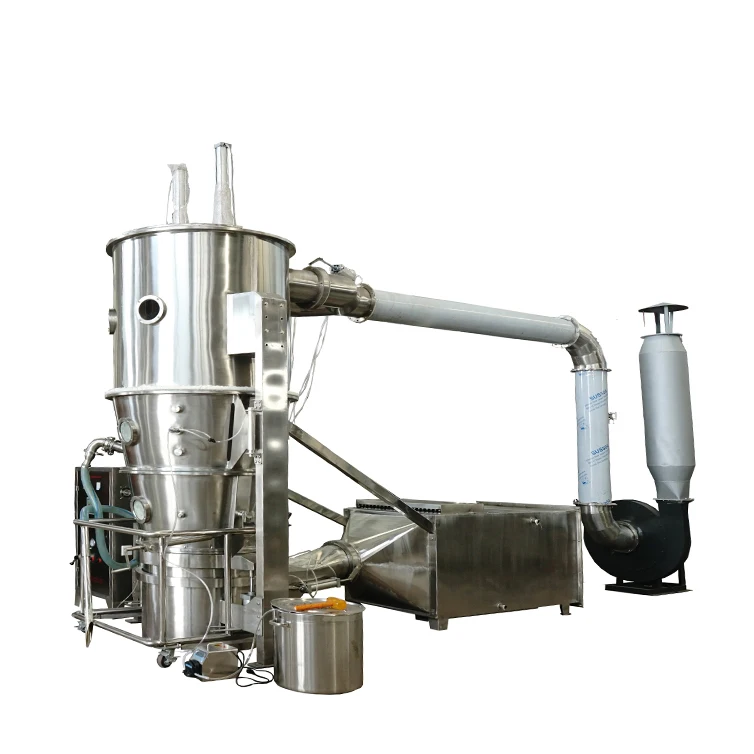

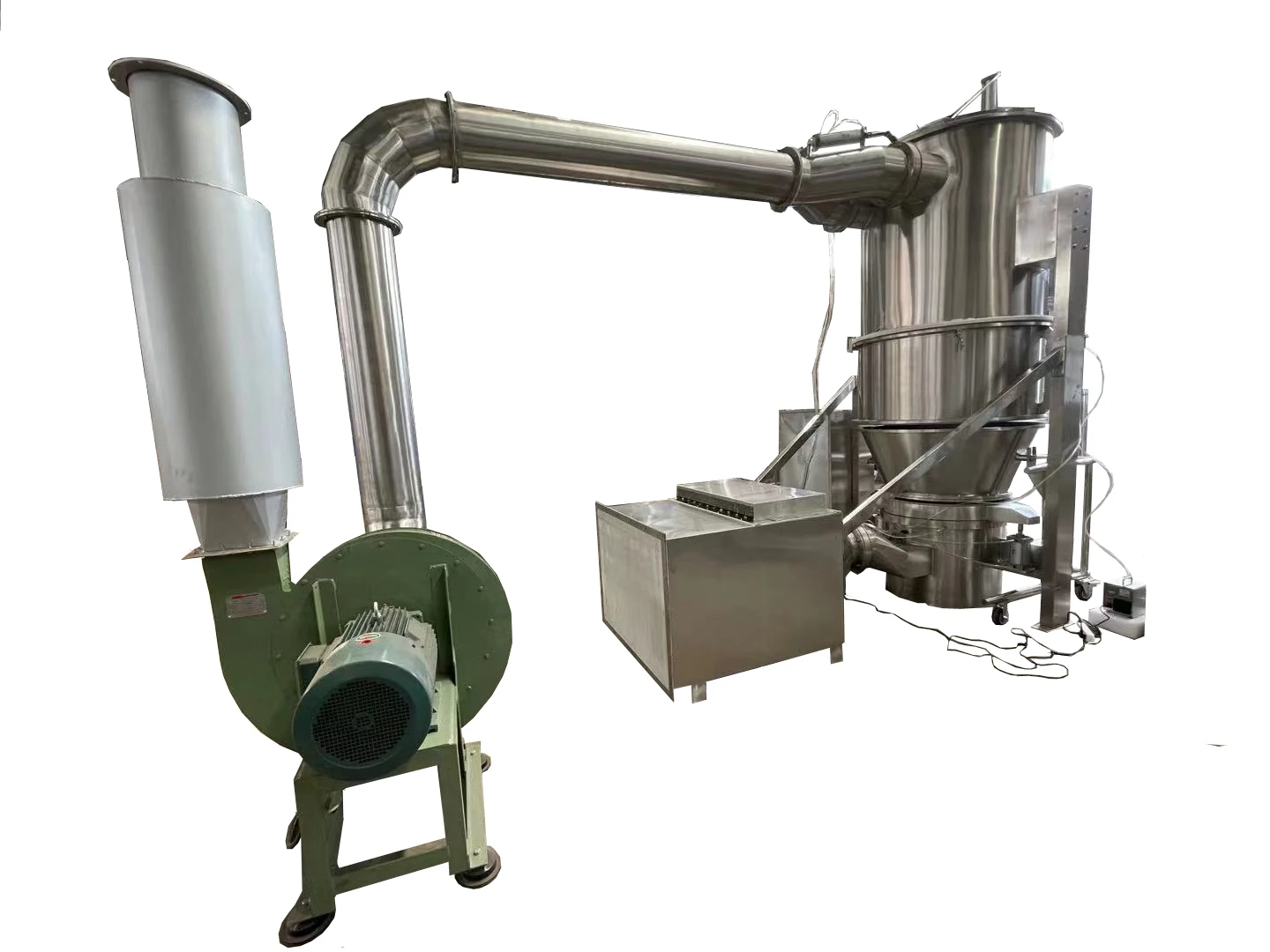

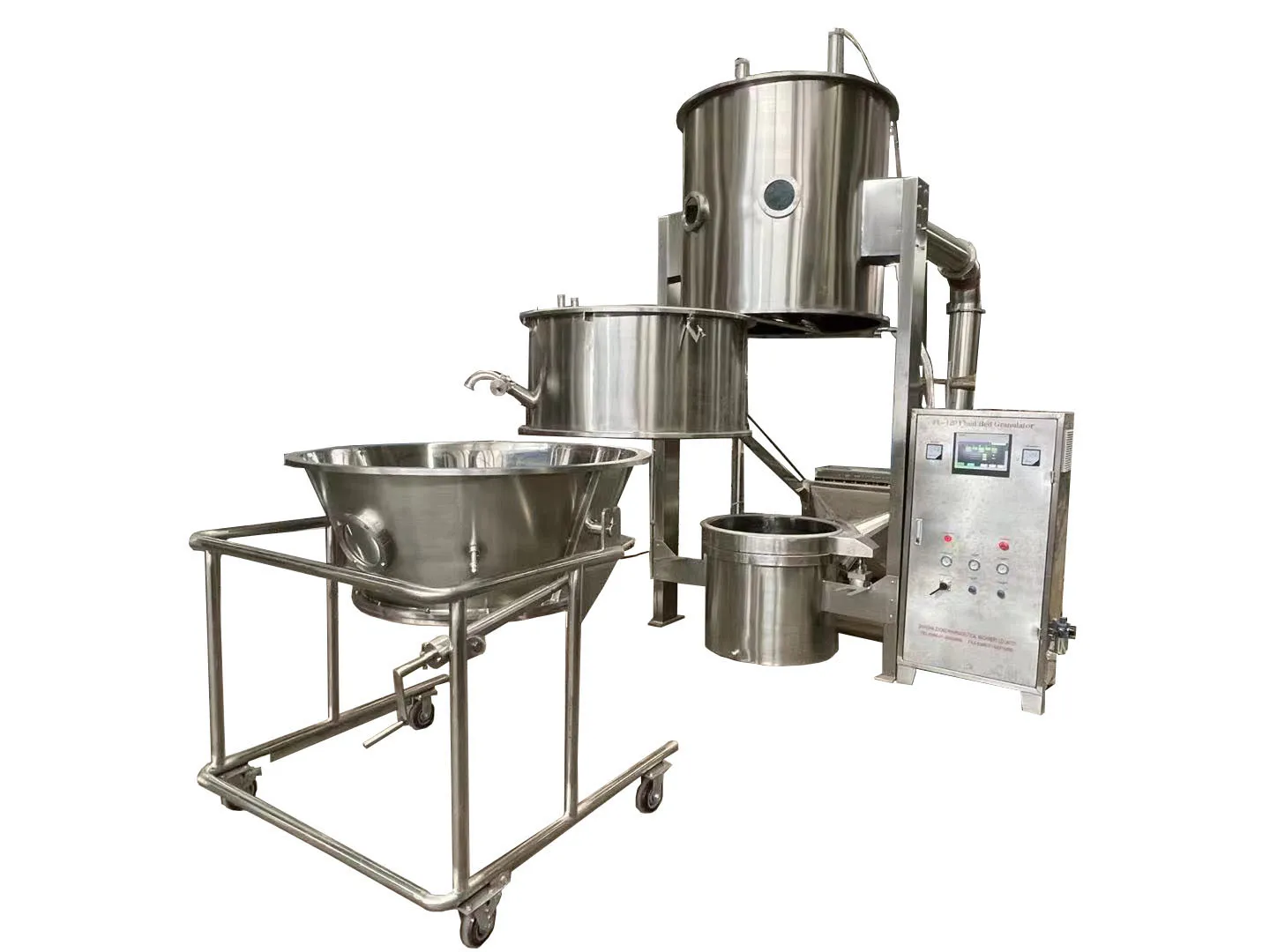

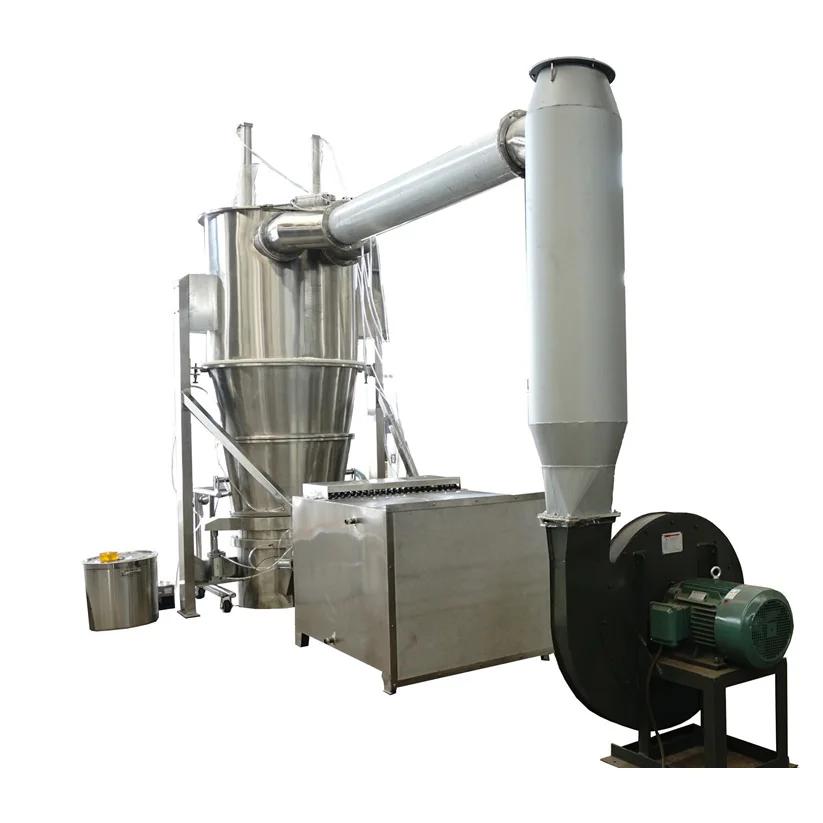

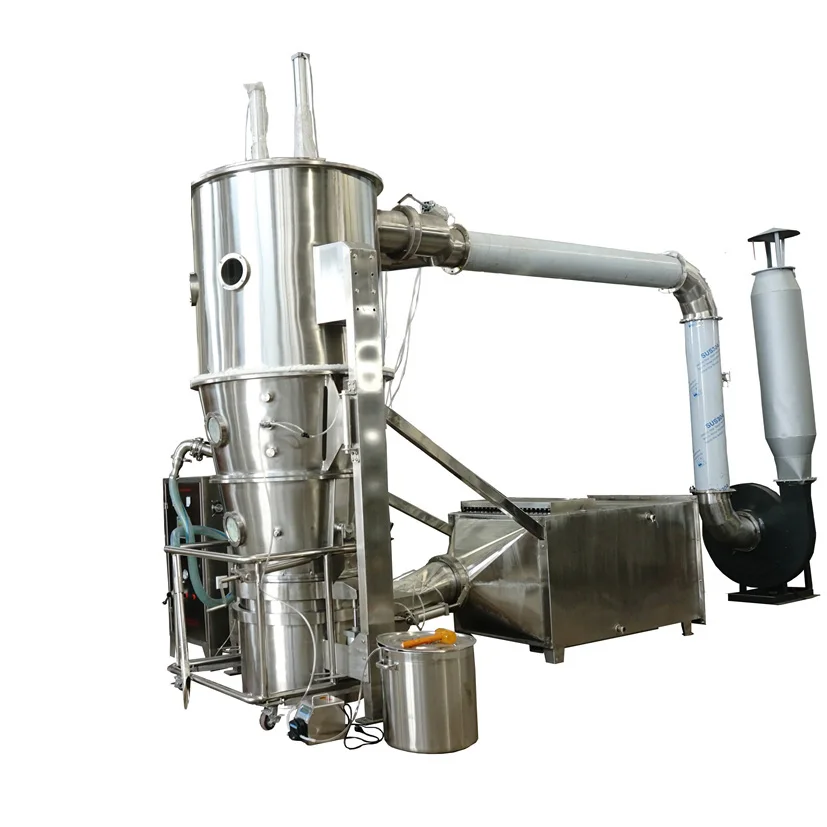

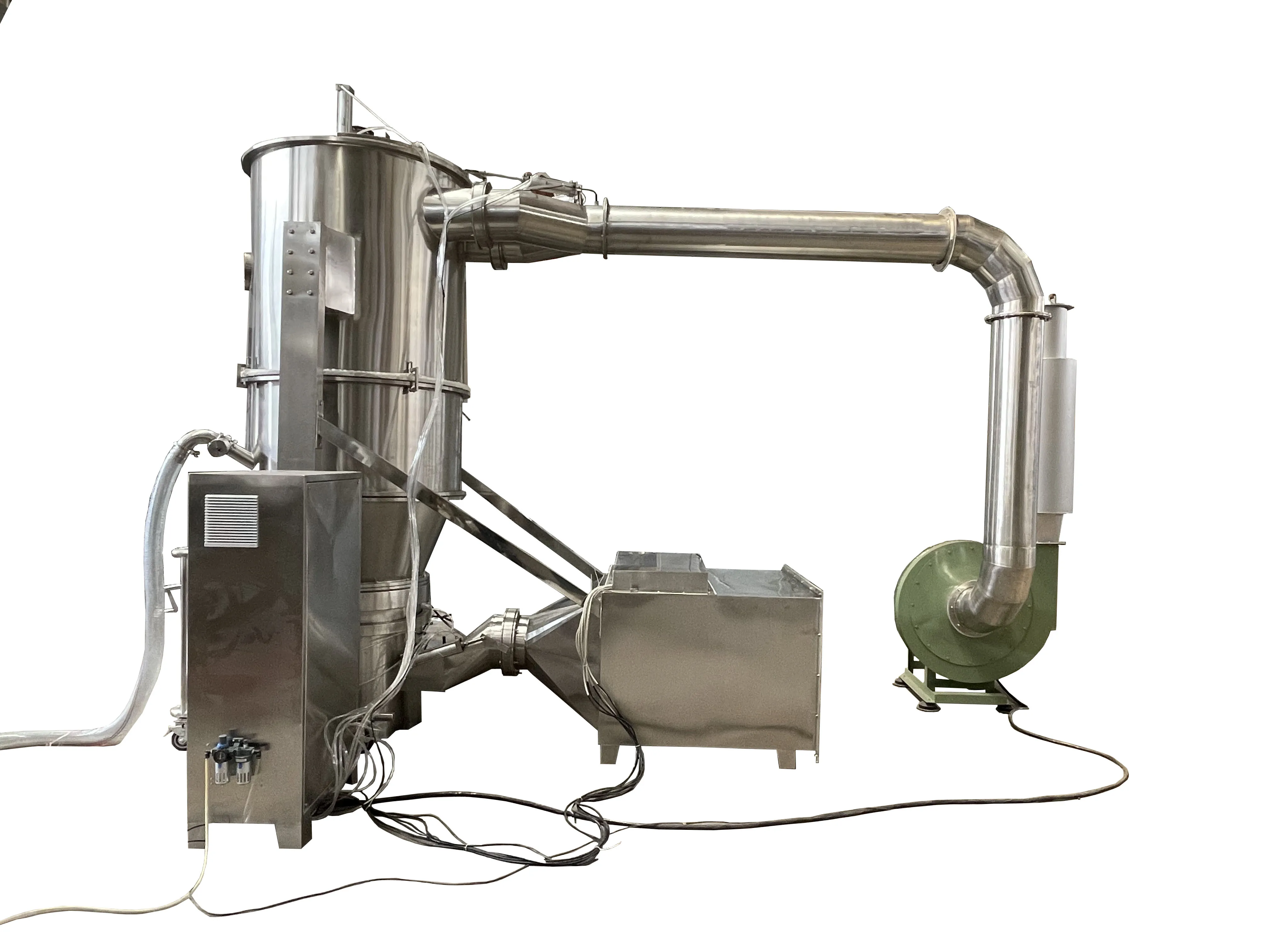

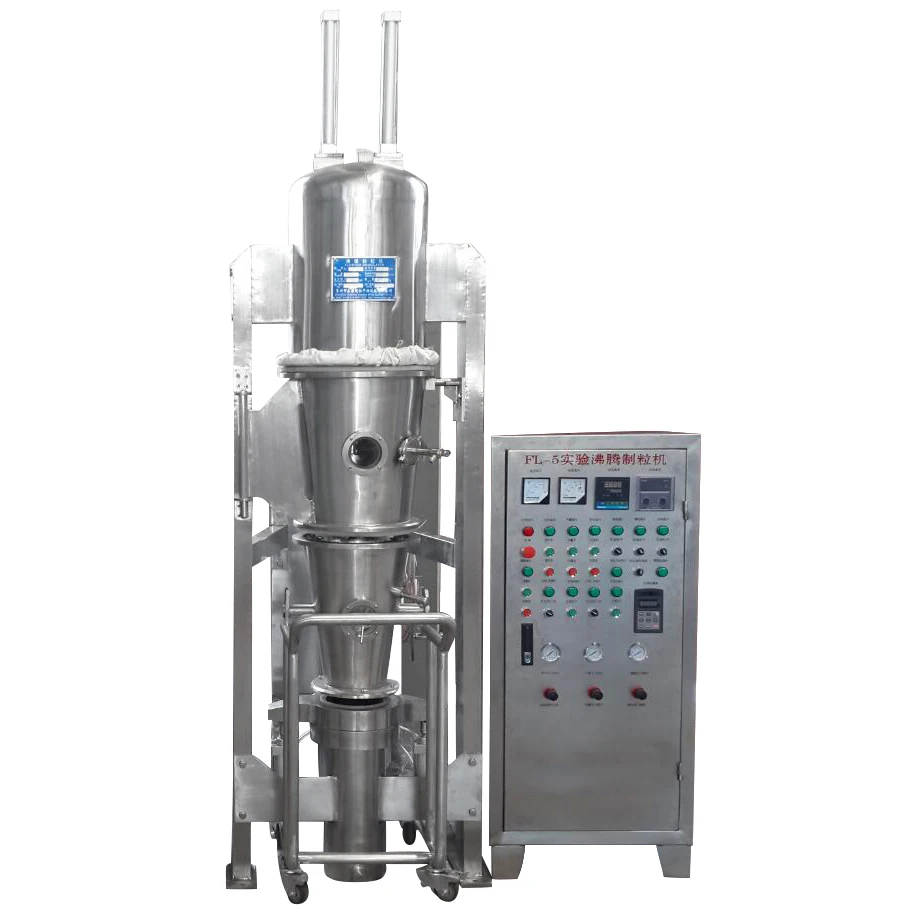

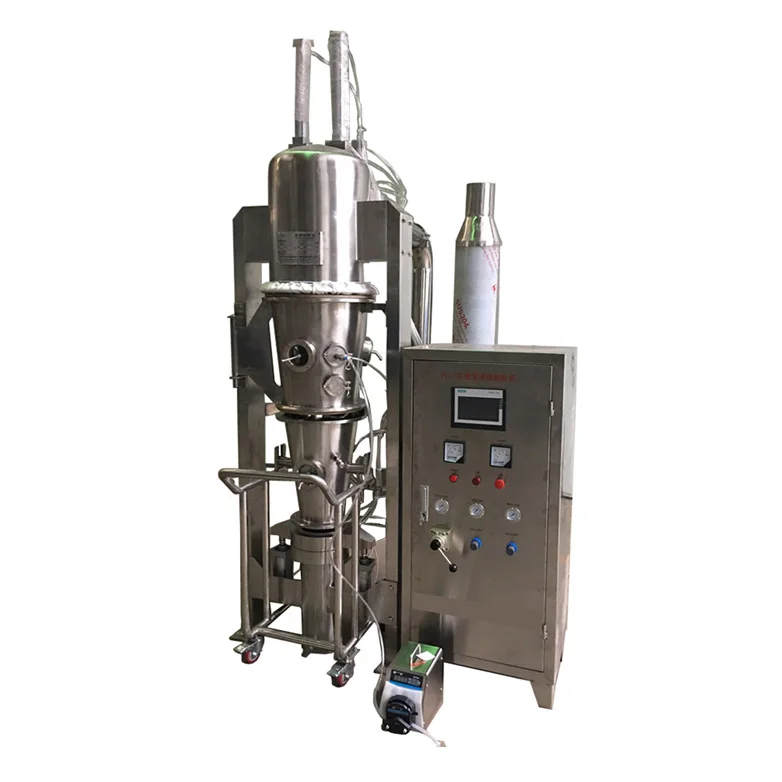

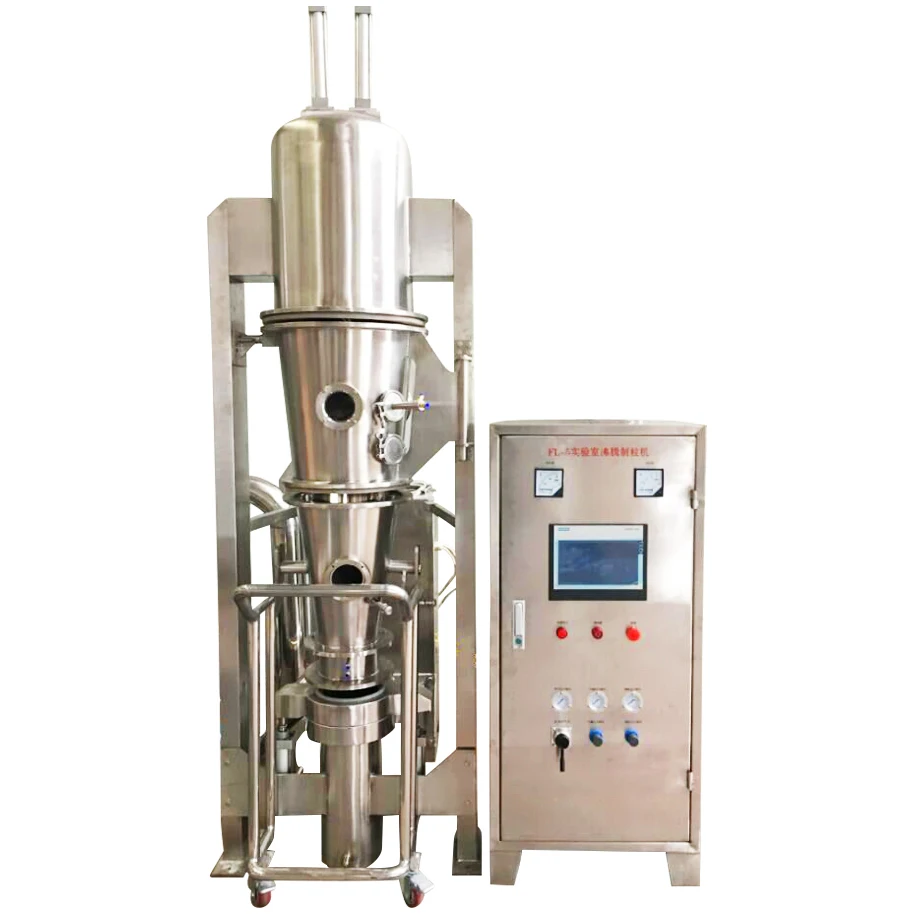

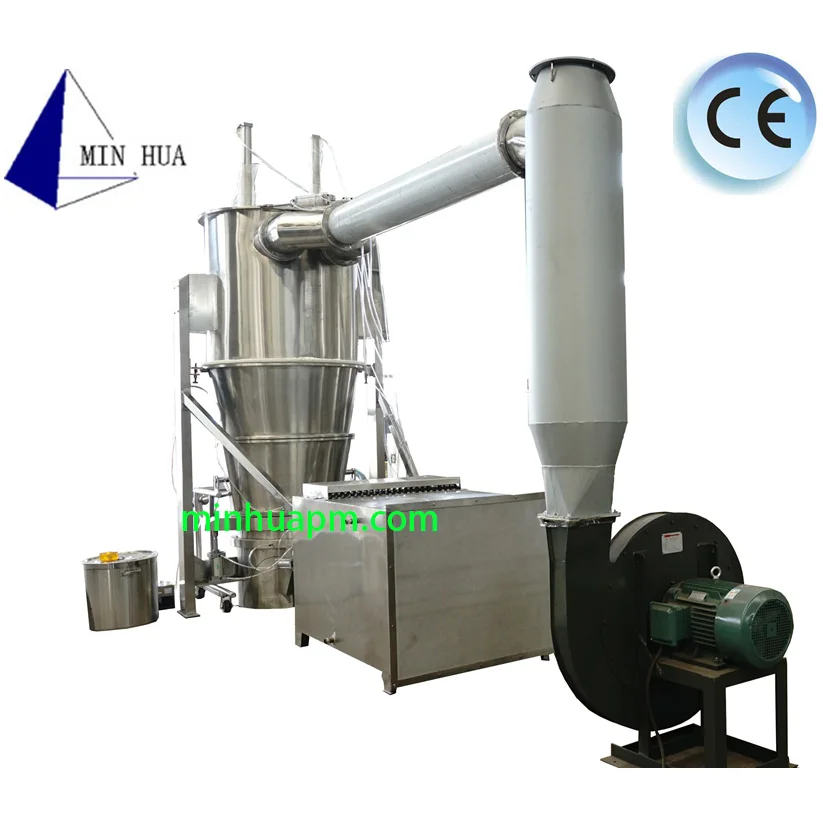

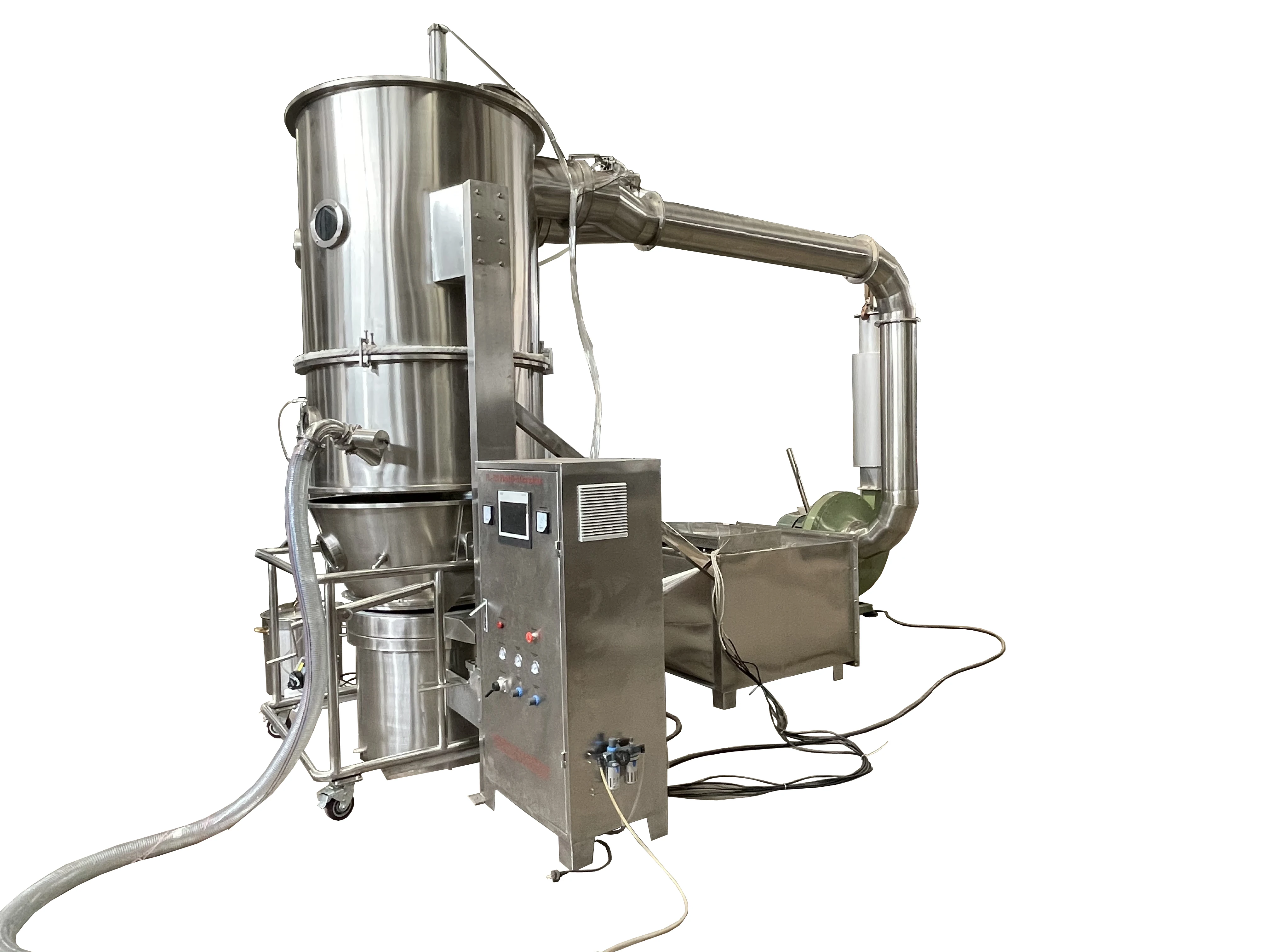

———Product image———
Features
——Features——
Feature 1 | Main machine is made of 316L stainless steel, 3 mm in thickness, inside surface adopts mirror polish, no dead corner, cleaning is very easy; outside surface adopts matte finishing. |
Feature 2 | oise snubber is equipped in the centrifugal fan. |

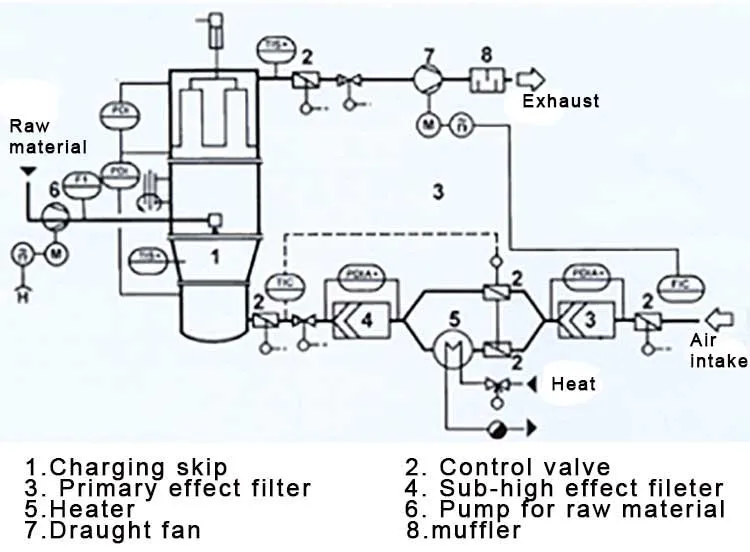

Feature 3 | Ventilating system adopts primary effect, middle effect and sub-high effect filters, ensure hundreds of clean air. Air filter box, 1 unit, with primary effect, middle effect and sub-high effect filters. |
Feature 4 | Air drive fast valve at the air inlet, avoid the heat loss. |
| Feature 5 | Improve its fluidity and reduce powder dust to fly through powder granulating. |
| Feature 6 | Improve its solving property through powder granulating |
| Feature 7 | Mixing, granulating and drying can be finished in the same machine, i.e .one step to granulate. |
| Feature 8 | Being adapted anti-static electricity filtering cloth, the operation of equipment is safe. |
| Feature 9 | Being set discharge hole of pressure, if explosion were taken place, the equipment and personal can not be damaged. |
——Application——
Medicine granulating Granulating | Granulator of tablet, quick solved drink, granule used for capsule |
Foodstuff granulating and coating | Sugar, coffee ,cocoa ,powder, cream ,powder syrup, amino acid, favoring, puffed food. |
Drying for | Powder ,granule, block raw materials. |
Granulating for | Pesiticide ,pigment , dyertuff. |
Coating | Granulate, pill protection layer ,formulated color ,slow release ,film ,coating for intesting solving. |
