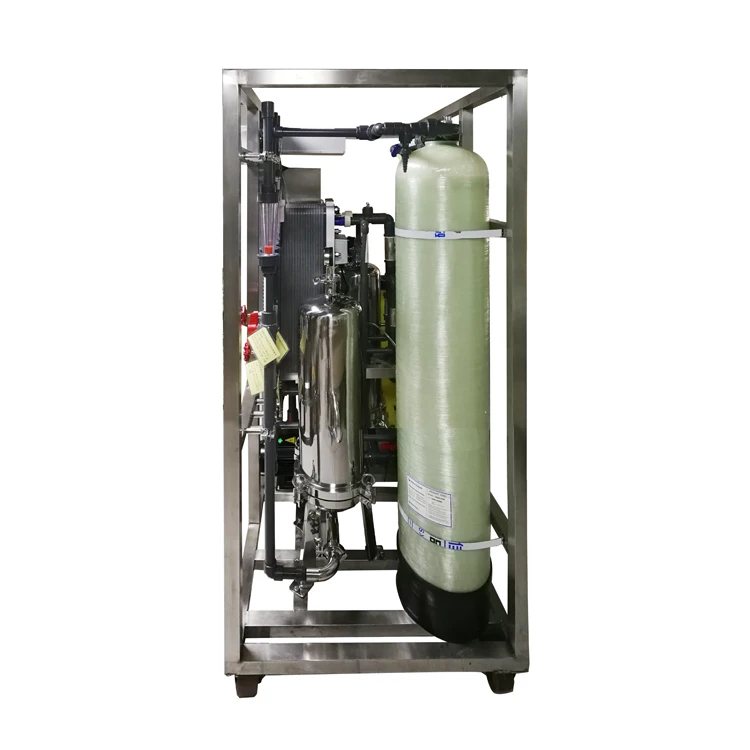

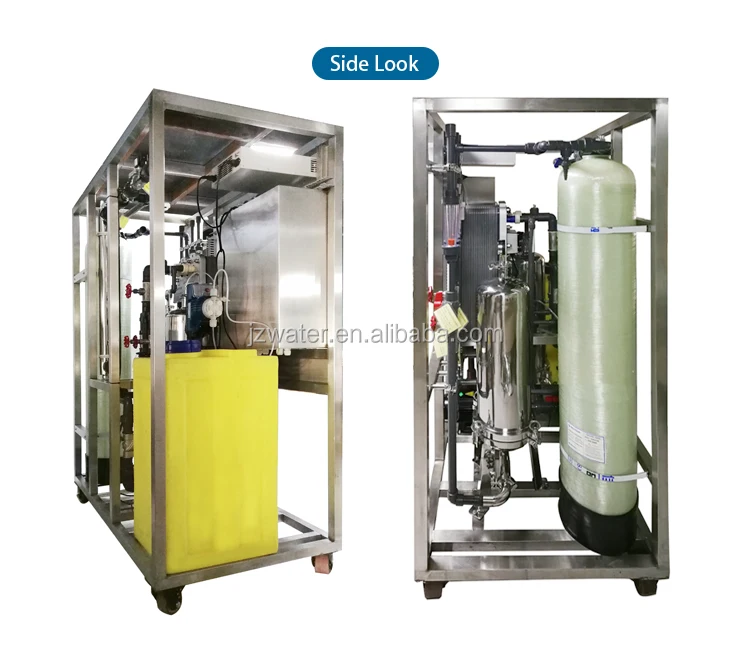

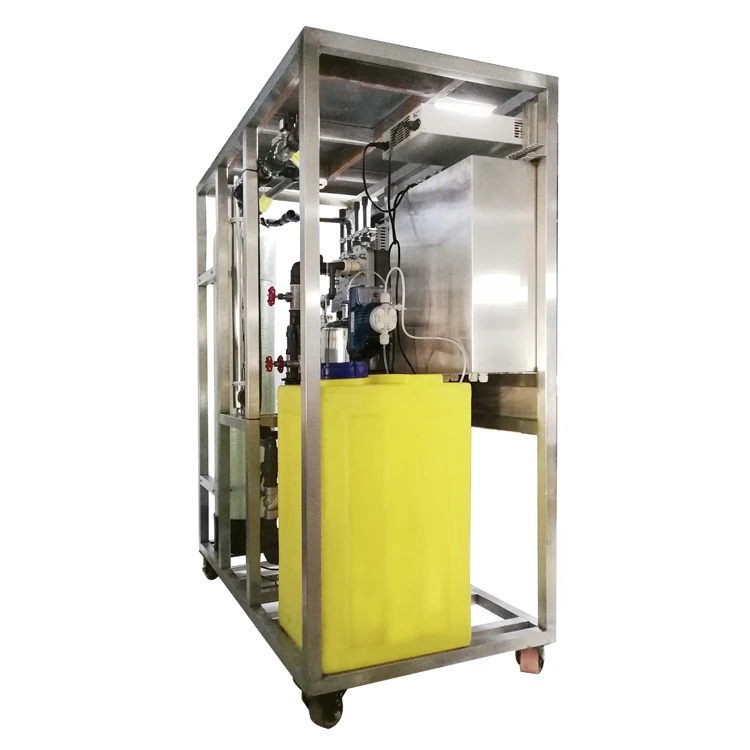

1000LPH RO EDI System and Mixed Bed

Product Overview

Description

1000LPH EDI+Mixed Bed Ultra-Pure Water Machine Parameters
1	Ultra-Pure Water Flow Rate	1000LPH
2	Working Power	0.55KW
3	Voltage	220V/380V  50HZ/60HZ or Customize
3	Product Water Resistivity Rate	>18Megohms

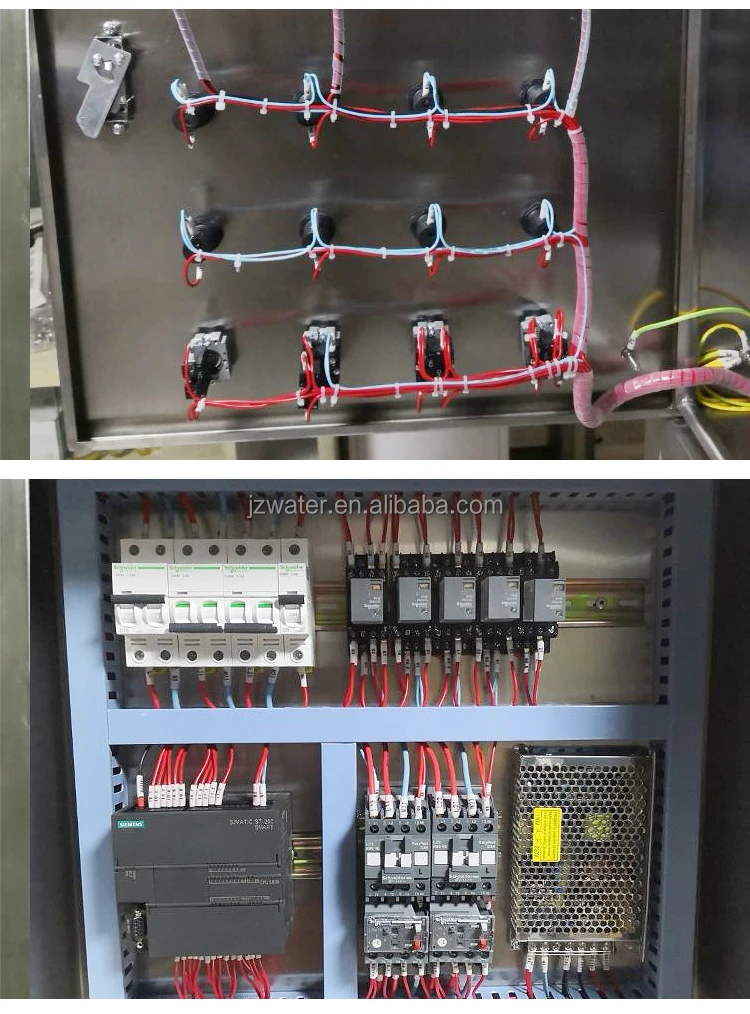

4	Relay Brand	Schneider or Customer-Specific

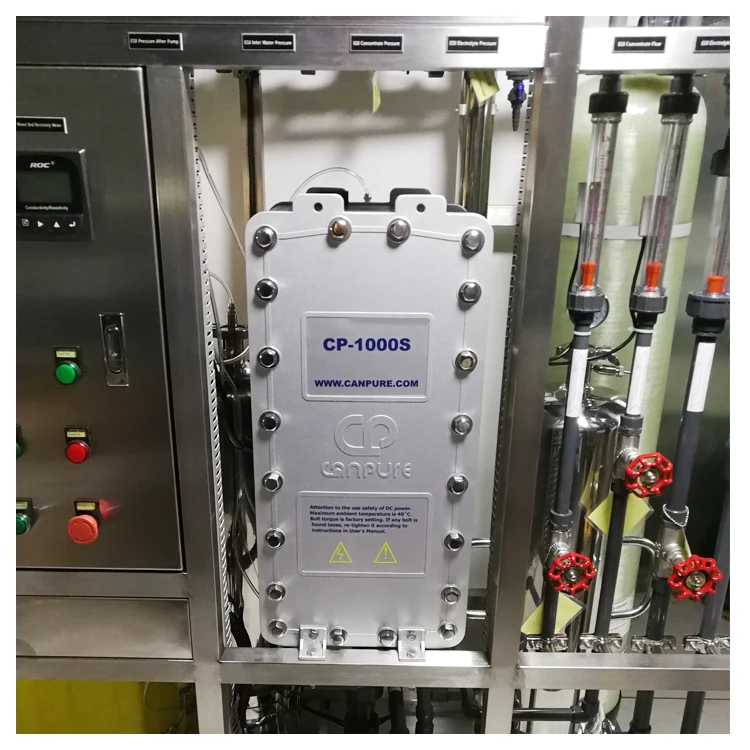

5	EDI Module Brand	Canapure
6	Frame Size:	140*75*170cm
7	Weihgt(KG):	300KG

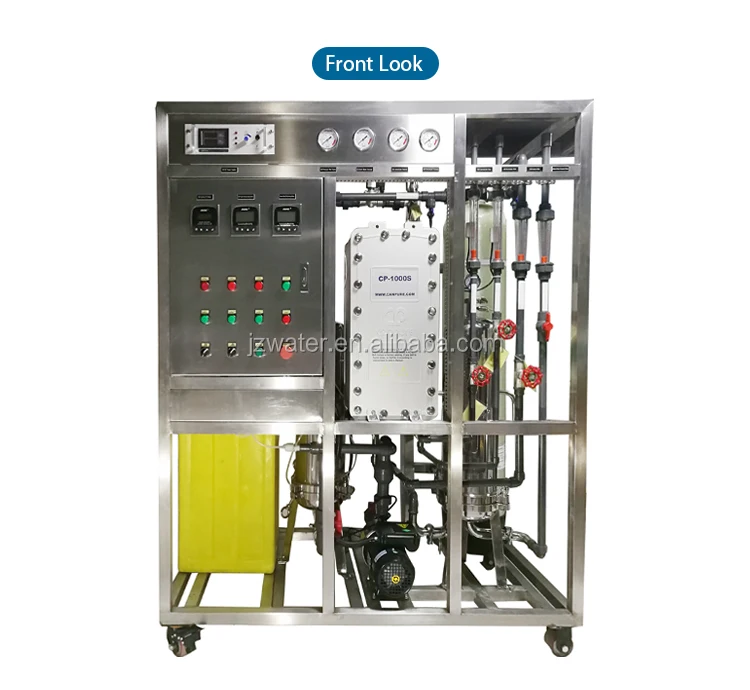

1000LPH EDI Ultra-Pure Water Machine:

Which kind of water can be the feed water of Our EDI: ATTENTION PLEASE!!!

3000LPH EDI+Mixed Bed Ultra-Pure Water Machine
Feed Water Requirements
1	Total Exchanged Anion	Max 35ppm

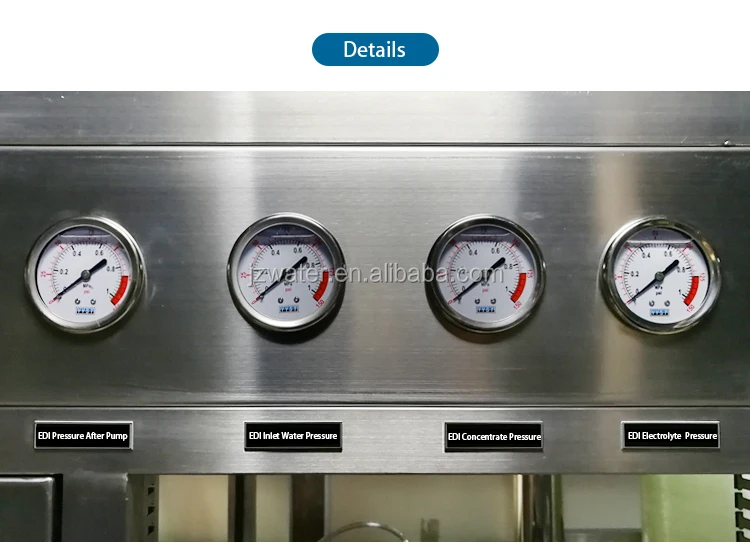

2	Applied Feed Pressure	Max 0.4Mpa (60PSI)
3	Feed-Product Pressure Drop	0.15±0.02Mpa(22±3PSI)
4	Concentrate Pressure Drop	0.1±0.02Mpa(15±3PSI)
5	Hardness(As CaCO3)	Max 1ppm
6	Organics(As TOC)	Max 0.5ppm
7	Oxidizers(Cl2/O2)	Not Detectable
8	Metals (Fe,Mn,etc.)	Max. 0.01ppm
9	SiO2	Max.0.5ppm
10	SDI15	<1.0
11	Conductivity	Max 60us/cm(As Nacl)
12	Operating Temperature	5-35℃(41-95℉)
13	Operating PH Range	7.0-9.0

If you want different flow rate for our EDI machine. please check our EDI module paramters and Ask us for detailed quotations:

Technical Parameters of CP Series EDI Modules
1	Modules	CP-5800S	CP-4500S	CP-3600S	CP-2000S	CP-1000S
2	Size(mm)	616*296*810	616*296*615	616*296*515	616*296*405	616*296*315
3	Weight(KG)	160	130	110	80	68
4	Product (m3/h)	5.0-6.5	4.0-5.1	3.0-3.8	2.0-2.6	1.0-1.5

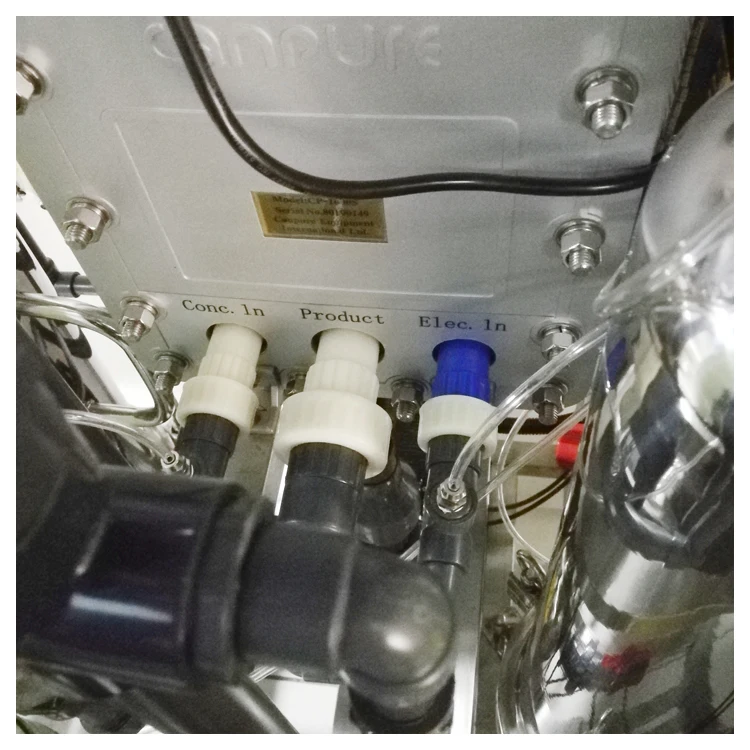

5	Concentrate Flow(m3/h)	0.5-0.65	0.4-0.51	0.3-0.38	0.2-0.26	0.1-0.15
6	Electrolyte Flow(m3/h)	0.06

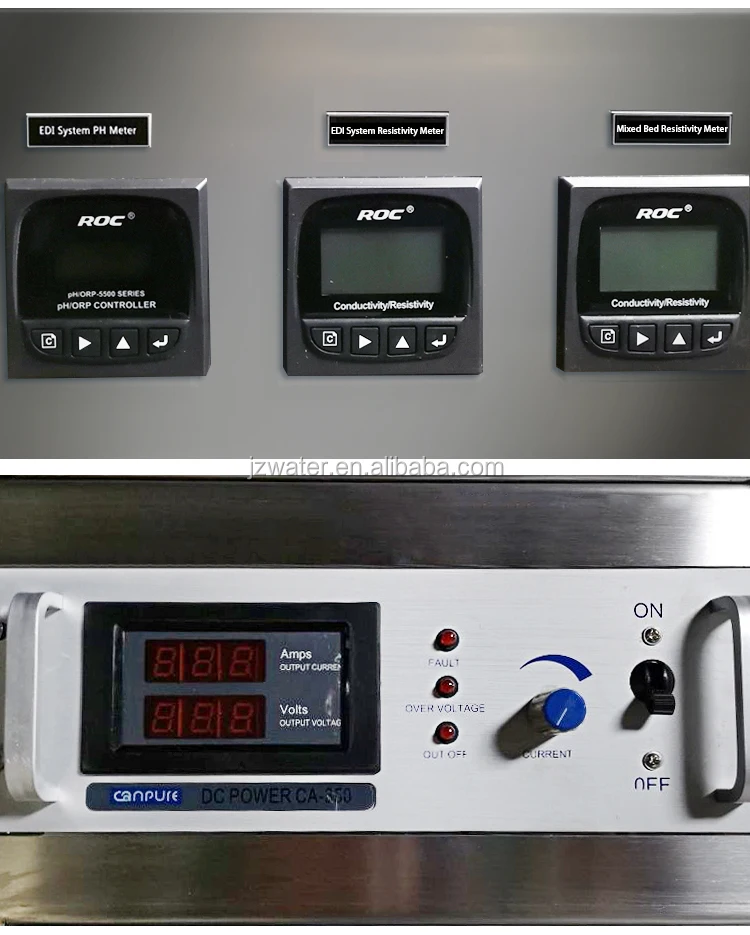

7	DC Power	CB-500	CB-500	CA-350	CA-350	CA-350
8	Operation Voltage(V)	100-450	80-300	50-240	50-160	20-100
9	Operation Current(A)	0.5-5.5
