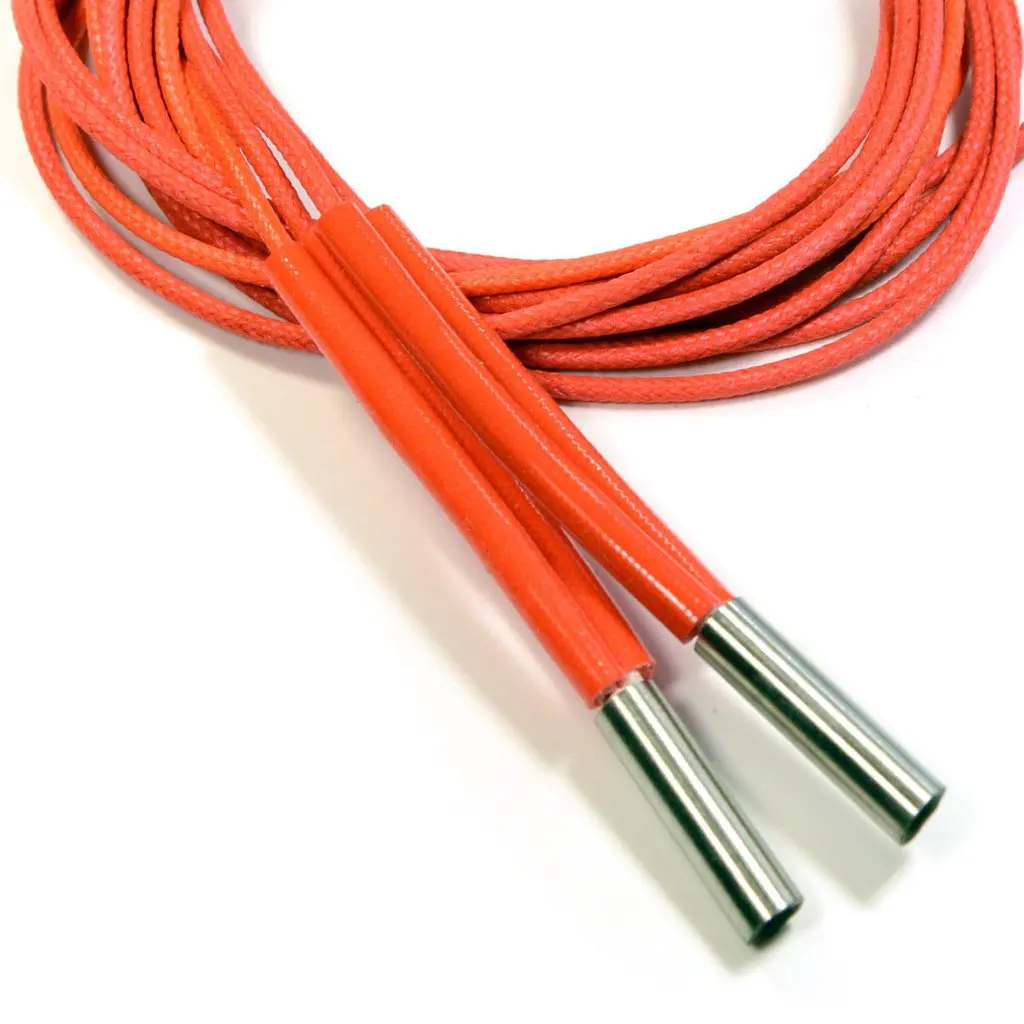

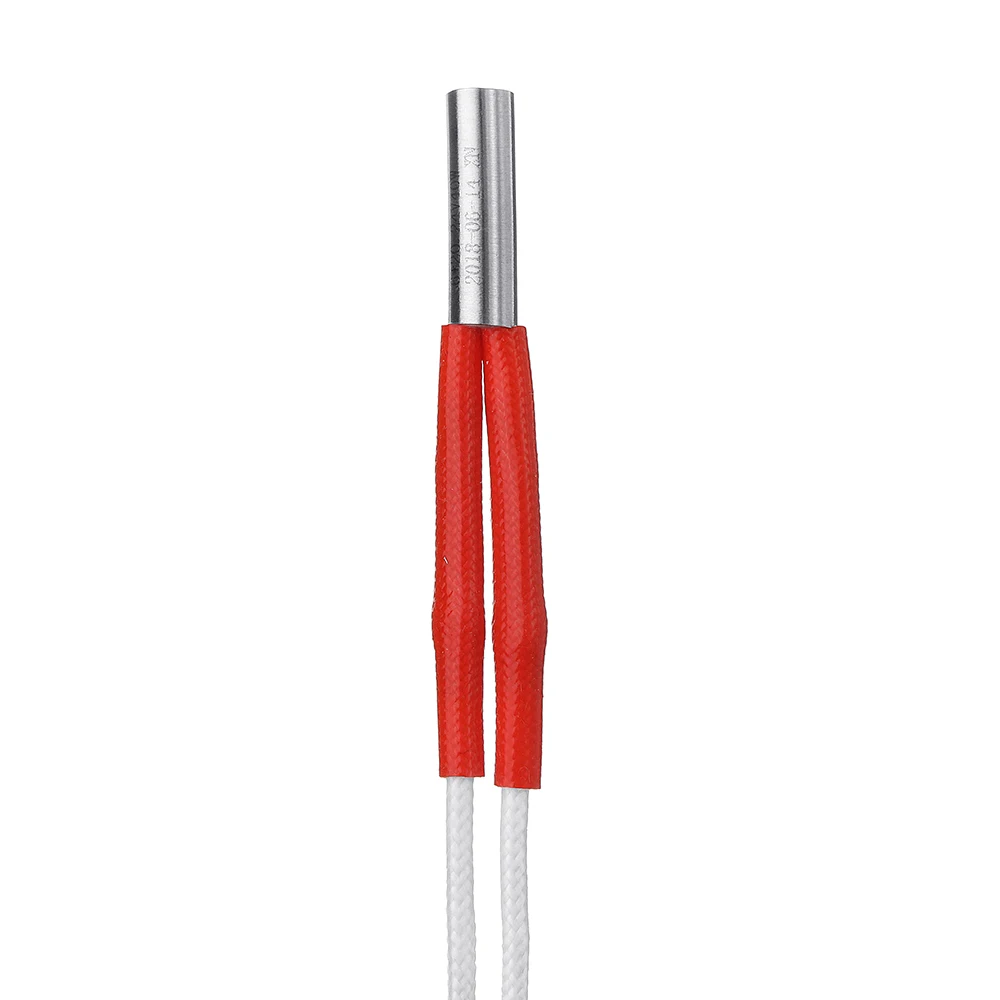

6mm* 20mm 24v 100w 3d printer cartridge heater with 1m wire
- Category: >>>
- Supplier: Shenzhen Vsec Electronic Co. Ltd.
Share on (62003304935):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

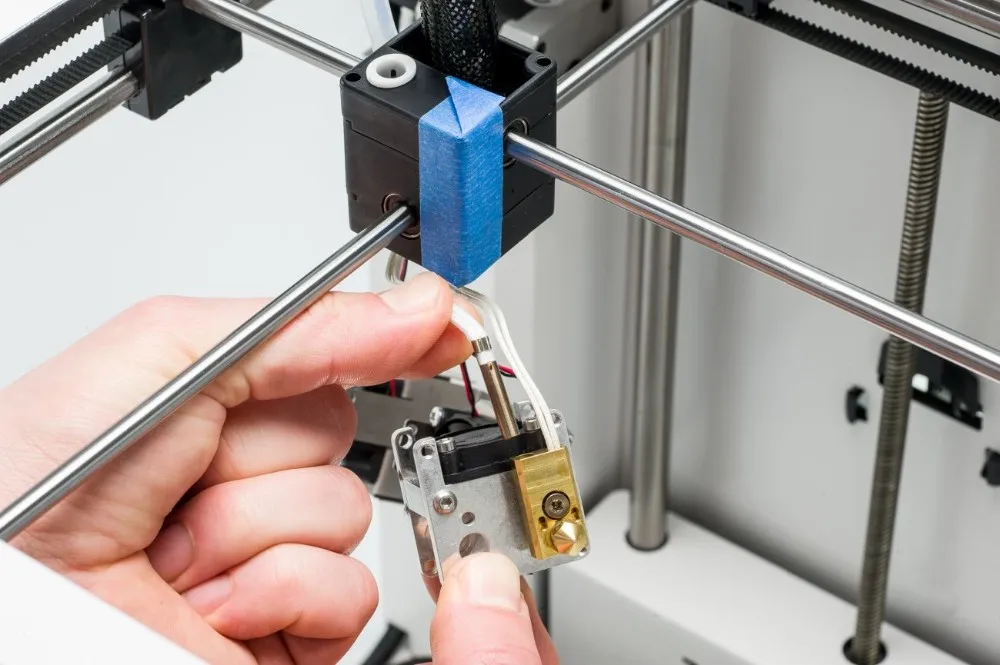

The function of the heater cartridge is to heat up the nozzle when loading material or starting a print. It includes thick white wires that are inserted into the heater block.
If the nozzle fails to heat properly, it is possible that one of the heater cartridge wires is damaged. A Heater Error message is a possible indication of this. The heater cartridge can also be damaged by an accumulation of material around the heater block. In both of these cases, the heater cartridge will need to be replaced.
Vsec's purpose-made high power ceramic heater cartridge will make you forget about those fragile and poorly tolerance enamel resistors. Make the switch now and get your hotend heating up quickly and up to the highest of temperatures.
If the nozzle fails to heat properly, it is possible that one of the heater cartridge wires is damaged. A Heater Error message is a possible indication of this. The heater cartridge can also be damaged by an accumulation of material around the heater block. In both of these cases, the heater cartridge will need to be replaced.
Vsec's purpose-made high power ceramic heater cartridge will make you forget about those fragile and poorly tolerance enamel resistors. Make the switch now and get your hotend heating up quickly and up to the highest of temperatures.
PRODUCT PARAMETER | ||
Material | stainless steel 304,316 | |
Insulation | High-purity Mgo | |
Resistance Heating Wire | Ni80-Cr20 | |
Tube Diameter | 6mm • 1 in. (25 mm) units: ±0.003 in. (±0.08 mm) • All other units: ±0.002 in. (±0.05 mm) | |
Tube Length | 20mm • All units up to 41/2 in. (114 mm) long:±3/32 in. (±2.4 mm) • 1/8 in. diameter units over 41/2 in. (114 mm) long: ±3% • All other units over 41/2 in. (114 mm) long: ±2% | |
Voltage Available | 12V/24V | |
Surface Loading | 5-10W/cm² | |
Application | Used For Injection Molding ,Plastic Molds ,Packaging Equipment | |
Lead Wire | 300mm length; Different type of wire (PTFE/silicone high temperature frberglass) is available | |
Related products
24v 25w Cartridge Heater
12v 60w Cartridge Heater
12v 35w cartridge heater
Certifications
Packing & Delivery
Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days ,according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample by paid and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
Friendly reminder: We are factory directly sale. Customized services are available.We can offer cartridge heater from diameter 2-35mm,can be any length. If you need to consult custom, please contact customer service as follows.
