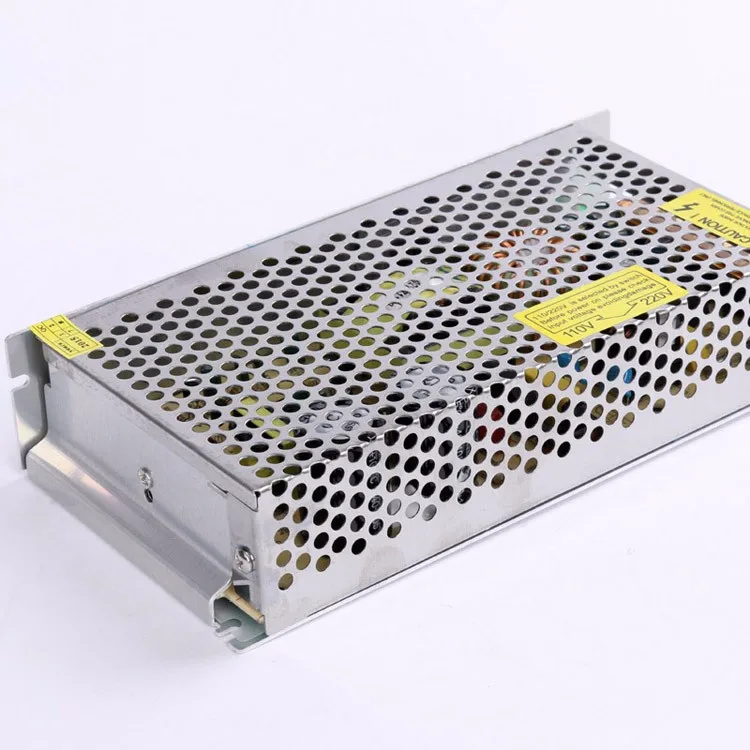

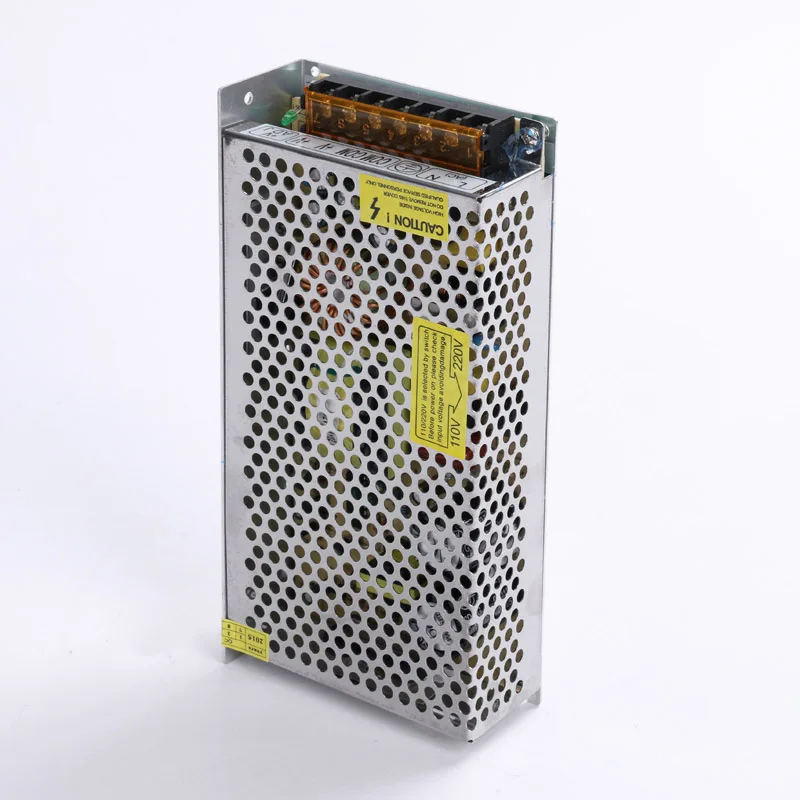

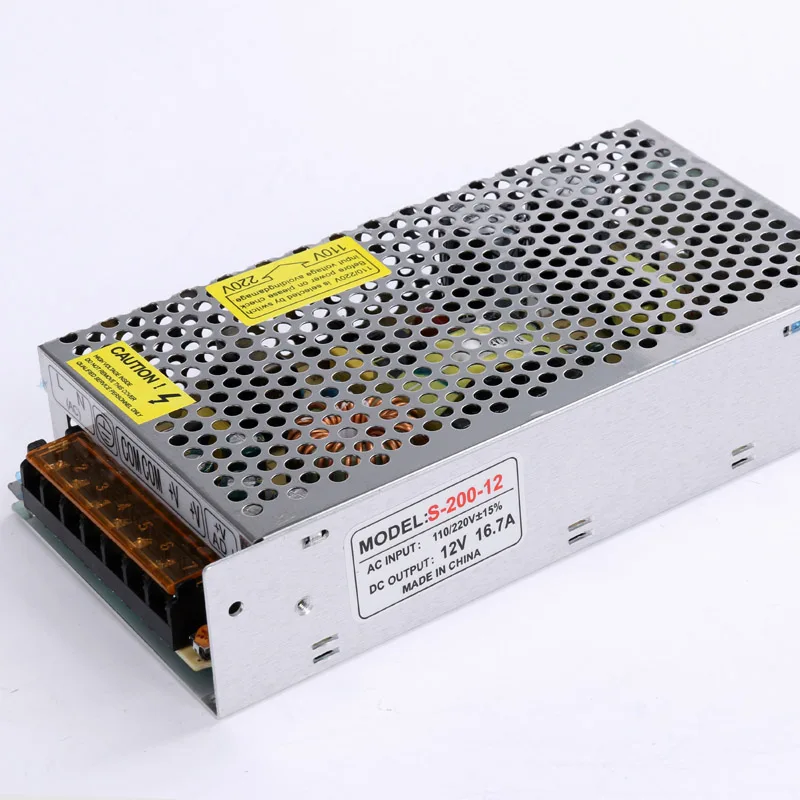

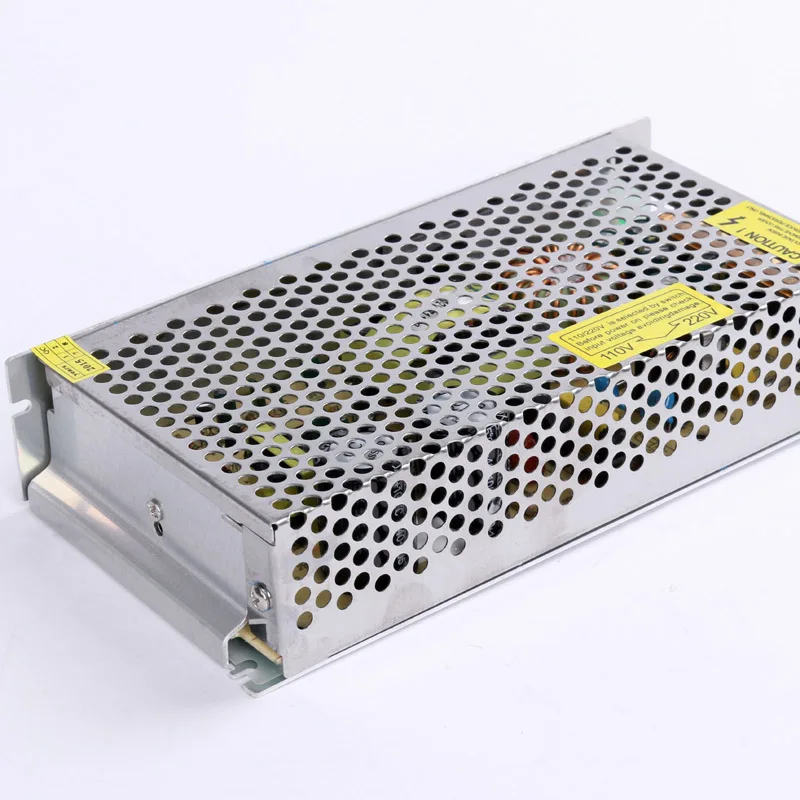

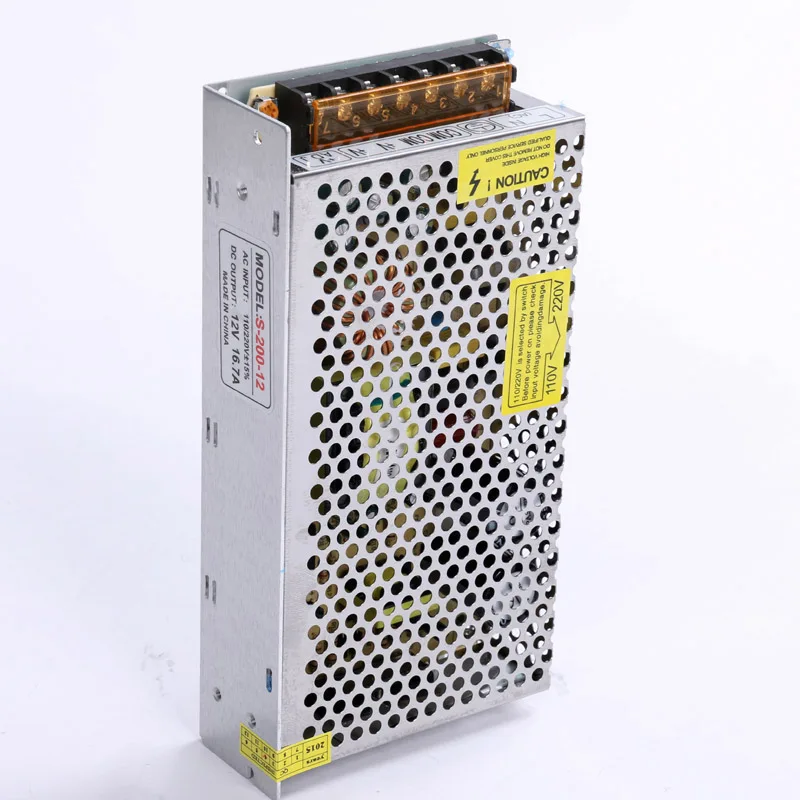

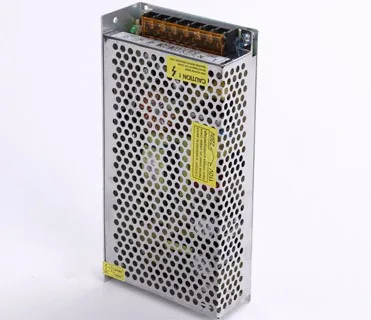

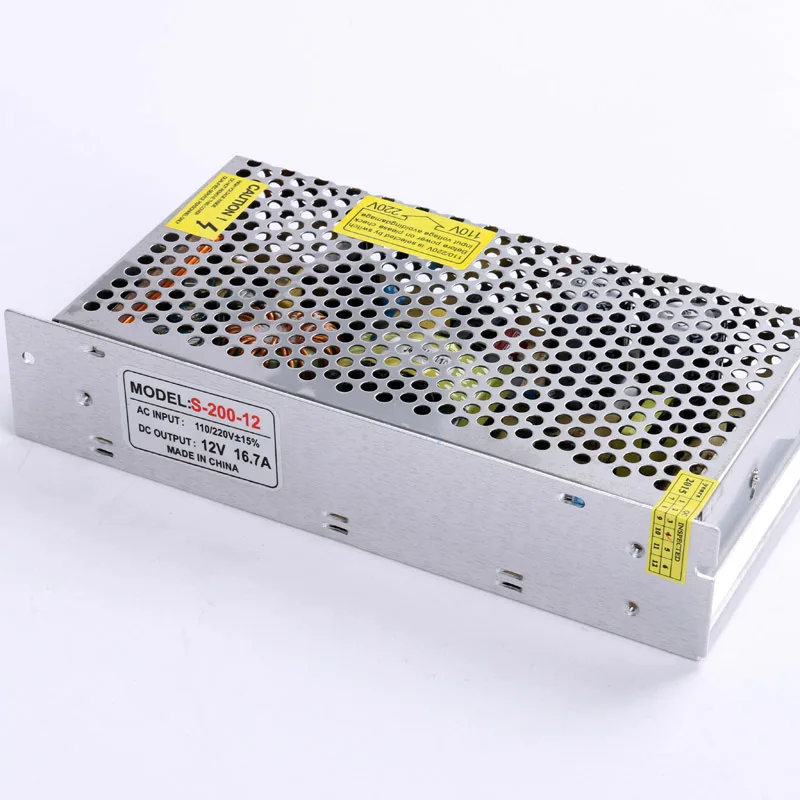

High quality constant voltage 12V 16.7A switch power supply 200W switching power supply led transformer with CE RoHS
- Category: >>>
- Supplier: Shenzhen Sunhooyu Technology Co. Ltd.
Share on (62003377119):
Product Overview
Description
Specification
| Setting Information | |
| Input Voltage | AC100-265V |

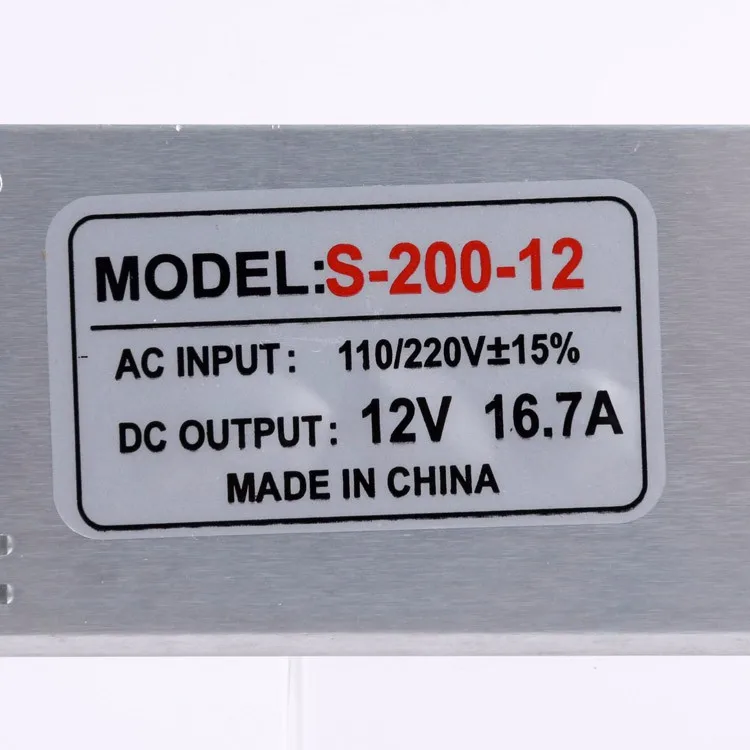

| Output/Current | 12V 16.7A |
| Power(W) | 200W |
| Item Size(mm) | 198*98*42MM |
| Weight(g) | 500 |
| Efficiency | >85% |
| Working Temperature | -30℃ ~ +70℃ |
| Warranty | 3 years |
Product Description
| Input Voltage | AC100-265V | ||
| Output/ Current | 12V 16.7A | ||
| Power(W) | 200W | ||
| Item Size(mm) | 198*98*42MM | ||
| Weight(g) | 500g | ||
| Efficiency | >85% | ||
| Adjustable Range For DC Voltage | ±10% | ||
| Overload stability | ±2% | ||
| Wave & Noise | ≤1% | ||
| Overload Protection | 110%-150% intermittent operation, self-recovery | ||
| High-voltage Insulation Test | Input and Output 3KV/1MIN | ||
| AC-GND | 1.5KV/1M1N | ||
| Setup Time | 0.1-0.5S | ||
| Hold Up Time | 0.1-0.3S | ||
| Working Temperature | -30℃ ~ +70℃ | ||
| Heat Dissipation Method | Self-cooling | ||
| MTBF(reliability/mean-time-to failure) | 50K hrs min. MIL-HDBK-217F (25) | ||
| Warranty | 3years | ||
| Certification | EMC, CE ,RoHS, FCC, LVD | ||
| Performance Advantages | Built-in EMI filter, good immunity, 100% load aging, Over current and short circuit protection | ||
Feature:
•High efficiency, High reliability, Long lifetime;
•CE FCC ROHS certified;
•Protected level: IP20;
•Universal AC input/Full rang;
•Efficiency: >85%;
•Built-in active PFC function, PFC>0.8;
•Protections: Short circuit/Over voltage/Over temperature;
•Low output ripple noise;
Installation Process
Applications
Certifications
Company Information
FAQQ4. How do you ship the goods and how long does it take to arrive?
Q5. How to proceed an order for led light?
Q6. Is it OK to print my logo on led light product?
Q7: Do you offer guarantee for the products?
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
