High Speed Tricot Cut Presser Warp Knitting Machine

Product Overview

Description

PRODUCT DESCRIPTIONS



Product Descriptions Of High Speed Tricot Cut Presser Warp Knitting Machine



4 shafts E-positive yarn feeding system Set the yarn feeding parameters through PC touch screen (equipped with the servo motors from Japanese brands)

3 guide bars EL Pattern processes can be input through USB, active and saved with PLC (equipped with the servo motors from Japanese brands)

Equipped with embedded needles

Main motor frequency conversion, CVT

Touch screen operation

Standard QHCZZ001-2007

Suitable products Fashion shell fabric, Mesh fabric





Needle-type: Bearded needle

Machine gauge: E12 or  E14

Products width allowance:  3353mm (132")

Number of guide bars: 3

Method of warp let-off: E-positive, customized beaming parameters (EBC)

Beam size: 14” or  21”

Flange Diameter: φ356

Shaft Diameter: φ102

Aperture: φ70

Beam Width: 356

Density tuning method: Digital controlled, PC touch screen operation (EBA)

Braiding method: EL, digital controlled presser

Main shaft speed: 700 RPM (frequency control)

Main motor: 2.2 KW

Yarn feeding motor: 0.5 KW×2 pieces

Shogging motor: 0.75 KW×4 pieces

Outline dimension:132”: 4200mm (Length) x 2200 mm (wide) x 2600mm (height)

Total weight: Approximately 3500 Kg

PRODUCT SHOW

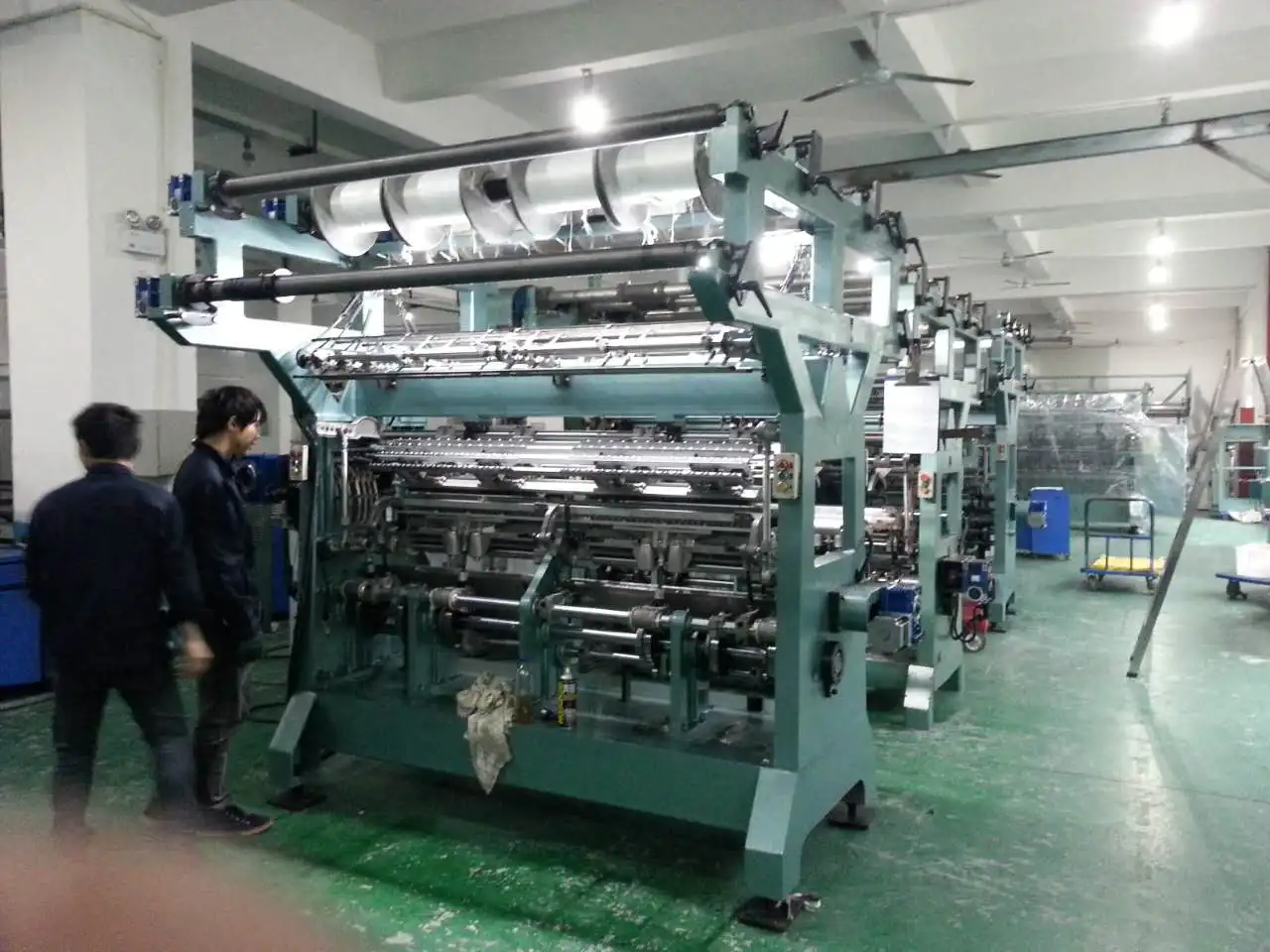

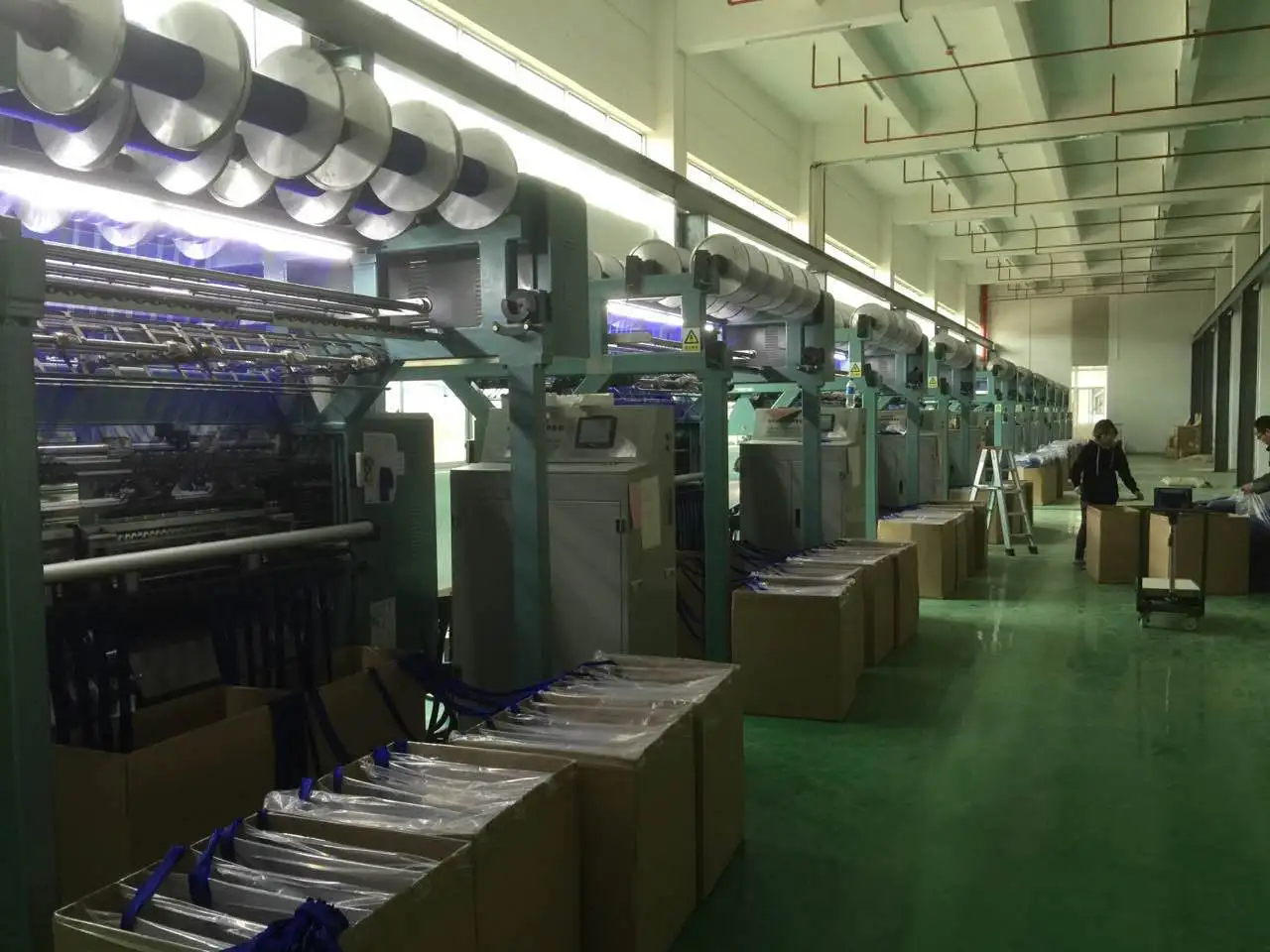

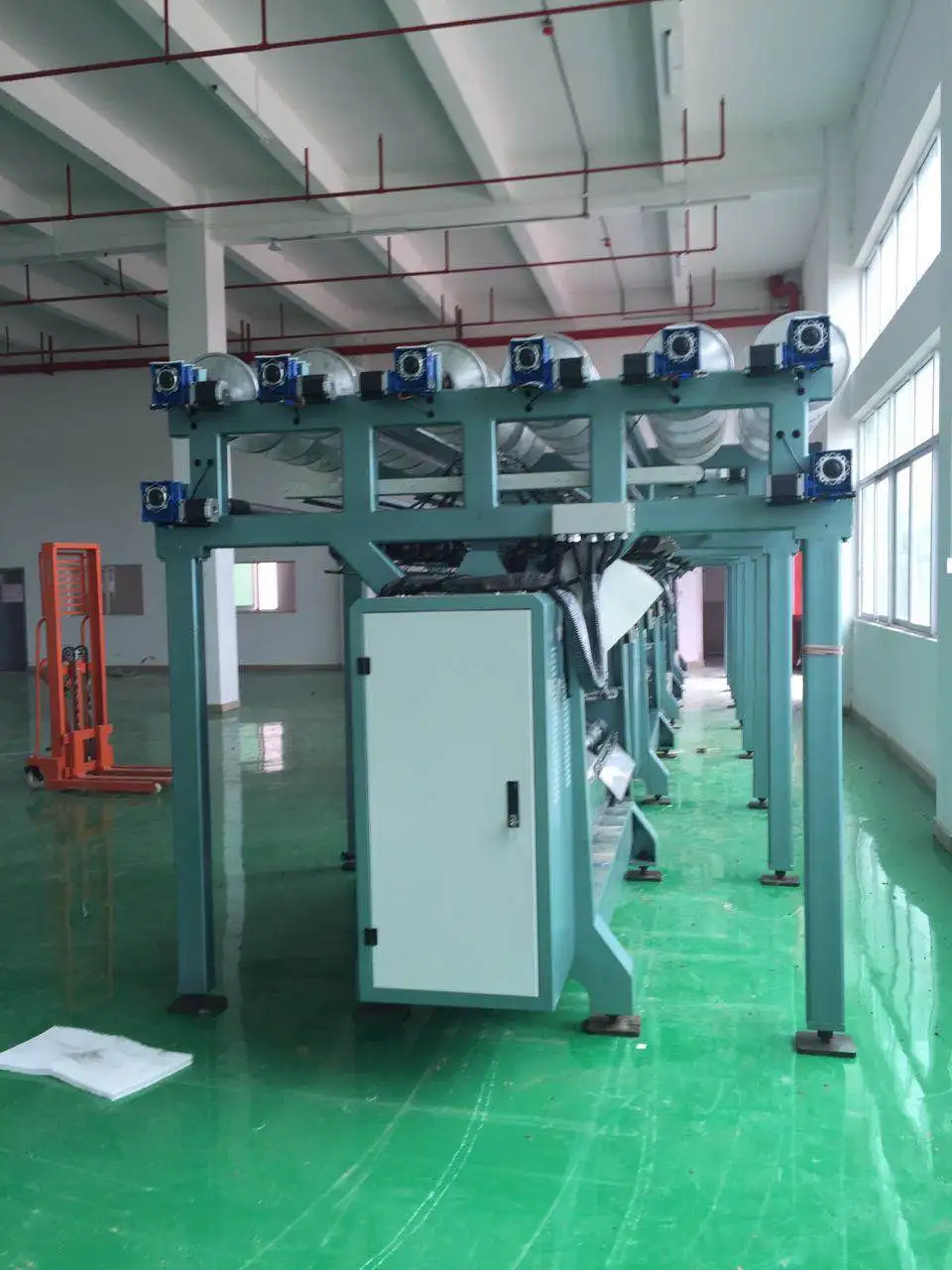

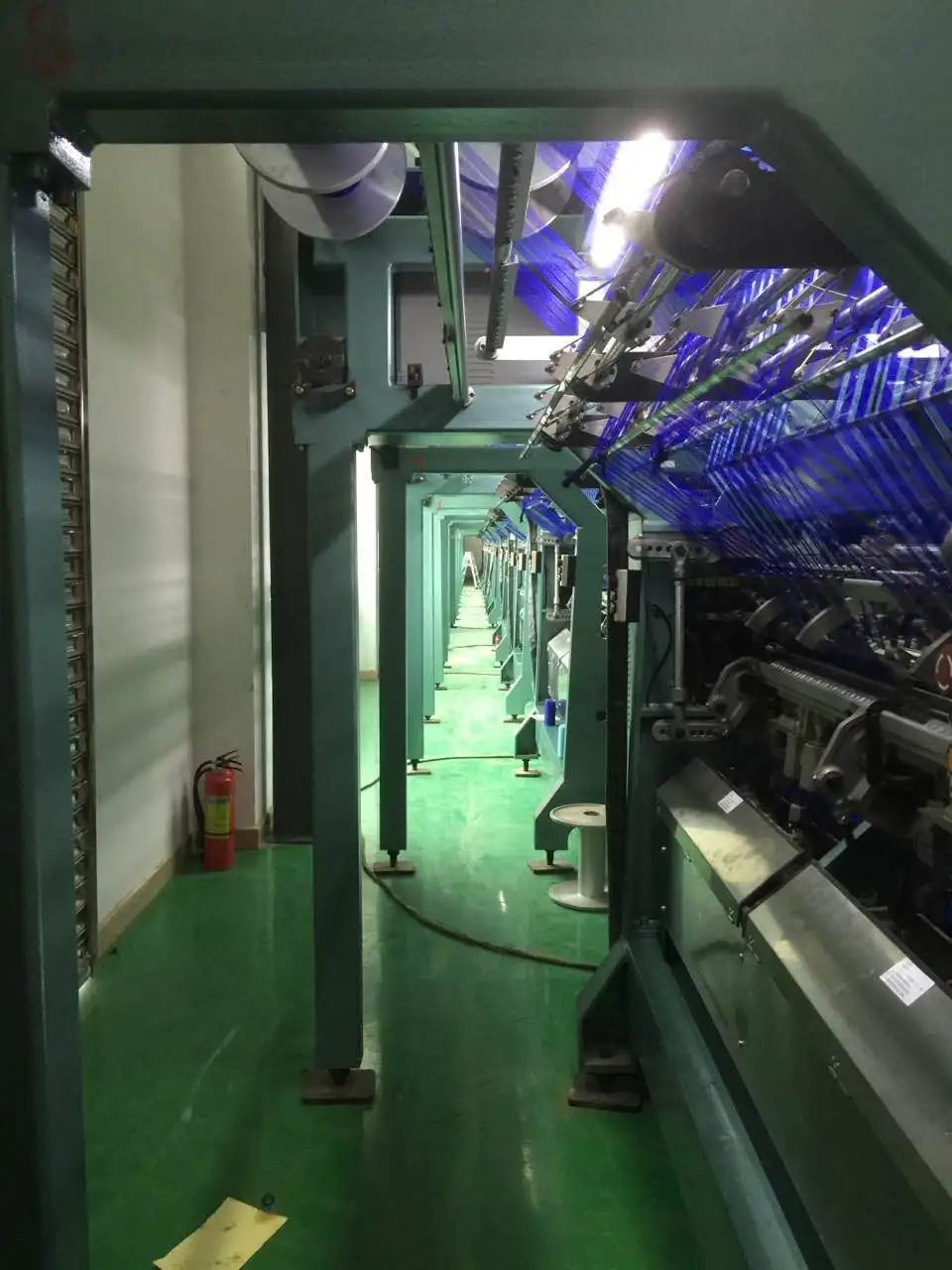

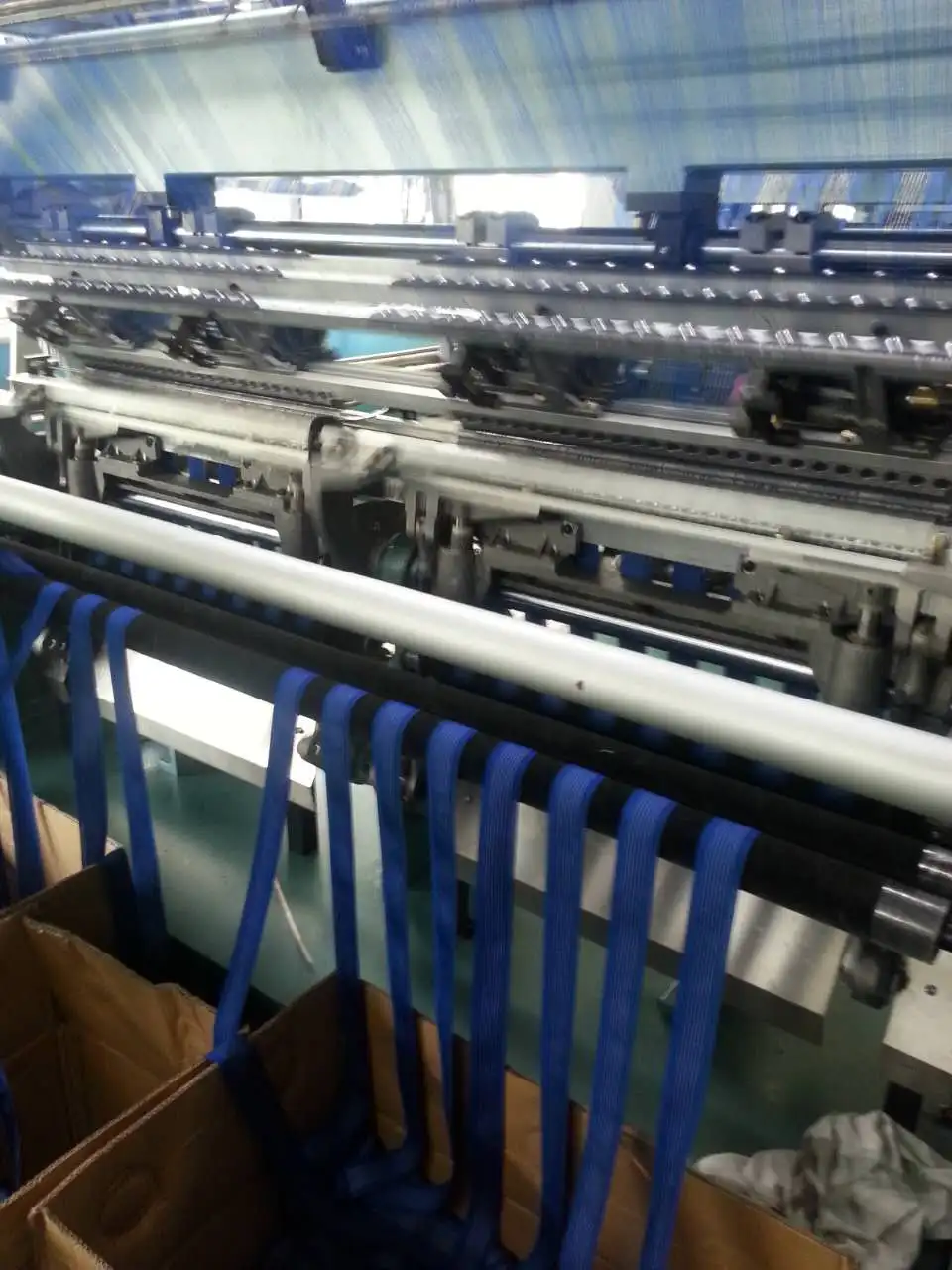

Product Show Of High Speed Tricot Cut Presser Warp Knitting Machine





THE END PRODUCT

Suitable For  Fashion shell fabric, Mesh fabric Making.
