uhf antenna low noise amplifier

Product Overview

Description

Features

(1)One input, four outputs, 10dB adjustable gain.

(2)Low noise, high gain

(3)F-type, easy for connection

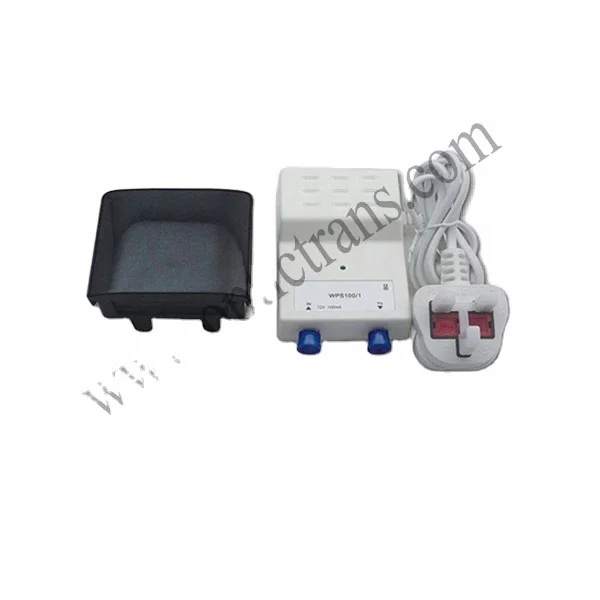

(4)Good-looking waterproof housing (own patent)

(5)Fully screened, high interference immunity

(6)Apply power components with short circuit protection function, with ensures that the power supply would not be damaged by long-time short circuit



Technical specification

Item	Unit	Parameters	Power Supply
Number of inputs		1	Output Voltage(Vdc)	12V(dc)
Number of outputs		4	Max Current(mA)	100mA
Input Frequency Band		UHF	Number of outputs	1
Input Channels		21-68
Frequency Range (MHz)	MHZ	470-862
Typical Gain	dB	0-10
Variable Gain		Yes
Noise Figure(dB)	dB	<2.2
Max Output Level(dBuV)	dBμV	4x83

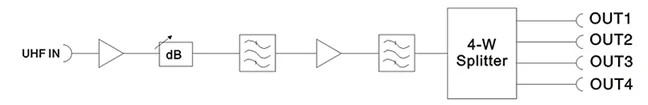

Block Diagram

Environment Parameters

Operating Temperature: -25℃ +55℃

Storage Temperature: -30℃+55℃
