Antenna Amplifier

Product Overview

Description



Features

1) One signal input port, six output ports, 22dB gain adjustable broadband antenna power amplifier.
2) Low noise figure, high gain.
3) F-type connector, easy for connection.
4) Good-looking waterproof plastic housing (own patent).
5) Full screening, high interference immunity.
6) Apply power components with short circuit protection function, which ensures that the power supply would not be damaged by long-time short circuit (own patent).



Technical specification

Item	Unit	Parameters	Power Supply
Number of inputs		1	Output Voltage(Vdc)	12V(dc)
Number of outputs		6	Max Current(mA)	100mA
Input Frequency Band		UHF	Number of outputs	1
Input Channels		21-68
Frequency Range (MHz)	MHZ	470-862
Typical Gain	dB	9-22
Variable Gain		Yes
Noise Figure(dB)	dB	<2.2
Max Output Level(dBuV)	dBμV	6x83

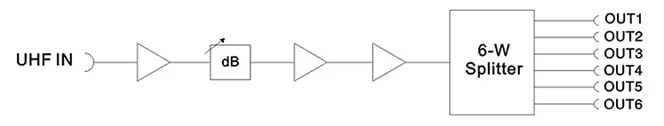

Block Diagram

Environment Parameters

Operating Temperature: -20℃ +50℃
Storage Temperature: -25℃+55℃
Dimensions: 150mmx96mmx60mm
