High Color Sensor Medical Endoscopy Camera Monitor
US $999.00-$9999
4K Touch Screen Monitor 86' LCD Interactive Flat LargeTouch Panel with PC
- Category: Used Computers & Accessories >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (62003472917):
Product Overview
Description
Product Description
Technical Specification:

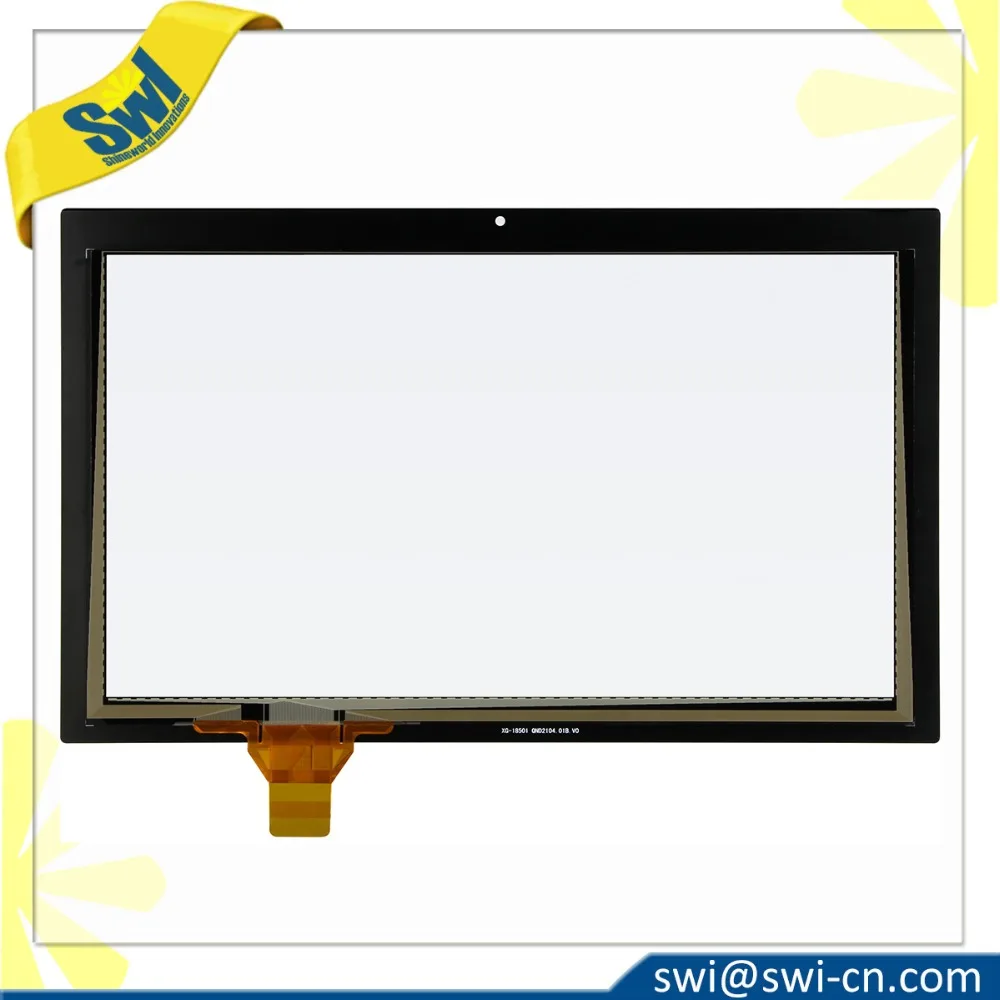

86inch Big Size G+ FF Touch Panel ITO/ Metal Mesh/Nano Silver
| Item | Contents | Unit |
| Outline Dimension | 1957.04(L)x1129.46(W)x3.9(H)mm | ±0.5mm |
| Active Area(L×W) | 1898.04x1068.96mm | ±0.5mm |
| TP Size | 86 | inch |
| Interface Type | USB | |
| Operation Temperature | TOPL=-20,TOPH=70 | ℃ |
| Storage Temperature | TSTL=-30,TSTH=80 | ℃ |
| ITO Glass Thickness | 1.1 | mm |
| Cover lens thickness | 3 | mm |
| Resolution | >s | |
| Input force | <10g | |
| Surface Hardness | >6H | |
| Number of Touch Point | 10 Point | |
| Light Transmittance | >85% | |
| Structure | Glass+Glass |

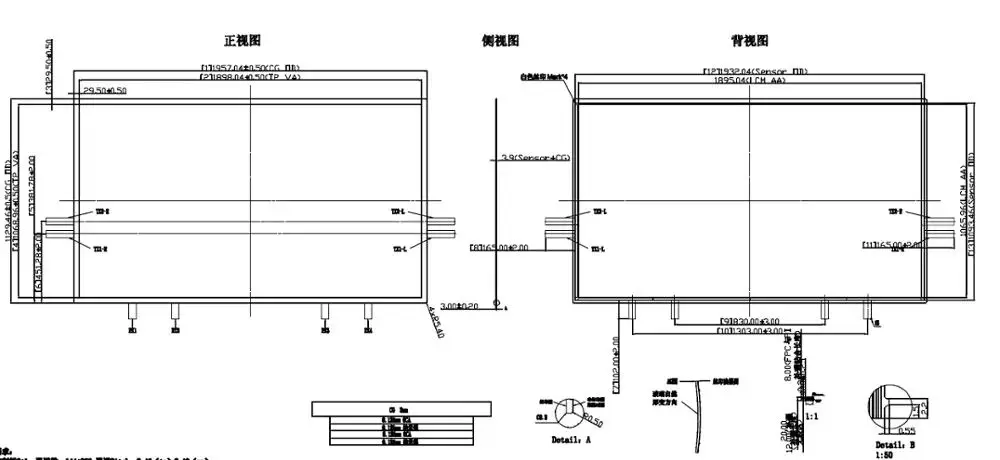

Outline Drawing:
TFT HOT SALE
Our Services
ABOUT US

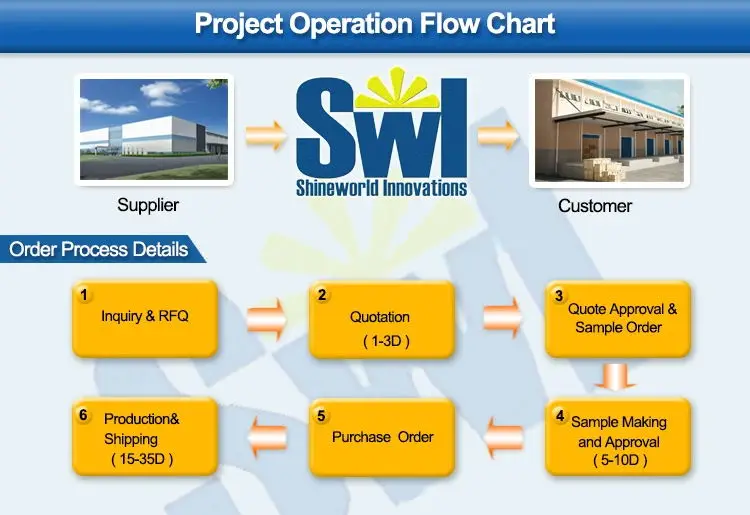

Process Flow
Trade Information:
Trade Terms: EXW, FOB, CIF, DDU
Payment Terms: T/T, PayPal, Western Union, Escrow
Payment Condition: 40% in Advance as Deposit, 60% Balance before Shipment
Lead Time: 2-6 Working Weeks
Shipping: By sea, Air and Express
