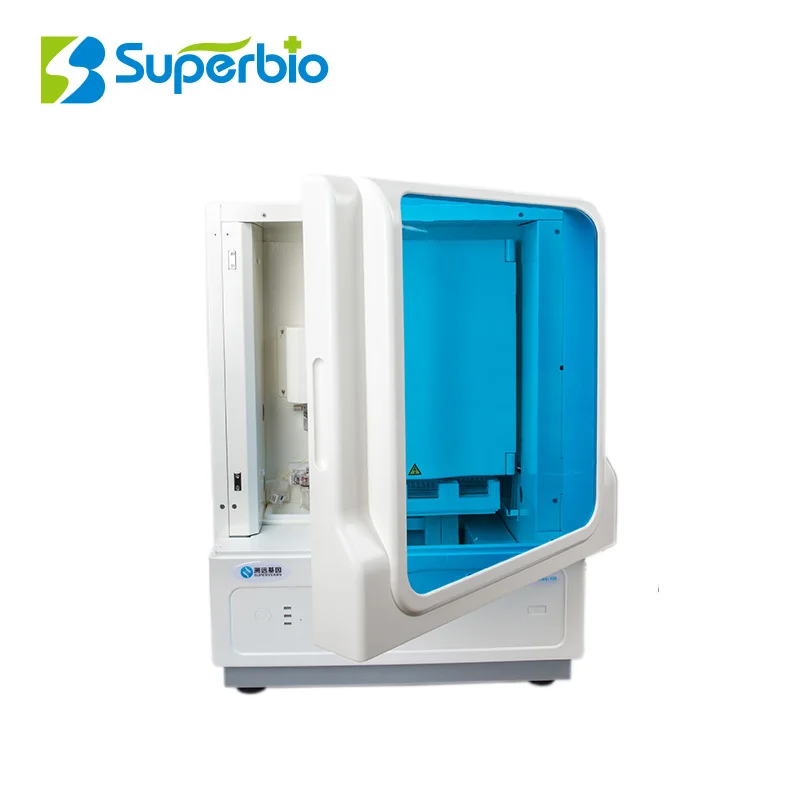

China Brand DNA Sequencer made in China 8 color Fluorescence Genetic Analyzer

OverviewAfter years of research on DNA detection technology, Superbio recently launched the new Honor-1816 Genetic Analyzer, breaking the monopoly of foreign companies in this field. Our engineers have made optimization on its function, laser, detection wavelength, temperature control accuracy and system software, offering you excellent operating experience. Together with our self-developed YESU AY60 Fluorescent Detection Kit, Honor-1816 can meet the construction needs of both autosomal and Y-chromosome databases.


System Components

Honor-1816 Genetic Analyzer contains:

Hardware: optical system (including laser, fluorescence testing module, area array CCD detector), automatic 3D sampler, automatic gel injection module, high-voltage power, incubator, embedded central measurement and control circuit, drive and control circuits for each component.

Software: DNA data acquisition software, forensic DNA fragment analysis software.

Consumables: capillary array, buffer, gel, formamide, fluorescence calibration substances.


Features

All-open detection platform, compatible with mainstream reagent kits both at home and abroad.

Fluorescence excitation efficiency is 40% higher than that of foreign products.

Solid-state laser with stable power and long life.

Injection module has high precision and pressure-resistance capacity.

Upgradable 16-channel capillary system.

Optimized heat conduction system to better meet the requirements on temperature controlling during DNA fragment analysis.

Strong application flexibility in STR analysis, gene sequencing and other researches.

Baseline noise ≤50RFU, can recognize 1bp difference between DNA fragments.

Interpretation of each base has been proven by the Phred Q20 Standard, and the length can be extended to 900+ bp with a 98.5% accuracy.



Applications

Honor-1816 Genetic Analyzer is applicable to individual and relationship identification in forensic DNA laboratory. Being an all-open platform, Honor-1816 is compatible with mainstream reagent kits both at home and abroad. The instrument can be utilized for STR analysis as well as other scientific researches. The system contains instrument, built-in reagent kits, data capture software and expert analysis software, therefore can be used to handle common cases in forensic DNA laboratory and construct DNA database.

Honor-1816 is mainly used in:

Micro-satellite positioning and disease linkage analysis

SNP, SNPlex and SNPshort analysis

Methylation analysis

AFLP and MLPA analysis

Size 812mm*610mm*532mm

Power supply voltage 220±10%V, 50 Hz±1 Hz

Ambient temperature 15-30℃ (temperature fluctuation should not exceed ±2℃ while working)

Weight 120KG

Current & Power Max current: 10A; Max power: 800W (approximation, computers and monitors are not included)

Main Features:

• 8-capillary (3500 system) or 24-capillary (3500xL system) arrays

• Advanced thermal system design improves temperature control in demanding DNA fragment analysis applications

• Single 505nm solid-state laser - uses a standard power supply; no heat dissipation needed.

• Significantly improves the signal consistency between instruments, operations and capillaries.

• Powerful comprehensive data collection and preliminary analysis software provide real-time assessment on data quality

• Radio Frequency Identification (RFID) technology tracks critical consumable data and records management information

• Advanced multiplex analysis of DNA fragments using up to 6 unique dyes

• Unmatched application flexibility - an array and a polymer compatible with most applications

• Simple installation, operation and maintenance

Certifications

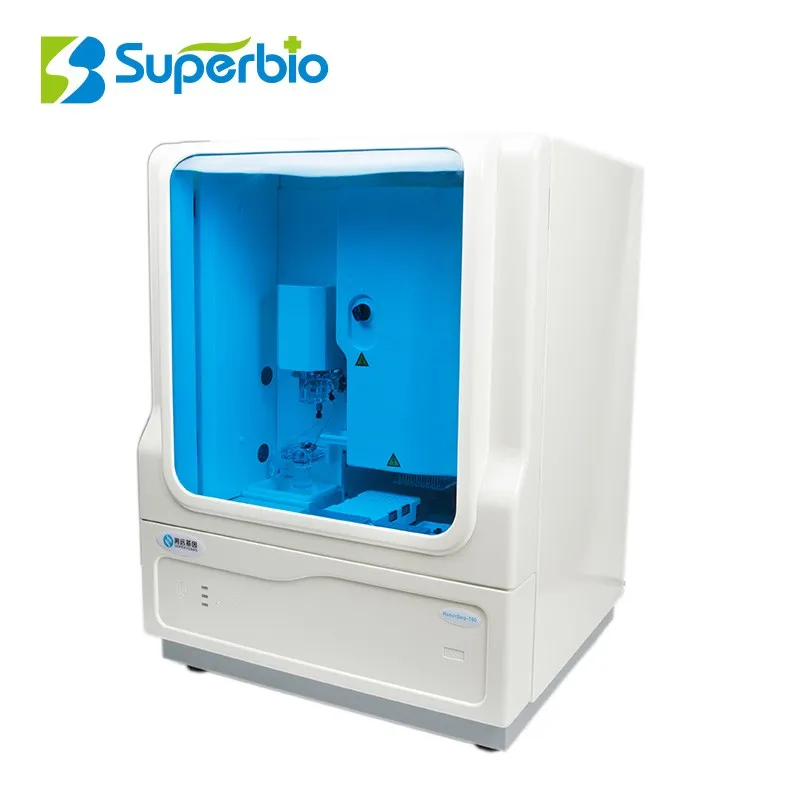

Detailed Images

Machine Parts

Name:

Brand: ABI

Original: Unite states

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
