HPC015S wifi support connection public toilet wireless infrared people counter customer counting system IR human traffic sensor
- Category: >>>
- Supplier: Highlight Manufacturing Corp. Ltd.
Share on (62003532418):
Product Overview
Description
HPC015S wifi support connection public toilet wireless infrared people counter customer counting system IR human traffic sensor
Product Description
1. Package Contents

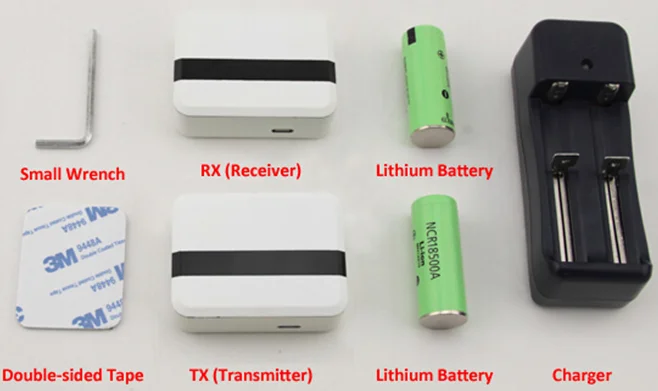

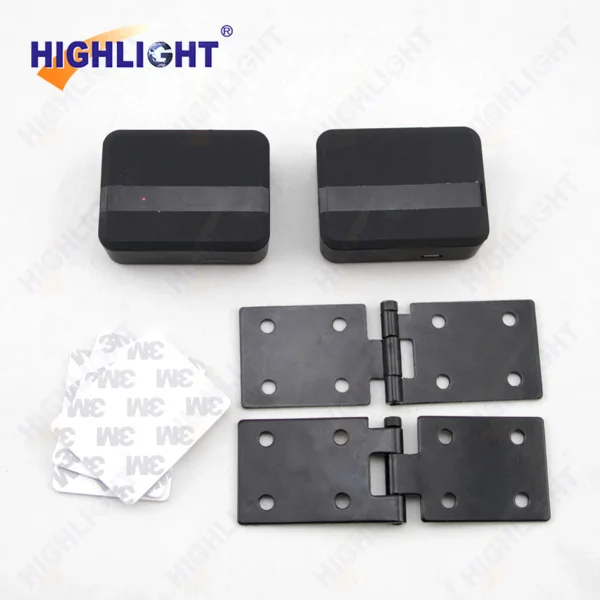

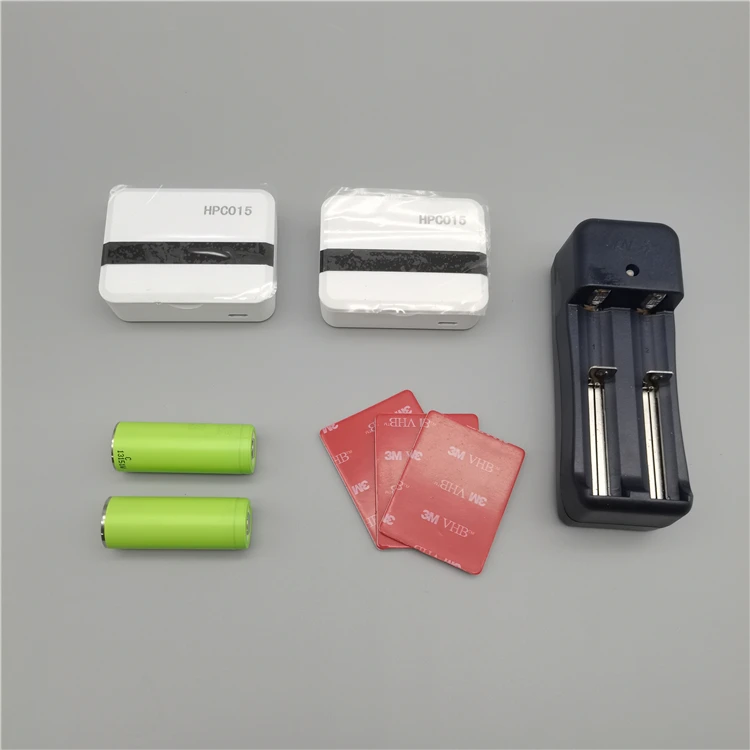

Opening the packing box, there are a RX (receiver), a TX (transmitter), two rechargeable lithium batteries, a charger, double-sided tapes. Two mounting brackets and a small wrench are optional and not inlcuded in the packing box.
Installation of Cover Plate
There is a cambered notch at the top of receiver and transmitter. Use the thumbs of both hands to press the cover plate and the base, then open the cover plate carefully. After the installation and settings are finished, the cover plate can be buckled on.
Be sure to install the cover plates in correct direction.

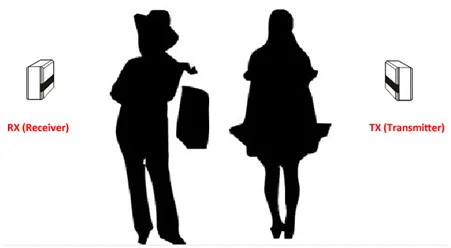

The black bar area of the cover plate is infrared light transmission area. The infrared light of transmitter emits infrared ray beams through the area. Receiver receives the infrared ray beams and shows the contents of OLED display screen through the area.
After installing the battery, OLED display screen will show the booting information. By touching the touch sensor button, you can switch the contents on display screen: the current battery remaining capacity (BAT) and product serial number (SN), working parameters, open and close time, start AP menu and so on. If without touch operation for more than 10 seconds, the display screen will automatically turn off to reduce power consumption.
When the battery remaining capacity is low, please use the matched charger to charge it. The maximum charging process takes about 6 hours. The green indicator light is on after the battery is fully charged. The charger can charge two lithium batteries at the same time. The “+” on battery should toward the direction of indicator light.

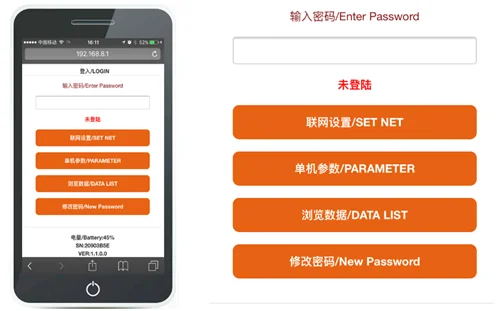

Note: As the power consumption of receiver will increase largely when starting AP service (WIFI hotspot), it is recommended to quickly complete all the settings and close AP service timely.If the smartphone has been connected to the “People Counter” network and the browser has accessed the setting page for operation, the AP service (WIFI hotspot) of receiver will keep on. So do not worry about the countdown time.
Related Products

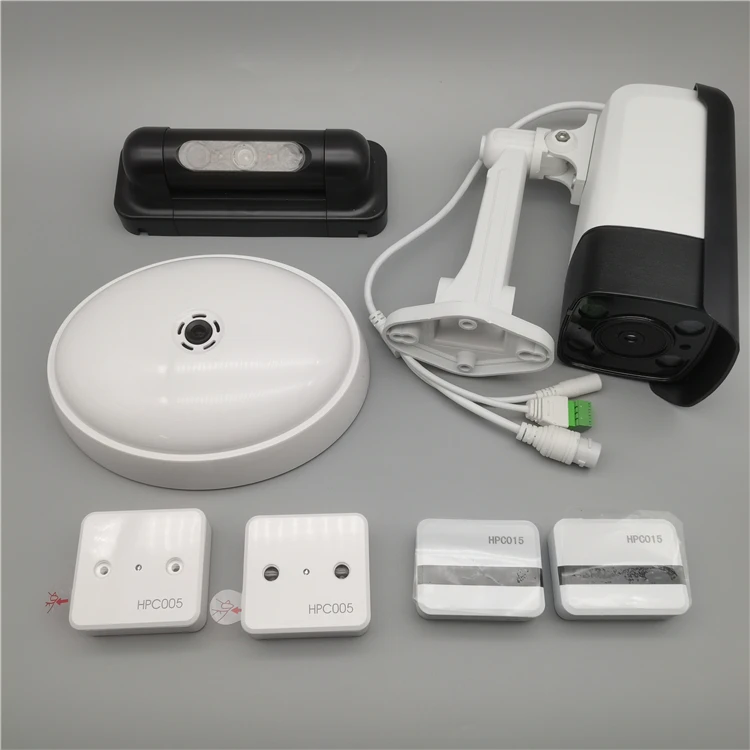

Highlight also designs people counting solutions for retail chain stores. Highly introduce two popular models as follows:
