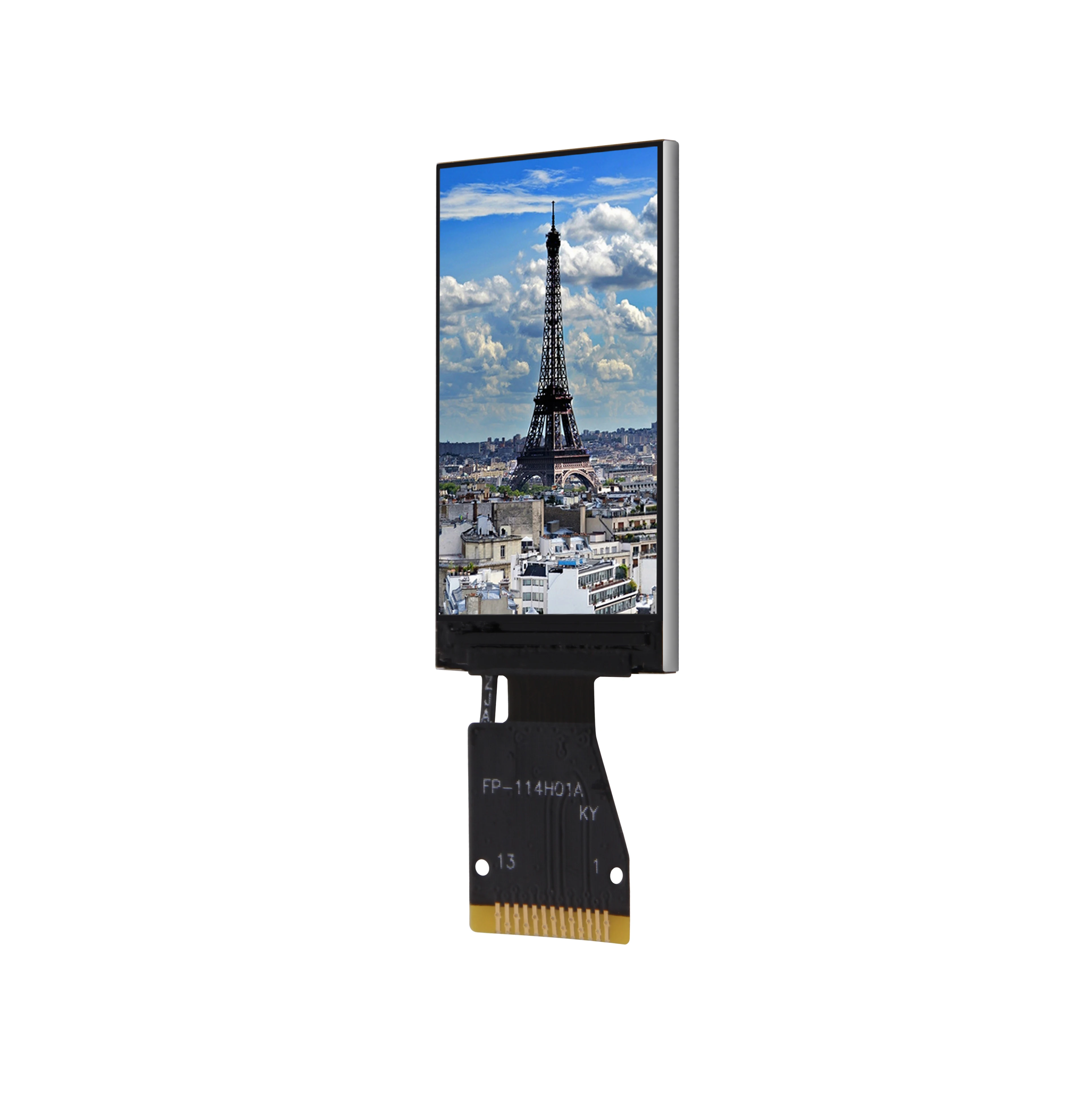

Полноцветный TFT ЖК дисплей с интерфейсом SPI, 1,14 дюйма, 135x240 пикселей, экран ips tft
- Category: Laptop Accessories >>>
- Supplier: Dongguan Shineworld Investment Ltd.
Share on (62003660282):
Product Overview
Description
Product Description
1.14inch SPI 135X240 TFT display | ||||||||
Diagonal Screen Size | 1.14 inch | |||||||
Color | RGB Vertical Stripe | |||||||
Module Construction | IPS | |||||||
Number of Pixels | 135RGBx240 | |||||||
Active Area | 14.864(H)X24.912(V)mm | |||||||
Panel Size | 17.6(H)x31.0(V)x1.6(D)mm | |||||||
Pins | 13 pins | |||||||
Drive IC | ST7789V | |||||||
Interface | 4-wire SPI | |||||||

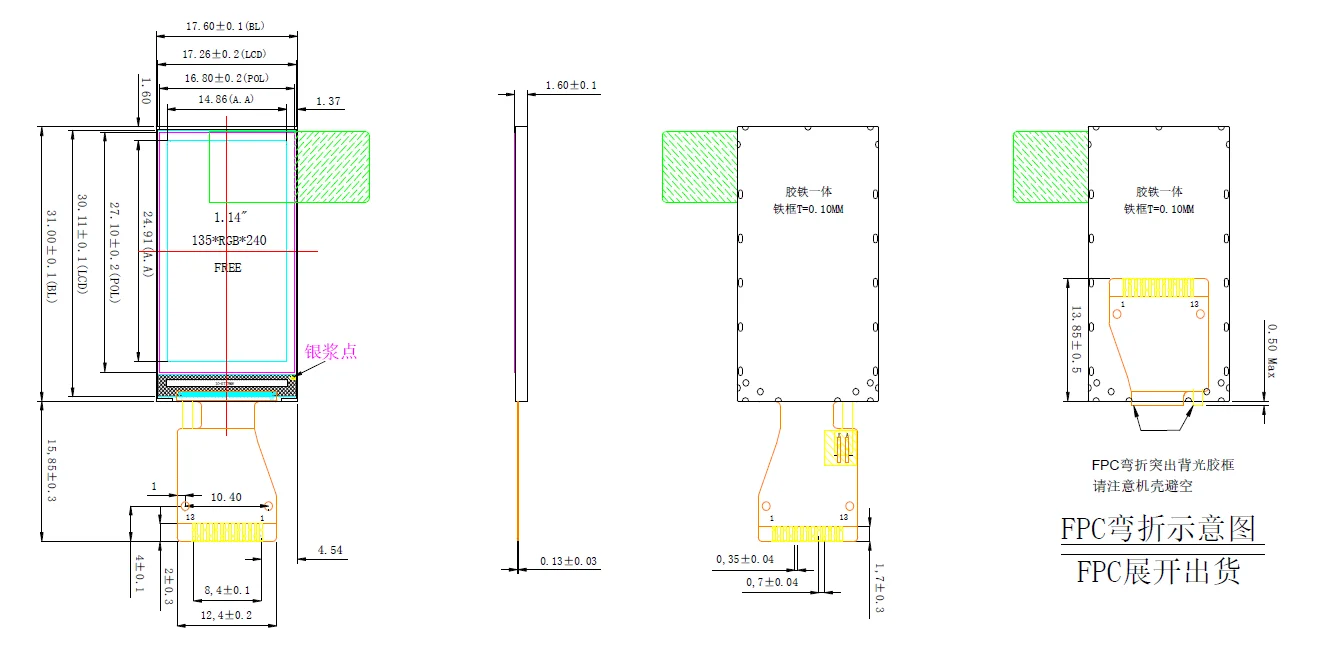

Drawing
Product details
About TFT
SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
OUR ADVANTAGES
CUSTOMER FOCUSED
We’re here to serve customers, and they receive our unwavering focus. We also continually communicate with those we serve, encouraging feedback on how we can better meet their needs and expectations. This helps guide our priorities and methodology.
EFFECTIVE TEAMWORK
We feel a team-based approach works best, for all engagements. Effective teamwork demands strong relationships, respect, and diversity of thought from all contributors, and we foster an environment where those are stimulated.
ADVANCED FACILITIES
The advanced facilities and automated production lines in designated class 100 and class 1000 clean rooms ensure the product quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
INTEGRATED SOLUTIONS
We propose most suitable display solutions to our customers integrated with capacitive touch functions and optical bonding solutions.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
Manufacturing Technique
Certifications
Packing&Shipment
