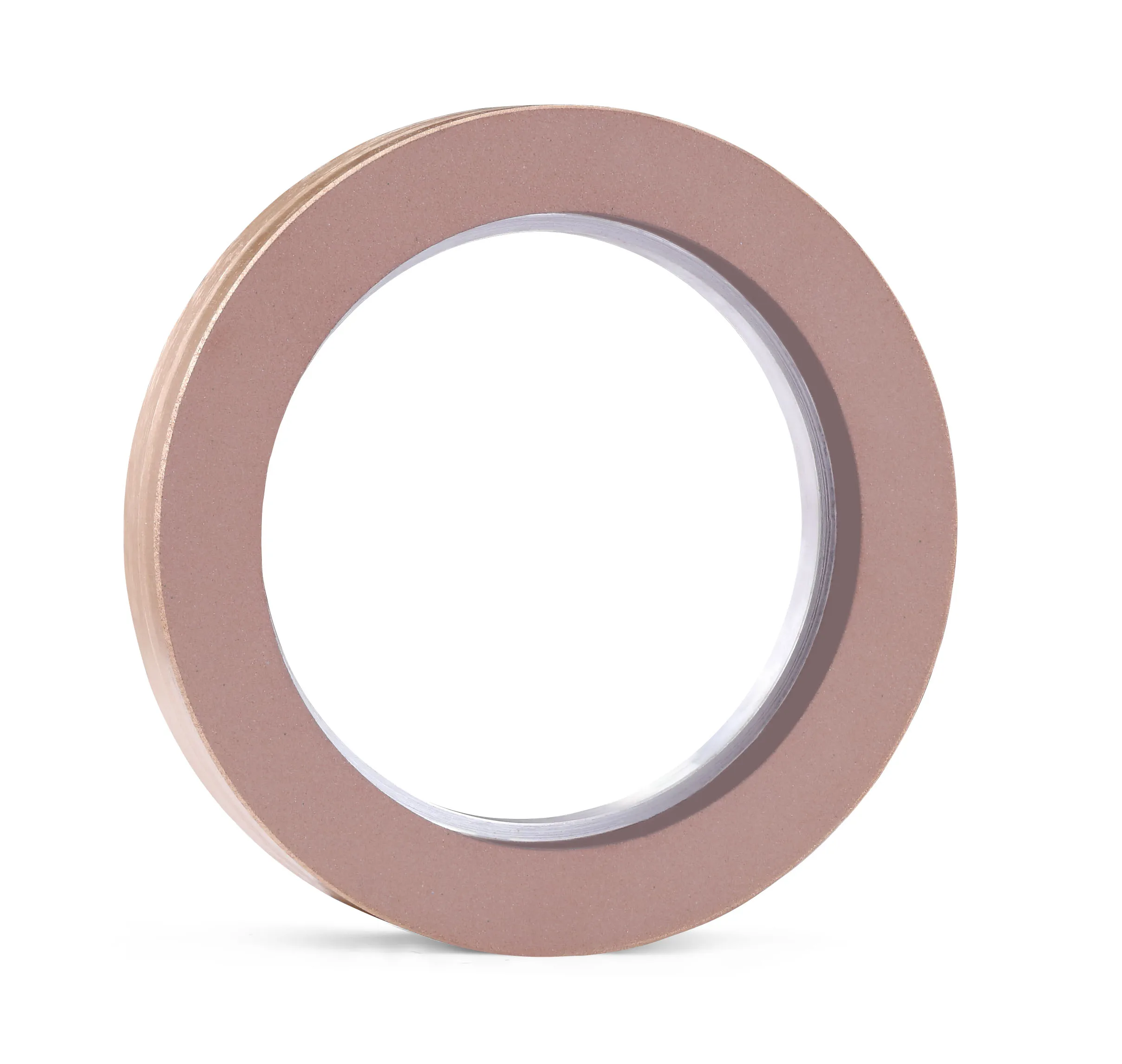

Dry Processing Resin Bond Diamond cutter Squaring Wheel For Ceramic Tile
- Category: >>>
- Supplier: South Diamond New Materials (Foshan) Co. Ltd.
Share on (62004060423):
Product Overview
Description
WET SQUARING TOOLS
Product Details

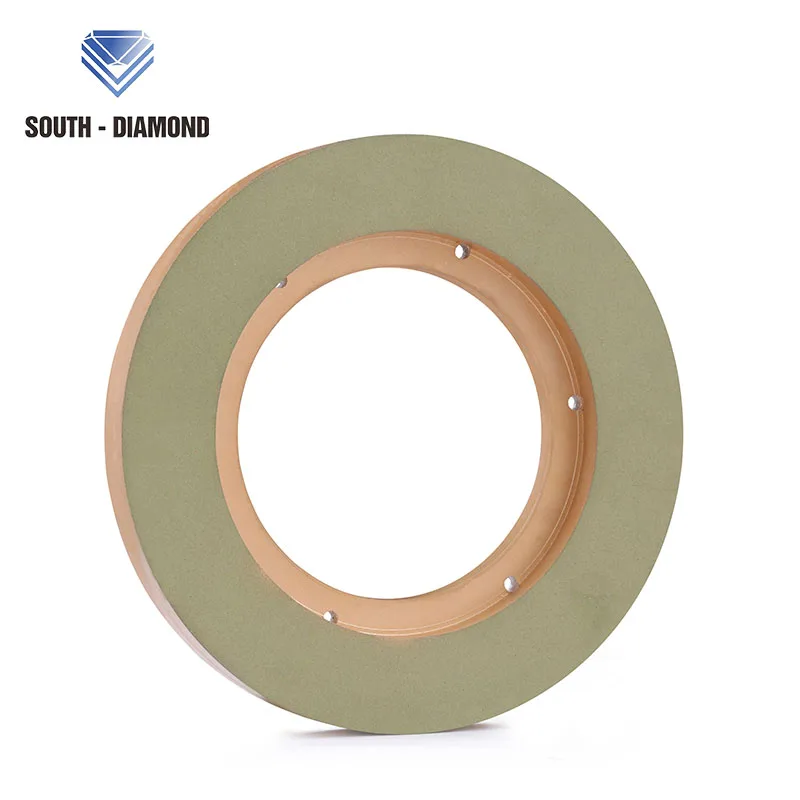

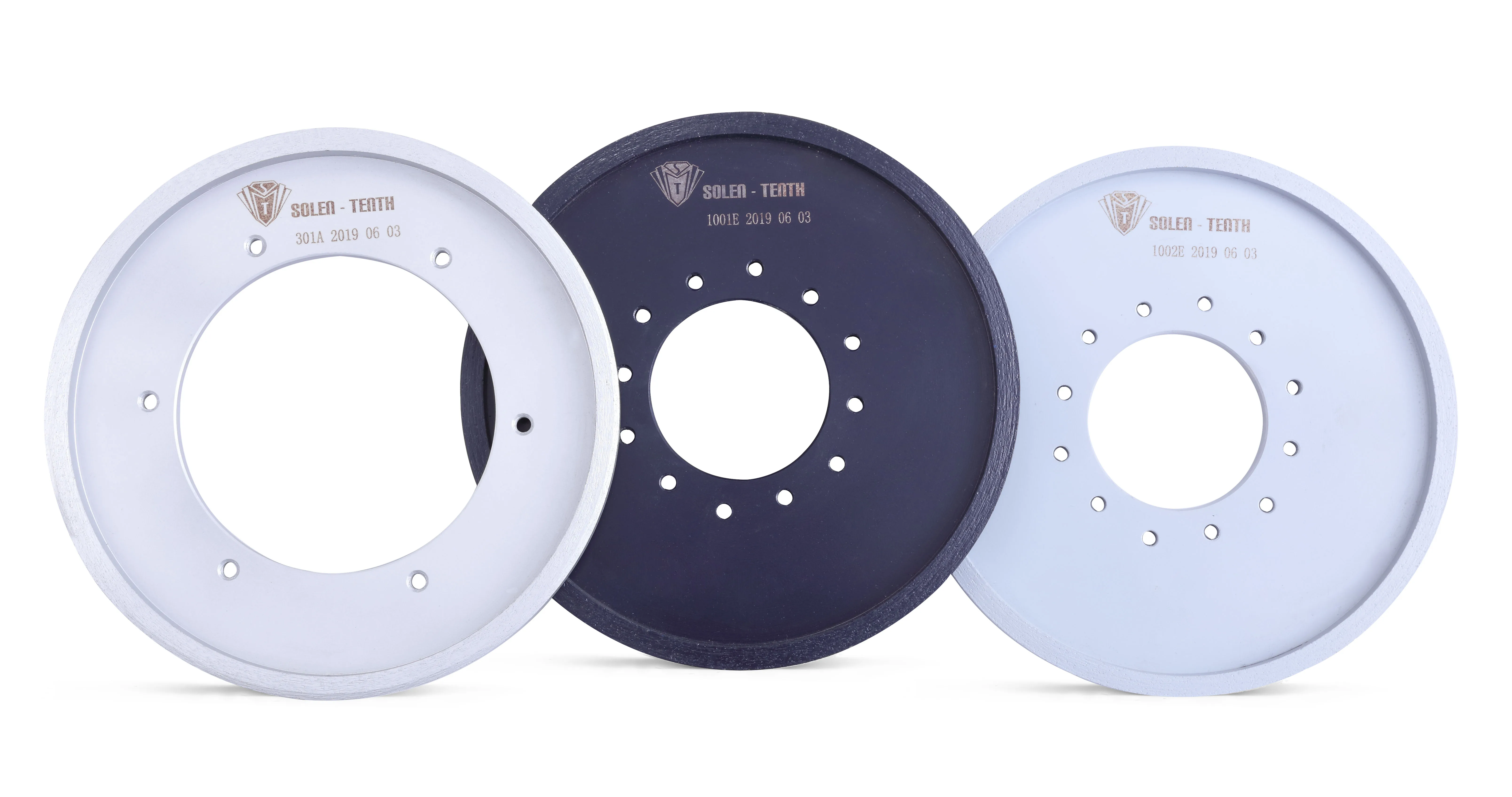

Diamond Squaring Wheel
◆ Diamond Squaring Wheels are used to make modifying the uprightness of ceramic tiles four edges in order to achieve scheduled size. It is a necessary squaring tool for big size glaze ceramic tiles, porcelain tiles and polished porcelain tiles.The advantages of our diamond squaring wheels can be summarized as following:
1.Good sharpness, long working lifetime and low working noise.
2.Good uprightness and precise size of processed tiles edges without breaking and chipping.
3. Strict production process control and stable quality.
4.Individual formulation and grit match are available for different ceramic tiles quality.

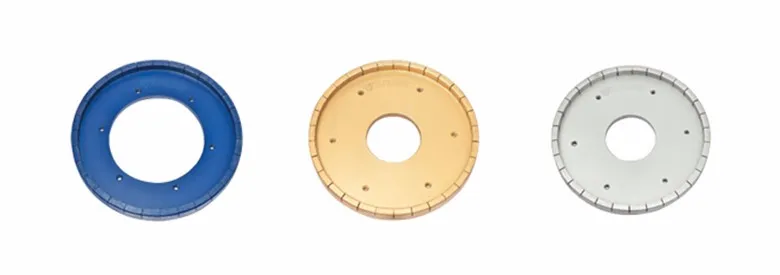

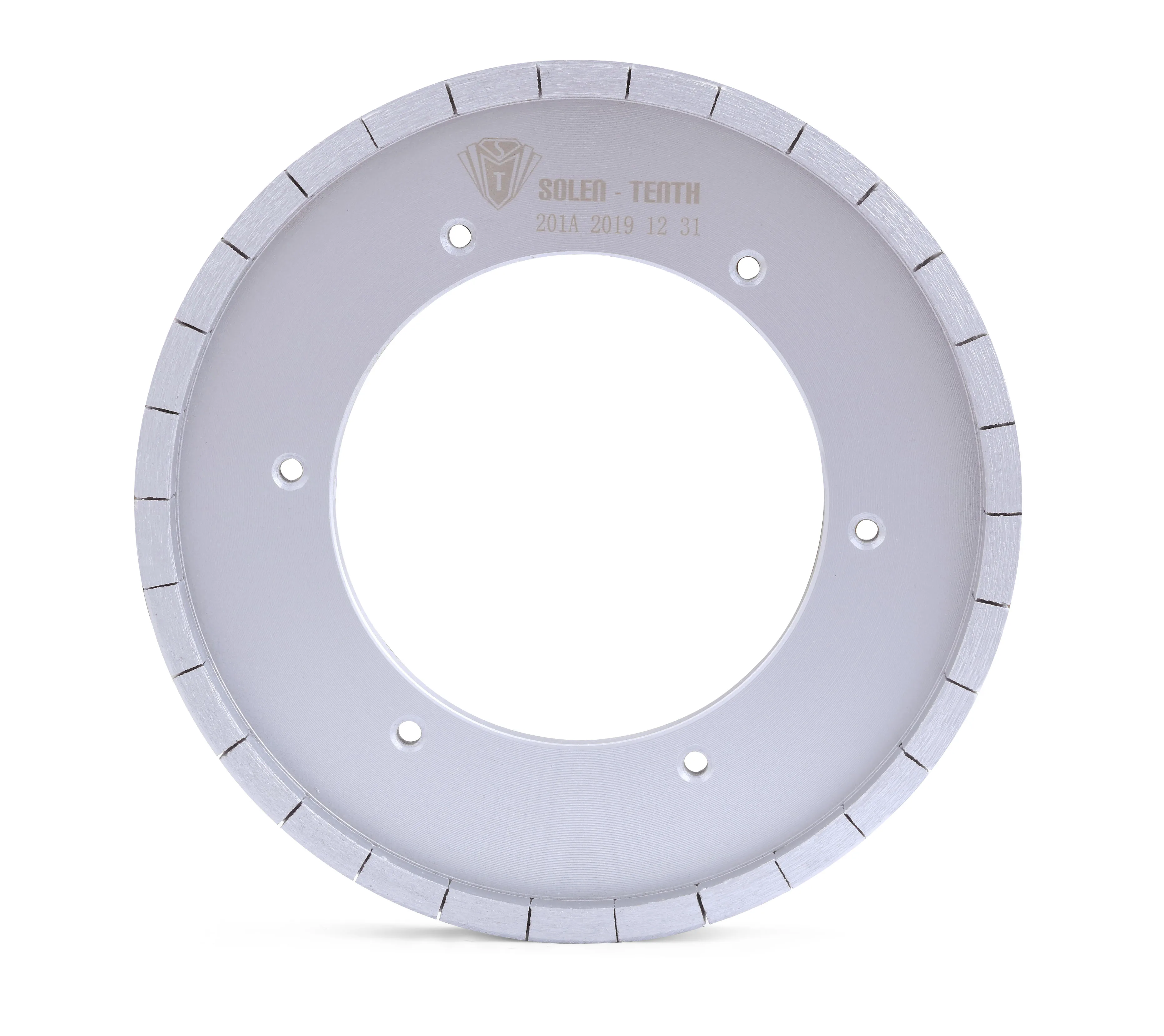

Single Ring Diamond Squaring Wheel
◆ SQUARING WHEELS are used for correcting the verticality of four edges of ceramic & glazed tiles to obtain the scheduled size. We can adjust the making formula and segment size to reach the best working efficiency upon customer request.
◆ Advantage:Sharpness,Long life, Lower noise, smooth surface.

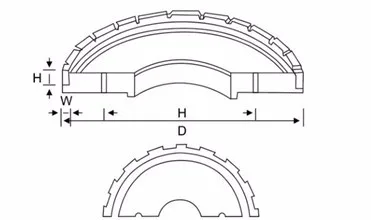

Single Ring Squaring Wheel | ||||||||
External Diameter | Inner Diameter | Mounting Hole QTY | Distance Between Holes | Segment Size (WXH) | ||||
150 | 30/50/80/140 | 4/6/12 | 105/110/165/180 | 8/9/10*8/10/12/14 | ||||
200 | 30/50/80/140 | 4/6/12 | 105/110/165/180 | 8/9/10*8/10/12/14 | ||||
250 | 30/50/80/140 | 4/6/12 | 105/110/165/180 | 8/9/10*8/10/12/14 | ||||
300 | 30/50/80/140 | 4/6/12 | 105/110/165/180 | 8/9/10*8/10/12/14 | ||||
Other specifications are available on requestion. | ||||||||
Related Products
Diamond Segment
Glaze Polishing Abrasive
Diamond Abrasive Fickert
Contact Us

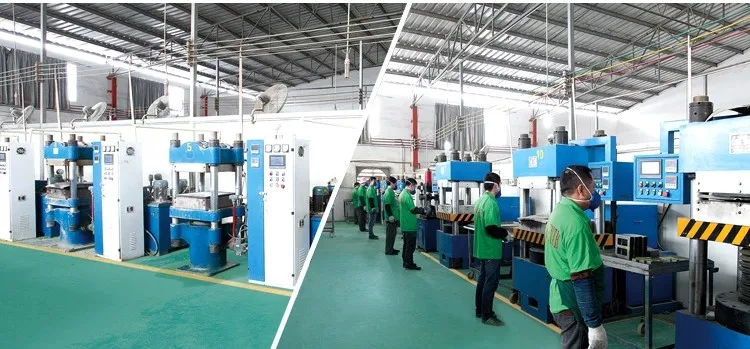

Quality Control
South Diamond company has many advanced Production equipment and strict quality control system which guarantee the products quality, production efficiency and capacity. Also, advanced production equipment fully guarantee the accuracy of the inspection data, which ensure the quality stability of products. More importantly, only when the products passed the quality inspection, can they leave the factory. Thus to make sure the requirements of users can be met.
