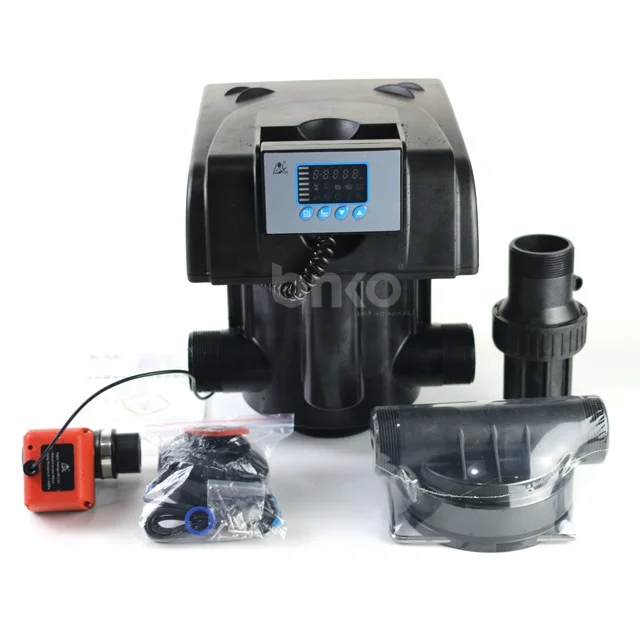

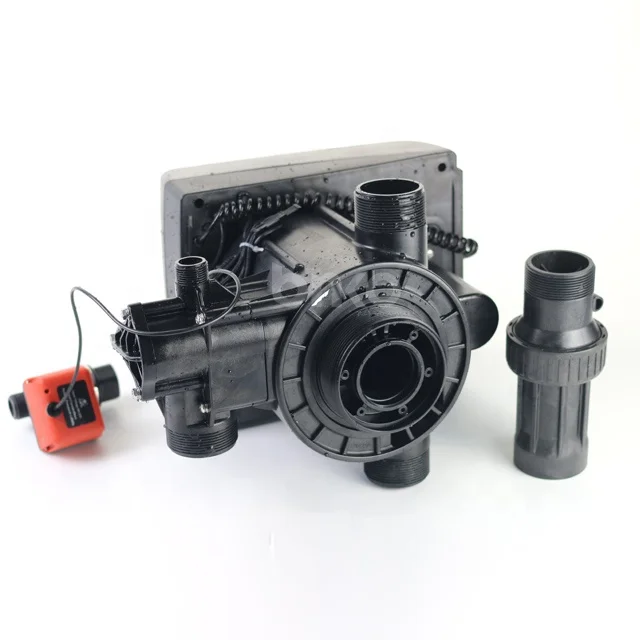

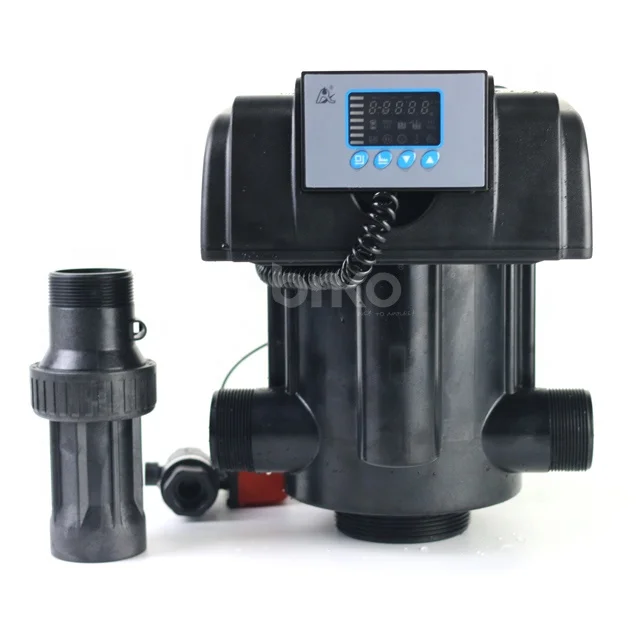

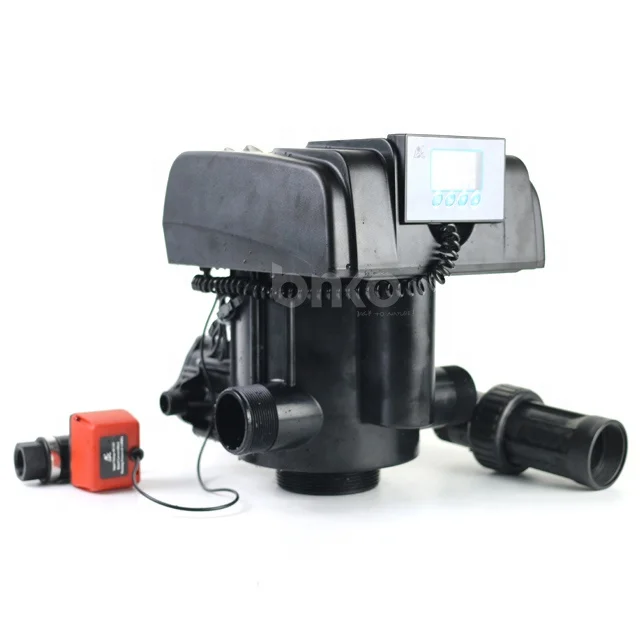

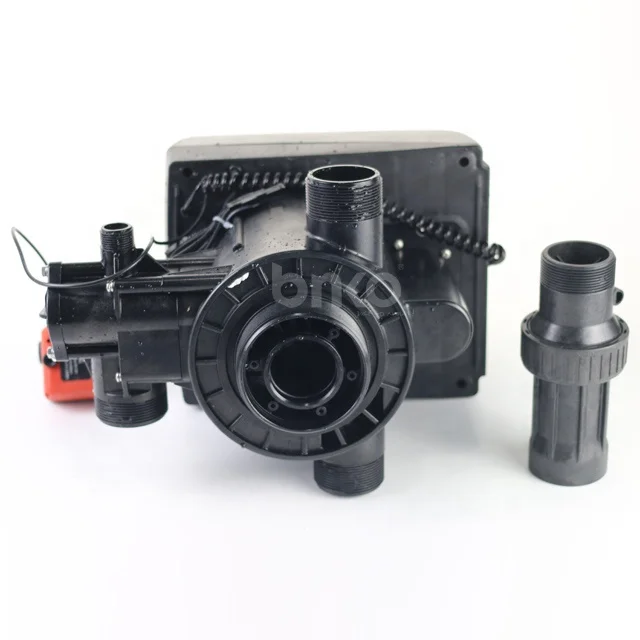

F99A3 Automatic Softener Valve 15 m3/h for water treatment

Product Characteristics

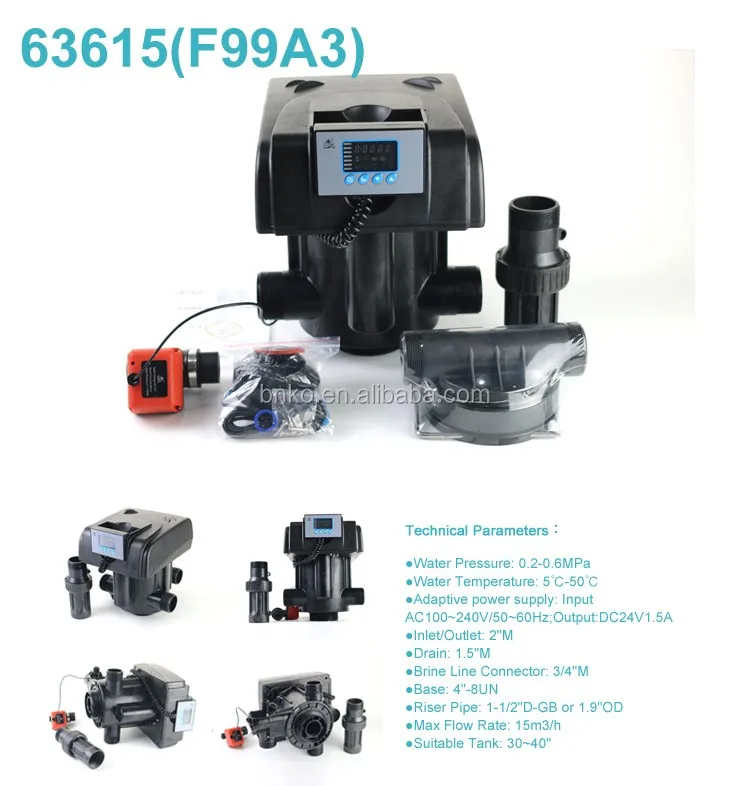

Brief introduction and Technical Specification
Water Pressure: 0.2-0.6MPa
Water Temperature: 5℃-50℃
Adaptive power supply: Input AC100~240V/50~60Hz;Output:DC24V1.5A
Inlet/Outlet: 2"M
Drain: 1.5"M
Brine Line Connector: 3/4"M
Base: 4"-8UN
Riser Pipe: 1-1/2"D-GB or 1.9"OD
Max Flow Rate: 15m3/h
Suitable Tank: 30~40"

■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■The main valve uses the structure of four tee pistons. The distribution valve is combined with main valve.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■Buttons are locked when no operation within 1 minute
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need

Range of Application:
Filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
