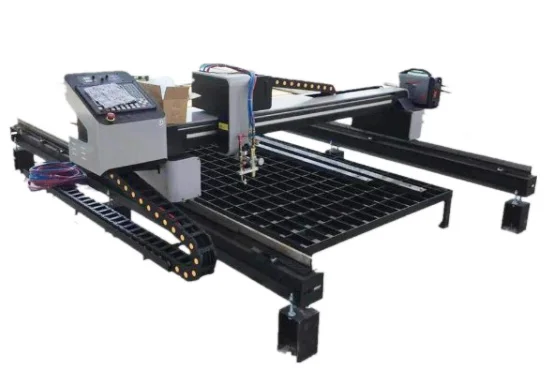

Cheap chinese new product metal laser cutting machine lazer cut industrial machinery equipment
- Category: >>>
- Supplier: Shanghai Zhaozhan Automation Equipment Co. Ltd.
Share on (62004108787):
Product Overview
Description
Product Introduction

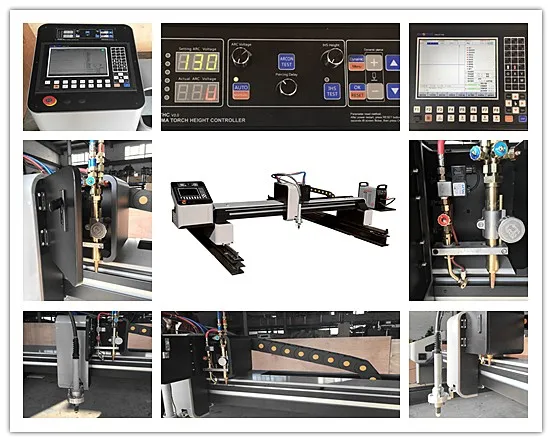

New Product Mini Gantry Plasma Flame CNC Cutting Machine/Machinery for Iron Stainless Steel Metal Sheet
*launched by SHANGHAI ZHAOZHAN Automation Company.
2023 New Fashion
Well-received appearance,simple operation,and high performance

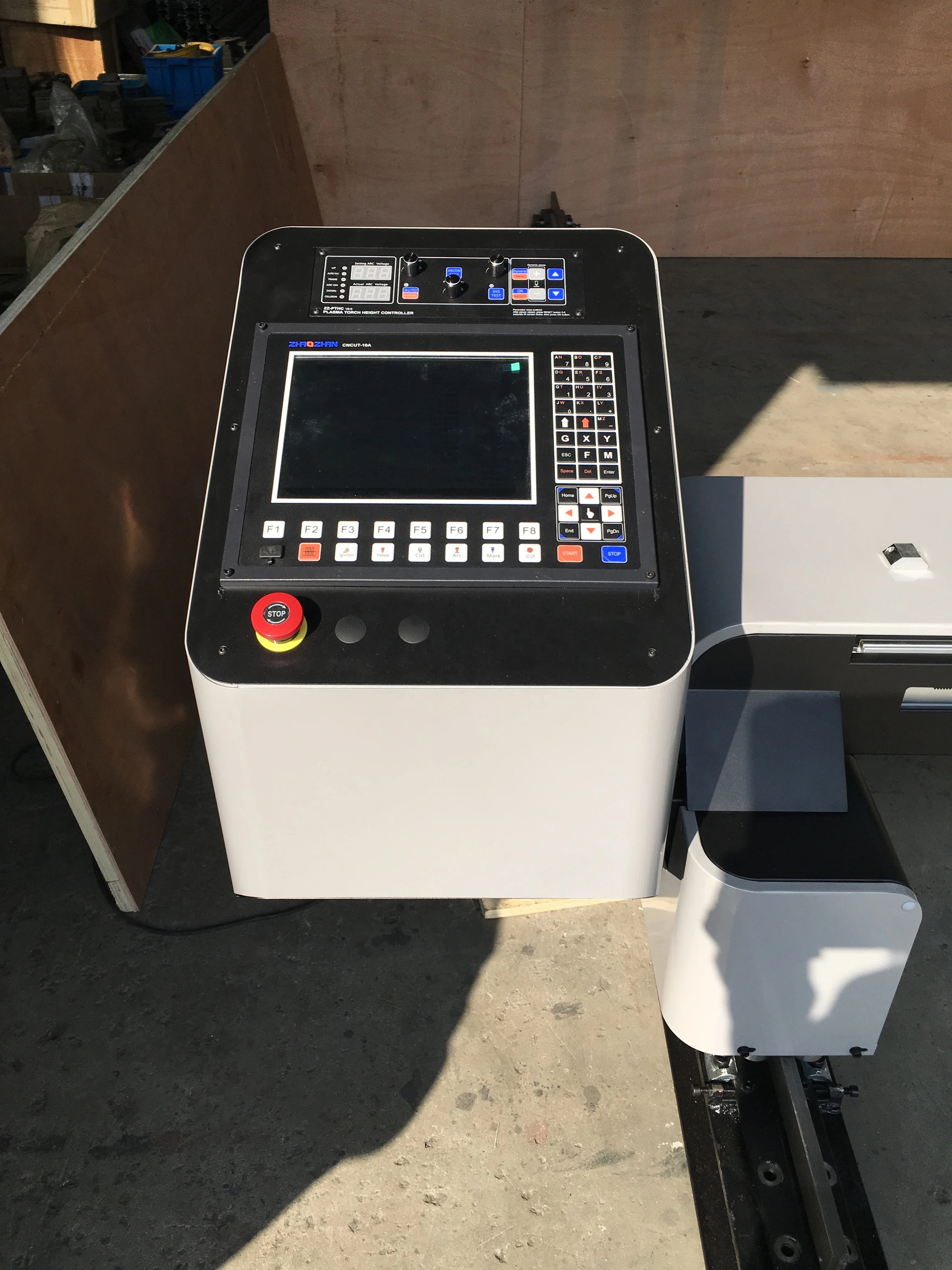

10.4 inch screen controller,easy for work

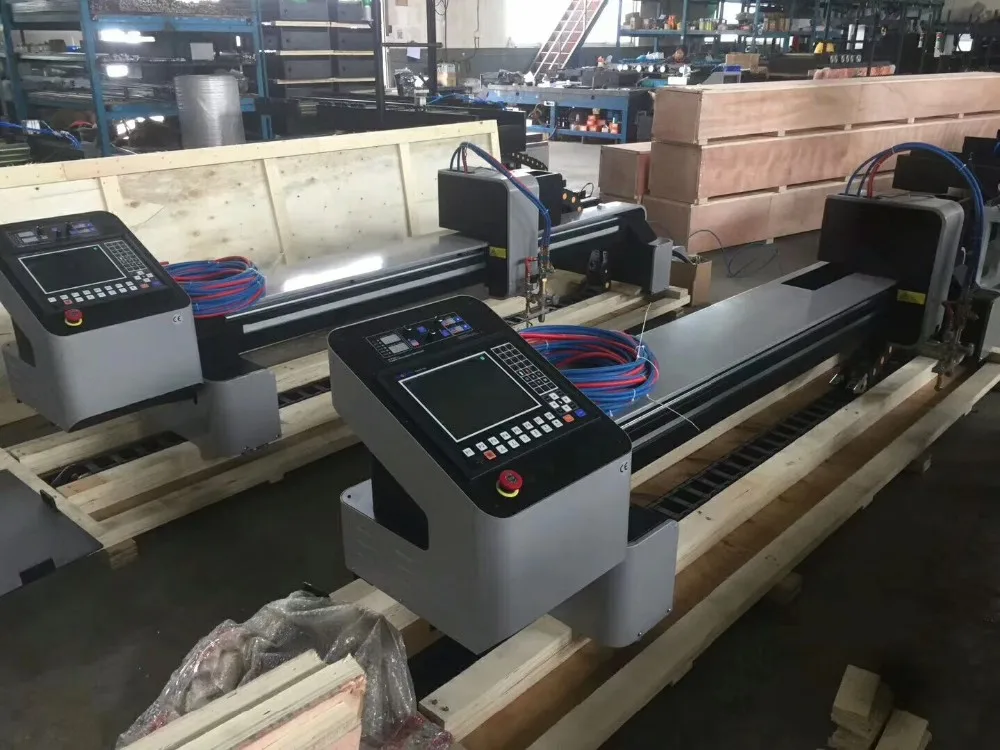

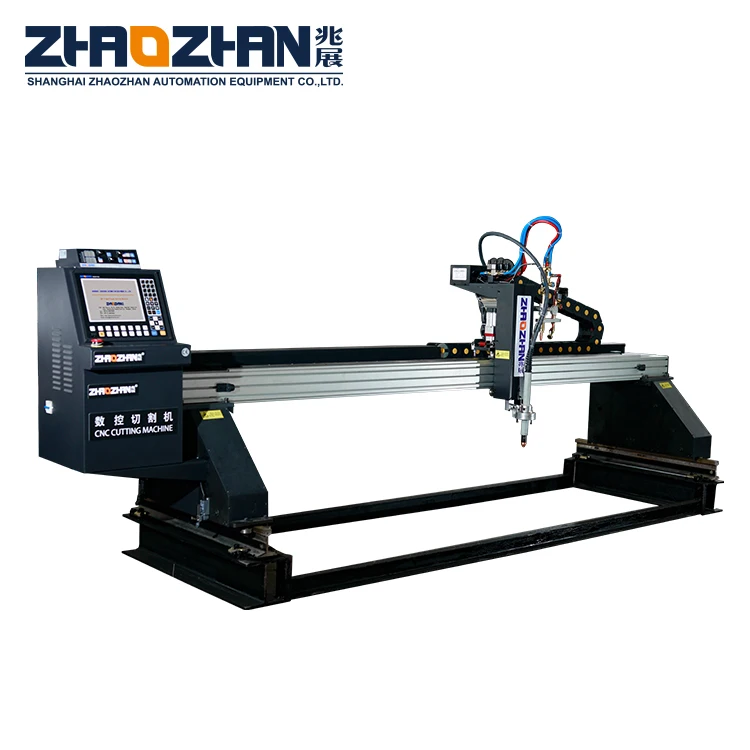

New Product Mini Gantry Plasma Flame CNC Cutting Machine
Machinery for Iron Stainless Steel Metal Sheet
1.Each leg of machine using two pieces of 14mm Q345B steel processed which keep the machine good supporting and stability when machine fast move forward and backward in high precision.
2.The beam made by aluminum alloy structure,which for keeping high precision and easy for machine function update or modification in the future.
3.Rear part of the beam is used 45# steel folded to strengthen the machine's structure. That makes machine with two beam structure, and both aluminum alloy and steel's are made full use of to provide machine extreme stability, and flexibility performance.
2.The beam made by aluminum alloy structure,which for keeping high precision and easy for machine function update or modification in the future.
3.Rear part of the beam is used 45# steel folded to strengthen the machine's structure. That makes machine with two beam structure, and both aluminum alloy and steel's are made full use of to provide machine extreme stability, and flexibility performance.
4.Machine standard with CNCUT-10A 10 inch color controller, and ZZ-PTHC new plasma THC. With 15kg/m fine grinding guide, and dual used plasma and flame function. There are several sizes of this machine can be choose.

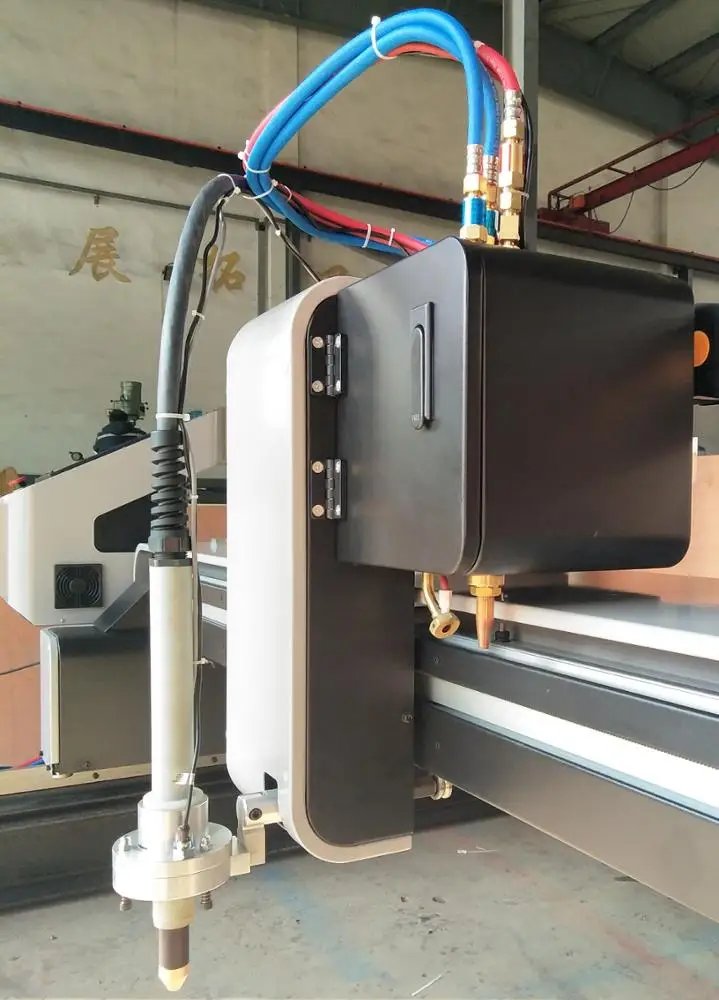

Flame device is replaceable
Hand Force to the Right
The device can be used
Product Description

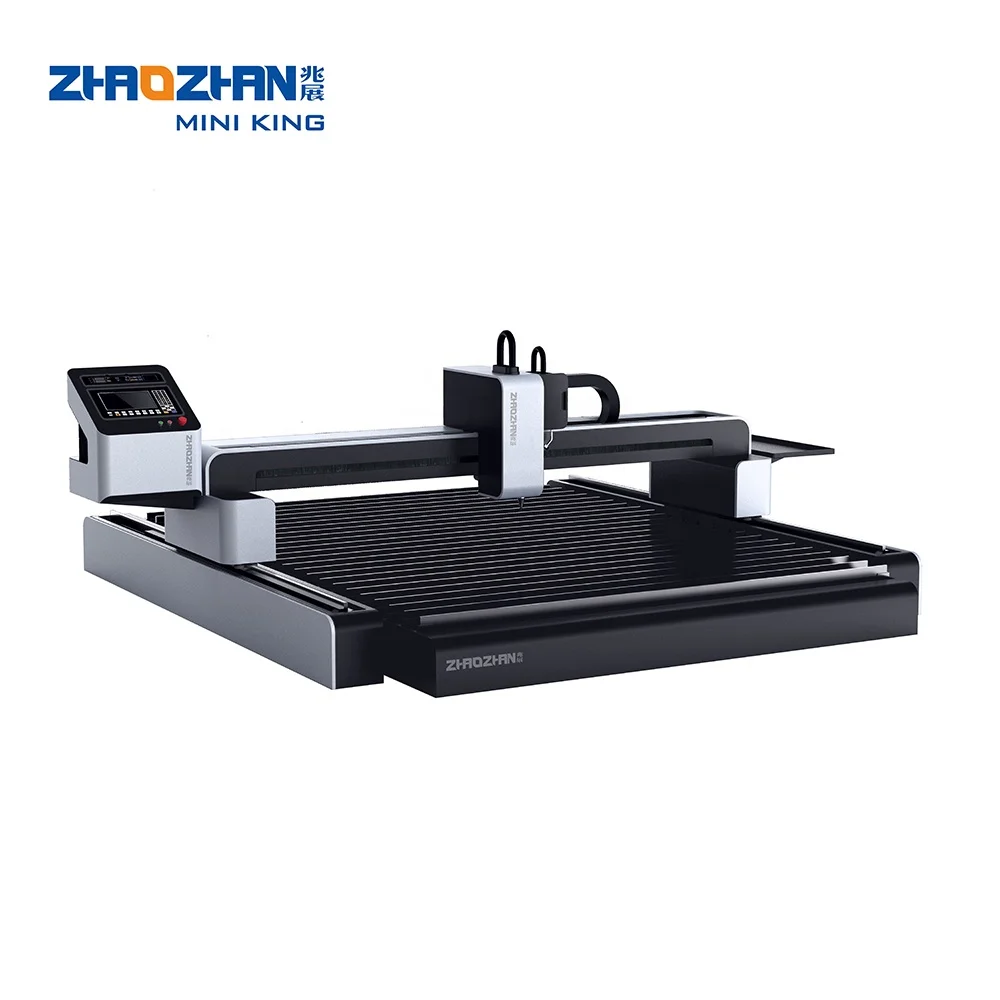

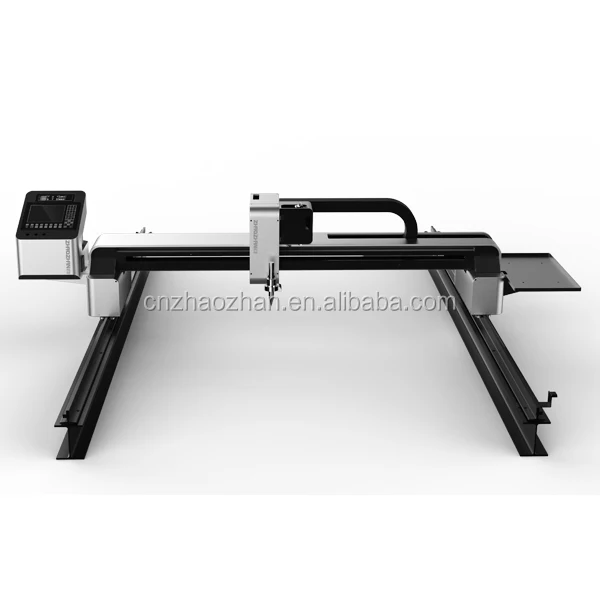

Name | MINI KING GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE | |||
Model | KING-2040G-ST | KING-2540G-ST | ||
Motor Style | Dual Drive Of 86 Series Step Motors + Reduce Gear Boxes | |||
Effective Cutting Range for Each Tool X*Y | 1500*3000mm | 2000*3000mm | ||
Customizing | Track length(effective cutting length Y axis) can be customized for extending cutting length | |||
Tracks Between Distance | 2000mm | 2500mm | ||
Track length | 4000mm | |||
Tool Quantity | One Tool | |||
Torch Height Control Style | Flame THC : Optional / Plasma THC: Optional | |||
One Tool only can support one Flame THC or one Plasma THC | ||||
Max.Cutting Torch Quantity | 2 sets, as plasma and flame torches replaceable | |||
Optional Torch Style (Plasma:P Flame:F) | P / F / P+F | |||
Moving Speed | 0-6000mm/min | |||
Input Power | Single Phase AC 220V Approximately 1000W | |||
Cutting Modes | Plasma Cutting (Working with plasma generator) / Flame Cutting / Plasma Cutting + Flame Cutting | |||
Transmission Style | Rack And Gear | |||
Torch Lifting Distance (Z) | ≤90mm | |||
Work Precision | ±0.2mm/meter | |||
Flame (Gas) cutting thickness | Piercing Capacity: 5-60mm Edge Start: 5-120mm | |||
Plasma Cutting Thickness | Depends on the cutting capacity of the Plasma Generator | |||
Flame Auto Igniter | Include in Flame Device | |||
Gas Pressure | Acetylene Gas or Propane Gas Max 0.1Mpa | |||
Oxygen Pressure | Oxygen Gas Max 0.8Mpa | |||
Cutting Table And Base | We will supply drawings of cutting table. Base (H-beam) and cutting table are not supplied. | |||
Cutting Samples
Packing & Delivery
Certifications
Our Company
Our Service
Trust us!
Pre-sale service : Call us no matter cooperate or not. you may get unexpected surprise. We will devote ourselves into knowing clients specific needs and requirements to suggest them the most suitable machine with best price,
Selling service : Patiently and thoughtfully answer all of ur concers, and provide you most valuable suggestion to gurantee our clients to get the most benifit from our cooperation
After sale service 24 hours technician online for your questions . Latest software is always available.Traning videos and CD in english will help clients better use machines easily. 12 months warranty for free for all parts broken under non human factors. After warranty we can renewal our contract, so that u can enjoy our same warranty service for the whole life of machine.

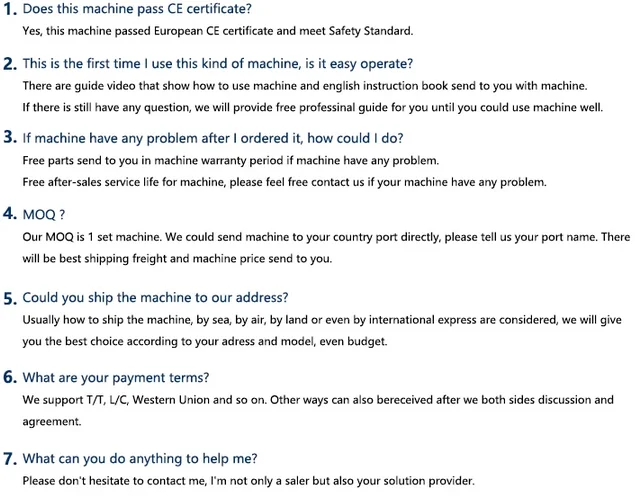

FAQ
More Products Made For You
---Just Click You Want
Portable ZZ-H
Effective Cutting Area:1500*3000mm
Cutting Thickness:Flame(5-120mm)
Plasma(Depends on source)

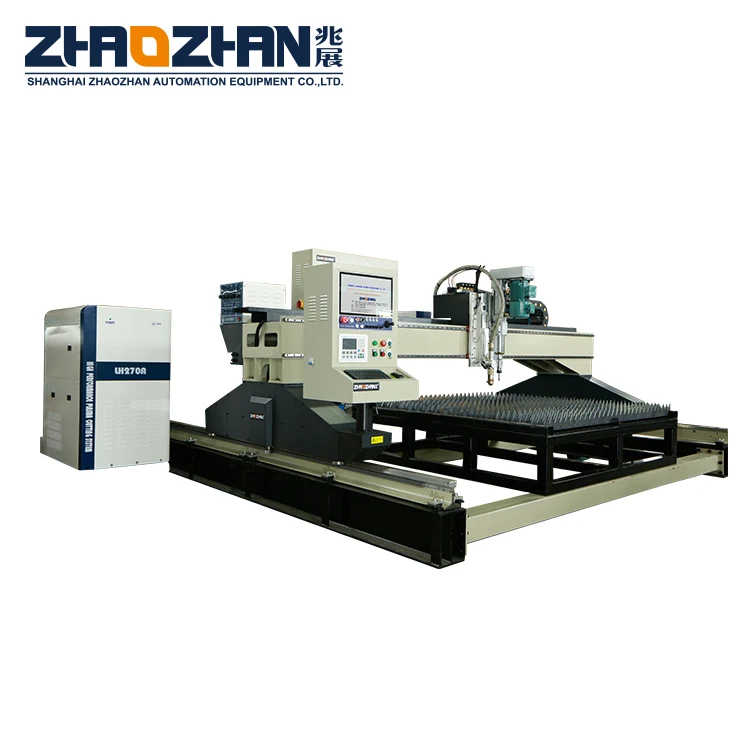

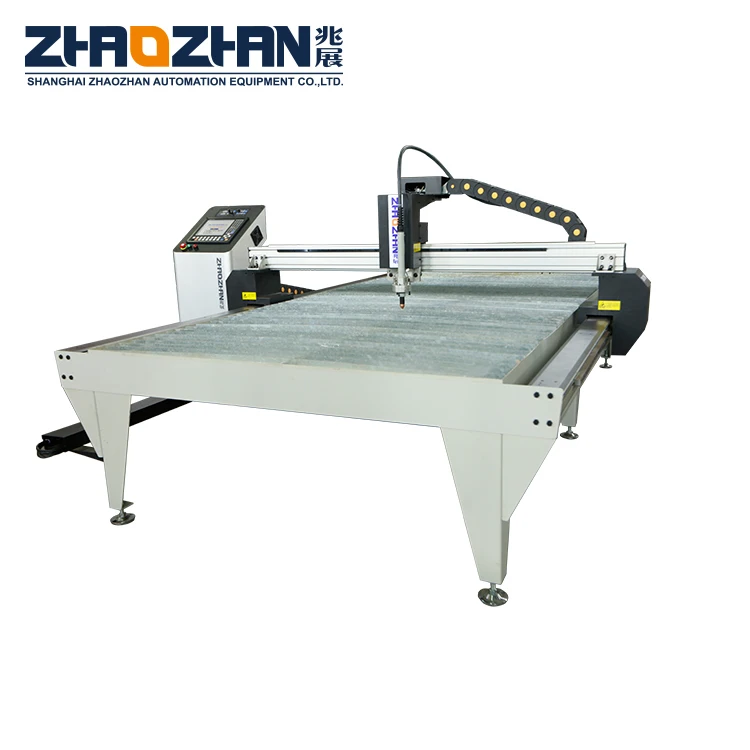

Gantry ZZ-T
Effective Cutting Area:1500*3000mm Cutting Thickness:Flame(5-120mm) Plasma(Depends on source)
Pipe CNCUT-P
Motor style:Servo motor with reducer
Size of e pipe:φ50-φ520mm
Cutting Mode:Plasma cutting
