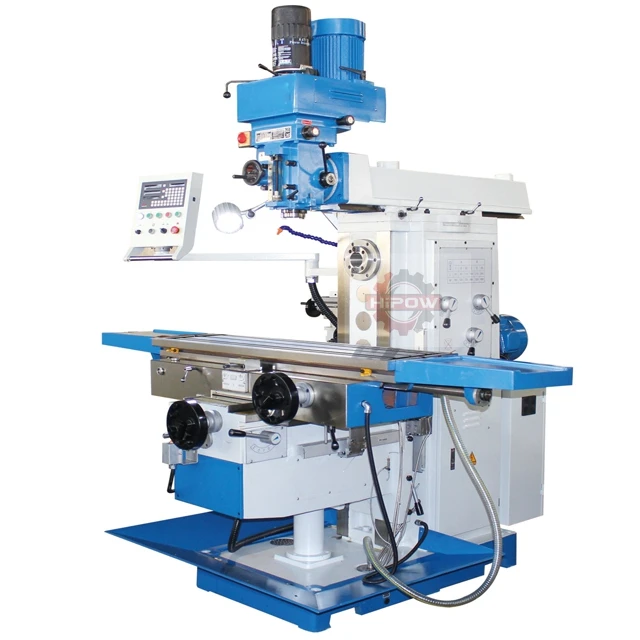

X6332 Universal Turret Milling Machine with DRO
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (62004242508):
Product Overview
Description
Product Description
 |
| X6332 Universal Turret Milling Machine with DRO |
 |
Main Feature 1. 5HP ISO40 Precision milling head 3. Torque of X/Y/Z axis AC servo motor is 10 N.m
5. Combined Control Panel 6. Pnuematic draw bar can be installed |

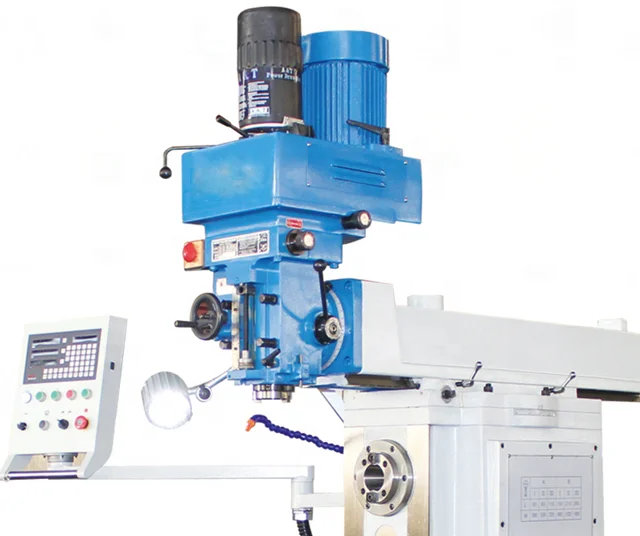

1. NT40 5HP Speed Head with Pneumatic Draw Bar
1)5HP NT40 High Speed Head
2)Taiwan original high quality milling head
3)Turret milling head can install pnuematic draw bar to change cutter automatically
4)pnuematic draw bar is opitonal
2. X,Y,Z Axis Feed By Servo Motor
1) Torque of X/Y/Z axis AC servo motor is 10 N.m

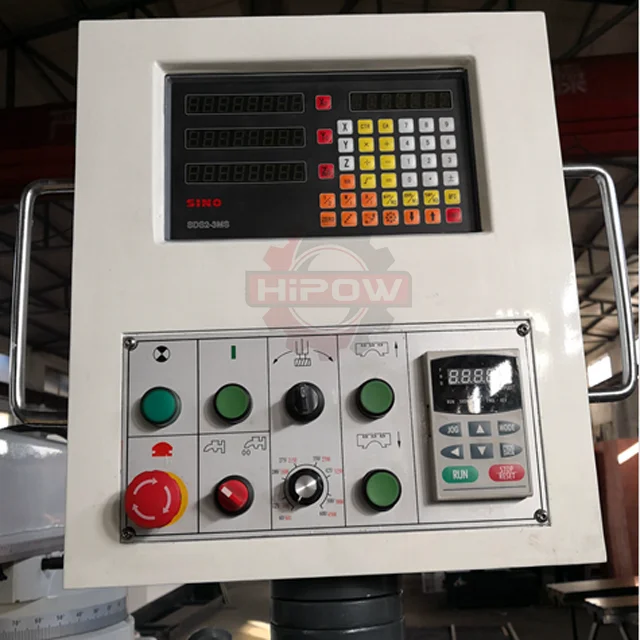

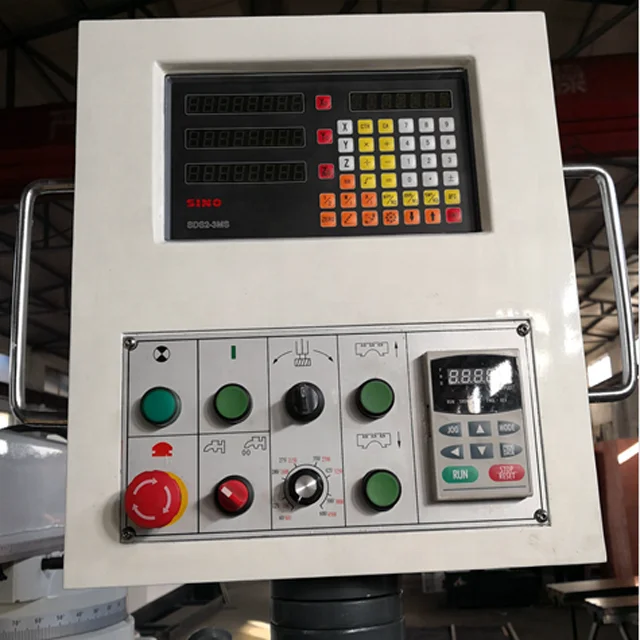

3. Combined Control Panel
1) DRO and switchs are intergrated in one panel makes the machine easy to operate .
2) X,Y,Z axis DRO is opitonal

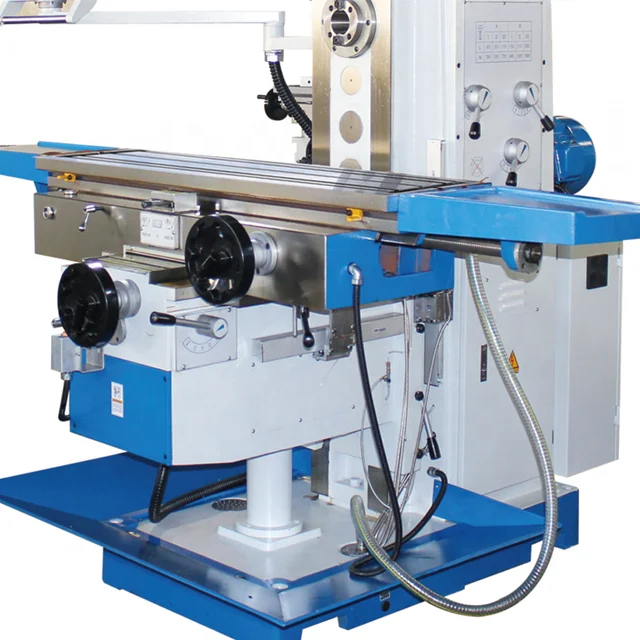

4. Big Worktable,Big Spindle Taper, Long Travel
1)The machine`s table is 1250x320mm Worktable
2)X/Y/Z Axis Travel:1000/320/400mm

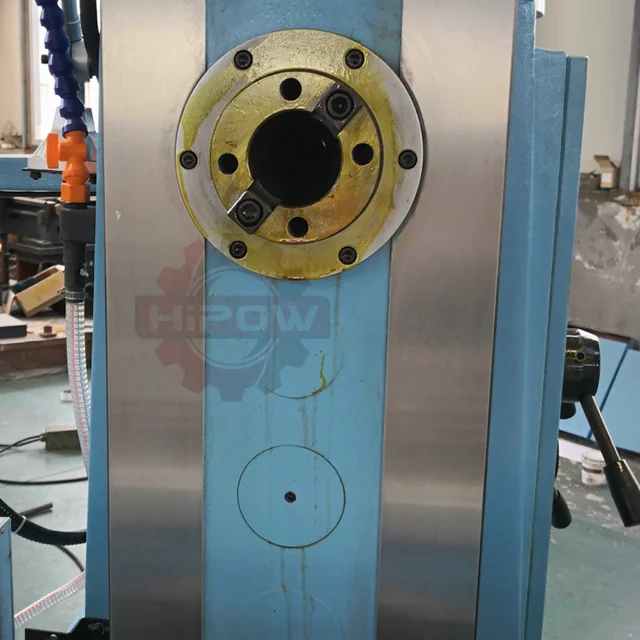

3)Horizontal Spindle ,NT50 5.5KW.
 |
Item | X6332 | |||
Table size | mm | 1325×320 | ||
Table travel (X/Y/Z) | mm | 750/320/460 | ||
Table feed. (X/Y/Z) | mm/min | 30-750/20-500/15-375 | ||
Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | ||
Spindle taper |
| 7:24 IS050 (H) 7:24 IS040 (V) | ||
Stroke of spindle quill | mm | 127 (V) | ||
Distance between spindle nose and table surface | mm | 200-660 | ||
Distance between horizontal spindle center line and table surface | mm | 20-480 | ||
Distance between horizontal spindle center line and arm surface | mm | 245 | ||
Spindle speed range | r.p.m | 16steps 60-1800 (H) 8steps 65~4660 (V) | ||
T-slots(NO./width/pitch) | mm | 3/18/70 | ||
Arm travel | mm | 550 | ||
Main motor power | Kw | 5.5 (H) 3.7 (V) | ||
Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
Overall size | mm | 1800×2100×2500 | ||
Net weight | kg | 2700 | ||
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
