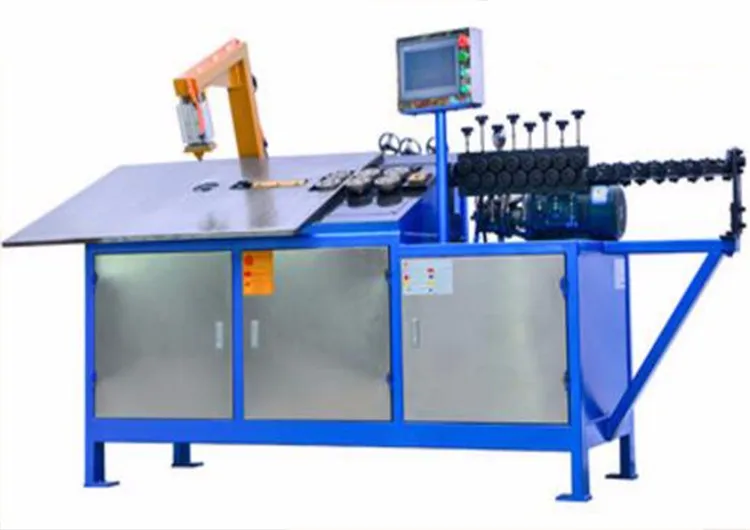

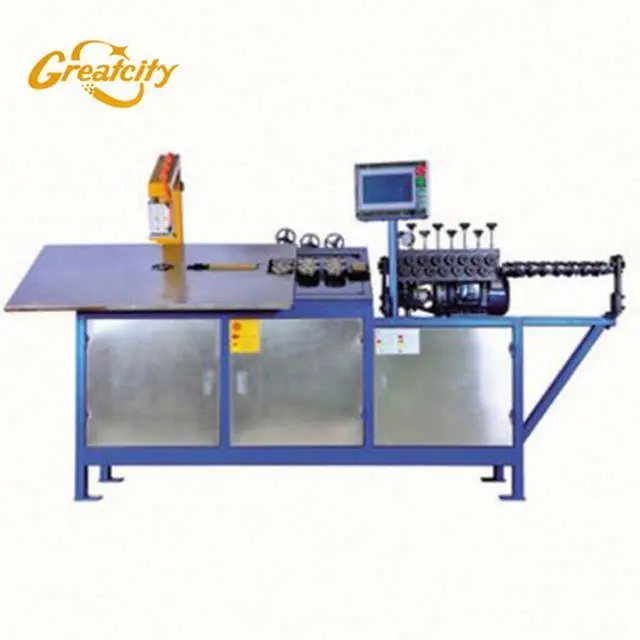

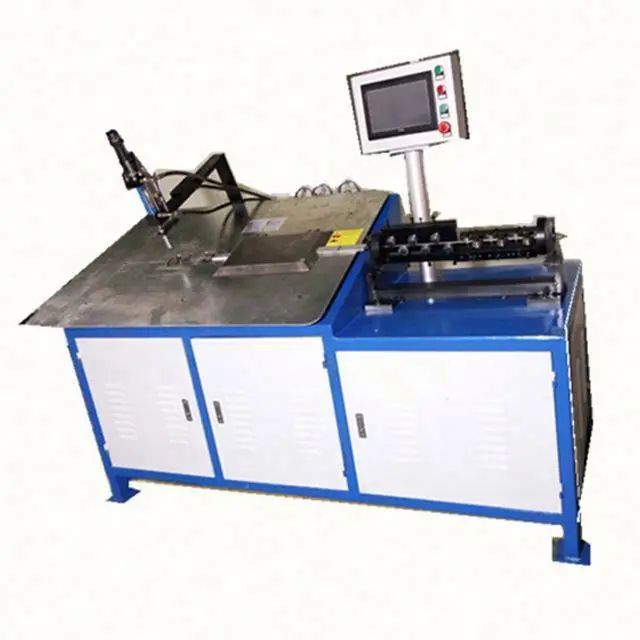

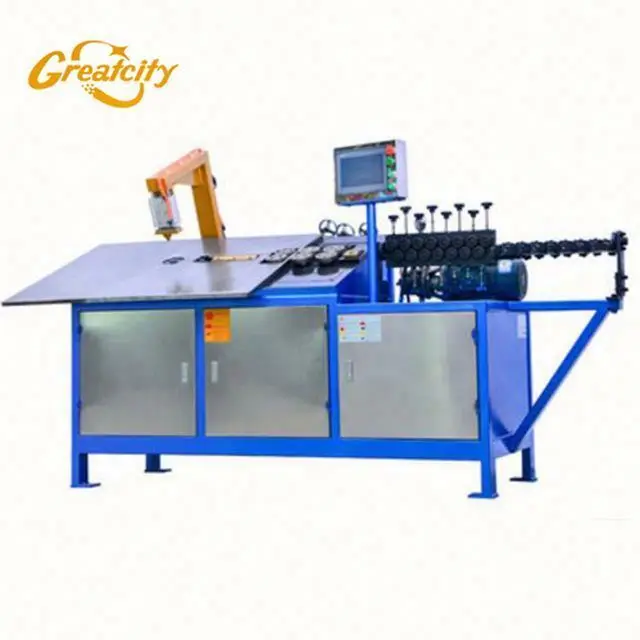

Reliable quality hydraulic CNC s hook bending machine for rebar
- Category: >>>
- Supplier: Xingtai Judu Technology Co. Ltd.
Share on (62004252362):
Product Overview
Description
Product Description
Product Application
The application of the fully automatic 2D servo wire bending machine is currently in the following five areas:
1.Auto parts: car seat skeleton, door lock lever, serpentine spring, including single snake and double snake, car cat head circlip, car seat belt circlip, car seat steel wire parts, motorcycle spare parts, bicycle Spare parts and baskets are more suitable for production with wire forming machines.
2.Daily hardware products: kitchen display racks, racks, egg beaters, cabinet pull baskets, refrigerator grids, racks inside the rack steel
Silk products, supermarket shopping baskets, carts, display pendants, etc.
3.Iron wire craft products, lighting line molding products, fishing gear accessories products, including wine racks, fruit pots inside KTV, Christmas.
A Kind of wire-formed gift is made of a flat or three-dimensional piece of wire or iron wire of various shapes.
4.The processing of various cages: pet cages, bird cages, dog cages, breeding cages, trap cages, etc.
5.Hangers, shoe hanging, curtain hooks, shelf hooks, display hooks and other hooks.
Greatcity | SPECIFICATIONS FOR 2D WIRE BENDING MACHINE | ||||||
Model | WB2-6 | WB4-10 | |
Electric voltage | Three-phase four-wire + grounding wire | Three-phase four-wire + grounding wire | |
Straightening wheel number | Group 22 | Group 22 | |

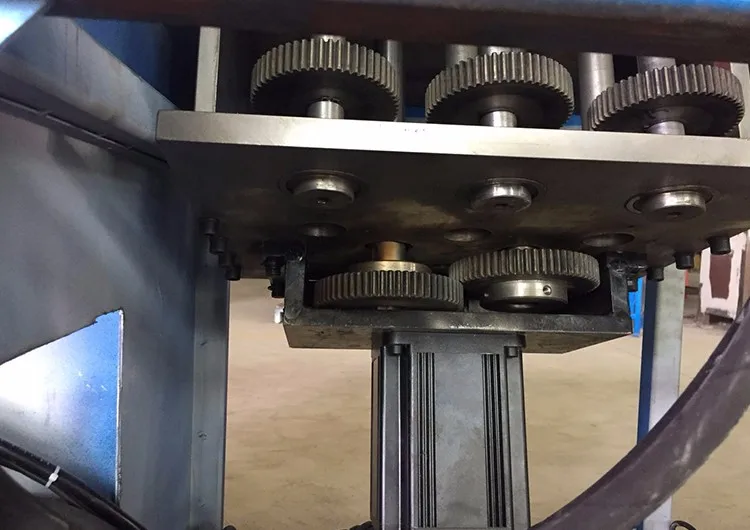

Feeding wheel number | Group 3 | Group 3 | |
Servo motor power | 2.2kw | 7.5kw | |
Oil cylinder cutter | φ 6 wire | φ 11wire | |
Oil pressure range | 6mpa | 6mpa | |
Hydraulic oil type | 46#68# | 46#68# | |
Applicable wire | Round line, flat line, square line | Round line, flat line, square line | |
Applicable range of wire | 2-6mm wire standard | 2-10mm wire standard | |
Appearance dimension | 2600mm*850mm*1500mm | 3700mm*850mm*1580mm | |
Perimeter range | unlimited | unlimited | |
Store | 1000 sets of data, 200 action groups | 1000 sets of data, 200 action groups | |
Feed speed | 60m/min | 60m/min | |
Maximum bending speed | 300 rpm / angle ± 180 ° | 300 rpm / angle ± 180 ° | |
Action direction | Internal mode- move down / up? External mode-downward movement / upward shift 360 °in reverse direction | Internal mode- move down / up? External mode-downward movement / upward shift 360 °in reverse direction | |
Bending accuracy | ±0.5mm | ±0.5mm | |
Wire feeding accuracy | ±0.5mm | ±0.5mm | |
Effectiveness | 13-15/min (as in the 200*200 box) | 8-10/min (as in the 200*200 box) | |
Pressure regulating valve | 1 | 1 | |
Pressure relief valve | Yes | Yes | |
The electromagnetic valve | 6 | 6 | |
Pressure gauge | 1 | 1 | |
Oil circuit substrate | 1 | 1 | |
Cooling pump | Air cooled | Air cooled | |
Feeding maximum torque | 50 Nm | 50 Nm | |
Feeding maximum bend | 50 Nm | 50 Nm | |
Control panel | Touch screen | Touch screen | |

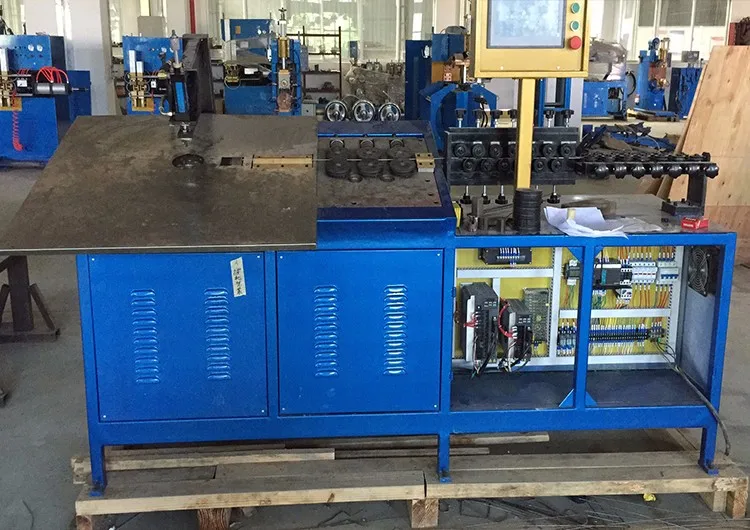

PLC | Mitsubishi Japan | Mitsubishi Japan | |
Mechanical system energy | The mechanical action of the machine is controlled by the bending speed of the program made up by the microcomputer, and all kinds of instructions are issued to form various types and different specifications of products. | ||
Motion control, automatic feeding, automatic material withdrawal, straightening and cutting, bending forming. | |||
Up to 300 action settings to combine various shapes | |||
Main Features for bending machine manufacturer
1. A CNC automatic wire forming machine. The angled parts cooperate with each other to produce different products. The commissioning time is short. For new products, only simple adjustments are needed. After commissioning, the products can be produced and the delivery speed can be improved.
2. The function of the transfer line is made by the rotation of the wire itself, which makes the production of multi-angled corners more convenient, faster and faster.3. The working platform can be moved up and down and moved left and right, and the molding space is larger, which provides more convenience for the production of 2D products.
4. Auxiliary lifting tray: It plays a supporting role to avoid the deformation of the product due to its own weight and the speciality of the product during production, and to ensure the stability of the product.

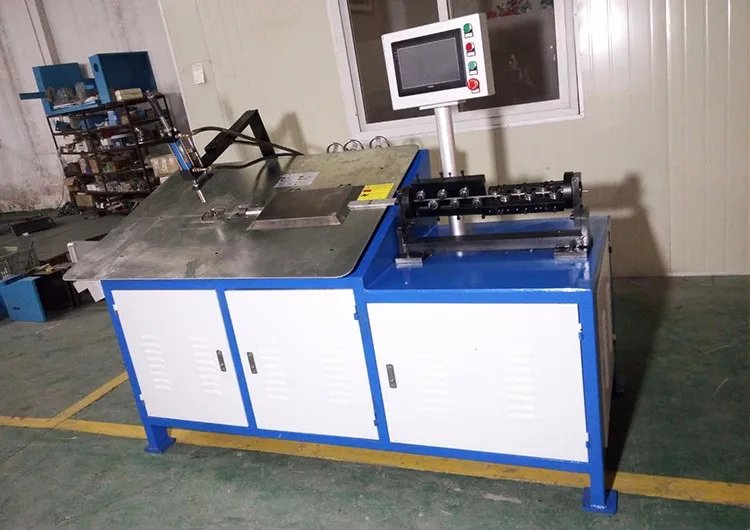

Detailed Images

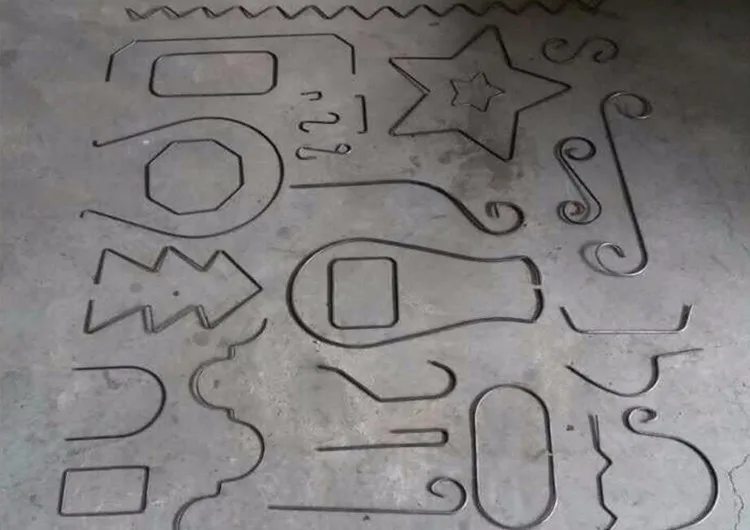

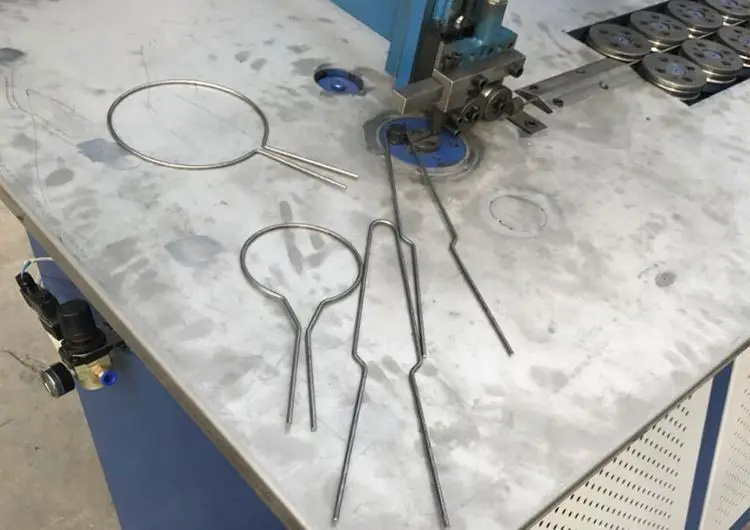

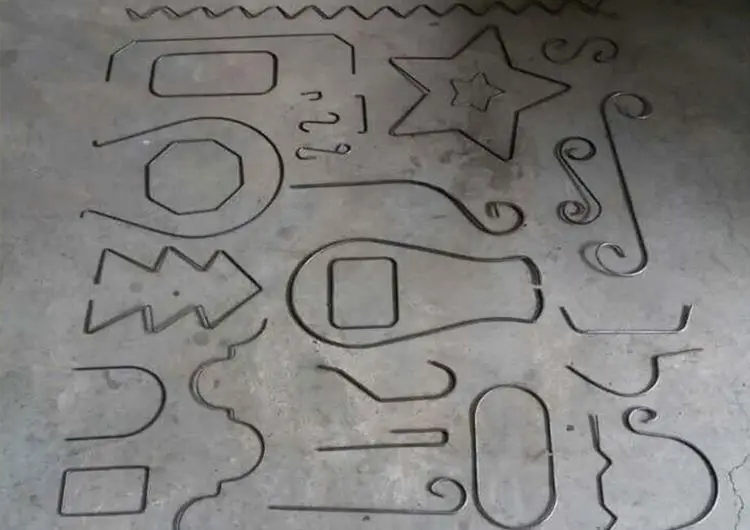

The process shapes of wire bending machine 2D
Our machine could process 500 kinds shapes
Packing & Delivery
Packaging of bending machine manufacturer | ||
Size | 265cm*115cm*170cm | |
Weight | 900KG | |
Packaging Details | The normal package is wooden case(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging of Wire feeder | ||
Size | 100cm*100cm*115cm | |
Weight | 100kg | |
Packaging Details | The normal package is wooden case(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
