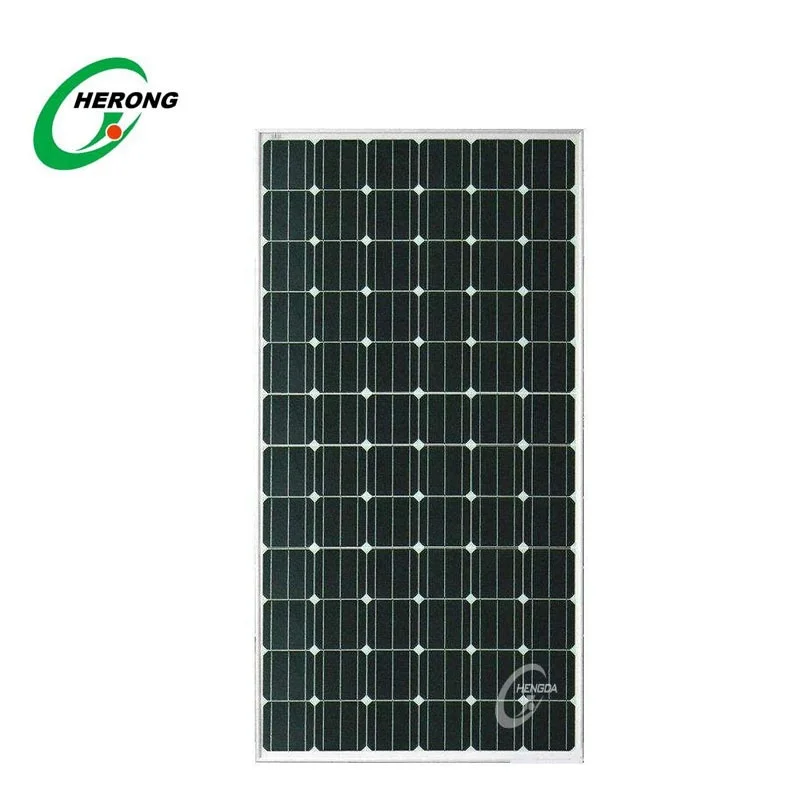

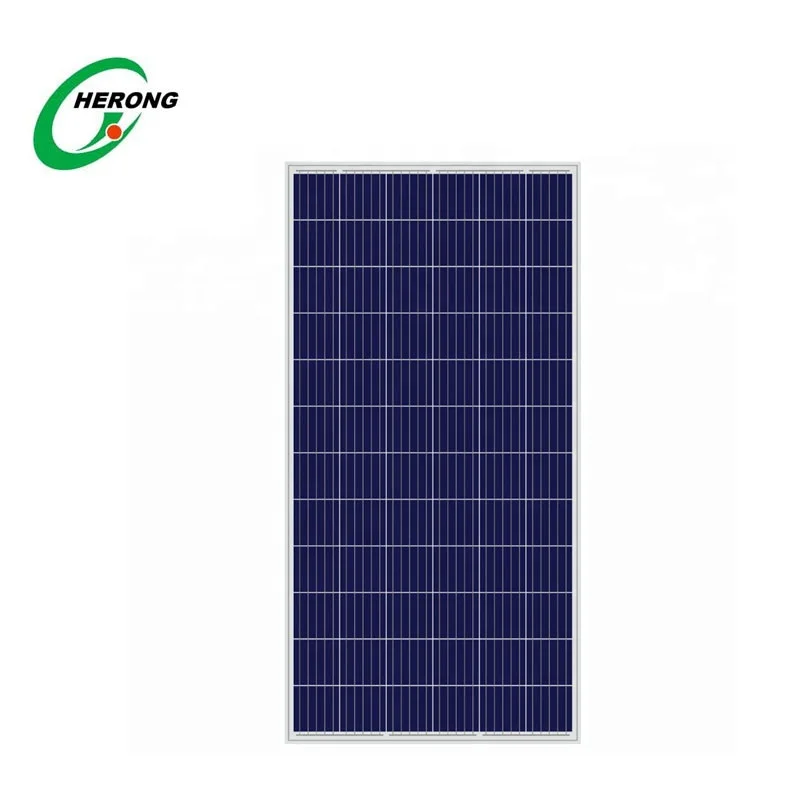

Superior quality mini inverter solar panel home power system
Superior quality mini inverter solar panel home power system
Superior quality mini inverter solar panel home power system
Superior quality mini inverter solar panel home power system
Superior quality mini inverter solar panel home power system

Superior quality mini inverter solar panel home power system

Share on (62004269133):


Price:$0.15 - $0.28

Quantity:


Product Overview

Description


Product Details
\t

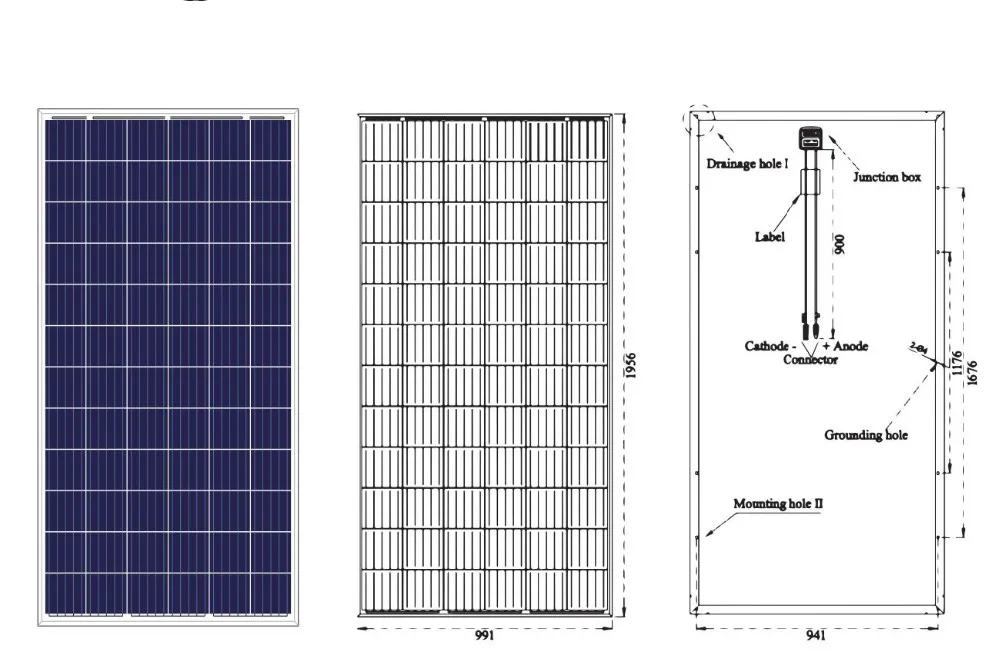

Mechanical Specification
\t
Cells Type
\t
Poly 156.75*156.75
\t
Weight
\t
22.5Kg
\t
Dimension(L*W*T)
\t
1956*991*40mm
\t
Output Cables
\t
TUV,Length900mm,4.0mm²
\t
No.of Cells
\t
72(6*12)
\t
Front Gless
\t
3.2mm High Transmission,Low lron Tempered Gless
\t
Fame
\t
Anodised Aluminium
\t
Junction Box
\t
IP67,3 Bypass Diodes
\t
Connector
\t
MC4 or MC4 Compactible
Product Introduction

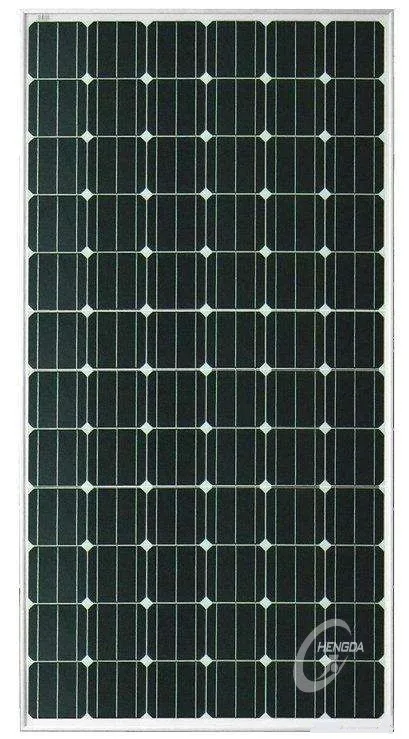

Product Details Show

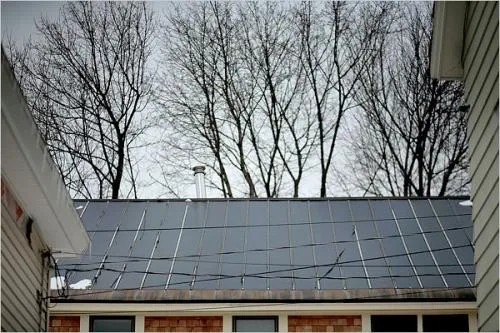

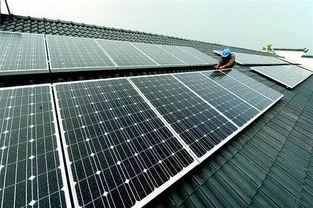

Application scenario
Product Parameters
\t
Operating Parameters
\t
Maximum system voltage
\t
DC1000V
\t
Operating Temperature(°C)
\t
-40~+85°
\t
Maximum series fuse rating
\t
15A
\t
Snow load,frontside
\t
5400Pa
\t
Wind load,backside
\t
2400Pa
\t
Nominal operating cell temperature (NOCT)
\t
45°C±2°C
\t
Application level
\t
Class A
\t
Electrical Characteristics (Standard Test Conditions)
\t
Module Type
\t
HDP72-315
\t
HDP72-320
\t
HDP72-325
\t
HDP72-330
\t
Maximum Power(Pmax)
\t
315W
\t
320W
\t
325W
\t
330W
\t
Open-circuit Voltage(Voc)
\t
45.6V
\t
45.8V
\t
45.9V
\t
46.1V
\t
Maximum Power Voltage(Vmp)
\t
36.9V
\t
37.1V
\t
37.2V
\t
37.3V
\t
Short-circuit Current(Isc)
\t
9.00A
\t
9.10A
\t
9.25A
\t
9.38A
\t
Maximum Power Current(Imp)
\t
8.54A
\t
8.63A
\t
8.76A
\t
8.85A
\t
Module Efficiency(%)
\t
16.25%
\t
16.51%
\t
16.77%
\t
17.02%
\t
Power Tolerance
\t
0~+5W
\t
Temperature Coeffcient of Isc
\t
0.05%/°C
\t
Temperature Coeffcient of Voc
\t
-0.29%/°C
\t
Temperature Coeffcient of Pmax
\t
-0.39%/°C
\t
Standard Test Environment
\t
Irradiance 1000w/m², Cell temperature 25°C, Spectrum AM1.5
\t
Electrical Characteristics (Noct)
\t
Module Type
\t
HDP72-315
\t
HDP72-320
\t
HDP72-325
\t
HDP72-330
\t
Maximum Power(Pmax)
\t
234W
\t
238W
\t
242W
\t
246W
\t
Open-circuit Voltage(Voc)
\t
42.4V
\t
42.5V
\t
42.6V
\t
42.7V
\t
Maximum Power Voltage(Vmp)
\t
34.3V
\t
34.4V
\t
34.5V
\t
34.6V
\t
Short-circuit Current(Isc)
\t
7.25A
\t
7.35A
\t
7.47A
\t
7.57A
\t
Maximum Power Current(Imp)
\t
6.82A
\t
6.92A
\t
7.02A
\t
7.11A
\t
Maximum Power Current(Imp)
\t
Irradiance 800w/m², Cell temperature 20°C, Spectrum AM1.5, Wind speed 1m/s
Main Products

solar power system


Special component

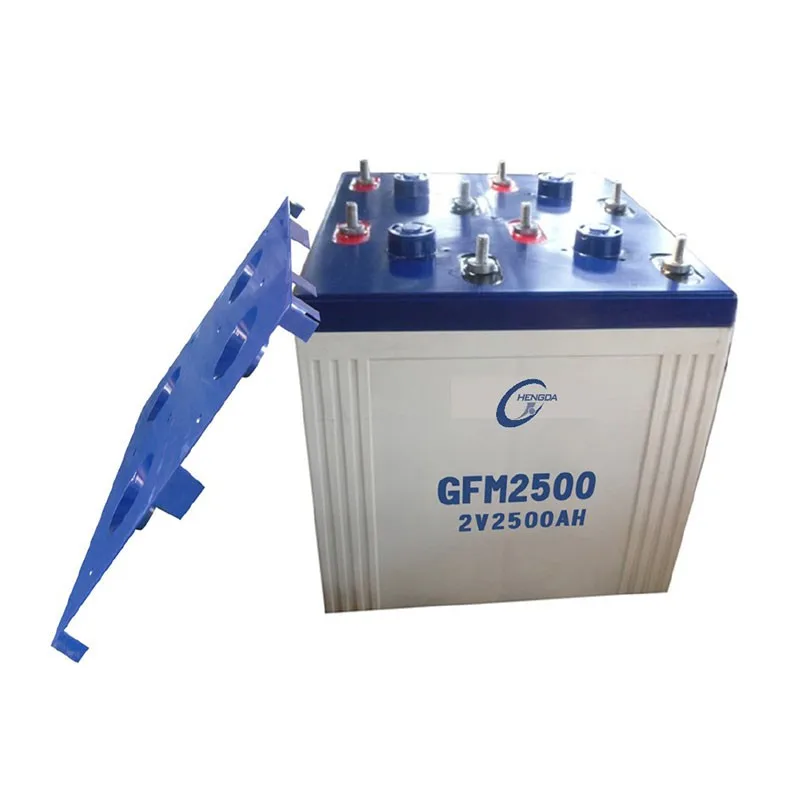

             Battery


Company Profile

Nanjing He Rong Photovoltaic Energy Co. LTD

Nanjing Herong Photovoltaic Energy Co., Ltd., with a registered capital of 5 million yuan, is a high-tech photovoltaic enterprise integrating R&D, production and sales. Mainly engaged in the research and development, manufacturing, sales and after-sales service of crystalline silicon solar cell modules, photovoltaic system engineering and photovoltaic application products. It is a high-tech enterprise supported by Jiangsu Province and Nanjing City.

                   office

              Chat Area


 meeting room

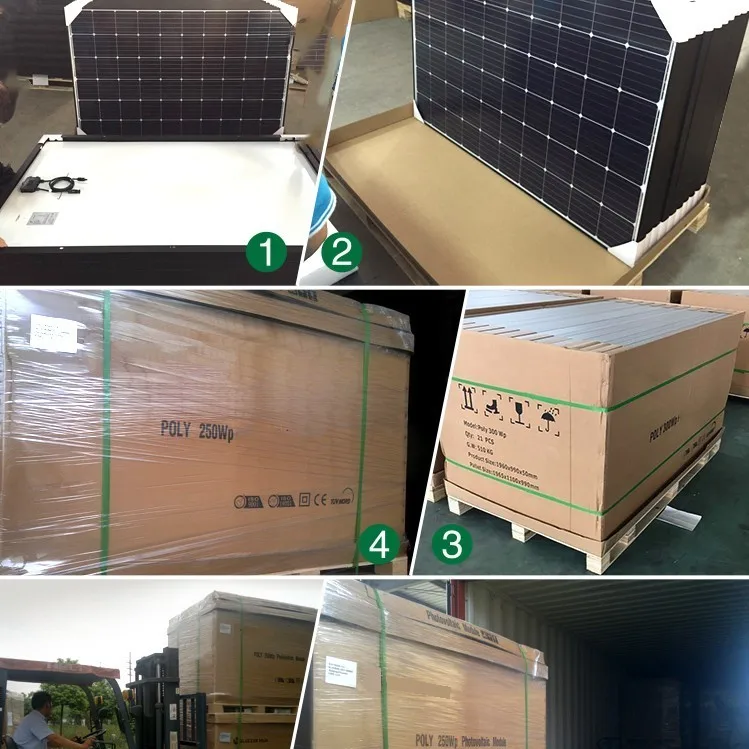

Product Packing
\t
Packing Configuration
\t
Container
\t
20GP
\t
40GP
\t
40HC
\t
PCS per pollet
\t
27
\t
27
\t
27
\t
PLT per container
\t
10
\t
24
\t
24
\t
PCS per container
\t
270
\t
648
\t
696
