Product Overview

Description


Product Description

XLPE Insulated Power Cable of Rated Voltage 6kv-35kv

\t
NO. Of core
\t
Nominal Area mm2
\t
1 core
\t
1.5,2.5,4,6,10,16,25,35,50,70,95,120,150,185,240,300,400,500,630,800,1000
\t
2,3,4 core
\t
1.5,2.5,4,6,10,16,25,35,50,70,95,120,150,185,240,300,400
\t
3+1, 3+2 core
\t
1.5/0.75,2.5/1,4/2.5,6/4,10/6,16/10,25/16,35/16,50/25,70/35,95/50,120/70,150/70,185/95,240/120,300/150,400/185
\t
4+1 core
\t
1.5/0.75,2.5/1,4/2.5,6/4,10/6,16/10,25/16,35/16,50/25,70/35,95/50,120/70,150/70,185/95,240/120,300/150,400/185

11 kv 4 Core Cu/XLPE/Swa/PVC Underground Cable Price List
Application
Used for power distribution in grid or industrial equipment.
Standard
Rated voltage 3.6-35kv cable conform to the standard GB/T12706-2008,IEC60502.
Application properties
1 The conductor long-term maximum operating temperature is 90℃.
2 During short circuit ( maximum permanent time is not more than 5 seconds), the maximum temperature of cable conductor is not more than 250℃.
3 when laying the cable, environmental temperature is not more than 0℃. The minimum bending radius: single core≥20D, three cores≥15D ( D is the outer diameter of cable )
Product performance
1 The Maximum DC resistance at 20 ℃is according with the stipulation of GB/T3956-2008
2 AC voltage test: when rated voltage U0 is up to and including 3.6kv, the testing voltage is 2.5U0 +2kv, and if the rated voltage U0 is above 3.6kv, the testing voltage is 3.5U0. Lasting for 5minutes, without breakdown.
Main Type and Application

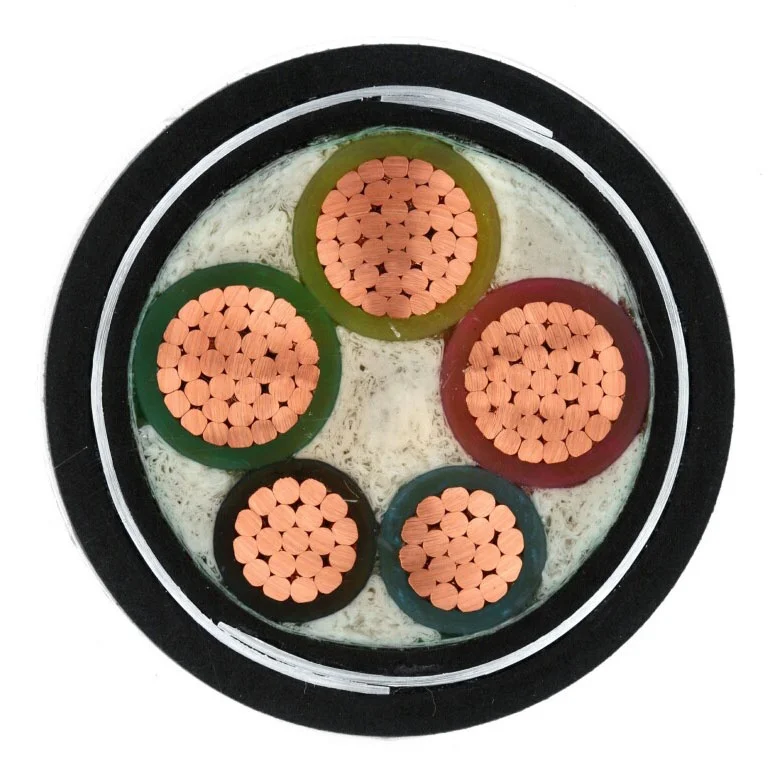

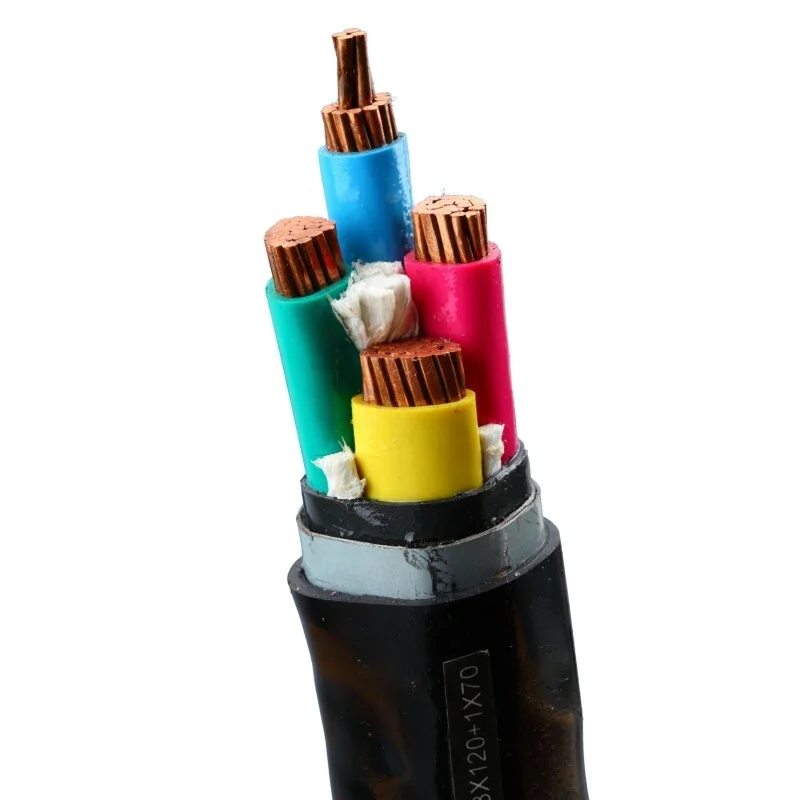

Copper/aluminum core XLPE insulated, PVC or PE sheathed power cable
Copper/aluminum core XLPE insulated, steel tape armored, PVC or PE sheathed power cable
Copper/aluminum core XLPE insulated, thin steel wire armored, PVC or PE sheathed power cable
Copper/aluminum core XLPE insulated, thick steel wire armored, PVC or PE sheathed power cable.
Specification and voltage
Rated voltage kv: 1.8/3, 3/3, 3.6/6, 6/10,8.7/15, 12/20, 18/30, 21/35 kv

6/6, 8.7/10, 12/15, 18/20, 26/35 kv

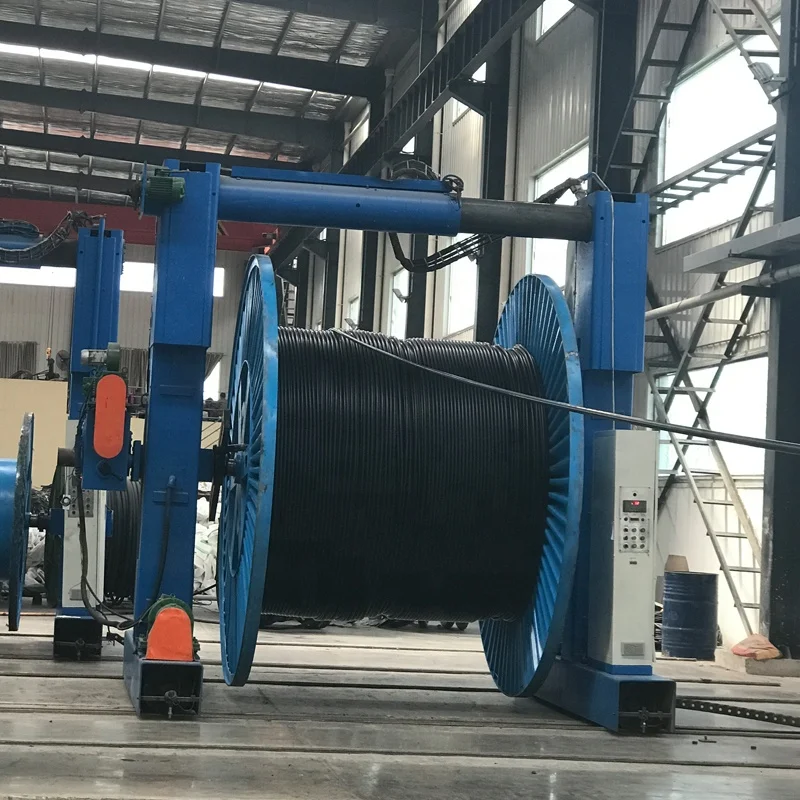

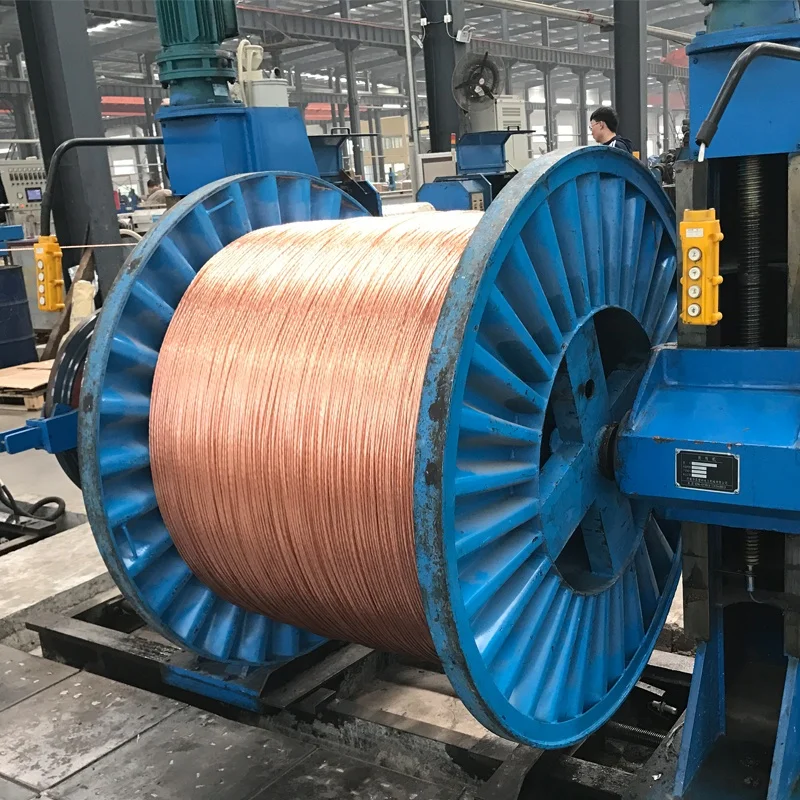

Factory

HENAN JINSHUI CABLE GROUP  CO.,LTD

Henan Jinshui Cable&Wire Co.,Ltd, Belongs to Jinshui Cable group with 35 years manufacture experience and management system certificate ISO 9001, ISO 14001 ,OHSAS 18001, Mainly Specialized in cable R&D, manufacture and distribution,and contributes to promoting Chinese excellent wire & cable product with competitive price in the worldwide market. Welcome friends from all of the world and gain a mutual progress together in the prosperity future!
