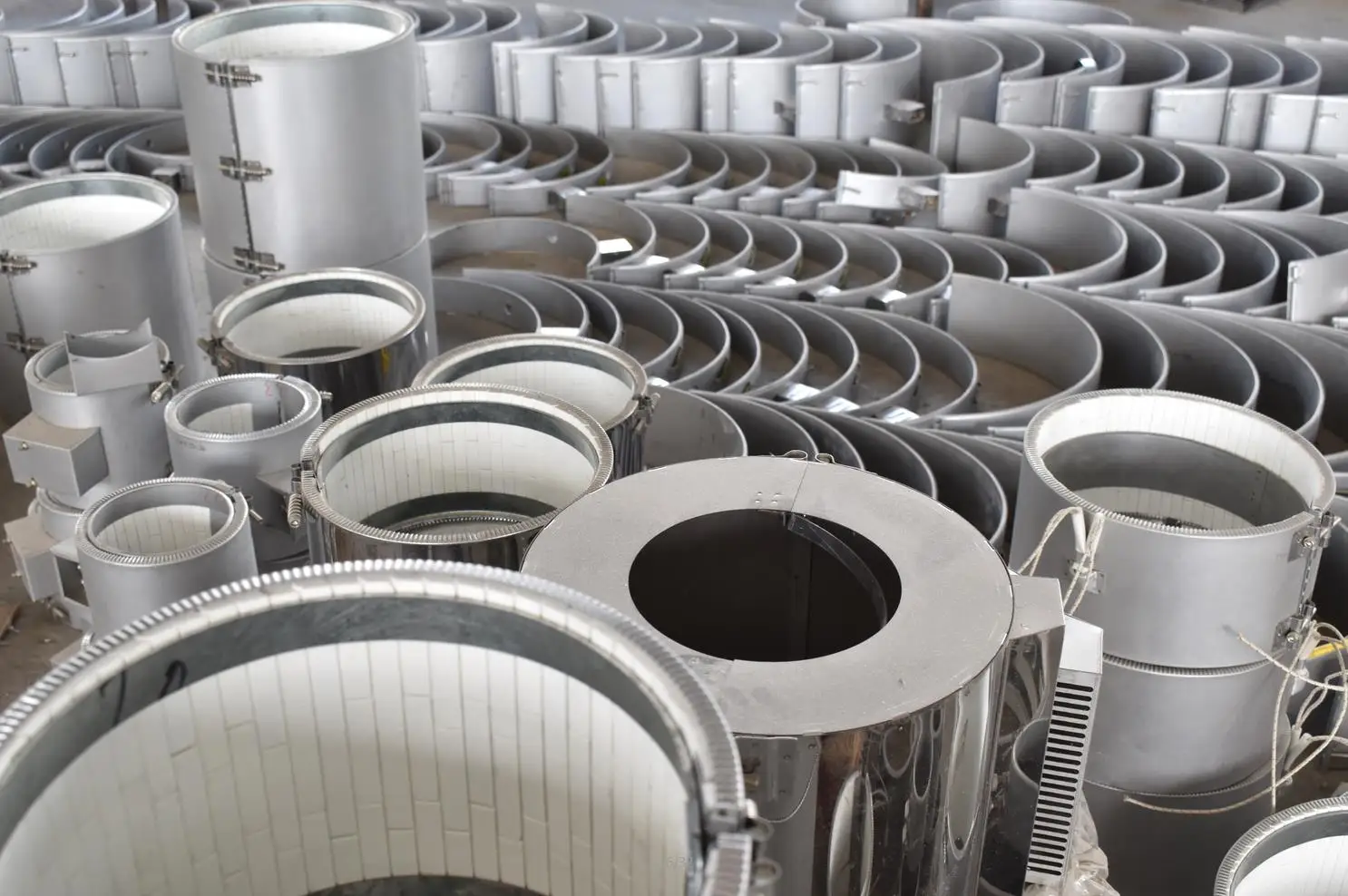

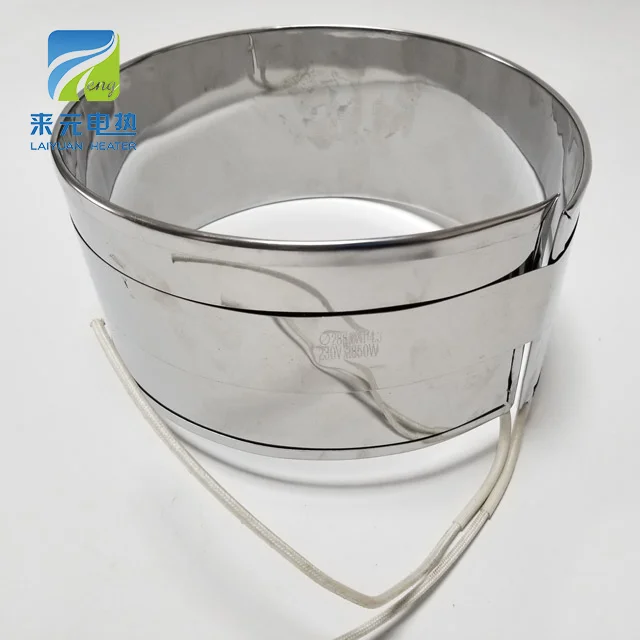

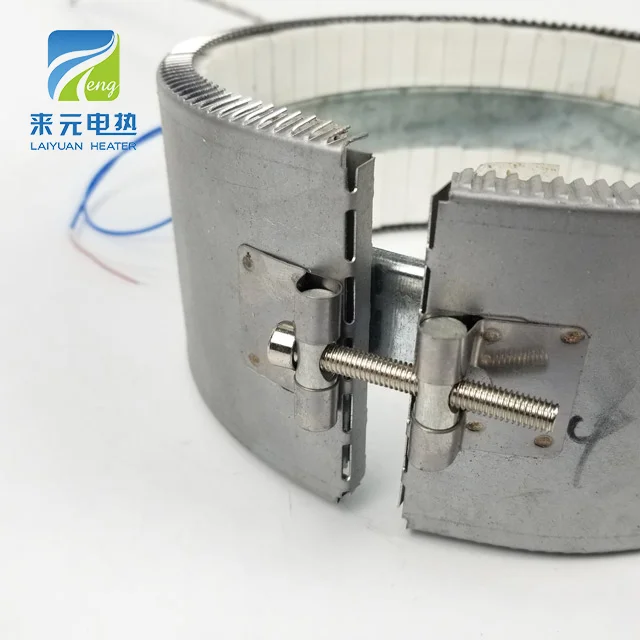

110 v Plastic Extruder Ceramic Band Heater hs Code with Thermocouple Holes
- Category: >>>
- Supplier: Yancheng Laiyuan Electric Equipment Co. Ltd.
Share on (62004456053):
Product Overview
Description
All Cartridge

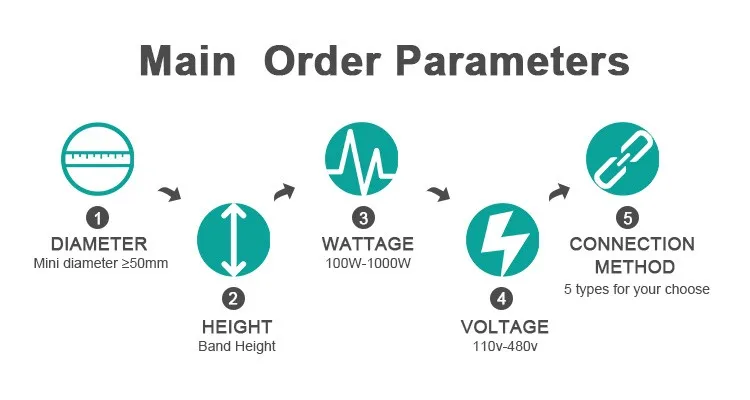

Product Pramameters
Voltage Range | 110V - 480V |
Max watt density | 6.8w/c㎡(44W/c㎡) |
Standard thickness | 4-5mm |
Power Tolerance | +5% to -10% |
Resistance | -5% to +10% |
Insulation Resistance (Cold) | ≥ 20 MΩ |
Gap Between the Clamping Edge | 5 - 10mm |

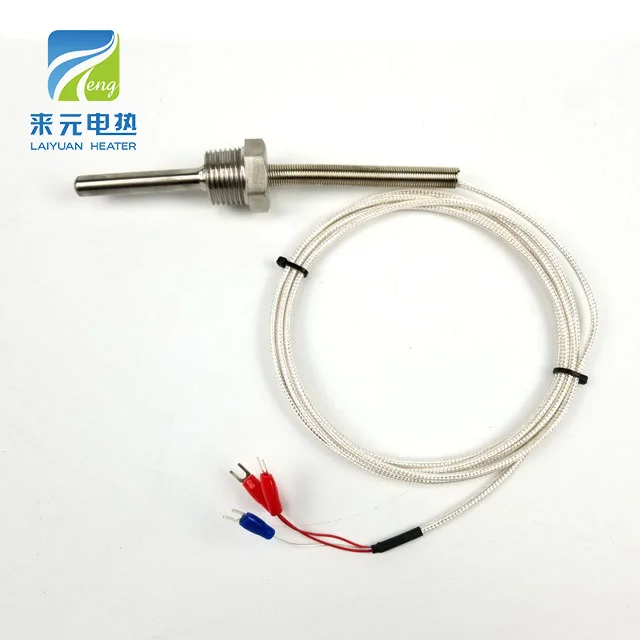

Thermocouple | K/J-type with/without |
Max Working Temperature | 600℃ |
Mini diameter | 50mm |
Custon Options
Sheath Material | Stainless Steel cover for ceramic band heater |

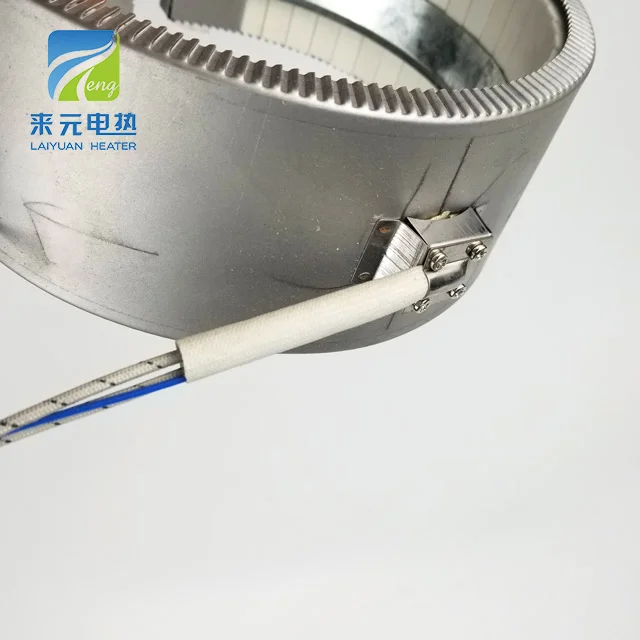

Connection Method | 1.Metal box 2.Screw post terminals 3. High Temperature Plug 4.High temperature cable/ 5.Ceramic block |
Nominal Wall Thickness | Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation) |
Heating Elements (coil) | Cr20Ni80 |

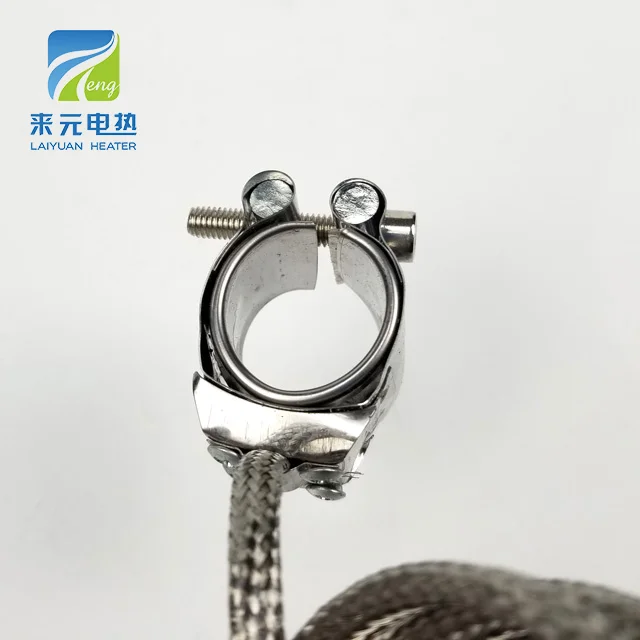

1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire |
Features
Overstandard quality
1.Lower Operating Cost
2.Safe
3.Operator Comfort
4.Operator Comfort
5.Longer Heater Life
6.Higher Operating Temperatures
7.Flexible
8.Dual Heat Transfer

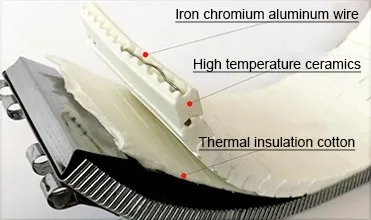

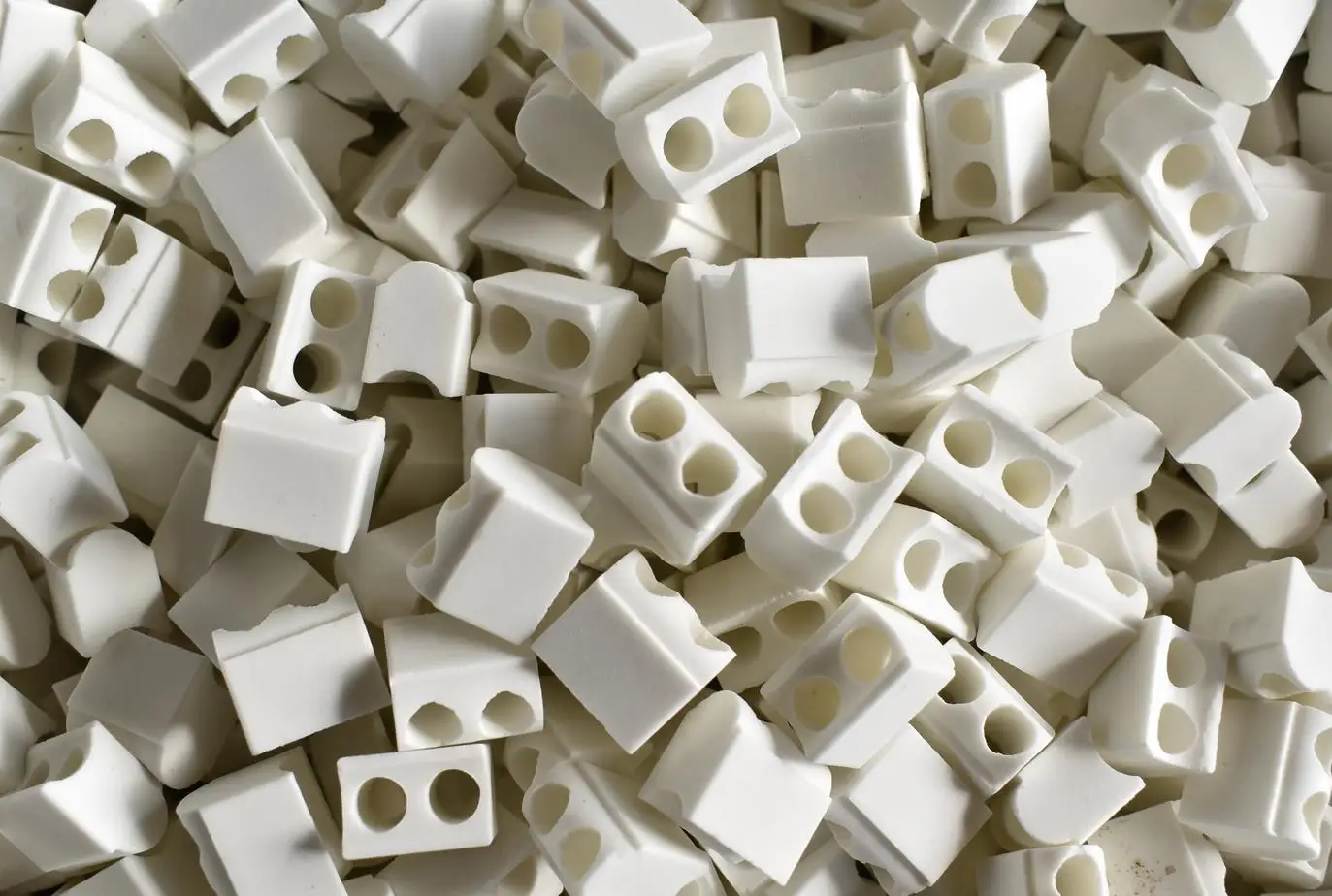

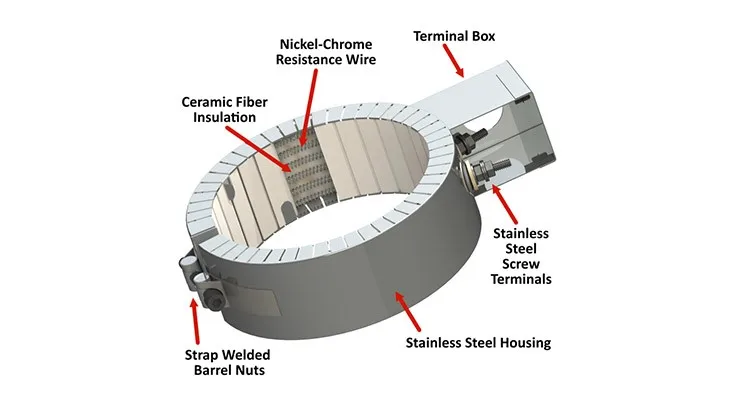

Ceramic Band Heaters provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications. These band heaters are constructed with a stainless steel shroud enclosing high quality ceramic knuckles through which run coiled high temperature nickel-chromium element wire.
Product Application
Applications of Ceramic band heaters
1.Plastic Injection Molding Machines
2.Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
Our Company
LAIYUAN HEATER
Since its foundation,Yancheng Laiyuan Electric Equipment Co. Ltd, a company based on the actual needs of clients, has always been adhering to the purposes of quality-first,integrity-based and joint development. Laiyuan focuses on development,production,sales of customized products and serves the industry of electric heat and industrial automation instrumentation.The products are widely used in Plastic Machinery ,Vacuum Packaging, Petroleum Chemical Industry, Electric Power, Metallurgy, Medicine, Food, Industrial Furnaces, Industrial Automation and other industries.
Our Partners
Customers from all over the world,such as European countries, Middle East, USA, Sourth America, Asia,Africa etc.Since 2018, we have customers in more than 30 countries all over the world.we have obtained good recognition from our customers in the industry. With the support of highly-skilled engineers, we can provide professional technical support and after-sales service.
