Good Mountain geological exploration drill machine

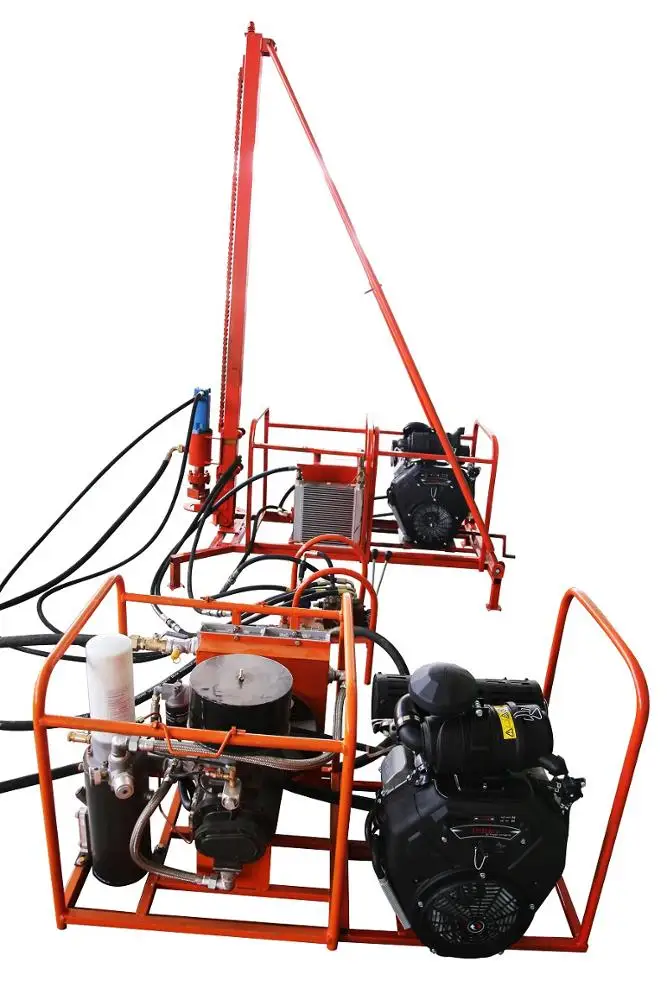

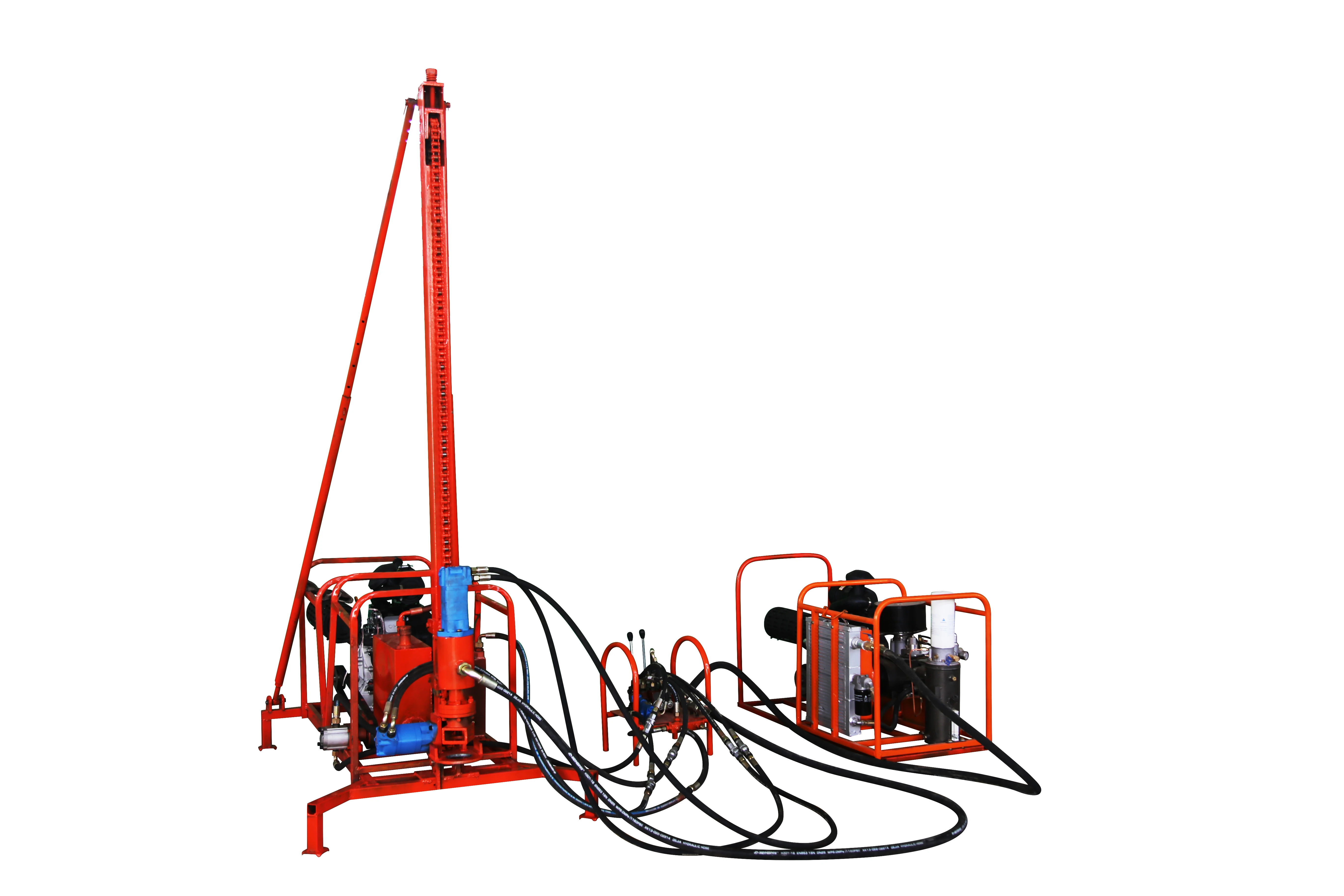

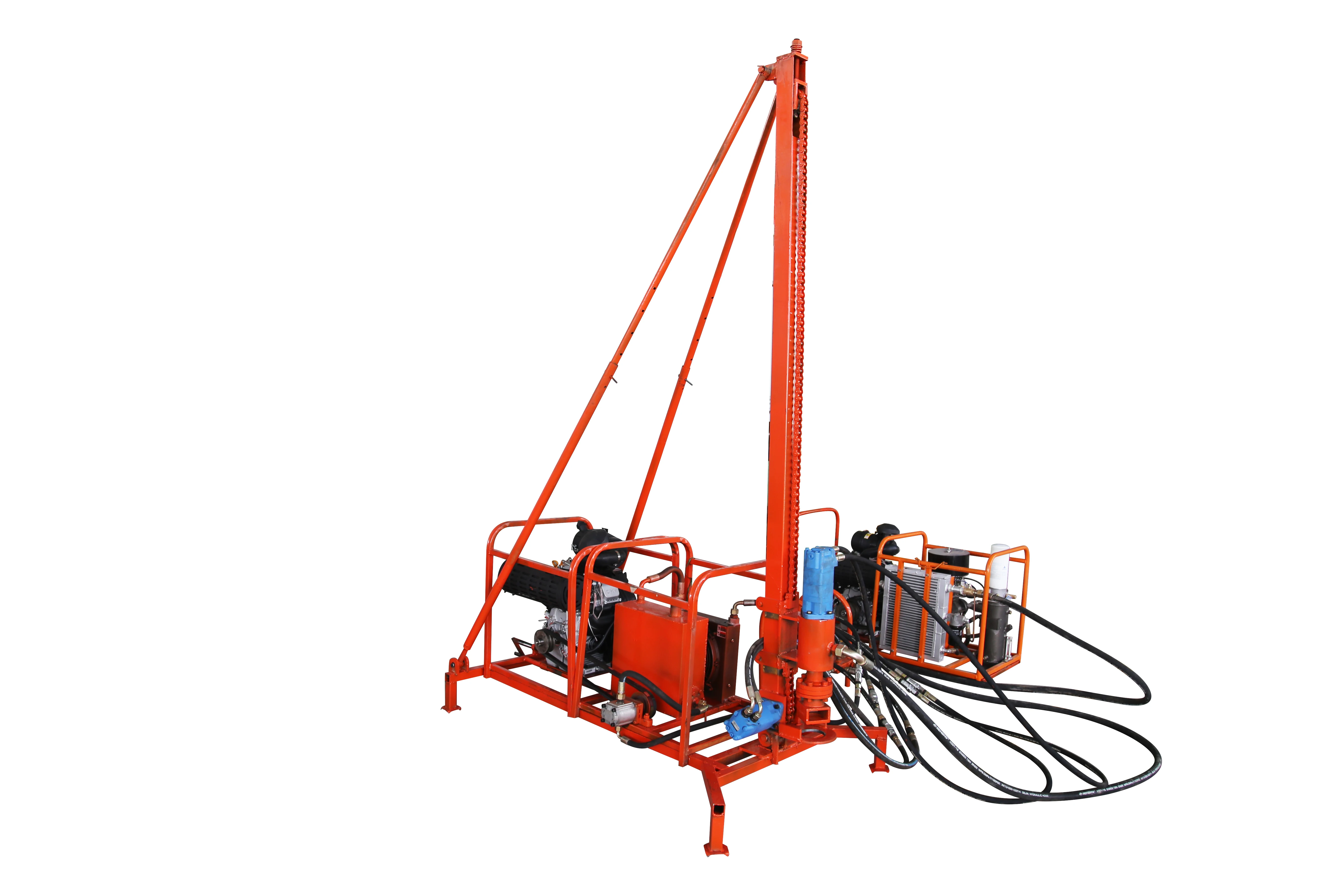

The BF-30 mountain rig is a mountain seismic exploration drilling equipment produced by our company. It can be widely used in rugged mountainous areas where the vehicle rig can't work. The rig has the following characteristics:
1, high drilling efficiency, resulting in lower operating costs;
2, the structure is simple, easy to disassemble and maintain, and the operation is more humanized;
3, the overall quality is light, and the split structure is easy to relocate and transport.
Model | BF-30 | |
Drilling depth | 30m | |
Drilling way | Air shock rig / auger and mud drilling | |
Dia of bore hole(mm) | Air shock drilling | Lithostratigraphy 70-90 |
75-90 | ||
Drill pipe(Diameter*length) | Air shock drilling(mm) | 60*1500 |
Mud drilling(mm) | ||

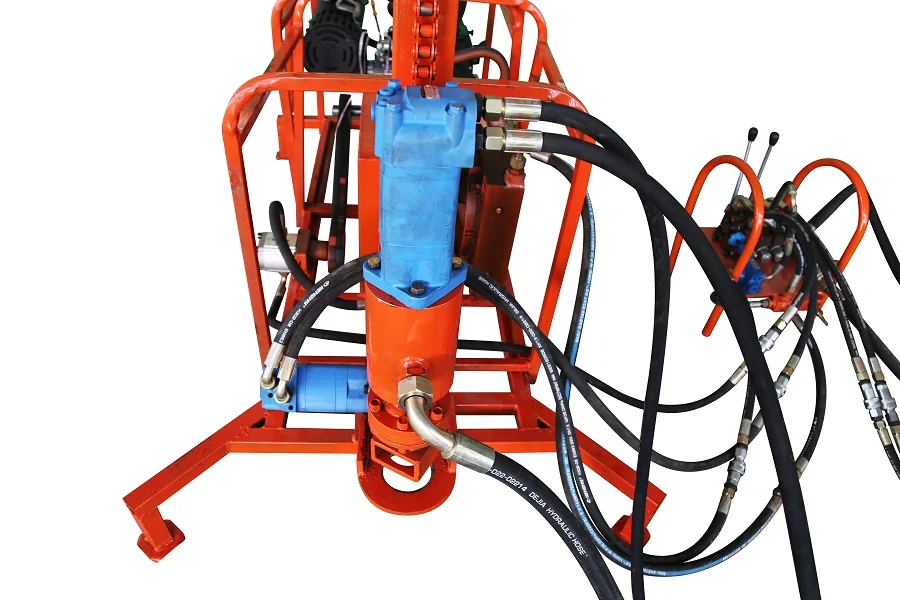

Power head | Rated torque(N.m) | 800-900 |
Drilling rate range(r/min) | 0-135 | |
Rig pressure and lifting function | Putting force (N) | 5500-6000 |
Lifting force (KN) | 12--16 | |
Lifting speed(m/s) | 0.71-0.81 | |

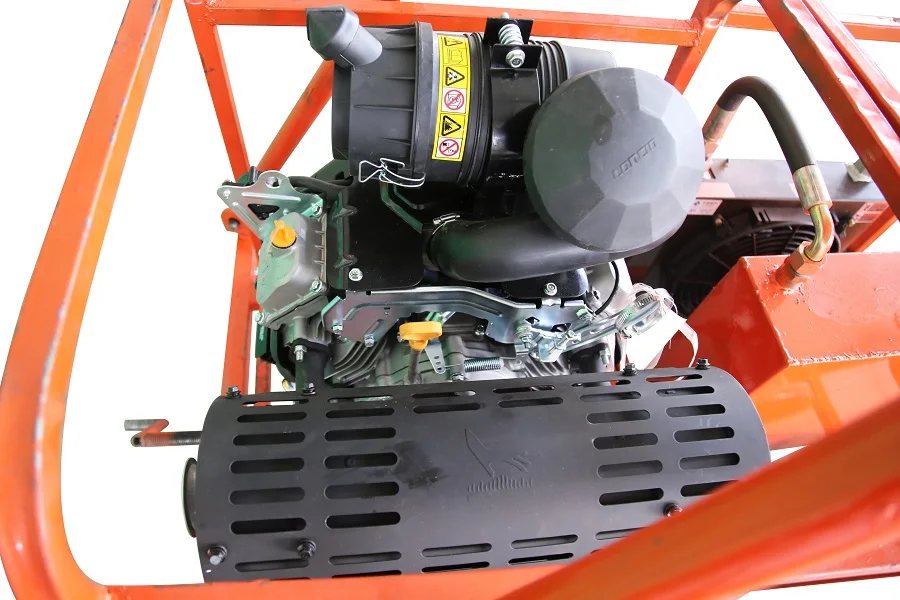

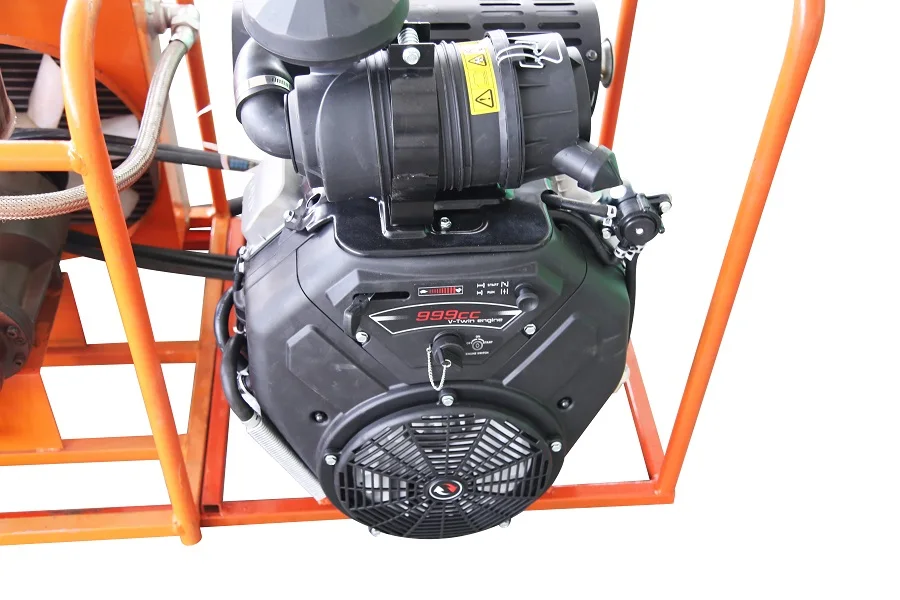

Main motor power(KW)/ rotating speed(r/min) | 35 / 3600 | |

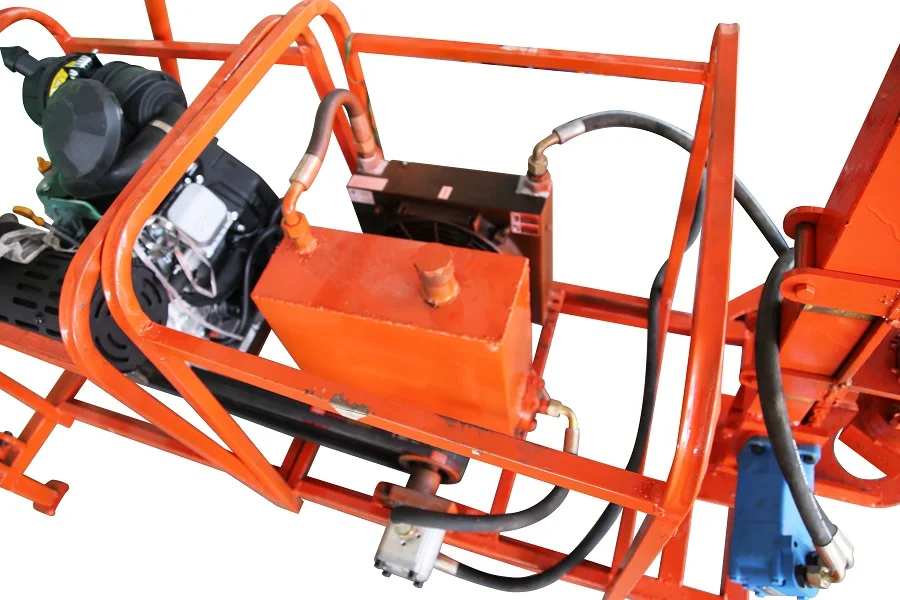

Hydraulic system | flow(L/min) | 0--60 |
Working pressure(MPA) | 20 | |
motor output torque N.m | 800-900 | |
motor speed 0-135 r/min | 0-135 | |
operating oil temperature ℃ | 15-80 | |
Rated lifting weight | 12--16 kn | |
Air-compressor set
| Model/number of configurations | Spray screw type /1 set |
Blast capacity(m3/min) | 3.8 | |
Working pressure(MPA) | 0.8 | |
Motor power(KW)/rotating speed(r/min) | 35 / 3600 | |
