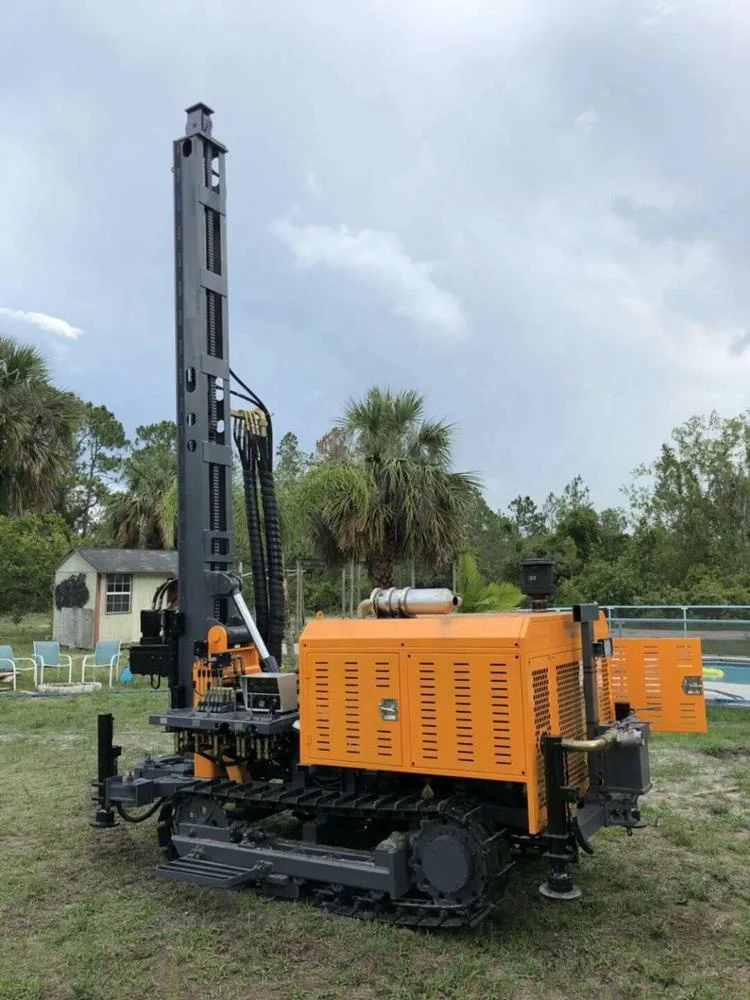

YCW180 crawler auger drill rig with auger pipe and three wing drill bit for soil

Product Overview

Description

YCW180 crawler auger drill rig with auger pipe and three wing drill bit for soil







Tecnical parameter of auger drill rig



Model No	YCW180 auger drill rig
Drilling Hole Diameter	110-202mm
Drilling Depth	180m
Working pressure	10.5-24.6bar
Air consumption	16-30m³/min
Propeller Shaft Stress	0-2.5T
Lifting power	5T
Pulling Force of Landing Leg Cylinder	32T(4 legs)
Stroke of Landing Leg Oil Cylinder	0.4m
Sliding Plate Stroke	2380mm
Slow Lifting Speed	8m/min
Slow Pushing Speed	0-15m/min
Fast Lifting Speed	26m/min
Fast Pushing Speed	51m/min
Rotation torque	4200N.m
Rotation Speed	33-67r/min
Lifting Power of Hoist	1T
Diesel Engine model	YC4D80
Engine Power	58kw
Travelling speed	0-2.5 km/h
Climb capacity	20°
Weight	4500kg
Dimension	2700*1550*2350mm



Application of auger drill rig

KW180 is punctured equipment for light, efficient, versatile,

it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.

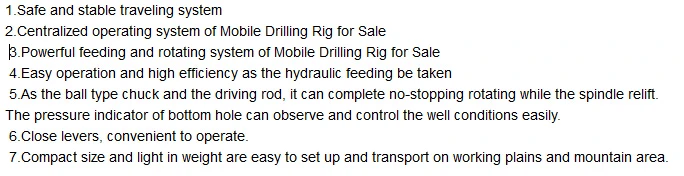

 Advantage of auger drill rig

 introduction of auger drill rig

 The rig can create jobs in different formations, the max. hole depth of up to 200 meters The rig using a new

 type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor

 air inlet design, prolong the service life of dieselengine. Convenient pump group design unique repair, reduce repair cost.

Hydraulic centralcontrol console, convenient operation. The rig adopts a special crawler chassis of engineering machinery, strong crosscountry performance. Module design independently, can make the rig mounted on trucks, increase its mobility.Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing the positioning disk, to ensure the positioning accuracy, reliable centering.
