Rotary Paddle Type Level Switch LS

Product Overview

Description

Rotary Paddle Type Level Switch LS

Features

This standard rotary type level switch supports every condition. As it can be handled easily, it is operated stably for a long term.

• As the internal mechanism has been unitized, the switch can be replaced without detaching the main body from the tank.
• Various apparent specific gravities can be supported by selecting a suitable paddle shape.

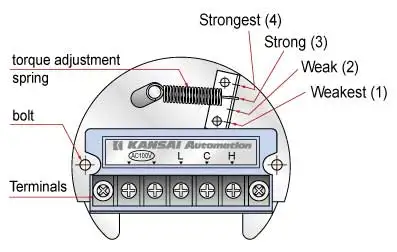

• A clutch mechanism is provided as standard equipment to protect the motor from overloads on the paddle.

Operating Principles

When the deposits of measured substances restrain the paddle being rotated by the motor, the contact is output to stop the motor. When there is no more deposit left, the motor resumes rotation.

Standard Specification

Power Source	100~110VAC or 200~220VAC 50/60Hz
Power Consumption	1.5W(100AC~110VAC),3W(200AC~220VAC)
Contact Capacity	250VAC 3A Resistance Load
Rate of Rotation	0.83rpm (50Hz)
Allowable Temperature	below 50℃(in a tank)
Withstand Voltage	1500VAC  one minute for in between terminal and housing  (Each Terminal ~ Case)
Color	Gold
Process Connection	G3/4
Enclosure Rating	Equivalent to IP55

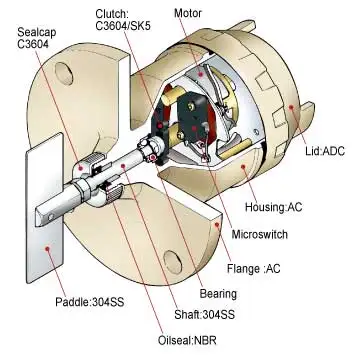

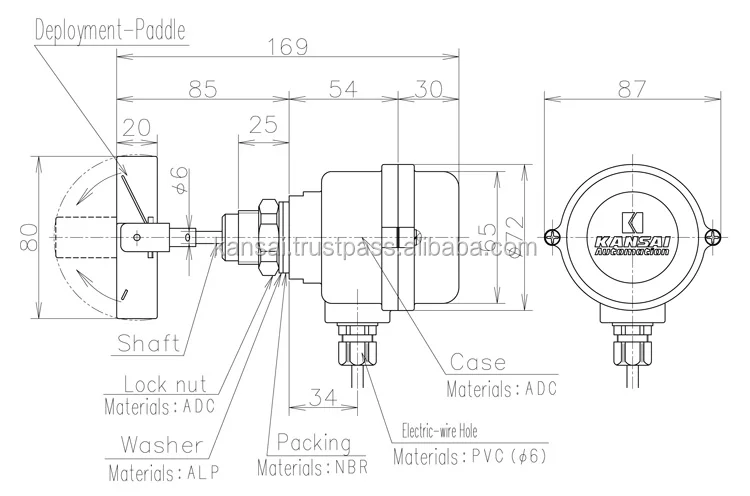

Drawing
