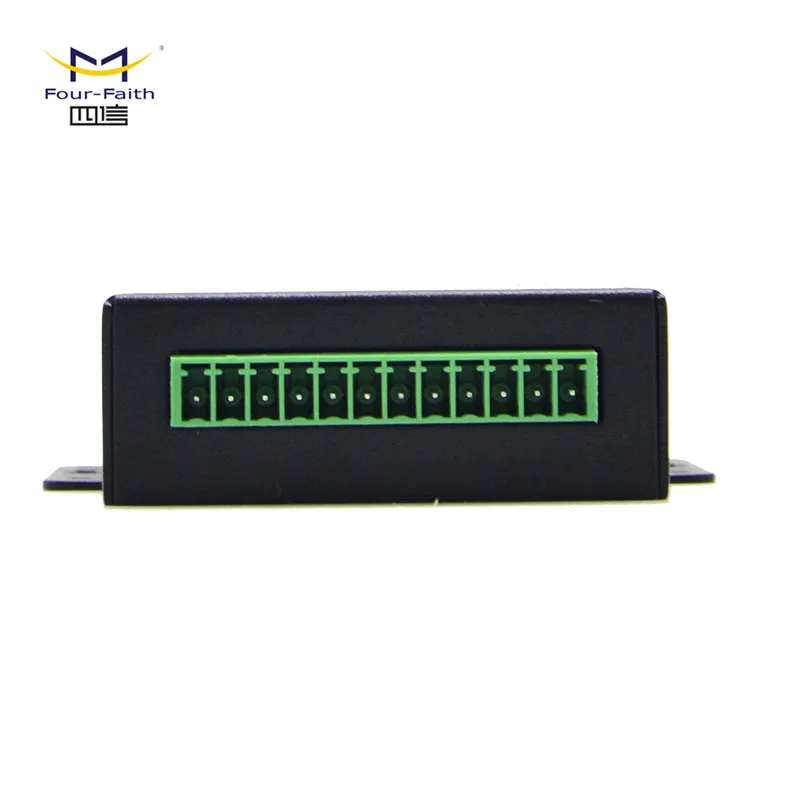

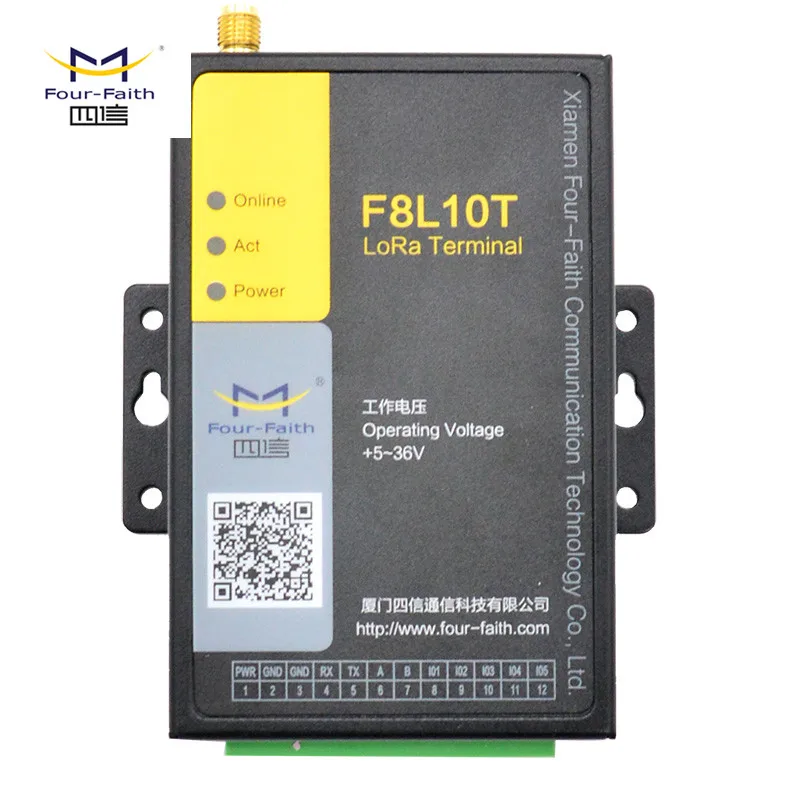

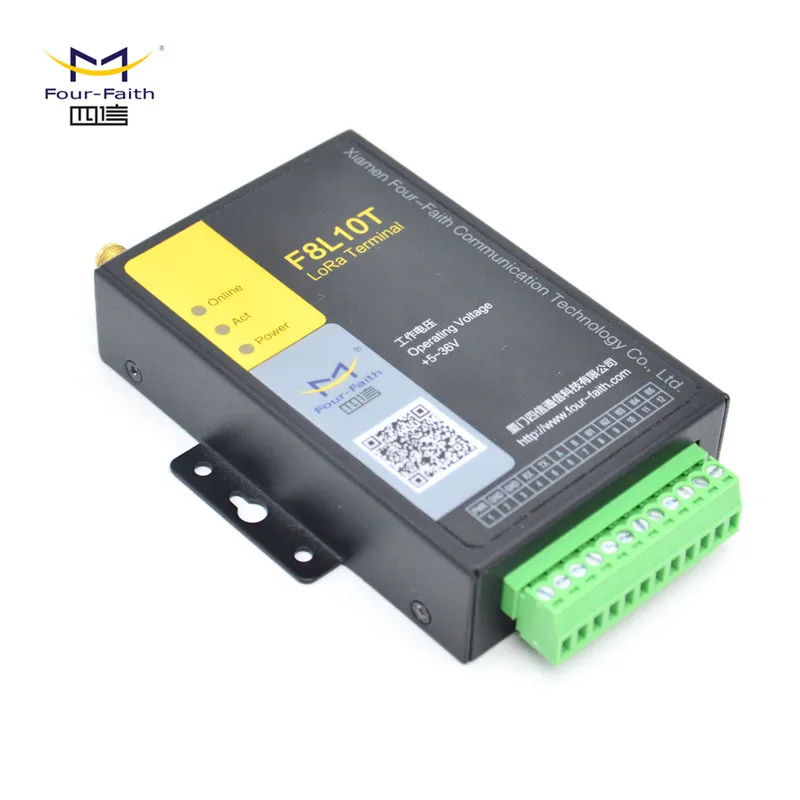

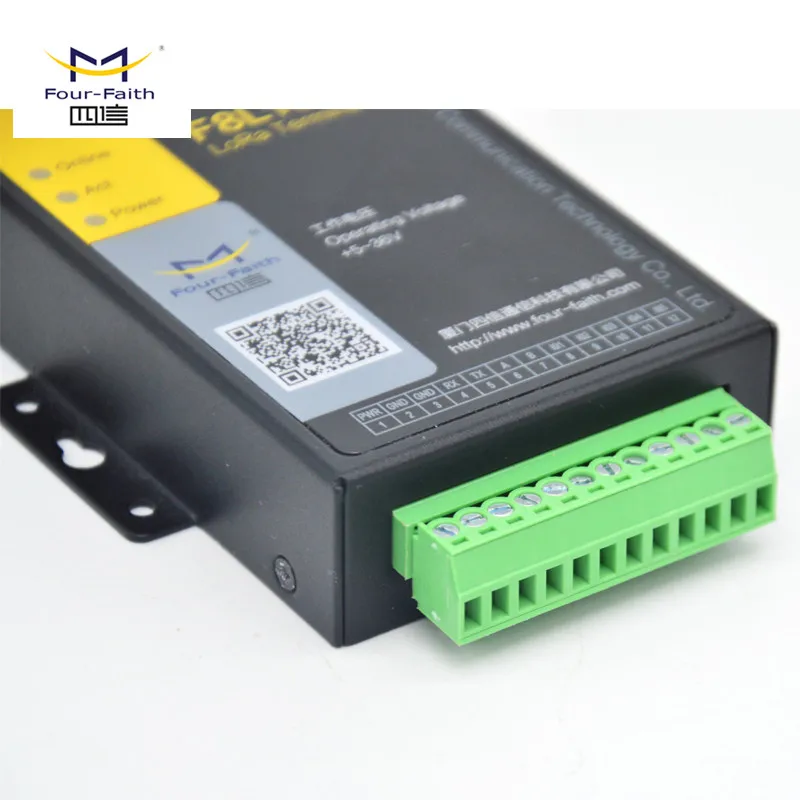

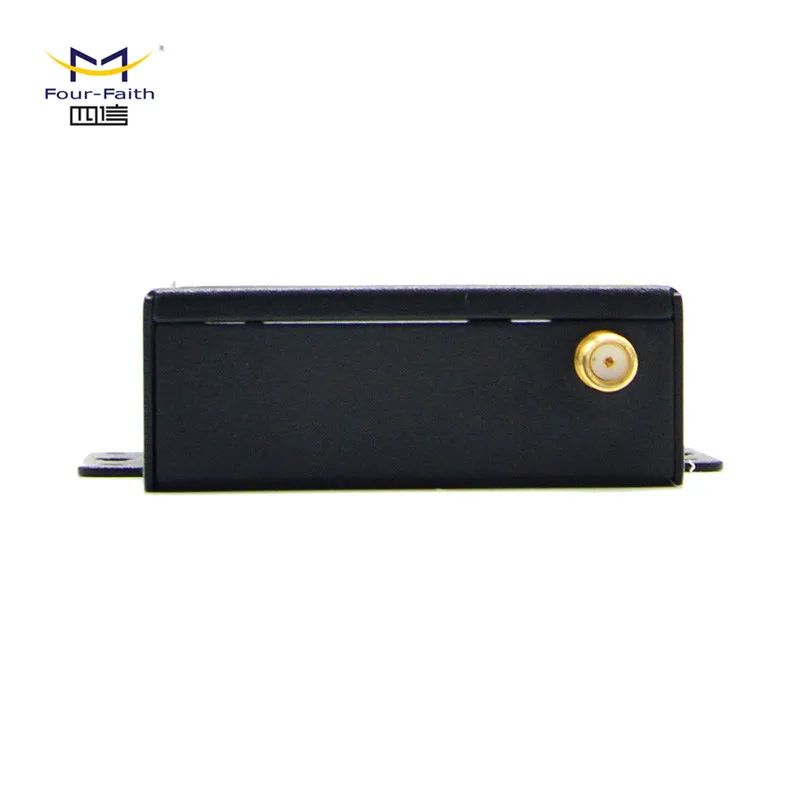

F8L10T LoRaWAN Terminal Frequency 920 923 with RS232/485 and digital I/O Support Modbus RTU for data transmission

 F8L10T LoRa Terminal is a wireless data transmission terminal based on LoRa Spread Spectrum
Communication technology. It is using LoRa network to provide wireless data transmission function for users.

The product uses the high-performance industrial-grade LoRa solution with the embedded real-time

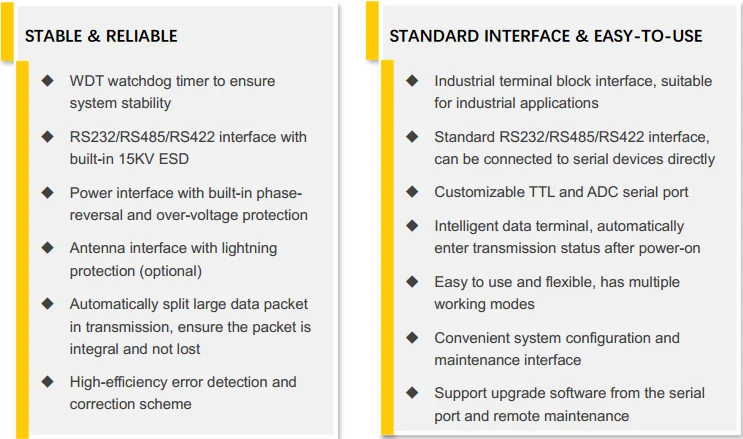

operating system as the software support platform. It provides RS232 and RS485 (or RS422) interfaces at
the same time, can be connected to the serial devices directly to achieve data pass-through function. The

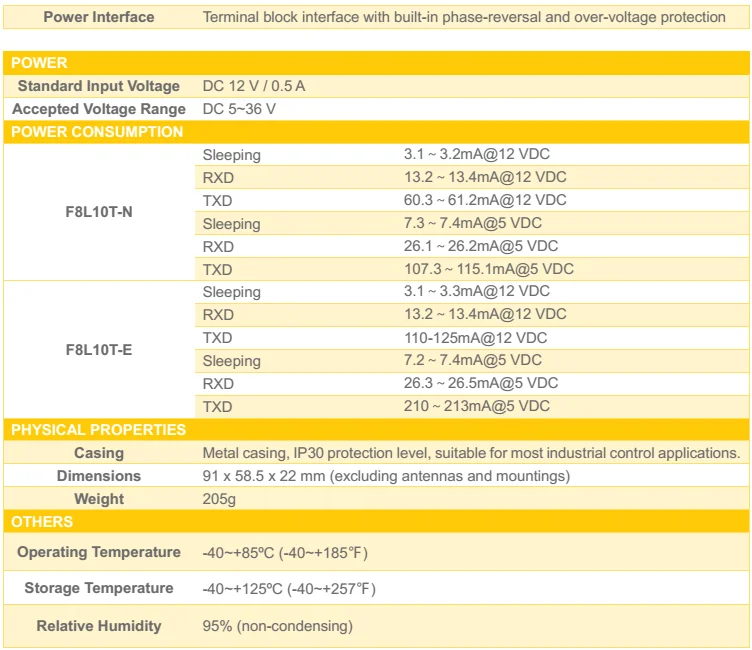

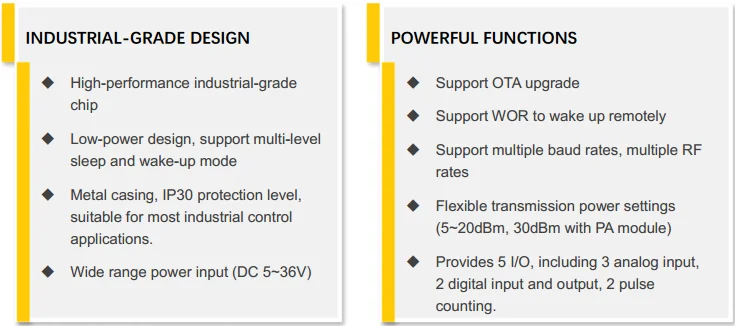

terminal has a low-power design, the minimum power consumption is less than 5mA@12VDC. It provides 5

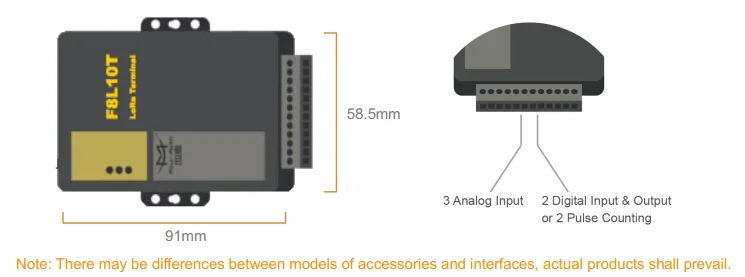

I/O for implement functions as digital input and output, analog input, pulse counting, etc.

The product has been widely used in the M2M industry of the IoT industrial chain, such as smart grid,
intelligent transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial
automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital
medical, telemetry, agriculture, forestry, water, coal, petrochemical and other related fields.
