■We have the expertise and production experience to provide our customers with low-cost, high-quality products.
■You can also choose custom LED display, we have a variety of different specifications, please feel free to contact us.
■Let customers can choose with confidence!

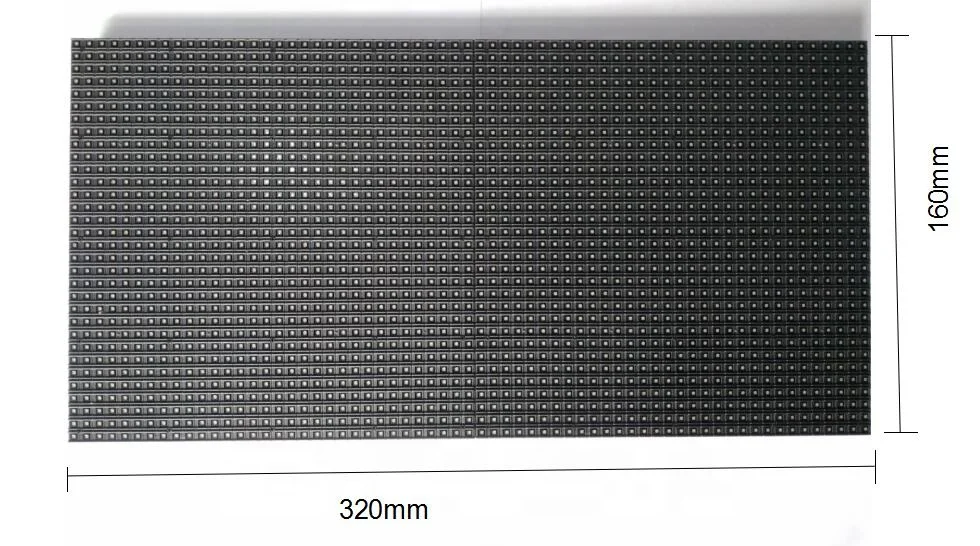

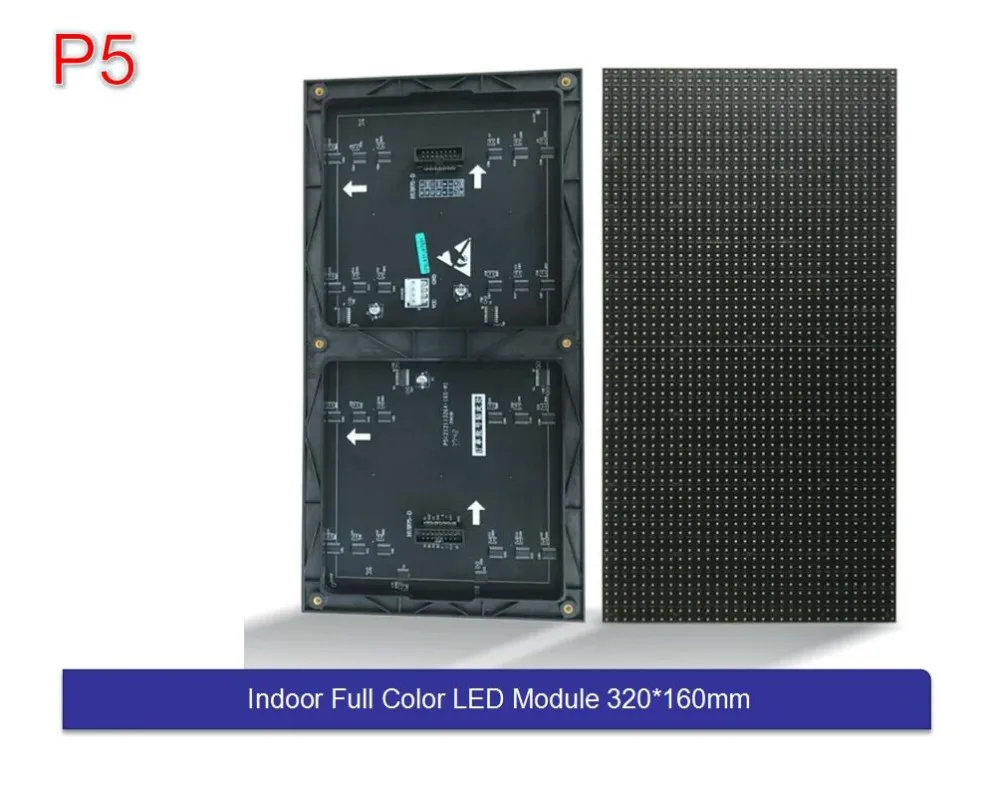

Item | P5 | Module Size | 320mmX160mm |
Pixel Pitch | 5mm | Module Resolution | 64 X 32 (dots) |
Chip | Epstar | Density of pixel | 40000dots/㎡ |
Light type | SMD3528 | Pixel configuration | 1R1G1B |
Best viewing distance | ≥4m | viewing angle | 140°/140° |
Gray scale | 14bits per color | Brightness | 2000cd/㎡ |
Max Power Consumption(w/㎡) | 500 | Control method | Synchronization or Asynchronization |
Frame frequency | 60Hz | Driving method | 1/16 scan |
Refresh frequency | ≥600Hz | Working Temperature | -20°C-50°C |
IP grade | IP43 | Life Span | 100000hours |

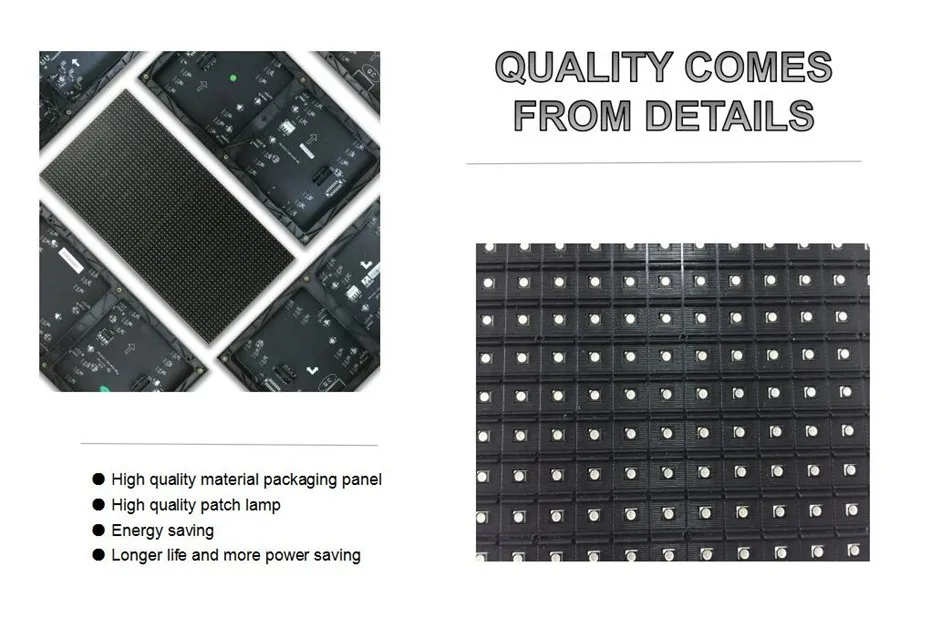

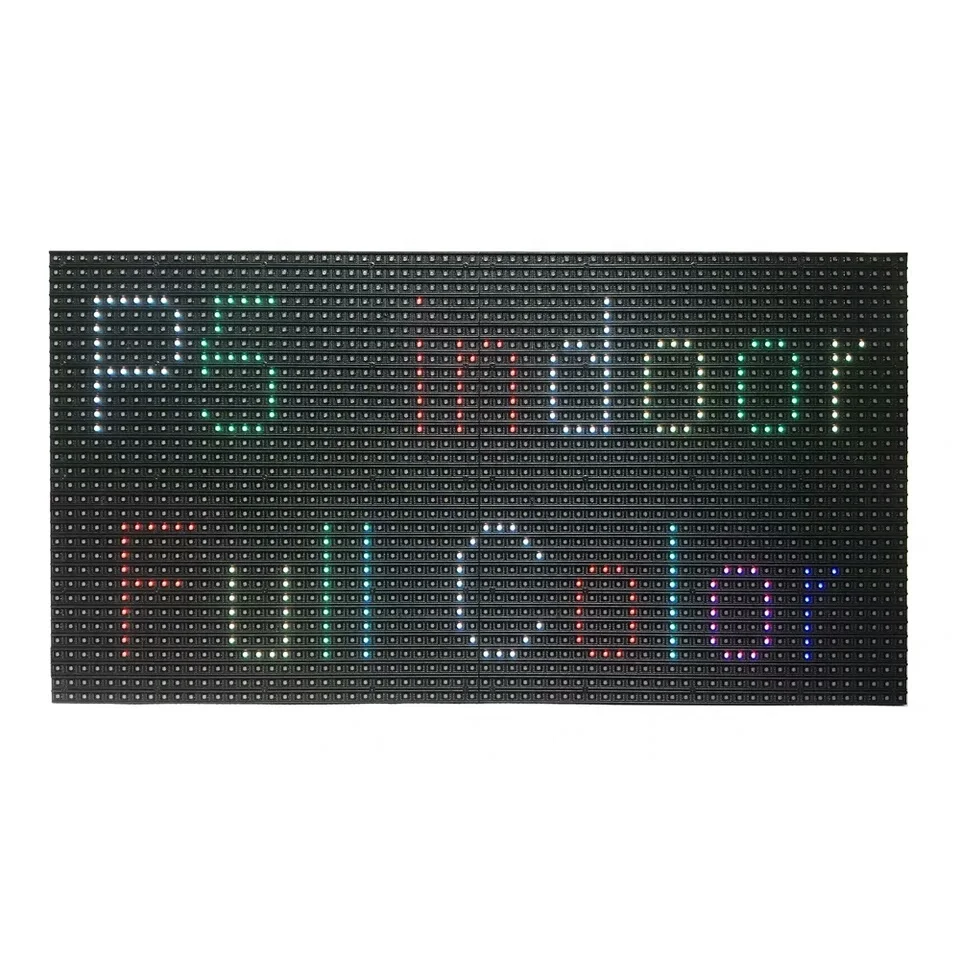

1. Uniform color, high contrast, fresh and natural picture
2. The first level LED chip from Taiwan Epistar,With pure golden wire connection in LED
3.High level frame,Super light design ,Seamless splice
4. Signal and power supply are stable, safe and reliable
5. Disassembly and assembly are quick and easy
6. 3 years warranty
7.Low power consumption (Energy-saving 60% ) and good heat dissipation , heat-dissipated roller fans with automatic temperature-controlling device.
8 .Life time >11 years

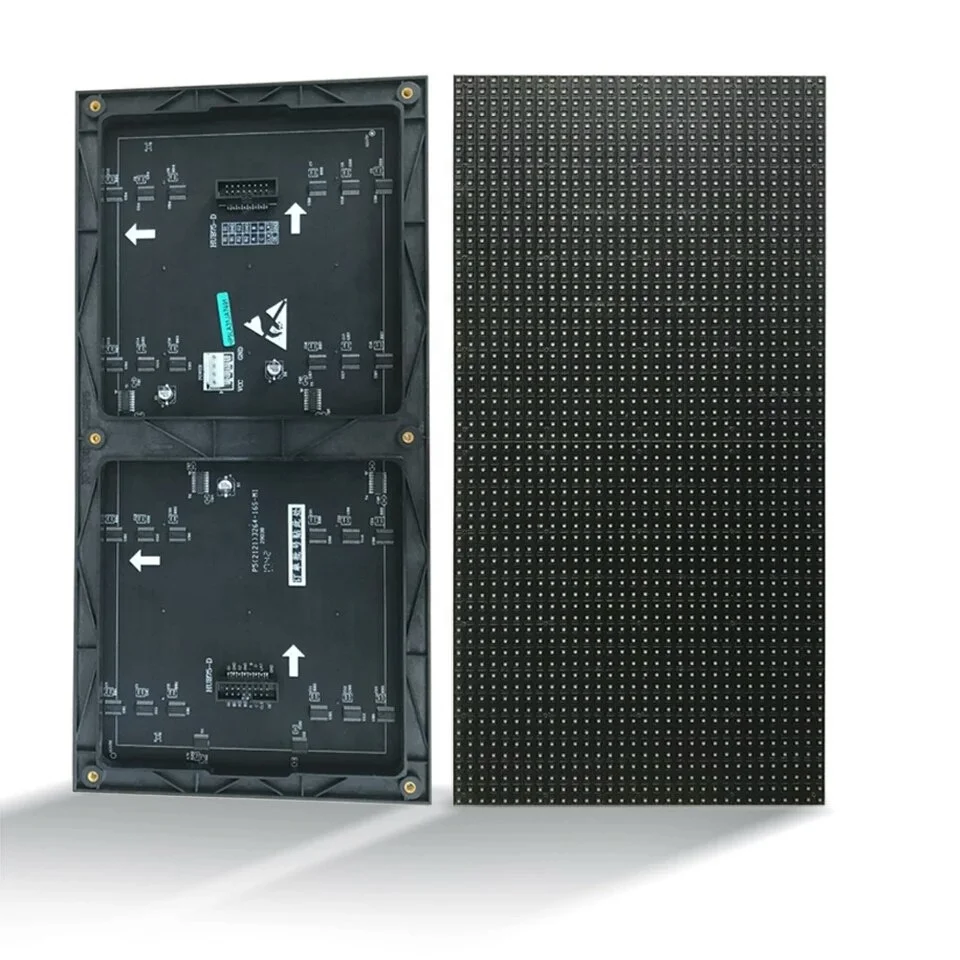

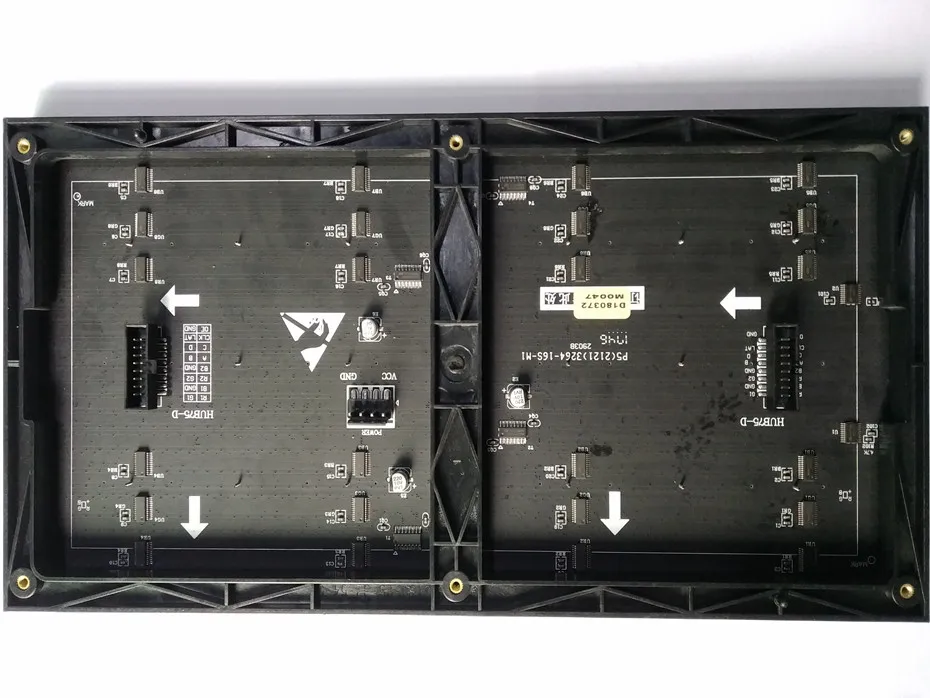

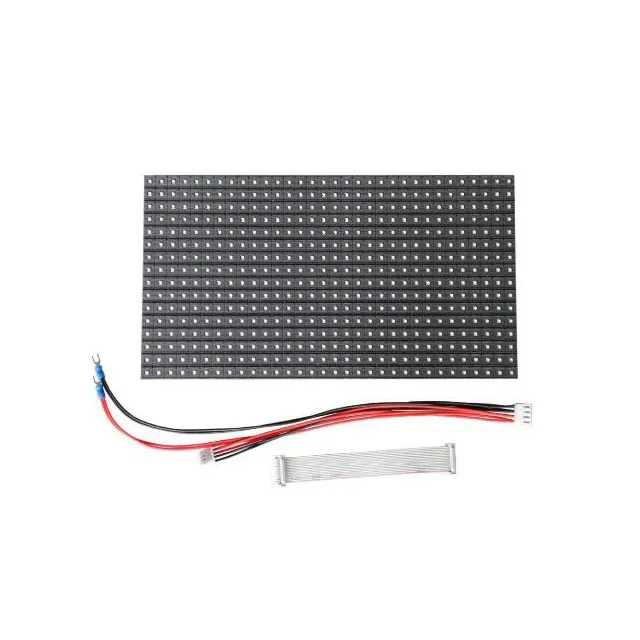

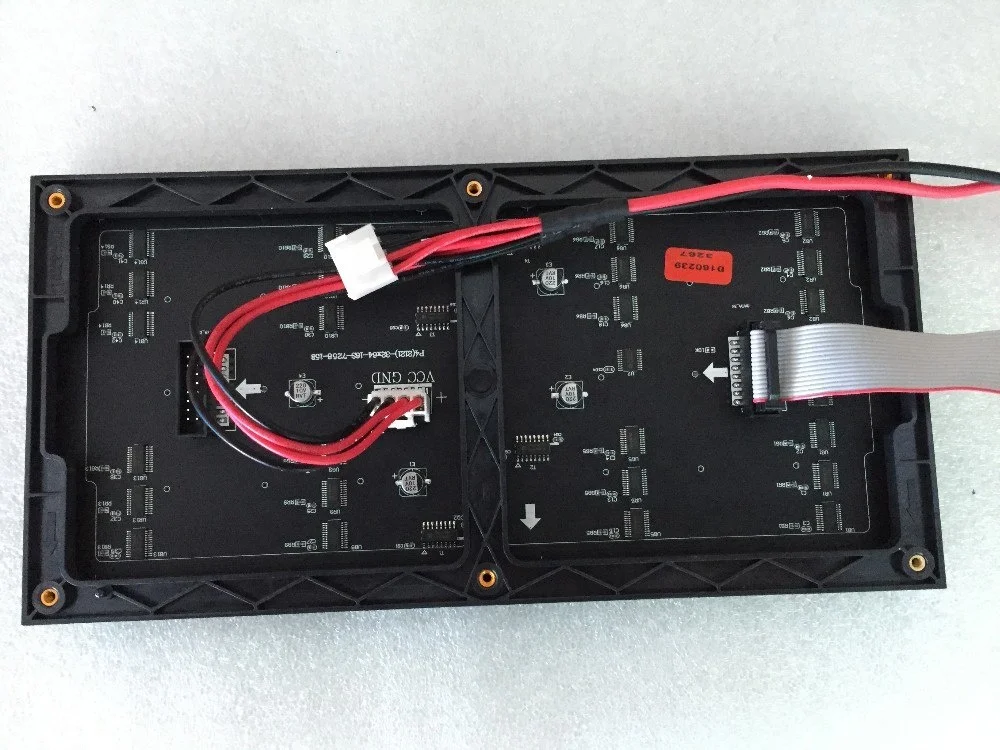

■1 pcs full color led module
■1 pcs flat ribbon data cable
■1 pcs power cable(if you buy N pcs,we will supply N/2 pcs power cable,because 1 pcs power cable support 2 modules)

*LED display module is a special product.It maybe have color /configuration /hole demension difference.so you must buy all the modules in same order to avoid.
*We also have different size and color to choose from, any questions please feel free to contact us.

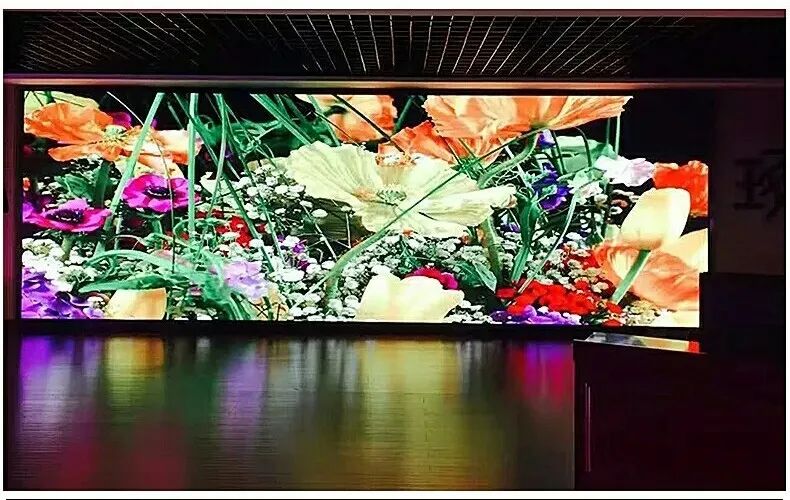

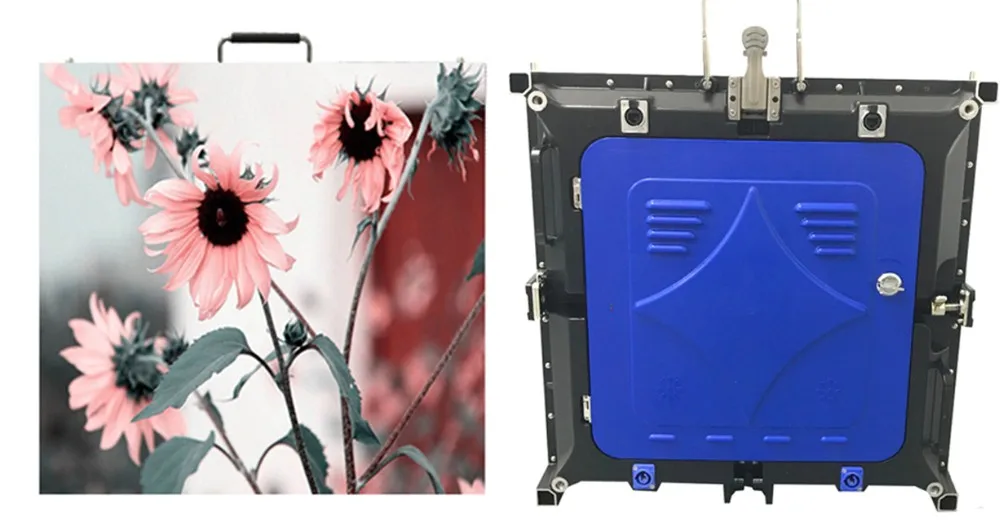

It can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party etc, to show the content what you want, by video, graphics, animation etc, connect with PC computer or network,or can remote control with asynchronous system, Wifi control, 3G control.
The led display widely used for commercial advertising, stage rental, enterprise,school,traffic advertising, mobile truck advertising, sports stadium advertising etc.



SZLightall Optoelectronics Co., LTD is professional led display and led lighting product manufacturer, who is integrated in R&D, manufacture, marketing and after-sale service. AS it is known, Shenzhen is a huge led industry base; we are located in here and based on this advantage, with advanced management, powerful R&D and technology and high quality materials, we have been producing high quality products. At the same time, as demand from market, we completed our product series.
Our company has a very good marketing, technology and management team, they are rich of experience in this flied, so that we can focus on product R&D, get new products and improve technology continually. Because of high quality product with competitive price, professional solutions and good after-sale service, Lightall Company gets high praise from customers all over the world. However, we would not stop; we will keep supplying more good products and service to our customers. Our target is keeping long term cooperation with customers.
For our bright future, we will unit together and work hard with our philosophy "high quality, honesty, high efficiency".






*Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.
*If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.

1.We have a professional team who get back to your question in 24 hours.We can offer a set of solution for you project.
2.About after-sale service:We can intruct you how to using, adjust the screen and common maintenance pare pares.
3. If any quality problems occur within 3 years' guarantee period,we offer provide free maintenance service.
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
