Product Overview

Description

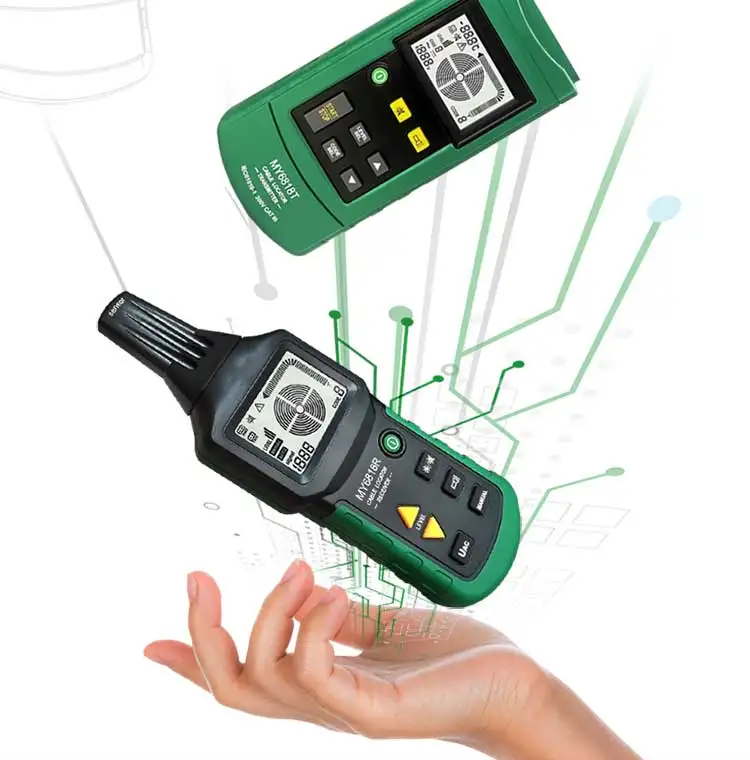

MY6818 Cable fault location

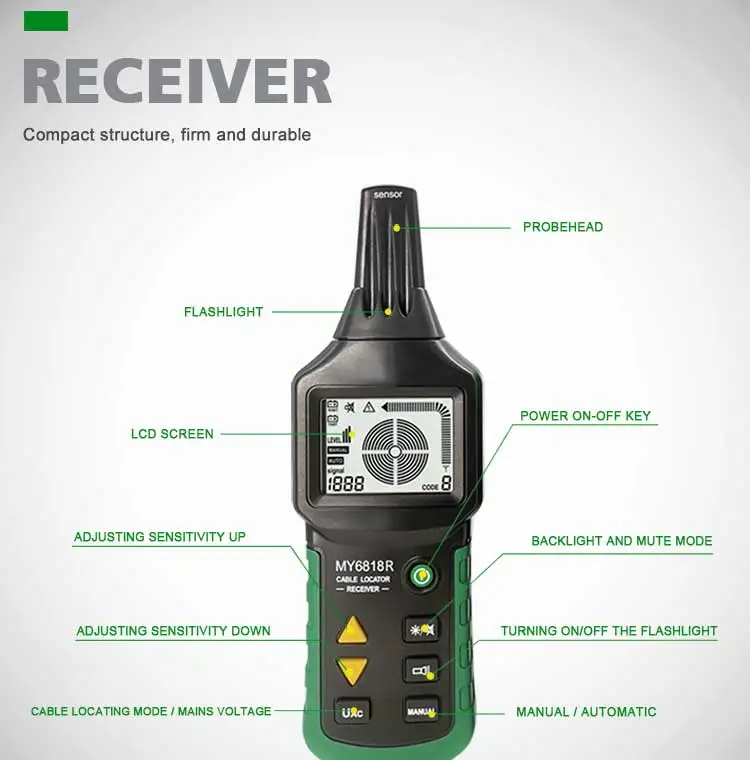

Professional cable locator

The cable detector is suitable for communication cable construction, power cable construction, building pipeline construction, communication cable and power supply line and electric heating line maintenance

Detects and traces wires buried in walls and floors, up to 6.5feet (2m) deep, as well as in plastic conduit, cable shield and computer cables

Traces energized wires and locates breakers without interrupting power

Traces de-energized wires (continuity and grounded wire) and pinpoints shorts and ground faults

Traces de-energized open (broken or disconnected) wires and locates the point where the wire is broken

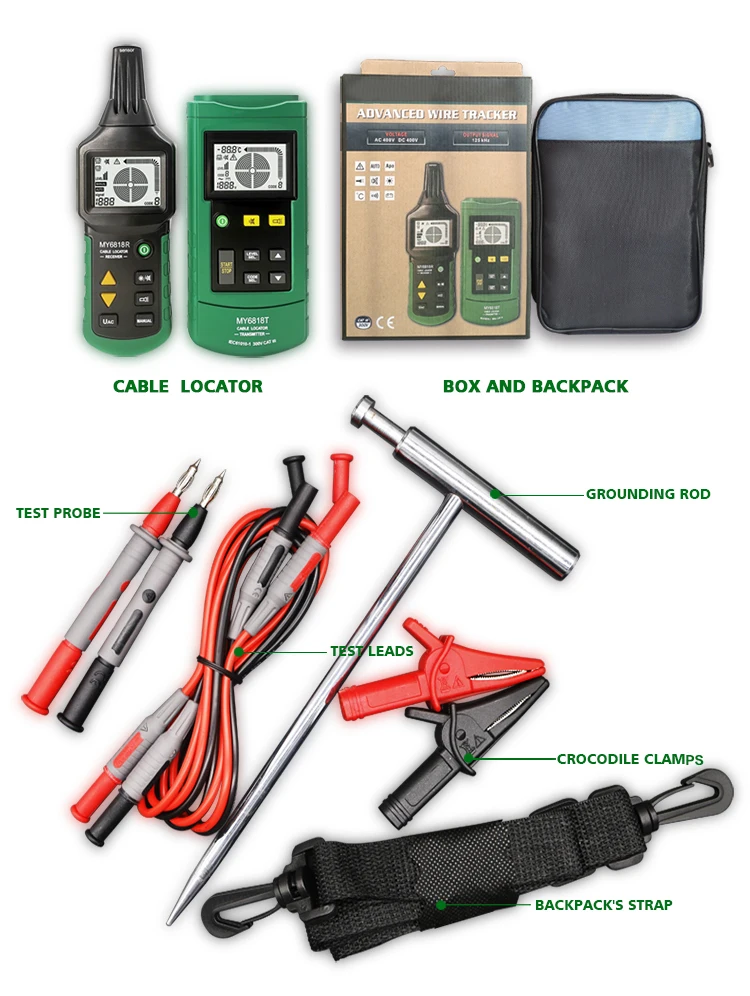

Includes a clamp on attachment for injecting a signal into wires when bare wire access isn't available

Does not interfere with sensitive electronic equipment, such as in hospitals and data centers

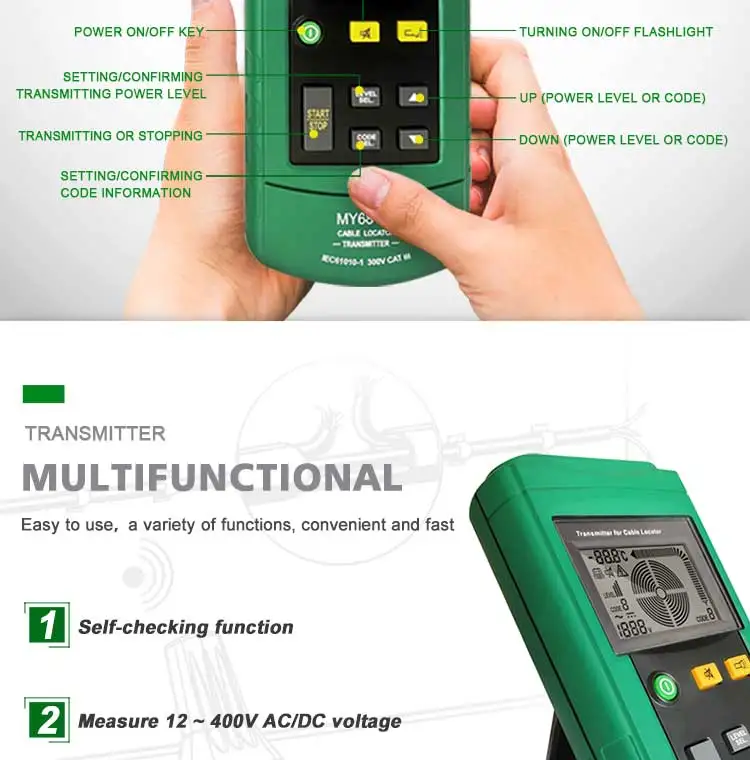

multifunction:
1.self-checking function
2.Measure 12~400V AC/DC voltage

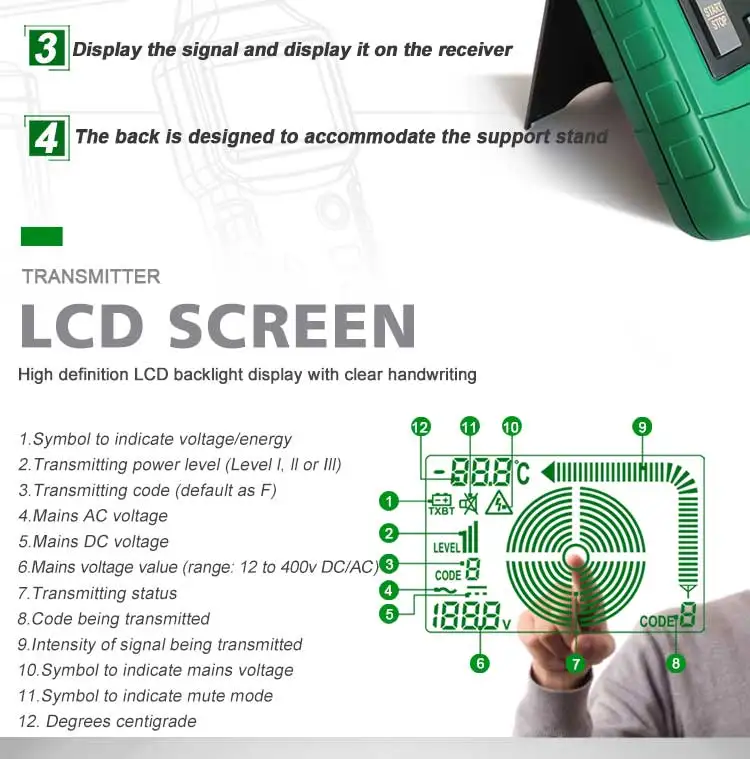

3.Display the signal and display it on the receiver

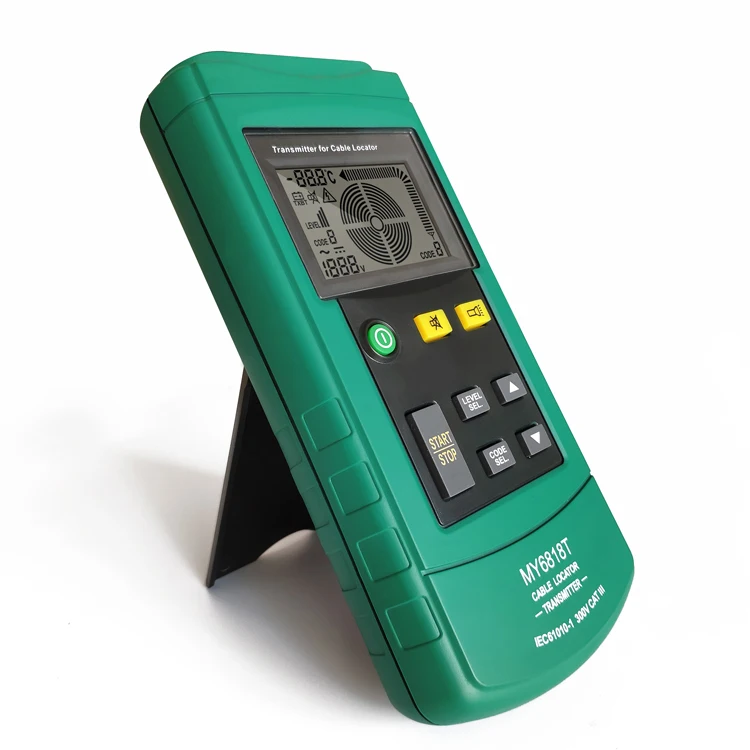

4.The back is designed to accommodate the support stand.

the specifications

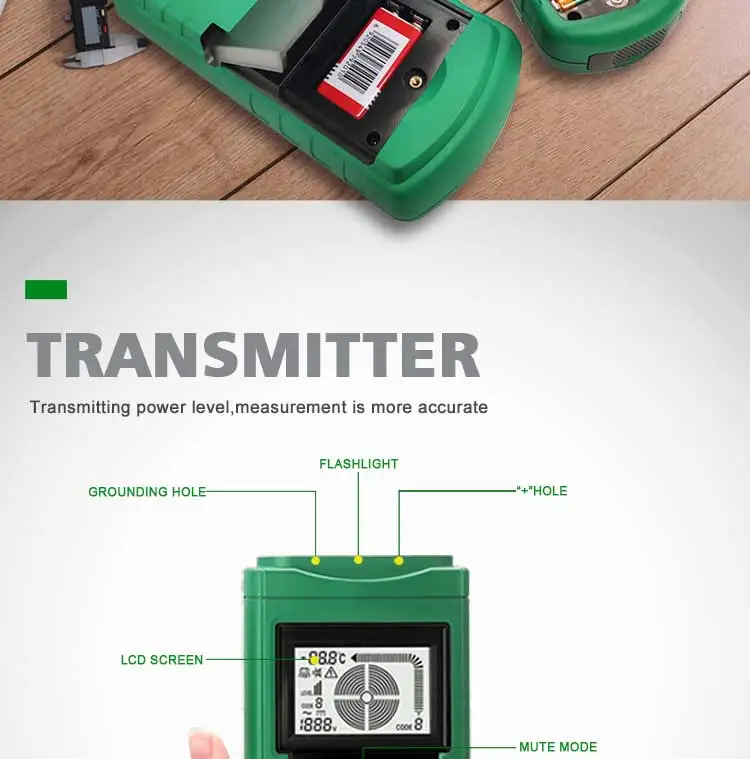

Technical Parameter of Receiver		Technical Parameters of Transmitter
Depth of Tracking	The Depth of Tracking Depends on the Material and Specific Applications	Output Signal	125kHz
Cable	Single pole application:about 0~2m	External Voltage	DC12~400V AC12~400V(50~60Hz)±2.5%
Locating	Dual pole application:about 0~0.5m	Fuse	F0.5A 1000V
Mode	Single loop line:Up to 2.5m	MIN Current	about 31mA
MIN Current	About 32mA	MAX Current	about 115mA
MAX Current	About 89mA	In Work	0~40ºC,with max relative humidity of 80%
In Work	0~40ºC,with max relative humidity of 80%	In Storage	-20~60ºC,with max relative humidity of 80%
In Storage	-20~60ºC,with max relative humidity of 80%	Altitude	<2000m
Altitude	<2000m	Product Size	190mm*89mm*42.5/7.48"*3.5"*1.67"
product size	241.5mm*78mm*38.5mm/9.5"*3"*1.5"	Product Weight	420g/0.92lb

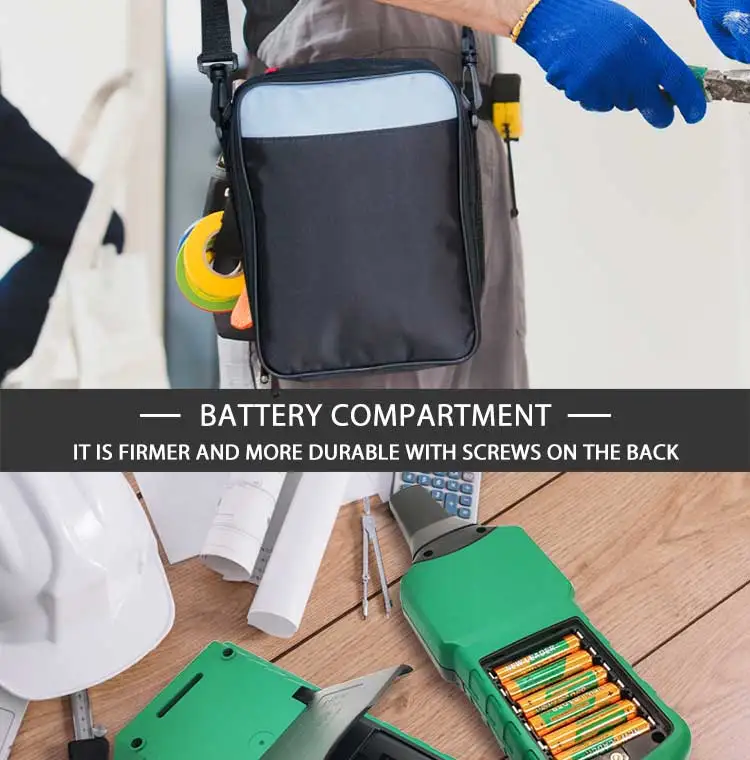

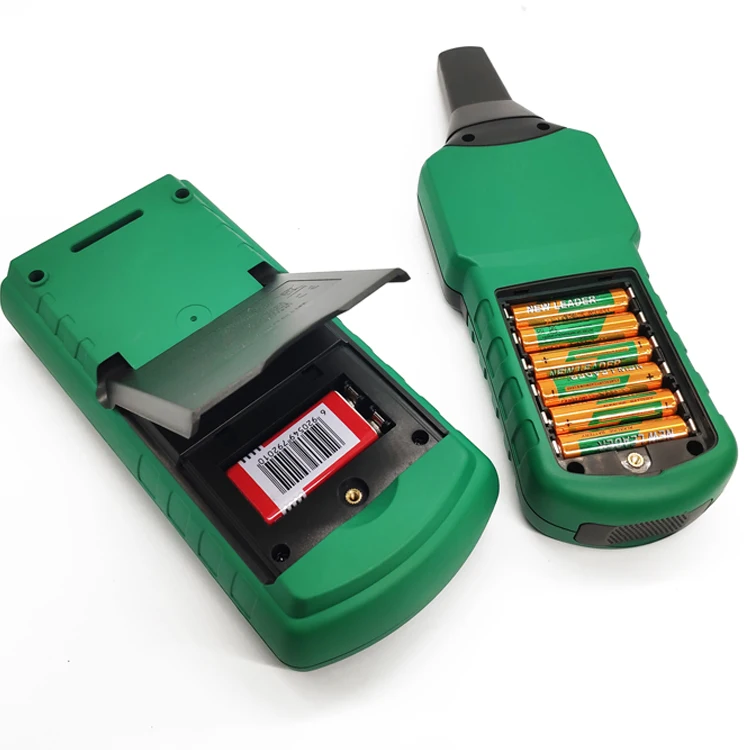

product weight	350g/0.77lb	Power Supply	1*9V 6F22 Battery
power supply	6*1.5V AAA Battery
