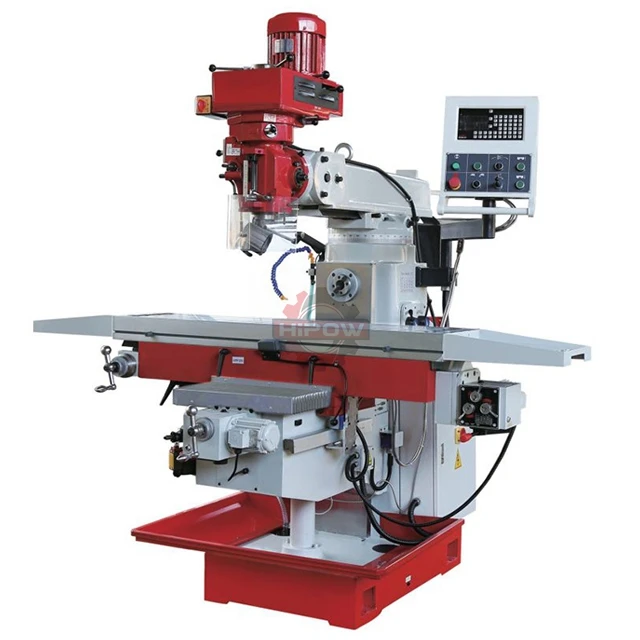

High precision Horizontal Vertical Turret radial milling machine X6333 price
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (62004559680):
Product Overview
Description
Product Description
 |
| High precision Horizontal Vertical Turret radial milling machine X6333 price |
 |
Main Feature 1. 5HP ISO40 Precision milling head 3. X/Y/Z Travel:1000/380/450mm 4. X,Y Axis Feed by AC Servo Motor 5. Torque of X/Yaxis AC servo motor is 6 N.m 7. Combined Control Panel 8. Pnuematic draw bar can be installed |

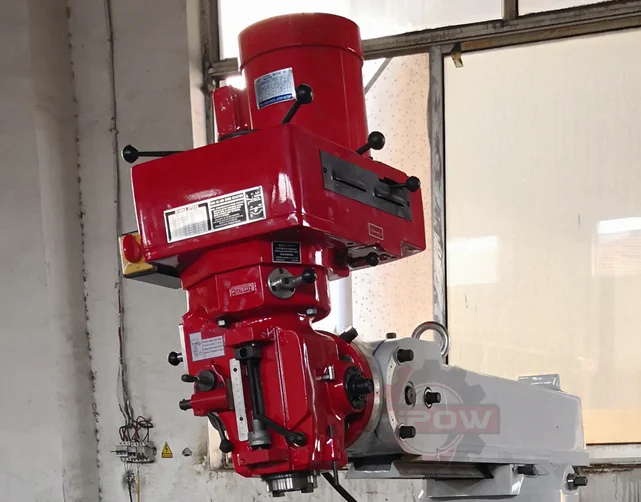

1. NT40 5HP Speed Head with Pneumatic Draw Bar
1)5HP NT40 High Speed Head
2)Taiwan original high quality milling head
3)Turret milling head can install pnuematic draw bar to change cutter automatically
4)pnuematic draw bar is opitonal

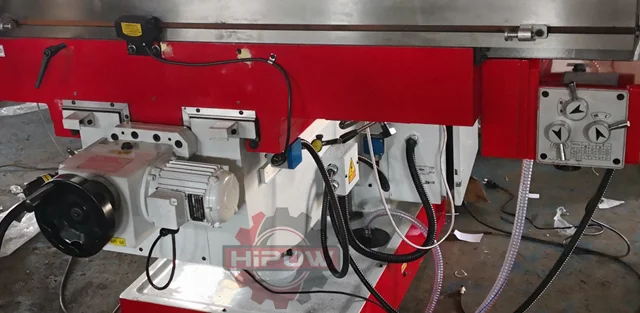

2. X/Y Axis Feed By Servo Motor
1). Torque of X/Y axis AC servo motor is 6 N.m
3. Combined Control Panel
1) DRO and switchs are intergrated in one panel makes the machine easy to operate .
2) X,Y,Z axis DRO is opitonal
4. Big Worktable,Big Spindle Taper, Long Travel
1). Worktable size: 1500x330mm
2).X/Y/Z Travel:1000/380/400mm
3).X,Y,Z 3 Axis Feed by AC Servo Motor
 |
Specifications | unit | X6333 | |
Table size | mm | 1500*330 | |
Table travel (X/Y/Z) | mm | 1000*380*400 | |
Rapid speed of table (X/Y) | Mm/min | 1500/1500 | |
Spindle taper | Vertical axis | -- | NT40 |
Horizontal axis | |||
Table feed(X/Y) | mm/min | 20-1500 | |
Distance between horizontal nose and table surface | mm | 0-400 | |
Distance between spindle axis and ram surface | mm | 230 | |
Spindle speed range(50HZ) | Vertical axis | r/min | 50-3750(Variable) |
Vertical axis | 66-4540(16 grade speeds) | ||
Horizontal axis | 45-1318(12 grade speeds) | ||
T – slot (NO./width/pitch) | mm | 3/18/85 | |
Arm travel | mm | 550 | |
Main motor power | Vertical axis | HP | 5kw |
Horizontal axis | 5.5kw | ||
Torque of X/Y axis AC servo motor | N.m | 6/6 | |
Overall size | mm | 2500*1800*2250 | |
Net weight | kg | 2200 | |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
