Indoor Floor Heating Equipment ENERPIA Electric Floor Heating Cable No Equipment Piping Required No Soot and Gas

Product Overview

Description





What is the Non-Magnetic Heating Cable?



It is a form of heating system with utilizes heat conduction and radiant heat for indoor climate control. Heat can be provided by electric cable instead of a boiler or a water circulation motor and its installation is easy. Dry or humid heat as the 21st century energy efficient heating system delivers to the entire room and the people without any harmful effects due to 7.5 mm heat conductor, double coated PE cable, and the electromagnetic wave preventing screen.

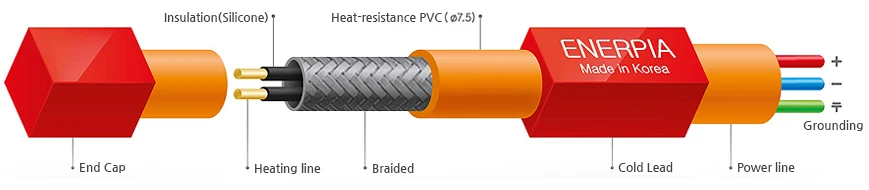

Structure of floor heating cable









Benefits & Usage

• Ground return(Earth return) to improve safety


• Non-magnetic, Single point power connection to increase work efficiency


• Fasting heating for non residential building


• Easy and economical to install and operate ideal for an accommodation


• School, Office, Restraint, Work place, Night watchman's room, Waiting room, Dormitory, Rest area, Security office, etc.


• Auditorium, Conference room, Swimming pool, Barn, Aqua Farm, Greenhouse Heat.

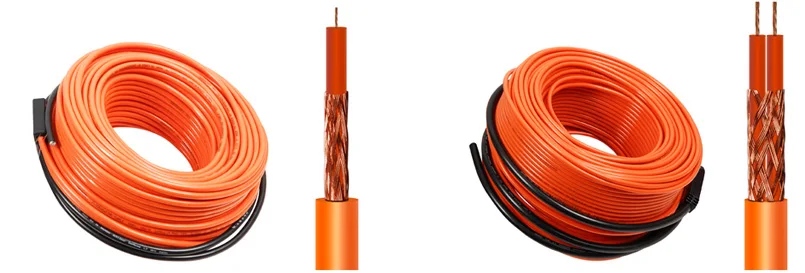

Specifications Underfloor Heating Cable(Dual)



Model No.	Power(w/h)	Dimensions	Apply Area(m2)	Remarks
EP25W11L	275w/h	11m x Ø7.5mm	1.65m2	25W/M 7 Core Double Line Heating Conductor : 2 string Non-Magnetic Copper / PVC Copper Braided Thickness 7.5mm
EP25W22L	550w/h	22m x Ø7.5mm	3.30m2
EP25W33L	825w/h	33m x Ø7.5mm	4.95m2
EP25W44L	1100w/h	44m x Ø7.5mm	6.60m2
EP25W55L	1,375 w/h	55m x Ø7.5mm	8.25m2
EP25W66L	1650w/h	66m x Ø7.5mm	9.90m2
EP25W77L	1,925 w/h	77m x Ø7.5mm	11.55m2
EP25W88L	2200w/h	88m x Ø7.5mm	13.20m2
EP25W110L	2750w/h	110m x Ø7.5mm	16.50m2

Specifications Underfloor Heating Cable(Single)


Model No.	Power(w/h)	Dimensions	Apply Area(m2)	Remarks
EP20W14C	280w/h	14m x Ø5.5mm	1.65m2	20W/M 7 Core One Line Heating Conductor : 2 string Non-Magnetic Copper / PVC Copper Braided Thickness 5.5mm
EP20W21C	420w/h	21m x Ø5.5mm	2.60m2
EP20W29C	580w/h	29m x Ø5.5mm	3.60m2
EP20W35C	700w/h	35m x Ø5.5mm	4.30m2
EP20W49C	980w/h	49m x Ø5.5mm	6.00m2
EP20W56C	1120w/h	56m x Ø5.5mm	6.90m2
EP20W70C	1400w/h	70m x Ø5.5mm	8.60m2
EP20W105C	2100w/h	105m x Ø5.5mm	13.20m2
EP20W140C	2800w/h	140m x Ø5.5mm	16.50m2



Construction cross-section



Construction procedure

1. Design blueprint	2. Install insulating materials	3. Install wire mesh
4. Wiring heating cable	5. Performance test	6. Cement mortar
7. Install finishing materials	8. Install thermostat
