JT2 2 Tin ore Mining Machine Jig Concentrator for Tin Ore Separation Plant In Zimbabwe (62004774284)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Jig Separator

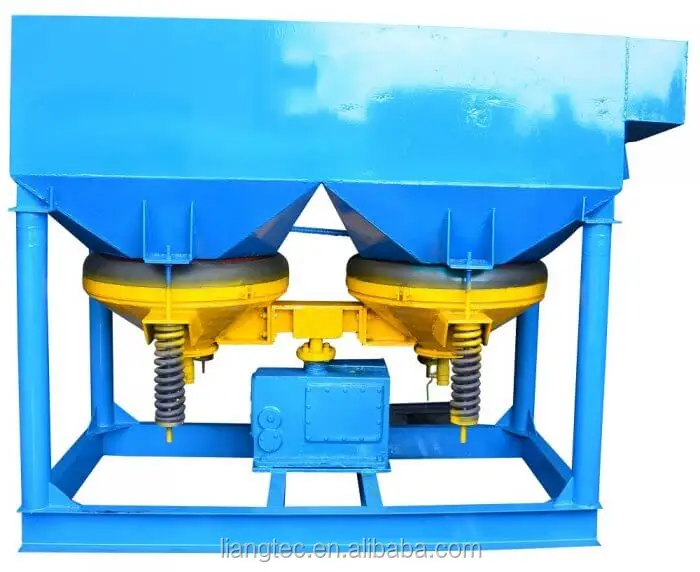

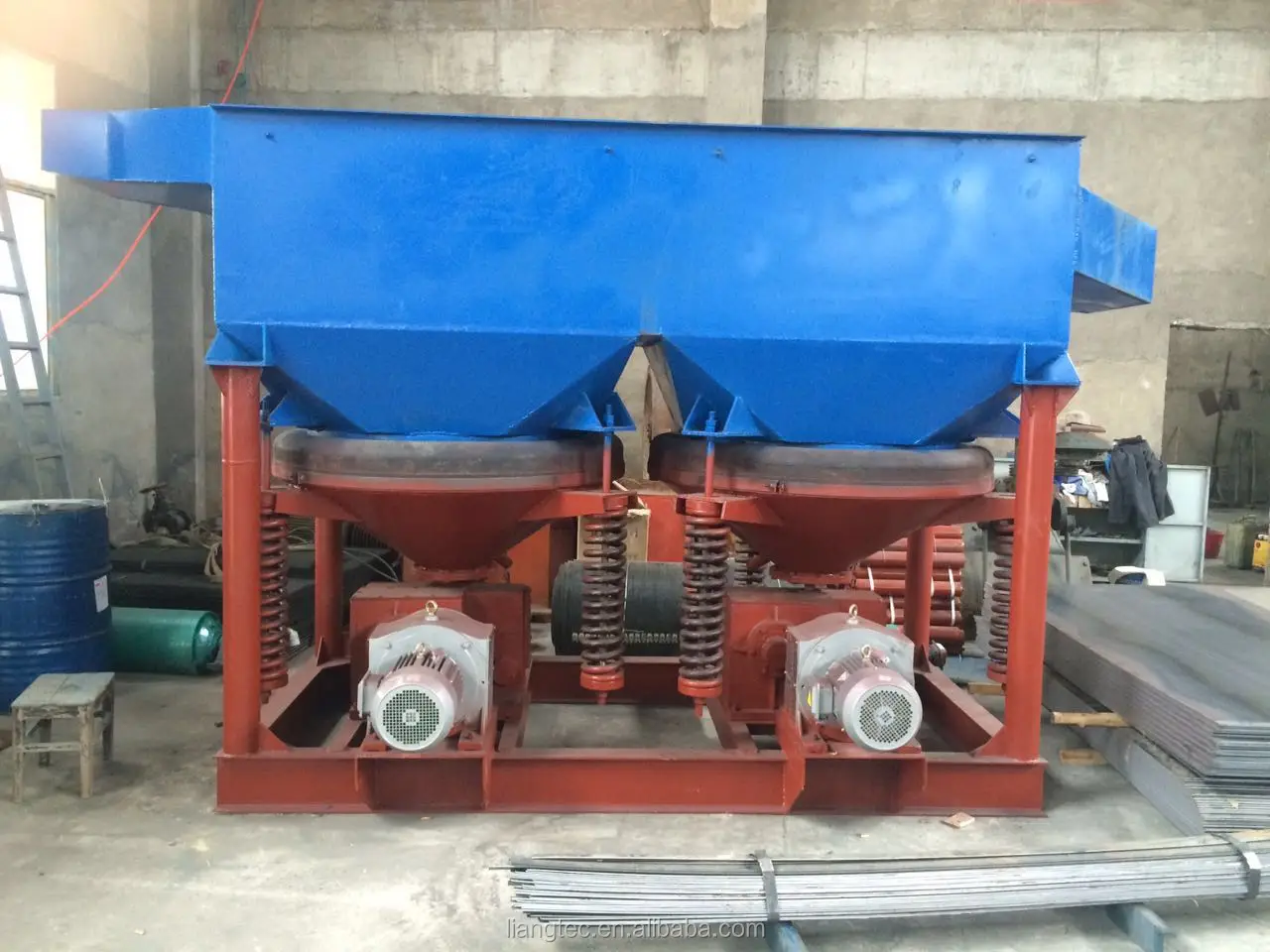

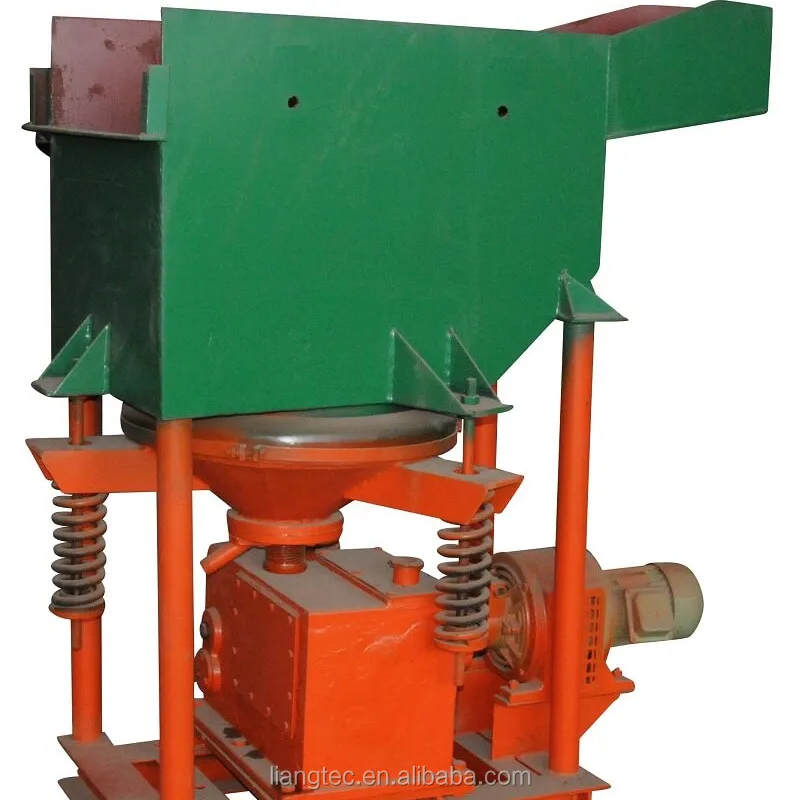

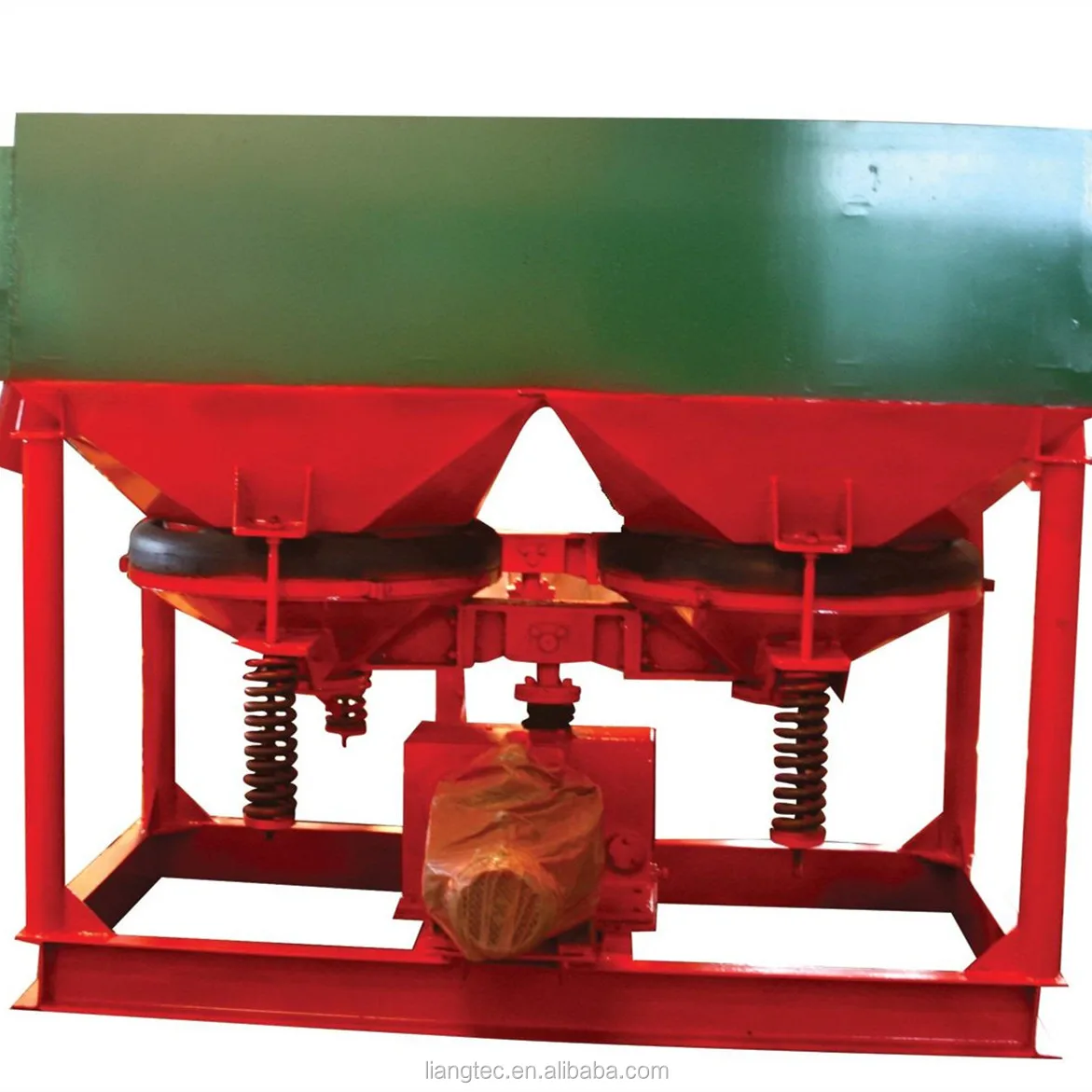

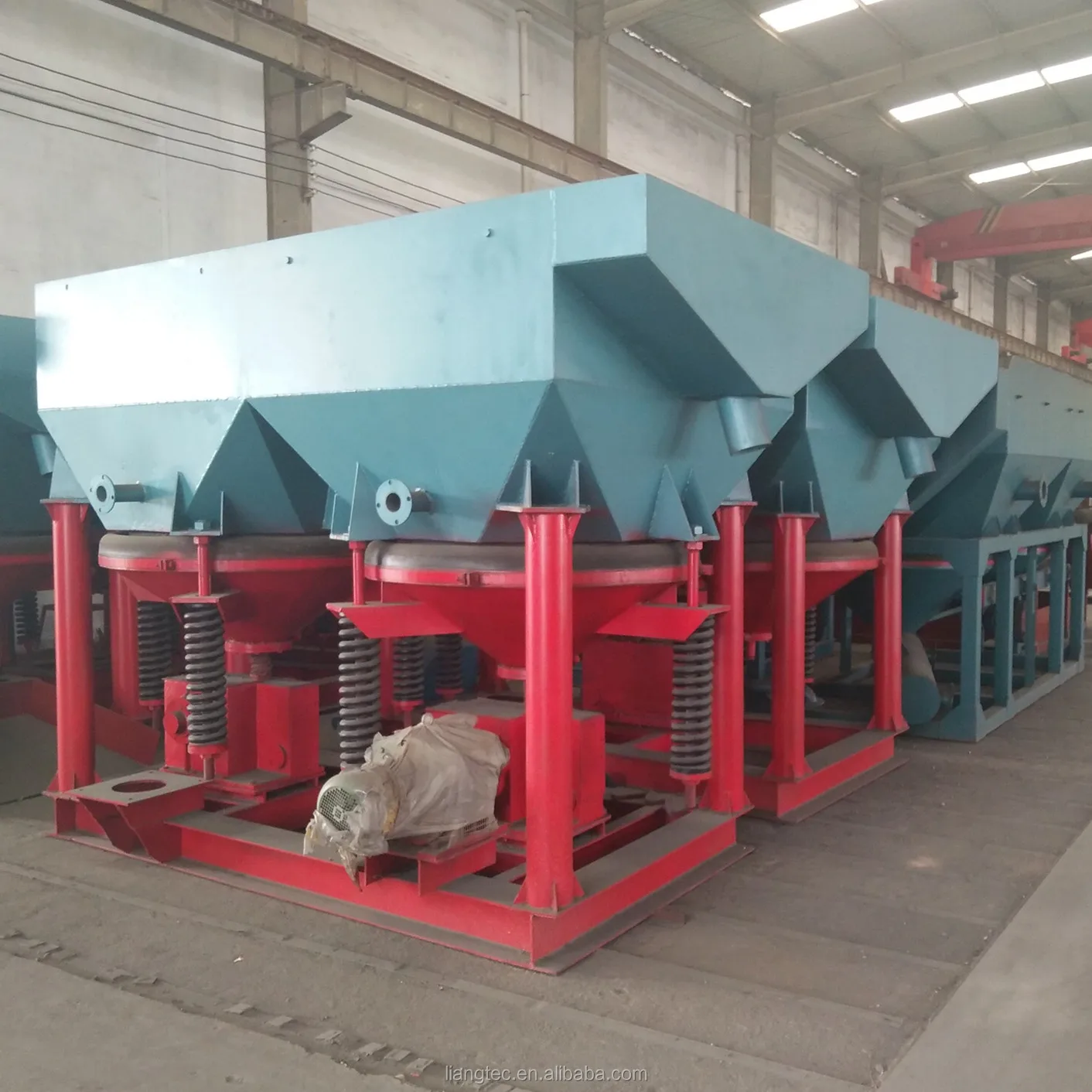

JT2-2 Tin ore Mining Machine Jig Concentrator for Tin Ore Separation Plant In Zimbabwe

Our Saw-tooth Wave Jig is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine Wave Jig. The difference between Saw-tooth Wave Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for under size fraction.
In practice, contrast of Saw-tooth Wave Jig and Sine Wave Jig shows up raises of recovery of Saw-tooth Wave Jig: Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%.

Jig Concentrator Advantages and Characteristics

1 High capacity
2 High concentration ratio and high recovery
3 Easy to install, operate and maintain
4 The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5 Saving water 30-40% than ordinary jig
6 The pulsation speed very easy adjusted by regulator
7 Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc

Working Principle of  Jig Concentrator

The crushed crud ore enters the jig separator with appropriate particle size, then evenly enters into feed chute through the feeding device, the down moving swing link does up and down moves in the eccentric link system during operation of the down moving jigger. Users can adjust the up and down moving distance by adjusting the amount of eccentricity of the eccentric shaft, adjust the stroke by adjusting the motor speed. The pendulum does the regular swing up and down and drives the movement of eardrum and vertebral body, thus make the water flow in the jigger moves up and down regularly. The water flow of the jig separator is sine wave pulsating flow due to the sine wave curve generated by eccentric Link system. Sine wave pulsation curve makes the water flow in the jigger to form a vertical alternating force, so the ore mensity ore particles settling down to the bottom layer quickly in the water flow, while the low density ore particles settling slowly in the upper layer the small density of the mineral particles in the flow. Since the differences in the density, the low density material can not penetrate the dense material layer, so there appears two material layers and heavy minerals go through the sieve into the groove, light mineral enters into the tailings tank and is discharged from the jigger. The ore materials are fed into the jig separator continously, being separated, then discharged. This is the whole jigging beneficiation process.aterial entered the tank is re-layered into different layers under the vertical alternating force.


Related Products

Lab melting furnace

It's the best choice for melting some of metals,such as gold,silver,stainless steel,copper,aluminium,etc.

Lab melting furnace

It's the best choice for melting some of metals,such as gold,silver,stainless

steel,copper,aluminium,etc.

Lab pulverizer

It is a kind of small lab grinding

machine to grind the material of

sample ore into powder.

\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t

Ganzhou Li Ang Machinery Co.,Ltd. was founded in 1988.
We specialize in mining machine including shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect.
We also do research and manufacture various laboratory pretreatment equipment,such as lab crusher,lab ball mill&grinder,lab flotation machine,lab gravity separation equipment,lab sample pulverizer,lab crusher divider,lab hammer crusher divider,lab jaw crusher divider,lab magnetic separator,lab leaching agitator,lab rotary kiln,lab vacuum filter,lab drying machine,lab screening&classification machine,smelting furnace and other lab equipment.
Our machines are applied to separate GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
And our equipments are also mainly used in laboratory of university, government environmental protection agency, third-party test company and mine company.
Over the years we won a very good reputation from overseas customers.We believe it is our excellent product quality, reasonable prices and excellent service that make us won a lot of customers and also their recognition.
Believe us! We are your relieable parter and ideal choice!

Pre-Sales Service:

1.We can help you select equipment model and design resonable and complete production line flow according to clients's requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients' requests.
4.We can supply the technical parameters of the equipment.

After-Sales Service:

1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.

3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.

5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.

Q1: For providing you the suitable quotation we need to know the following information:

1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.

Q2: Do you provide ODM/OEM service?

A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.

Q3. What warranty do you give for your machine?

A:---We can supply spare parts .
   ---The quality assurance date we give is one year for the main parts after commissioning.
   ---We provide lifelong maintainence and technical support.

Q4.What is your Payment Terms?
A: We usually the follwoing payment terms.

Q5:What's your means of transportation?
A:We have these means of transportation as below.

Q6. What is your delivery time?
A:Pls find the answers as below.

\t
Product
\t
Lead time
\t
shaking table
\t
<=10days
\t
laboratory mining equipment
\t
<=10days
\t
large mining equipment
\t
30-40 days.
\t
customized machine
\t
30-40 days.
\t
Tip:Exact delivery shall be confirmed when placing the order.
