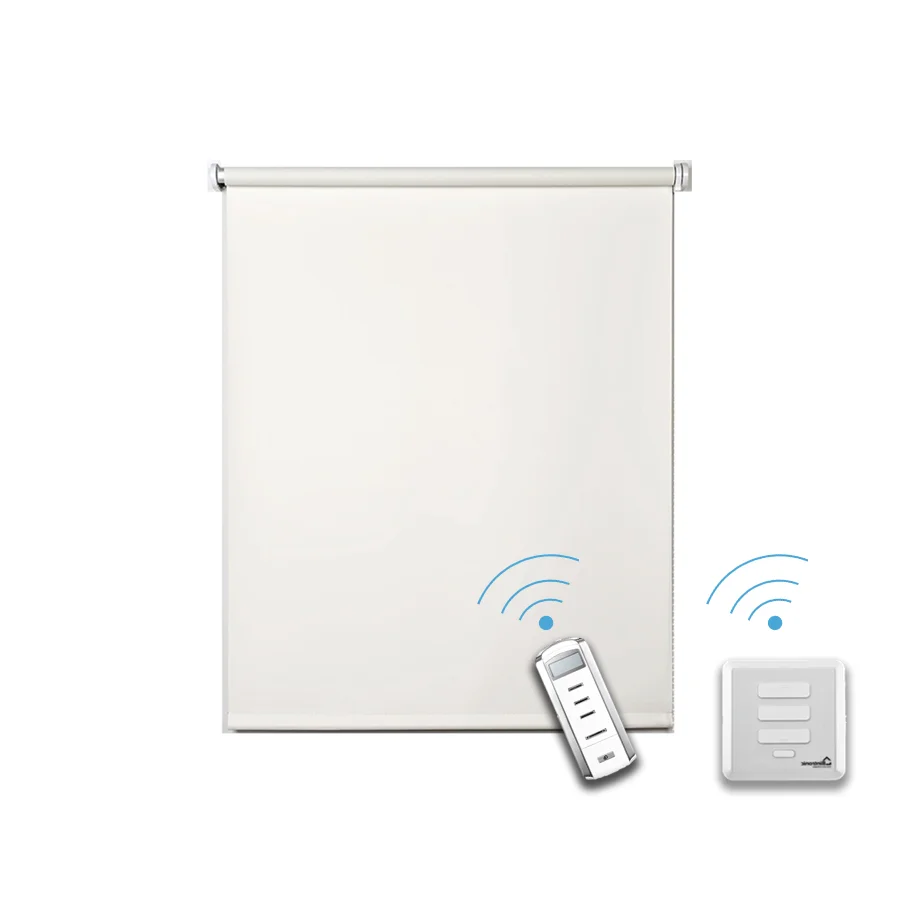

mechanism roller motor blinds motor projection screen
- Category: Projection Screens >>>
- Supplier: BINTRONIC ENTERPRISE CO. LTD.
Share on (62005043017):
Product Overview
Description
Product Description

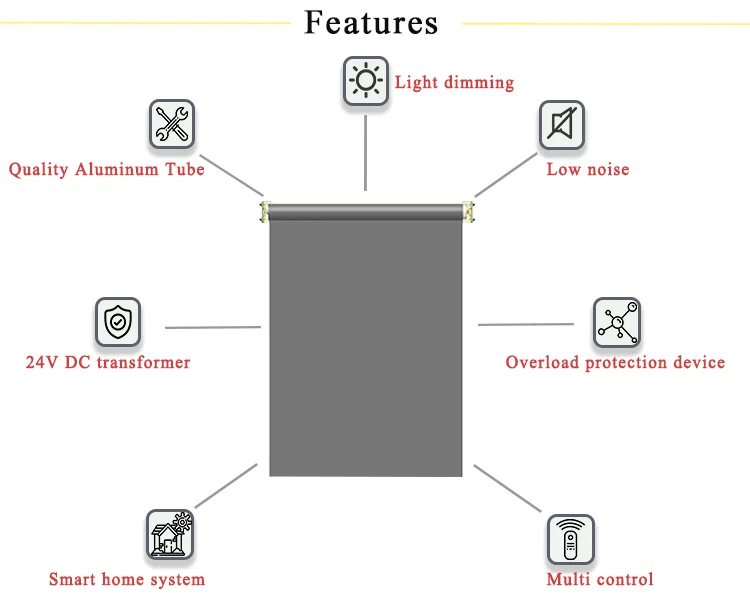

Features
Low Noise - Smooth and quiet operation
Quality Aluminum Tube - Hight quality aluminum tube
Light Dimming - Providing the elegant and convenient control of daylight
24V DC Transformer - Reliable and safe DC transformer
Smart Home System - Able to be integrated with smart home sysytem
Overload Portection Device - Safety device of overload protection
Multi Control - Able to control the individual or groups of blinds
Technical Data
DC motor
DC Motor Types | DC B40 | DC B50 |
Working Voltage | DC 24V, 1A | DC 24V, 1A |
Radio Frequency | 433.92MHz, ASK | 433.92MHz, ASK |
Load Capacity | 5Kgs (Max.) | 5Kgs (Max.) |
Range of Remote Control | 30M | 30M |
Diameter of Motor | Φ35mm | Φ45mm |
Diameter of Outer Tube | Φ 41mm, Φ 47mm,Φ 55mm | Φ 44mm, Φ 70mm |
AC motor
AC Motor Types | AC D40 | AC D50 | ||||
Working Voltage | 230V/50Hz | 120V/60Hz | 230V/50Hz | 120V/60Hz | ||
Rated Torque(Nm) | 6 | 6 | 10 | 10 | ||
Rated Speed(rpm) | 28 | 33 | 12 | 19 | ||
Rated Power(W) | 127 | 105 | 117 | 135 | ||
Rated Current(A) | 0.55 | 0.88 | 0.45 | 1.08 | ||
Overheat Protection(Min.) | 4 | 4 | 4 | 4 | ||
Detailed Images

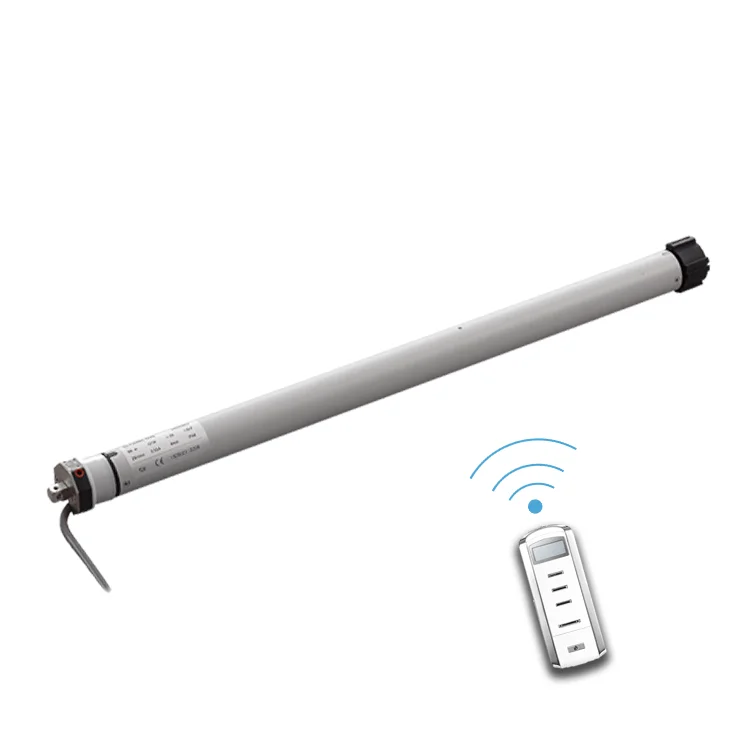

AC Motor

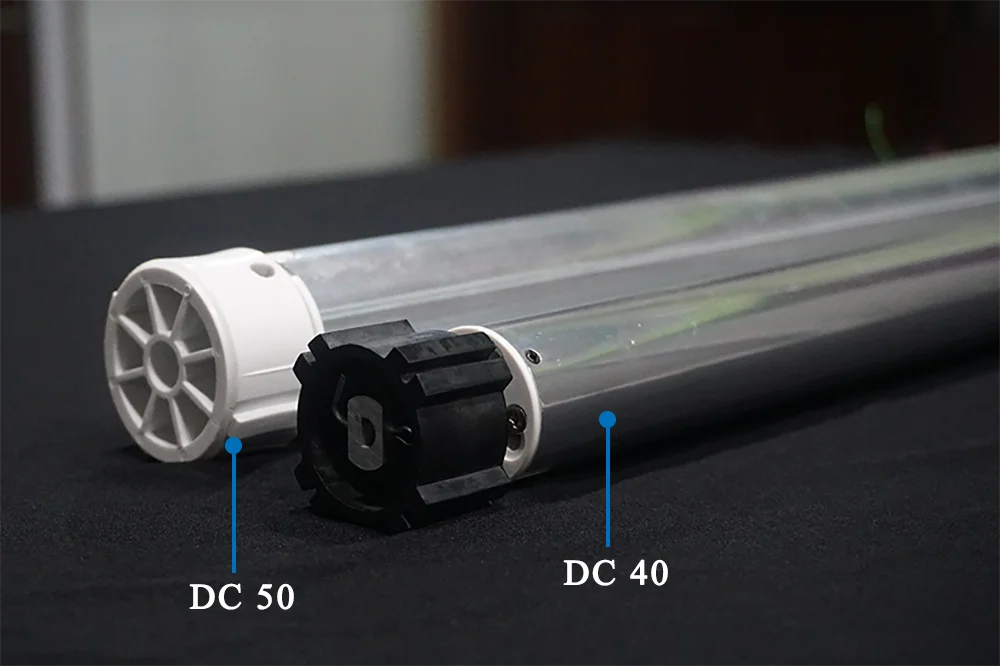

DC40 / DC50
DC40 Bracket
DC50 Bracket
Aluminum Tube
End Cap

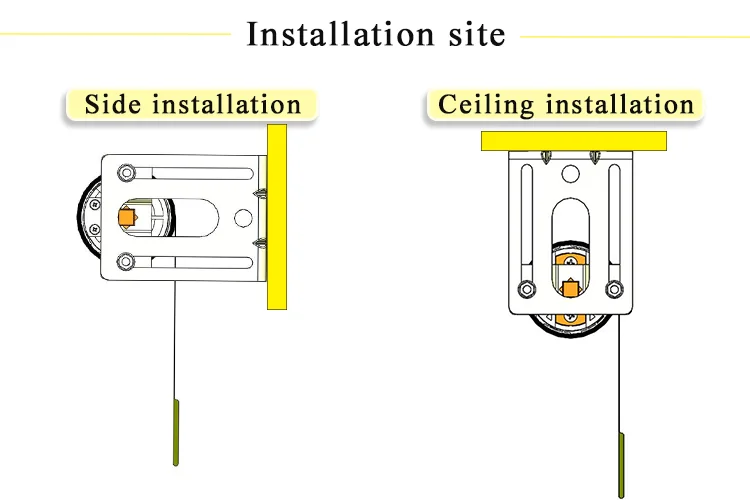

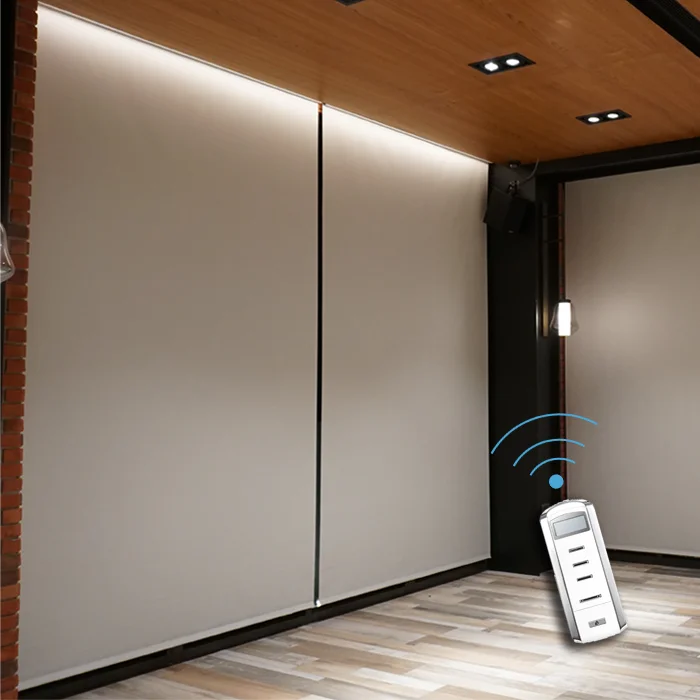

Installation Site
There are two way to install the roller blinds
1.Side installation on the wall2.Ceiling installation on the ceiling
Remote Control
Control type | Model | Radio Frequency | Battery | Channel & buttom |
Remote Control | B96-1 | 433.92 MHz, ASK | DC 3V | (1)Single Channel |
Remote Control | (1)B03 (2)B95-4 | 433.92 MHz, ASK | DC 3V | (1) 16 Channel (2) 32 Channel |
Touch Panel Remote Control | 433.92 MHz, ASK | AA*2 pcs | ||
Wall Panel | (1) BT-129A (2) BT-129A4 | 433.92 MHz, ASK | DC 3V | (1)Single Channel, 4 Keys (2)4 Channel, 4 keys |
Wall Panel | BT-129B2 | 433.92 MHz, ASK | DC 3V | (1)2 Channel, 6Keys |

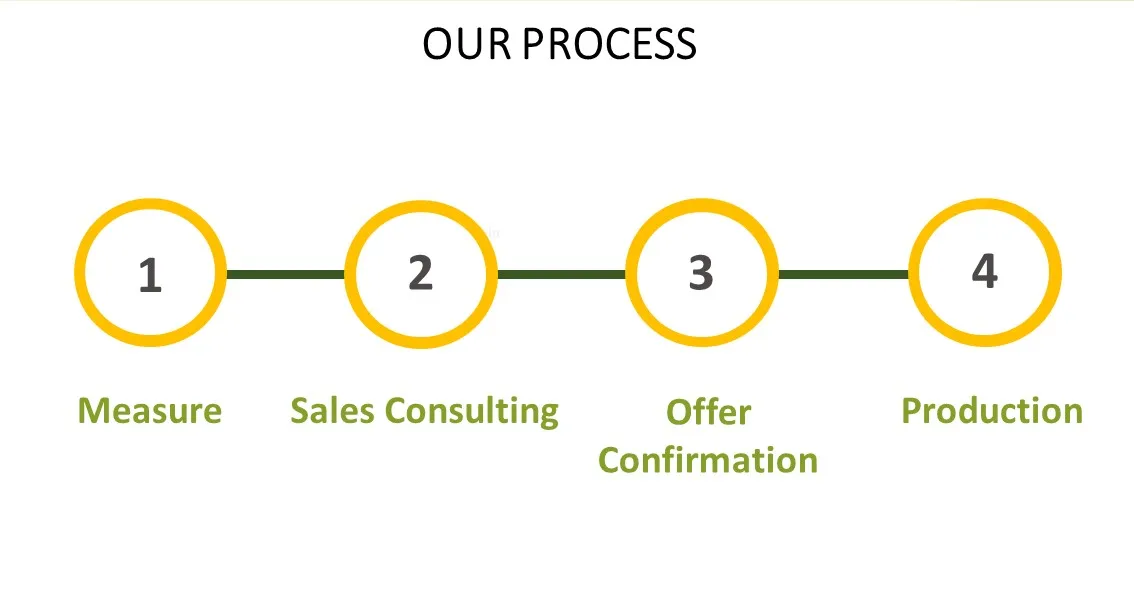

Our Process
About us

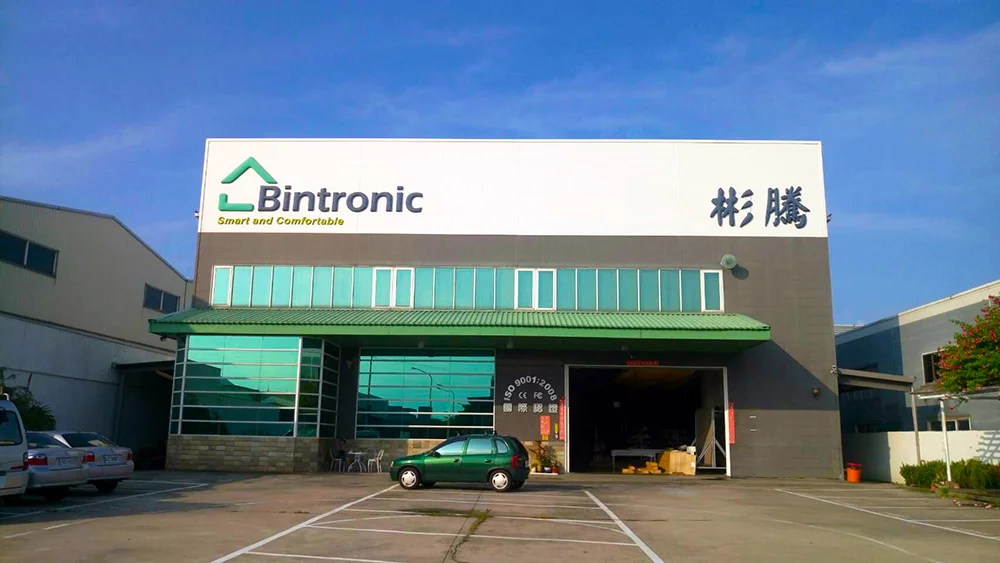

About Us
Bintronic was founded in 1989 in Taiwan, dedicated to developing on smart home products over 30 years experience. Since accessing to the home automation market, we have been engaged in the manufacture and production of electric roller shutter remote control, electric curtain and home automation system.
In the future, Bintronic will lead the innovation of curtain technology and continue to produce exclusive electric curtain boutique made in Taiwan.
In the future, Bintronic will lead the innovation of curtain technology and continue to produce exclusive electric curtain boutique made in Taiwan.
Our Advantages
Our Services
-Quality assurance :
*ISO9001 and CE quality approved
*Standard and strict leave-factory check
-Services:
*Sample order is acceptable.
*Customize the length of electric curtain track
*Generally, product delivery time takes 7-14 working days, depending the goods quantity you order
-Rich Experience:
*More than 30 years manufacture experience
*We have our own R&D team and factory
*We produce our private brand motor in our motorized curtain
